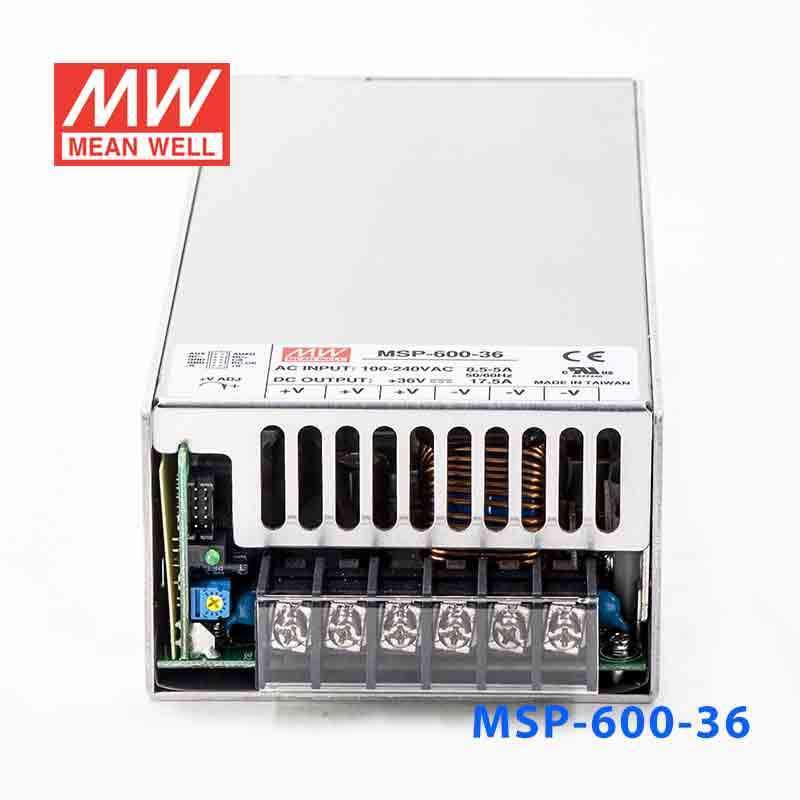

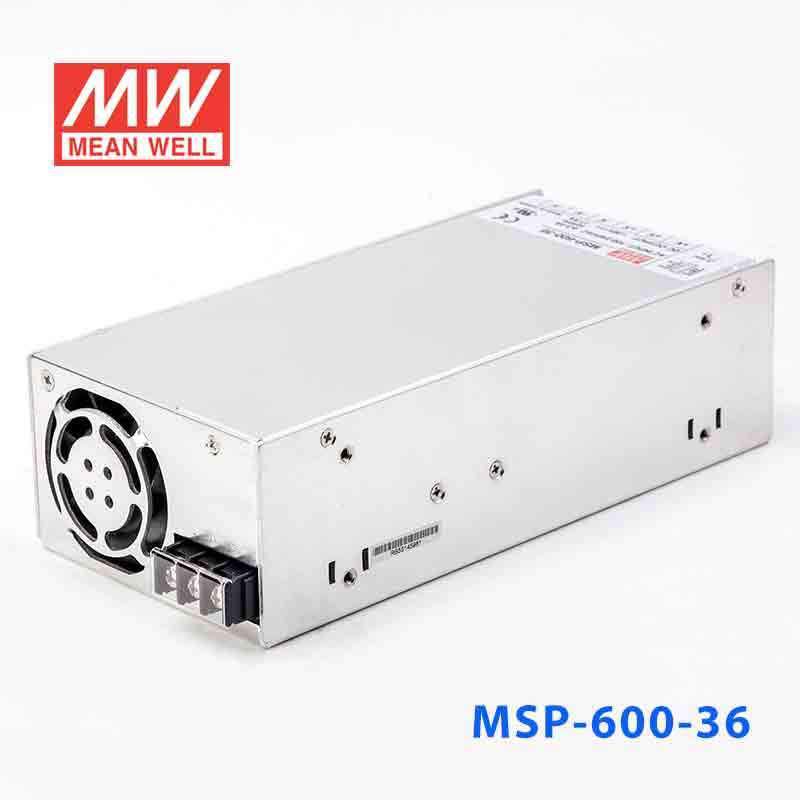

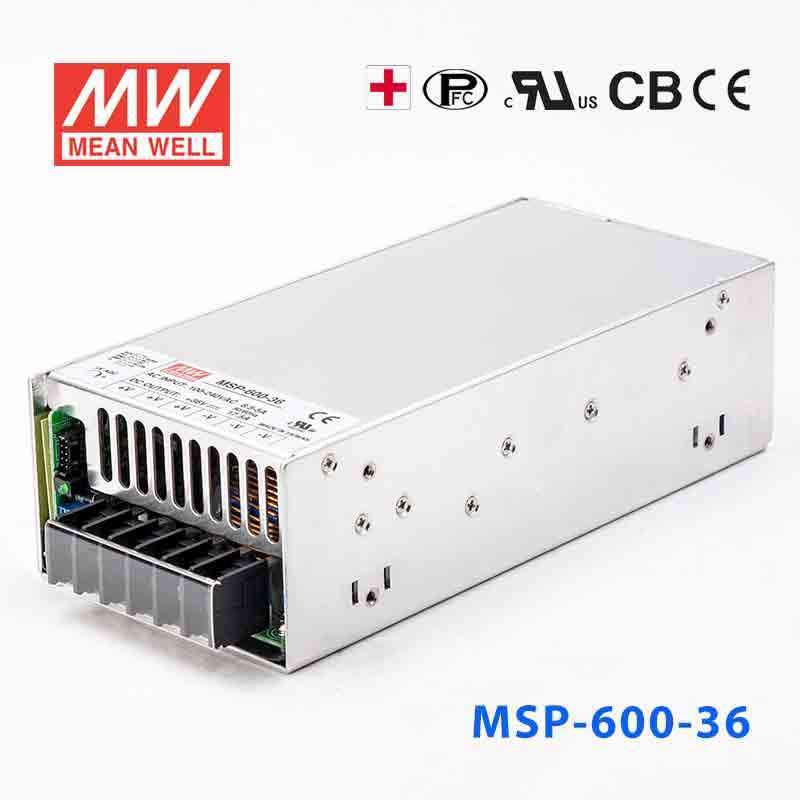

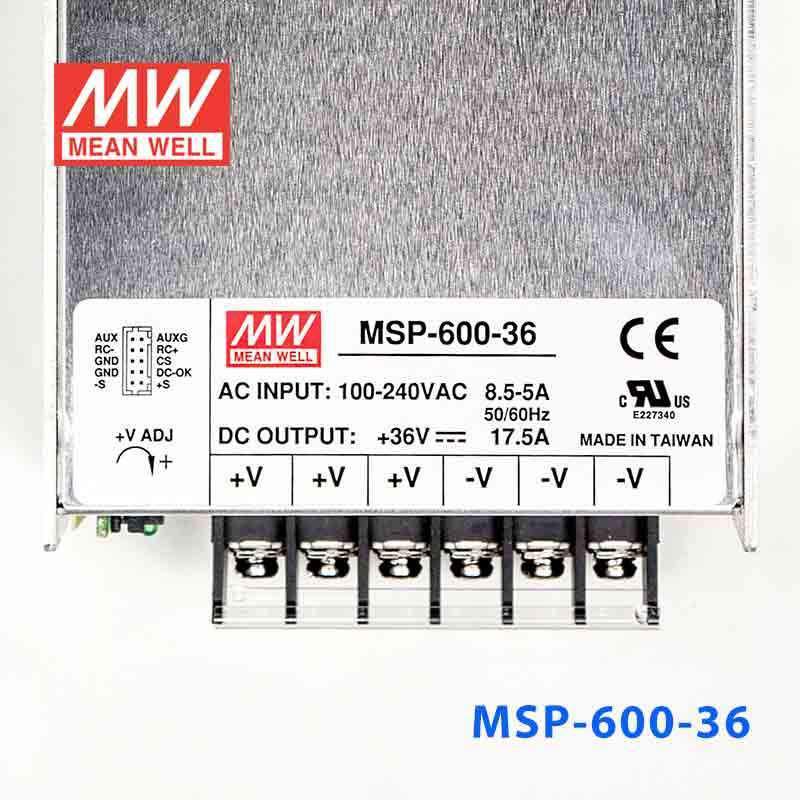

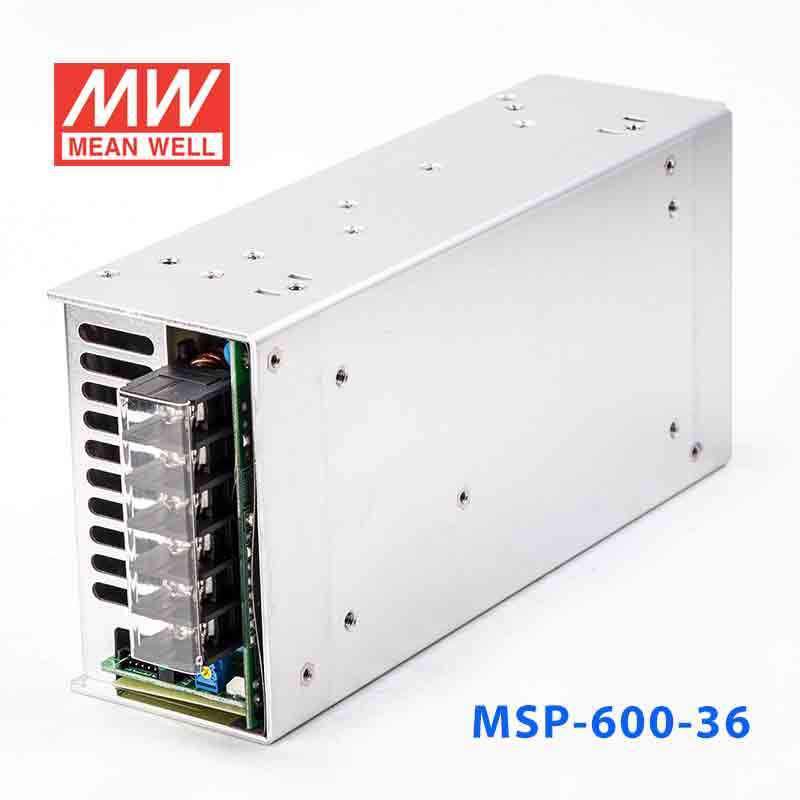

Mean Well MSP-600-36 Power Supply 630W 36V 17.5A

Name: Mean Well MSP-600-36 Power Supply 630W 36V 17.5A
Brand: Mean Well
SKU: MSP-600-36
Price: 211.91 USD
Availability: InStock

built-in active PFCmedical safety approvedhigh efficiencyno load power consumption < 0.5~0.8W

SKU MSP-600-36

$211.91 USD

Shipping calculated at checkout.

Select model — 5 in this family

MSP-600-36

MSP-100-36 100W 36V Low stock$62.05 USD

MSP-200-36 200W 36V Backorder$100.89 USD

MSP-300-36 300W 36V Low stock$138.77 USD

MSP-450-36 450W 36V Low stock$189.87 USD

MSP-600-36 600W 36V Backorder$211.91 USD

Product variants

Available to order

Overview

MSP-600-36 is the 36V output model of this series: rated current 17.5A, rated power 630W, typical efficiency 89%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.94
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Medical safety approved (MOOP level)
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote ON-OFF control
Standby 5V@0.3A
Built-in remote sense function
No load power consumption<0.8W (Note.7)
Current sharing up to 2400W (3+1) (24V,36V,48V)
5 years warranty

Specifications

MSP-600-36Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 17.5A
CURRENT RANGE: 0 ~ 17.5A
RATED POWER: 630W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 28.8 ~ 39.6V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 8.5A/115VAC 5A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 80A/230VAC
LEAKAGE CURRENT: Earth leakage current < 300μA/264VAC , Touch leakage current < 100μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 41.4 ~ 48.6V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY: 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
DC OK SIGNAL: PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
REMOTE CONTROL: RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off
FAN CONTROL (Typ.): Load 35±15% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2 EAC TP TC 004 approved; Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)
ISOLATION LEVEL: Primary-Secondary: 2×MOOP, Primary-Earth: 1×MOOP, Secondary-Earth: 1×MOOP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN60601-1-2 , EAC TP TC 020

OTHERS

MTBF: 138.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 218*105*63.5mm (L*W*H)
PACKING: 1.57Kg;8pcs/13.6Kg/1.34CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. No load power consumption<0.8W when RC+ & RC- (CN100 pin3,4) 0 ~ 0.8V or short.
8. When the input voltage is less than 40VAC, the SPS may exhibit degradation of performance. The final product manufacturers must re-confirm this deviation that does not affect basic safety or essential performance.
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MSP-600-36 Mechanical Specification — Mechanical Specification

MSP-600-36 Block Diagram — Block Diagram

MSP-600-36 Derating Curve — Derating Curve

MSP-600-36 Function Manual — Function Manual

MSP-600-36 M S P - 6 0 0 series — M S P - 6 0 0 series

Downloads

Datasheet1

MSP-600-36 datasheetMSP-600-SPEC.PDF · 2024-10-30 edition PDF Download

Certificates3

UL Certificate (MSP-600)(EN) PDF Download

CB Certificate (MSP-600)(EN) PDF Download

EMC Certificate (MSP-600)(EN) PDF Download

Test reports1

Test Report(MSP-600-36)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the MSP-600-36 for a 36V industrial control or automation system?

Yes, if the equipment requires constant 36V DC and total demand stays within 630W and 17.5A. That makes it a fit for 36V industrial control or automation systems that need more power than smaller 36V supplies.

Is the MSP-600-36 suitable for 36V embedded equipment or machine subsystems?

It can be used for embedded or machine-level electronics built around a 36V constant-voltage bus. The available output is 17.5A at 36V, so it supports higher-load 36V assemblies within that published limit.

Can this model be used in medical or laboratory equipment that runs on 36V DC?

This series is medical safety approved, so it can be considered where a medical or lab device requires a constant 36V input. The equipment still needs to match the 36V output and stay within the 630W and 17.5A ratings.

How much 36V capacity does the MSP-600-36 provide?

The output rating is 630W total, with 17.5A available at 36V. For sizing, both numbers matter: the connected 36V load must stay within 17.5A and within 630W.

Can the MSP-600-36 be used outdoors or in wide-temperature environments?

The specified operating temperature range is -40°C to +70°C, with output derating required at higher ambient temperatures (see the derating curve). However, no IP rating is listed in the specs, so the published data does not present it as an outdoor-exposed power supply.

How does the MSP-600-36 compare with other 36V models in the MSP series?

This sheet covers only the MSP-600 series, in which the MSP-600-36 is the 36V model at 630W and 17.5A; ratings of 36V models in other MSP wattage classes are not given here. For more 36V capacity, up to 4 units can run in parallel with active current sharing, at rated current x units x 0.9.
