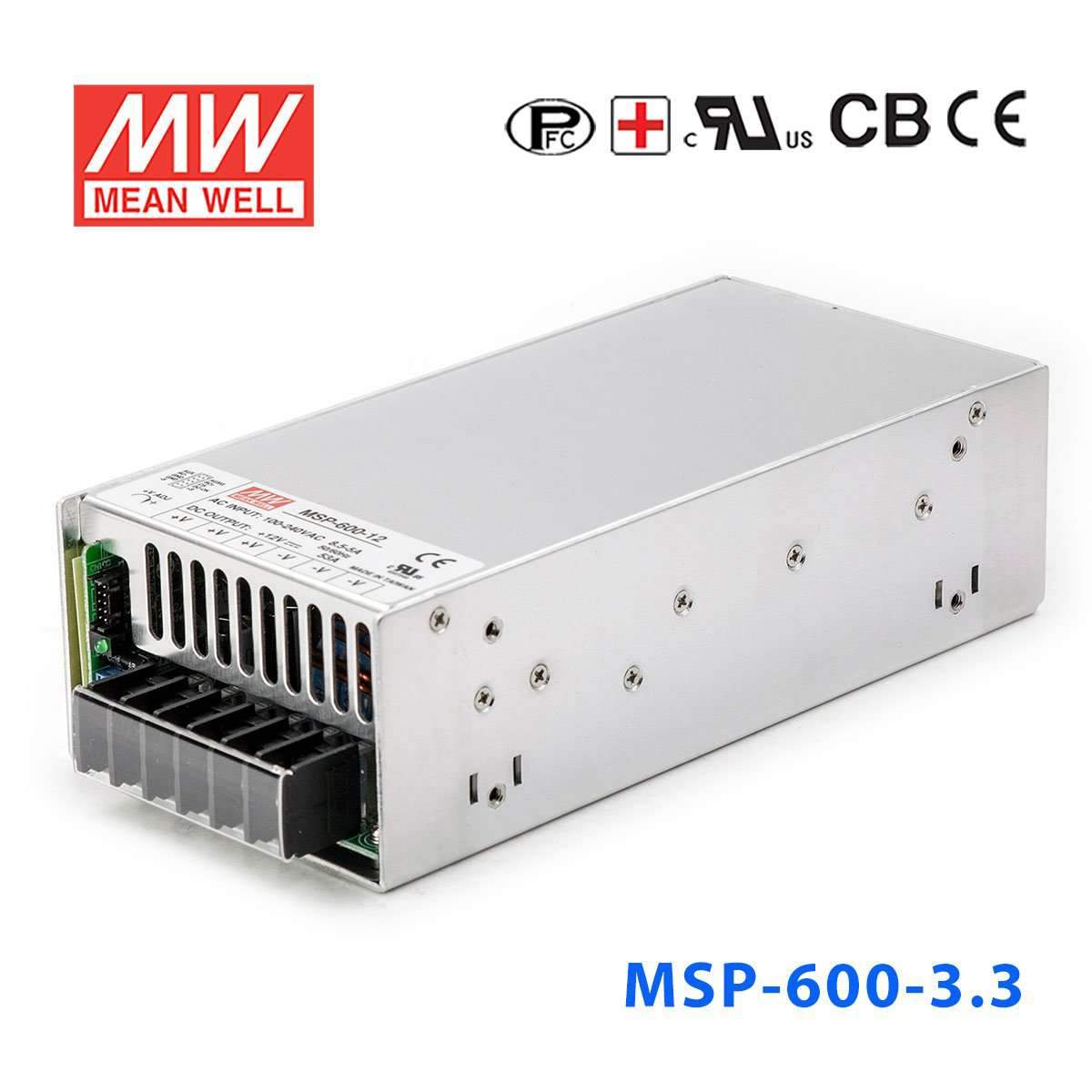

Mean Well MSP-600-3.3 Power Supply 396W 3.3V 120A

Name: Mean Well MSP-600-3.3 Power Supply 396W 3.3V 120A
Brand: Mean Well
SKU: MSP-600-3.3
Price: 211.91 USD
Availability: InStock

built-in active PFCmedical safety approvedhigh efficiencyno load power consumption < 0.5~0.8W

SKU MSP-600-3.3

$211.91 USD

Shipping calculated at checkout.

Select model — 5 in this family

MSP-600-3.3

MSP-100-3.3 100W 3.3V Backorder$62.05 USD

MSP-200-3.3 200W 3.3V Low stock$100.89 USD

MSP-300-3.3 300W 3.3V Low stock$138.77 USD

MSP-450-3.3 450W 3.3V Low stock$189.87 USD

MSP-600-3.3 600W 3.3V Backorder$211.91 USD

Product variants

Available to order

Overview

MSP-600-3.3 is the 3.3V output model of this series: rated current 120A, rated power 396W, typical efficiency 78.5%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.94
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Medical safety approved (MOOP level)
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote ON-OFF control
Standby 5V@0.3A
Built-in remote sense function
No load power consumption<0.8W (Note.7)
Current sharing up to 2400W (3+1) (24V,36V,48V)
5 years warranty

Specifications

MSP-600-3.3Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE: 3.3V
RATED CURRENT: 120A
CURRENT RANGE: 0 ~ 120A
RATED POWER: 396W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 2.8 ~ 3.8V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.): 78.5%
AC CURRENT (Typ.): 8.5A/115VAC 5A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 80A/230VAC
LEAKAGE CURRENT: Earth leakage current < 300μA/264VAC , Touch leakage current < 100μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 3.96 ~ 4.62V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY: 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
DC OK SIGNAL: PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
REMOTE CONTROL: RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off
FAN CONTROL (Typ.): Load 35±15% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2 EAC TP TC 004 approved; Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)
ISOLATION LEVEL: Primary-Secondary: 2×MOOP, Primary-Earth: 1×MOOP, Secondary-Earth: 1×MOOP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN60601-1-2 , EAC TP TC 020

OTHERS

MTBF: 138.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 218*105*63.5mm (L*W*H)
PACKING: 1.57Kg;8pcs/13.6Kg/1.34CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. No load power consumption<0.8W when RC+ & RC- (CN100 pin3,4) 0 ~ 0.8V or short.
8. When the input voltage is less than 40VAC, the SPS may exhibit degradation of performance. The final product manufacturers must re-confirm this deviation that does not affect basic safety or essential performance.
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MSP-600-3.3 Mechanical Specification — Mechanical Specification

MSP-600-3.3 Block Diagram — Block Diagram

MSP-600-3.3 Derating Curve — Derating Curve

MSP-600-3.3 Function Manual — Function Manual

MSP-600-3.3 M S P - 6 0 0 series — M S P - 6 0 0 series

Downloads

Datasheet1

MSP-600-3.3 datasheetMSP-600-SPEC.PDF · 2024-10-30 edition PDF Download

Certificates3

UL Certificate (MSP-600)(EN) PDF Download

CB Certificate (MSP-600)(EN) PDF Download

EMC Certificate (MSP-600)(EN) PDF Download

Test reports1

Test Report(MSP-600-3.3)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the MSP-600-3.3 for high-current 3.3V digital or logic systems?

Yes, this model is intended for constant 3.3V output and provides up to 396W and 120A. That makes it relevant for high-current 3.3V digital electronics, logic backplanes, or embedded hardware that needs a large 3.3V rail.

Is the MSP-600-3.3 suitable for 3.3V industrial computing or communication boards?

It can be a fit when those boards require a regulated 3.3V source and aggregate current is high. The 120A output rating is the key differentiator for systems built around heavy 3.3V distribution.

Can this power supply support 3.3V test racks or burn-in fixtures?

Yes, for test or validation environments that need constant 3.3V and significant current capacity. Its 396W total output and 120A maximum current allow it to serve dense 3.3V fixtures as long as the total load stays within those limits.

How do I size a system for the MSP-600-3.3?

The rating is 396W total at 3.3V, with up to 120A output current. It should only be used where the total 3.3V demand stays within both of those published limits.

Is the MSP-600-3.3 appropriate for outdoor or uncontrolled environments?

The unit is specified for operation from -40°C to +70°C, with output derating required at higher ambient temperatures (see the derating curve). But because no IP rating is listed, the published specs do not define it as an outdoor-rated or ingress-protected supply.

How does the MSP-600-3.3 compare to other 3.3V MSP models?

This spec sheet covers only the MSP-600 series, in which the MSP-600-3.3 is the 3.3V model, rated 396W and 120A. Ratings for 3.3V models of other MSP wattage classes are not given on this sheet, so compare against their own datasheets.
