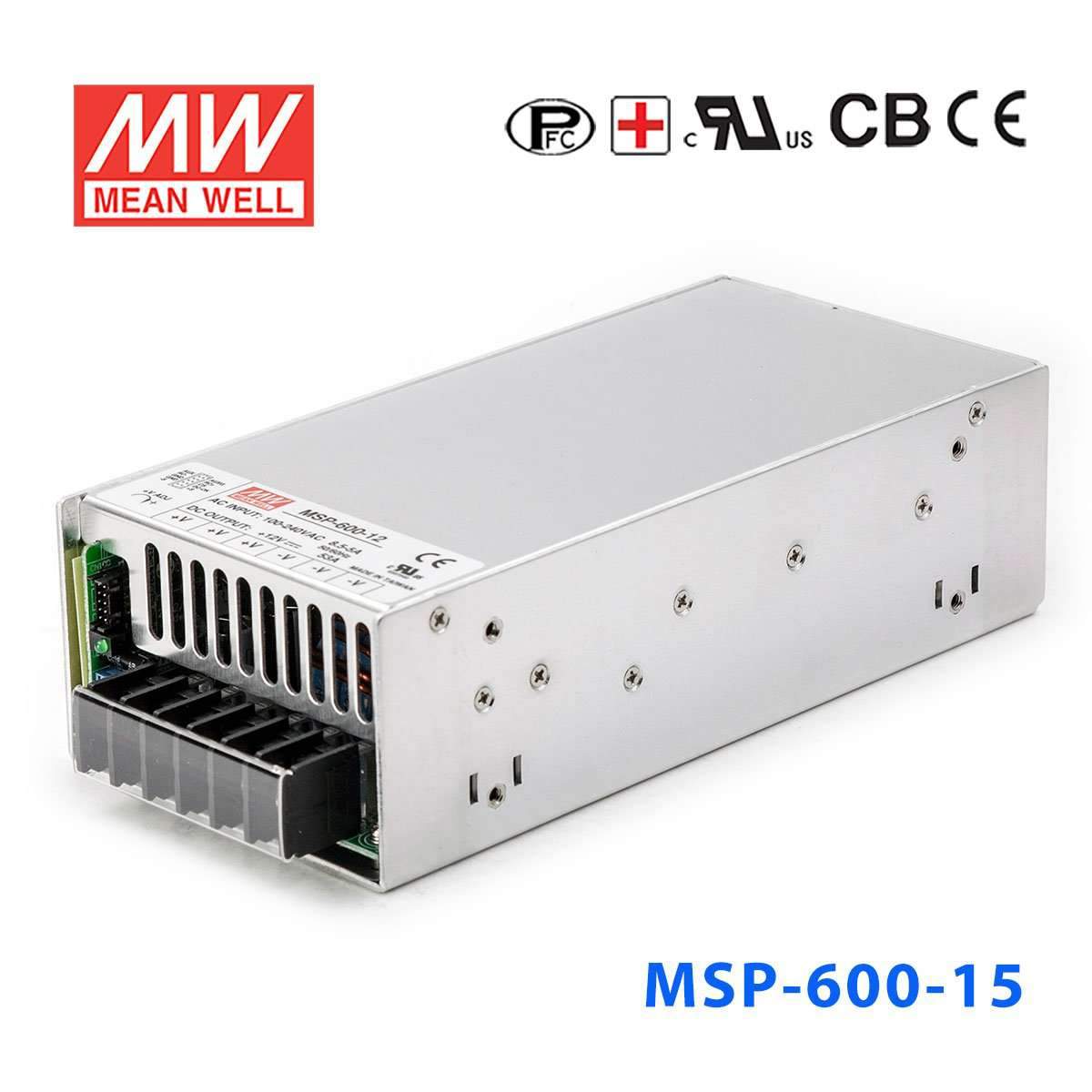

Mean Well MSP-600-15 Power Supply 645W 15V 43A

Name: Mean Well MSP-600-15 Power Supply 645W 15V 43A
Brand: Mean Well
SKU: MSP-600-15
Price: 211.91 USD
Availability: InStock

built-in active PFCmedical safety approvedhigh efficiencyno load power consumption < 0.5~0.8W

SKU MSP-600-15

$211.91 USD

Shipping calculated at checkout.

Select model — 6 in this family

MSP-600-15

MSP-100-15 100W 15V Backorder$62.05 USD

MSP-200-15 200W 15V Backorder$100.89 USD

MSP-300-15 300W 15V Low stock$138.77 USD

MSP-450-15 450W 15V In stock$189.87 USD

MSP-600-15 600W 15V Backorder$211.91 USD

MSP-1000-15 1000W 15V Low stock$261.06 USD

Product variants

Available to order

Overview

MSP-600-15 is the 15V output model of this series: rated current 43A, rated power 645W, typical efficiency 88%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.94
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Medical safety approved (MOOP level)
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote ON-OFF control
Standby 5V@0.3A
Built-in remote sense function
No load power consumption<0.8W (Note.7)
Current sharing up to 2400W (3+1) (24V,36V,48V)
5 years warranty

Specifications

MSP-600-15Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 43A
CURRENT RANGE: 0 ~ 43A
RATED POWER: 645W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 13.5 ~ 18V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.3%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.): 88%
AC CURRENT (Typ.): 8.5A/115VAC 5A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 80A/230VAC
LEAKAGE CURRENT: Earth leakage current < 300μA/264VAC , Touch leakage current < 100μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 18.8 ~ 21.8V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY: 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
DC OK SIGNAL: PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
REMOTE CONTROL: RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off
FAN CONTROL (Typ.): Load 35±15% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2 EAC TP TC 004 approved; Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)
ISOLATION LEVEL: Primary-Secondary: 2×MOOP, Primary-Earth: 1×MOOP, Secondary-Earth: 1×MOOP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN60601-1-2 , EAC TP TC 020

OTHERS

MTBF: 138.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 218*105*63.5mm (L*W*H)
PACKING: 1.57Kg;8pcs/13.6Kg/1.34CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. No load power consumption<0.8W when RC+ & RC- (CN100 pin3,4) 0 ~ 0.8V or short.
8. When the input voltage is less than 40VAC, the SPS may exhibit degradation of performance. The final product manufacturers must re-confirm this deviation that does not affect basic safety or essential performance.
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MSP-600-15 Mechanical Specification — Mechanical Specification

MSP-600-15 Block Diagram — Block Diagram

MSP-600-15 Derating Curve — Derating Curve

MSP-600-15 Function Manual — Function Manual

MSP-600-15 M S P - 6 0 0 series — M S P - 6 0 0 series

Downloads

Datasheet1

MSP-600-15 datasheetMSP-600-SPEC.PDF · 2024-10-30 edition PDF Download

Certificates3

UL Certificate (MSP-600)(EN) PDF Download

CB Certificate (MSP-600)(EN) PDF Download

EMC Certificate (MSP-600)(EN) PDF Download

Test reports1

Test Report(MSP-600-15)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the MSP-600-15 for a 15V automation or control system?

Yes, if the system requires a constant 15V DC source and the total load stays within 645W and 43A. That rating suits higher-power 15V automation, industrial electronics, or control assemblies better than smaller 15V supplies.

Is the MSP-600-15 suitable for 15V embedded electronics racks or validation fixtures?

It can be used where a 15V constant-voltage rail is needed for embedded hardware racks, production fixtures, or lab validation setups. The unit delivers up to 43A at 15V, which is useful when multiple 15V devices share the same power source.

Can this model power 15V medical equipment that needs a regulated DC output?

This series is medical safety approved, so it can be considered for medical equipment that specifies a 15V constant-voltage input. The key checks are that the equipment actually requires 15V and that the total draw remains within 645W and 43A.

How can I tell whether the MSP-600-15 has enough capacity for my 15V load?

Use the nameplate ratings: this unit is rated for 645W total and 43A at 15V. If the combined demand of your 15V loads exceeds either 43A or 645W, this model is undersized.

Is the MSP-600-15 meant for indoor or outdoor use?

The specified operating temperature range is -40°C to +70°C, with output derating required at higher temperatures (see the derating curve). But the specs do not list an IP rating, so the published product data does not define it as an outdoor or washdown-rated unit.

What are the main differences between the MSP-600-15 and the other MSP-600 voltage options?

In the MSP-600 group, the listed outputs are 3.3V at 396W and 120A, 5V at 600W and 120A, 7.5V at 600W and 80A, 12V at 636W and 53A, 15V at 645W and 43A, 24V at 648W and 27A, 36V at 630W and 17.5A, and 48V at 624W and 13A. The MSP-600-15 keeps the same form factor family but uses a 15V output with 43A maximum current.
