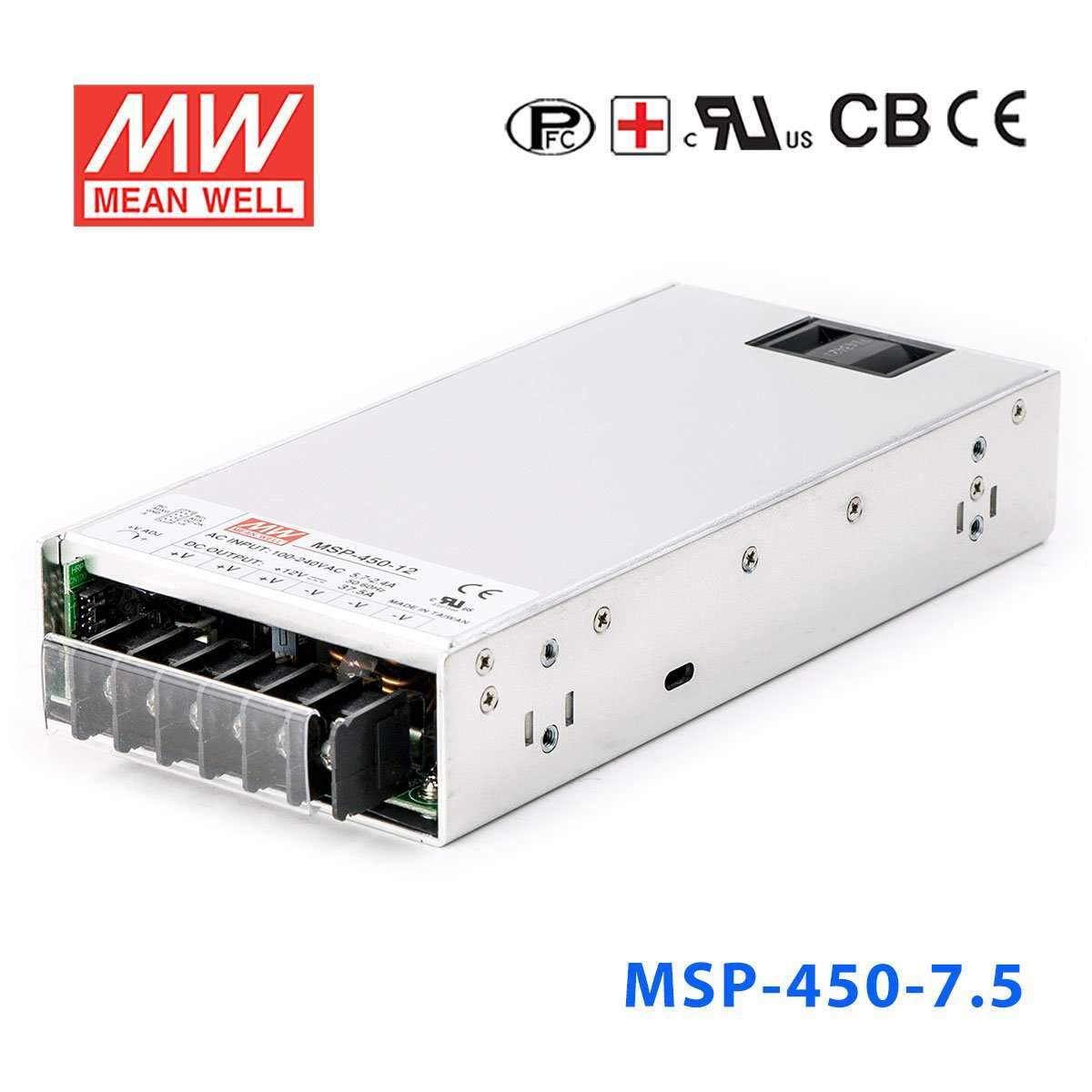

Mean Well MSP-450-7.5 Power Supply 450W 7.5V 60A

Name: Mean Well MSP-450-7.5 Power Supply 450W 7.5V 60A
Brand: Mean Well
SKU: MSP-450-7.5
Price: 189.87 USD
Availability: InStock

built-in active PFCmedical safety approvedhigh efficiencyno load power consumption < 0.5~0.8W

SKU MSP-450-7.5

$189.87 USD

Shipping calculated at checkout.

Select model — 5 in this family

MSP-450-7.5

MSP-100-7.5 100W 7.5V Backorder$62.03 USD

MSP-200-7.5 200W 7.5V Backorder$100.89 USD

MSP-300-7.5 300W 7.5V Backorder$138.77 USD

MSP-450-7.5 450W 7.5V Low stock$189.87 USD

MSP-600-7.5 600W 7.5V Backorder$211.91 USD

Product variants

In stock

Overview

MSP-450-7.5 is the 7.5V output model of this series: rated current 60A, rated power 450W, typical efficiency 86.5%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 89.5%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in constant current limiting circuit
Medical safety approved (MOOP level)
Built-in cooling Fan ON-OFF control
Built-in DC OK signal
Built-in remote ON-OFF control
Stand by 5V@0.3A
Built-in remote sense function
No load power consumption<0.6W (Note.6)
5 years warranty

Specifications

MSP-450-7.5Specifications from the official datasheet (2025-12-05 edition)

OUTPUT

DC VOLTAGE: 7.5V
RATED CURRENT: 60A
CURRENT RANGE: 0 ~ 60A
RATED POWER: 450W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 6.8 ~ 9V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 100ms/230VAC 2500ms, 100ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.): 86.5%
AC CURRENT (Typ.): 5A/115VAC 2.4A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 70A/230VAC
LEAKAGE CURRENT: Earth leakage current < 300μA/264VAC , Touch leakage current < 100μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 9.4 ~ 10.9V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY: 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
DC OK SIGNAL: PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
REMOTE CONTROL: RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off
FAN CONTROL (Typ.): Load 20±10% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2 EAC TP TC 004 approved;Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)
ISOLATION LEVEL: Primary-Secondary: 2×MOOP, Primary-Earth: 1×MOOP, Secondary-Earth: 1×MOOP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/ EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN60601-1-2 , EAC TP TC 020

OTHERS

MTBF: 159.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 218*105*41mm (L*W*H)
PACKING: 1.19Kg; 12pcs/15.3Kg/0.81CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
6. No load power consumption<0.5W when RC- & RC+ (CN100 pin1,2) 0 ~ 0.8V or short.
7. When the input voltage is less than 40VAC, the SPS may exhibit degradation of performance. The final product manufacturers must re-confirm this deviation that does not affect basic safety or essential performance.
8. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MSP-450-7.5 Mechanical Specification — Mechanical Specification

MSP-450-7.5 Block Diagram — Block Diagram

MSP-450-7.5 Derating Curve — Derating Curve

MSP-450-7.5 Function Manual — Function Manual

Downloads

Datasheet1

MSP-450-7.5 datasheetMSP-450-SPEC.PDF · 2025-12-05 edition PDF Download

Certificates3

UL Certificate(MSP-450)(EN) PDF Download

CB Certificate(MSP-450)(EN) PDF Download

EMC Certificate(MSP-450)(EN) PDF Download

Test reports1

Test Report(MSP-450-7.5)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the MSP-450-7.5 for 7.5V industrial electronics or legacy control hardware?

Yes, this model supplies constant 7.5V output at up to 60A with a 450W rating. That suits industrial or legacy DC equipment specifically designed around a 7.5V rail.

Is the MSP-450-7.5 suitable for embedded test systems that require a regulated 7.5V bus?

It can be, as long as the equipment is intended for a constant voltage 7.5V source and the load stays within 60A and 450W. The high available current is useful for larger embedded test platforms or multi-board fixtures.

Would this 7.5V power supply work for control panels or automation assemblies with uncommon DC voltage requirements?

Yes, the MSP-450-7.5 is relevant when the assembly is built for 7.5V DC rather than more common 5V, 12V, or 24V rails. Its output can be adjusted from 6.8V to 9V and delivers up to 60A for heavier assemblies.

Can the MSP-450-7.5 be used in electronics manufacturing fixtures that need high current at 7.5V?

It is a practical option for manufacturing fixtures or burn-in equipment that require a fixed 7.5V output and substantial current capacity. The unit provides up to 60A from a single 7.5V constant voltage supply.

Is the MSP-450-7.5 suitable for indoor harsh-temperature environments or outdoor use?

The operating temperature range is -40°C to +70°C, with output derating required at higher ambient temperatures per the derating curve. No IP rating appears in the listed specs, so the product data does not classify it as outdoor-rated.
