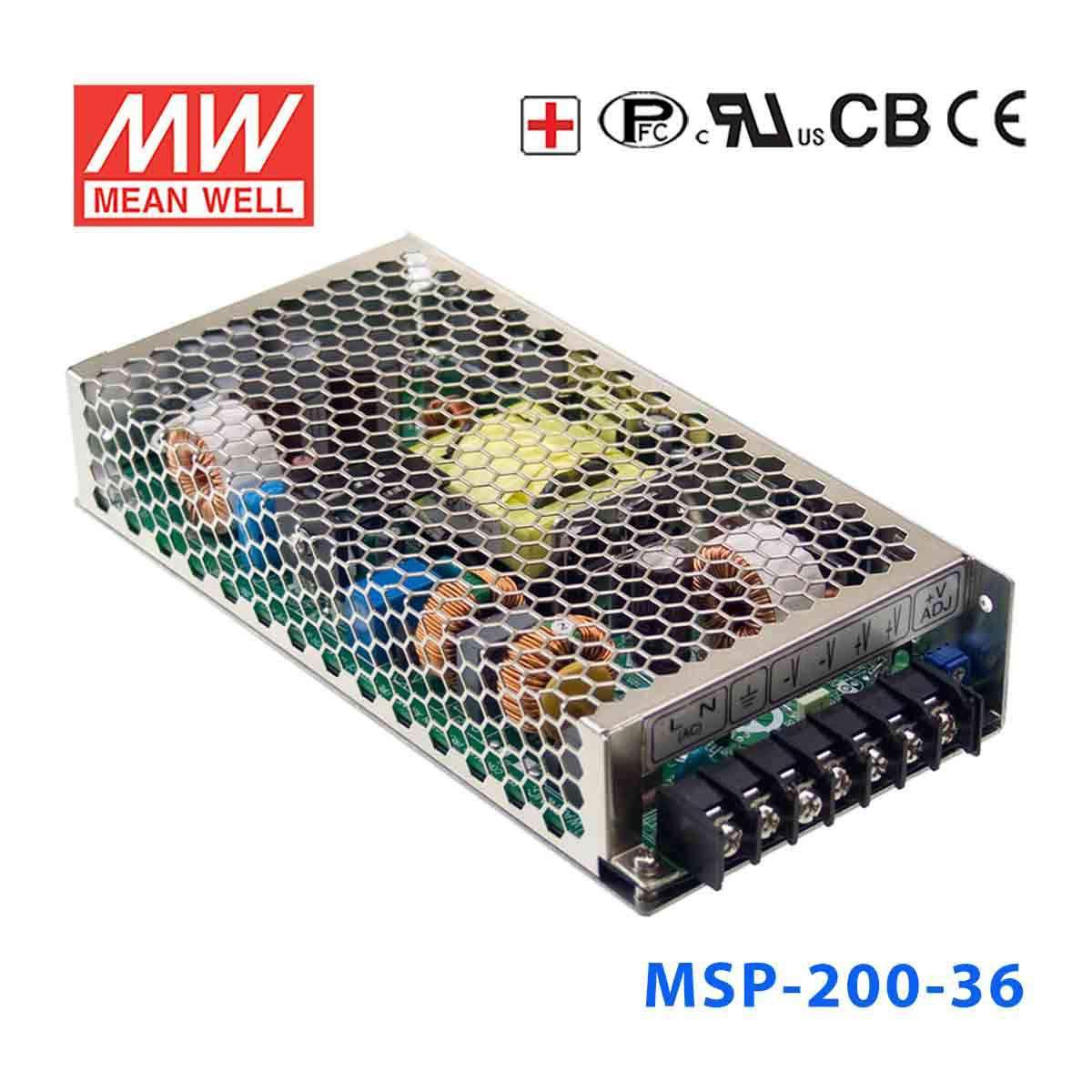

Mean Well MSP-200-36 Power Supply 205.2W 36V 5.7A

Name: Mean Well MSP-200-36 Power Supply 205.2W 36V 5.7A
Brand: Mean Well
SKU: MSP-200-36
Price: 100.89 USD
Availability: InStock

built-in active PFCmedical safety approvedhigh efficiencyno load power consumption < 0.5~0.8W

SKU MSP-200-36

$100.89 USD

Shipping calculated at checkout.

Select model — 5 in this family

MSP-200-36

MSP-100-36 100W 36V Low stock$62.05 USD

MSP-200-36 200W 36V Backorder$100.89 USD

MSP-300-36 300W 36V Low stock$138.77 USD

MSP-450-36 450W 36V Low stock$189.87 USD

MSP-600-36 600W 36V Backorder$211.91 USD

Product variants

Available to order

Overview

MSP-200-36 is the 36V output model of this series: rated current 5.7A, rated power 205.2W, typical efficiency 89%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 38mm
Medical safety approved (MOOP level)
Built-in remote ON-OFF control
Standby 5V@0.3A
Built-in remote sense function
No load power consumption<0.5W (Note.6)
5 years warranty

Specifications

MSP-200-36Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 5.7A
CURRENT RANGE: 0 ~ 5.7A
RATED POWER: 205.2W
RIPPLE & NOISE (max.)^Note.2: 250mVp-p
VOLTAGE ADJ. RANGE: 28.8 ~ 39.6V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 2.2A/115VAC 1.1A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 70A/230VAC
LEAKAGE CURRENT^Note.7: Earth leakage current < 300μA/264VAC , Touch leakage current < 100μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 41.4 ~ 48.6V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY: 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
REMOTE CONTROL: RC+/RC- : 4 ~10V or open = power on ; 0 ~ 0.8V or short = power off

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2 EAC TP TC 004 approved; Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)
ISOLATION LEVEL: Primary-Secondary: 2×MOOP, Primary-Earth: 1×MOOP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 ℃ / 70% RH
EMC EMISSION: Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, BS EN/ EN60601-1-2, EAC TP TC 020

OTHERS

MTBF: 1609.5K hrs min. Telcordia SR-332 (Bellcore) ; 186.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*98*38mm (L*W*H)
PACKING: 0.77Kg; 18pcs/14.9Kg/0.87CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. No load power consumption<0.5W when RC+ & RC- (CN100 pin1,2) 0 ~ 8V or short.
7. Touch current was measured from primary input to DC output.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MSP-200-36 Mechanical Specification — Mechanical Specification

MSP-200-36 Block Diagram — Block Diagram

MSP-200-36 Derating Curve — Derating Curve

MSP-200-36 Function Manual (2) — Function Manual (2)

MSP-200-36 2.Remote Sense — 2.Remote Sense

Downloads

Datasheet1

MSP-200-36 datasheetMSP-200-SPEC.PDF · 2024-10-30 edition PDF Download

Certificates3

UL Certificate(MSP-200)(EN) PDF Download

CB Certificate(MSP-200)(EN) PDF Download

EMC Certificate(MSP-200)(EN) PDF Download

Test reports1

Test Report(MSP-200-36)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the MSP-200-36 for a 36V industrial control or automation load?

Yes, if the equipment requires constant 36V DC and the total load stays within 5.7A and 205.2W. The wide 85-264VAC input also makes it suitable for facilities that need the same supply across different AC input ranges.

Is the MSP-200-36 a fit for 36V lab or medical-related equipment?

It can be considered for 36V equipment that needs a constant voltage supply, especially where medical safety approved power (IEC 60601-1, MOOP level) is a requirement in the product spec. Output capacity is limited to 36V, 5.7A, and 205.2W, so the connected load has to remain within those limits.

Can this power supply run a 36V embedded or motion-control subsystem?

It is intended for constant voltage applications, so it fits 36V embedded or control subsystems that expect a regulated 36V rail. The available output is 5.7A up to 205.2W, which is the key sizing limit for that use case.

Is the MSP-200-36 suitable for outdoor or harsh-temperature environments?

The operating temperature range is -40°C to +70°C, with output derating at higher ambient temperatures according to the derating curve. However, no IP rating is listed in the provided specs, so these specs alone do not establish outdoor, wet-location, or washdown suitability.

How does the MSP-200-36 compare with the other MSP-200 models?

Within the MSP-200 group, the available outputs are 132W at 3.3V and 40A, 175W at 5V and 35A, 200.3W at 7.5V and 26.7A, 200.4W at 12V and 16.7A, 201W at 15V and 13.4A, 201.6W at 24V and 8.4A, 205.2W at 36V and 5.7A, and 206.4W at 48V and 4.3A. The MSP-200-36 sits near the upper end of the MSP-200 power range while providing a mid-high DC output voltage.
