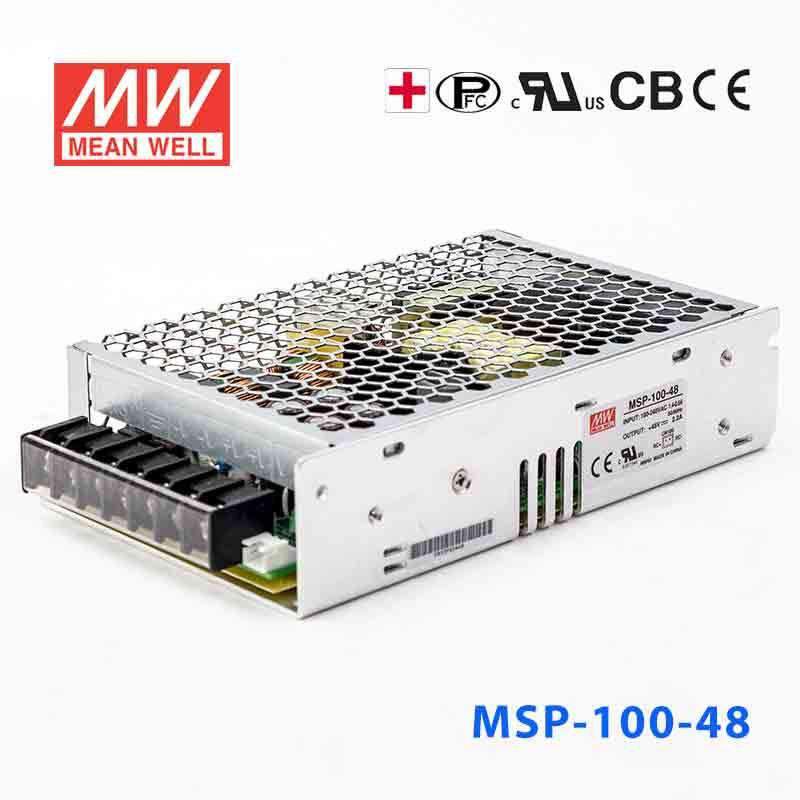

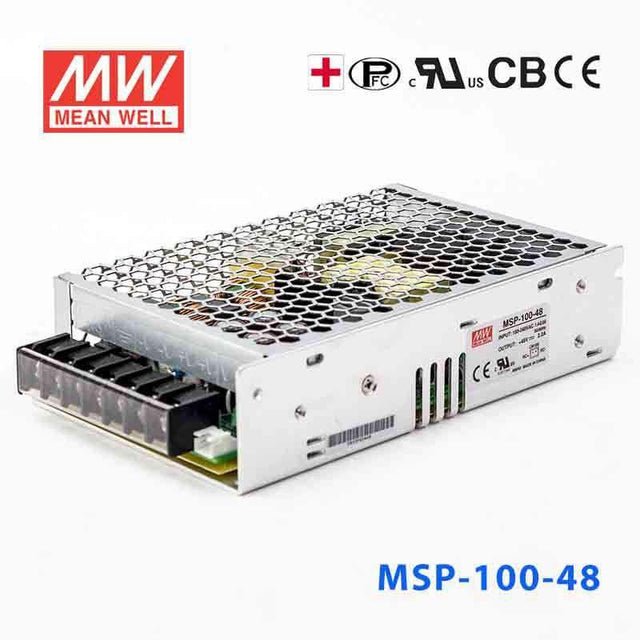

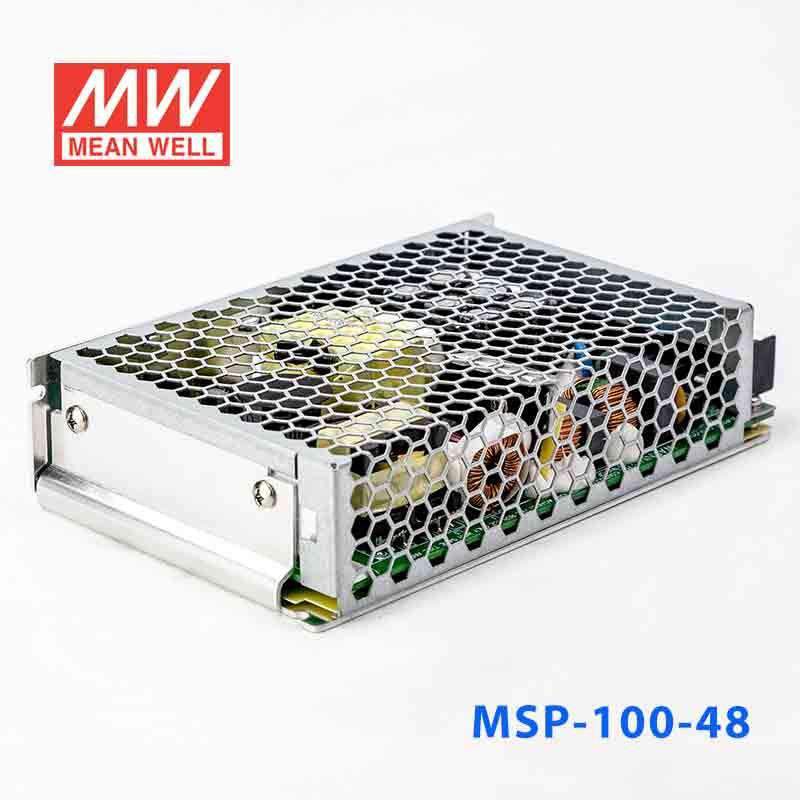

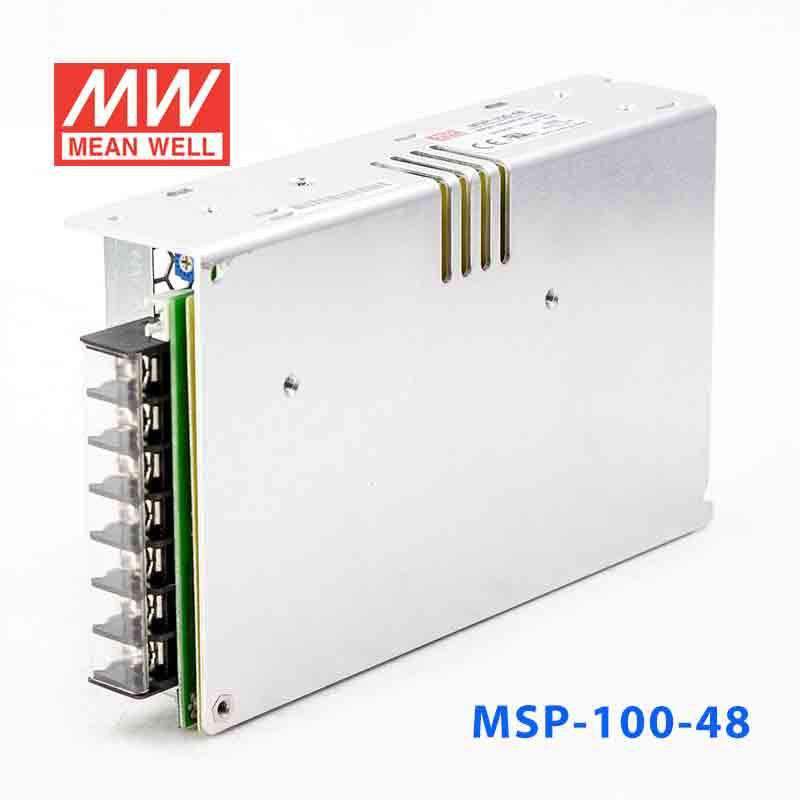

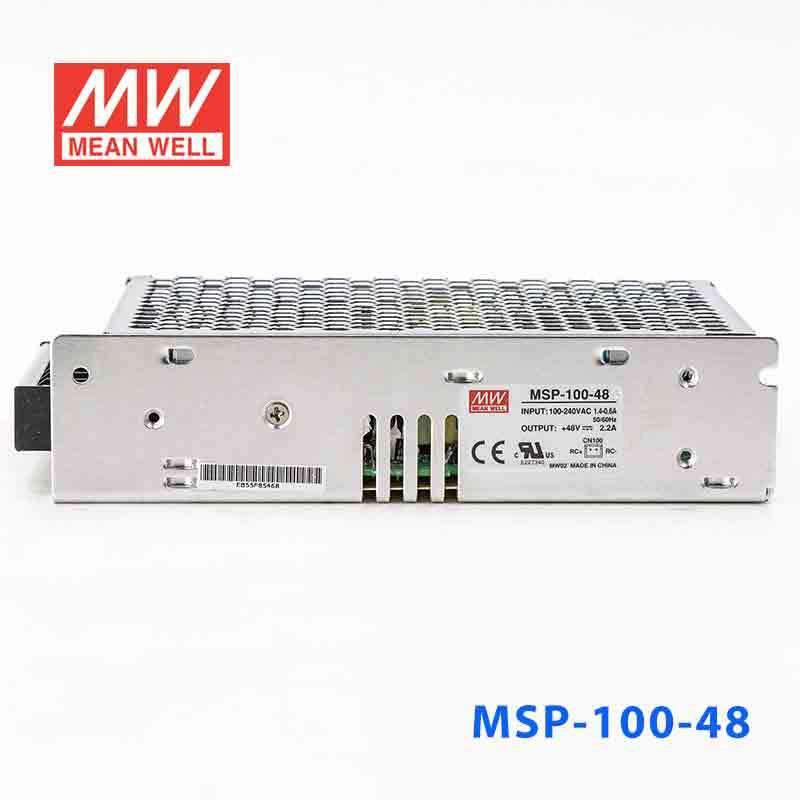

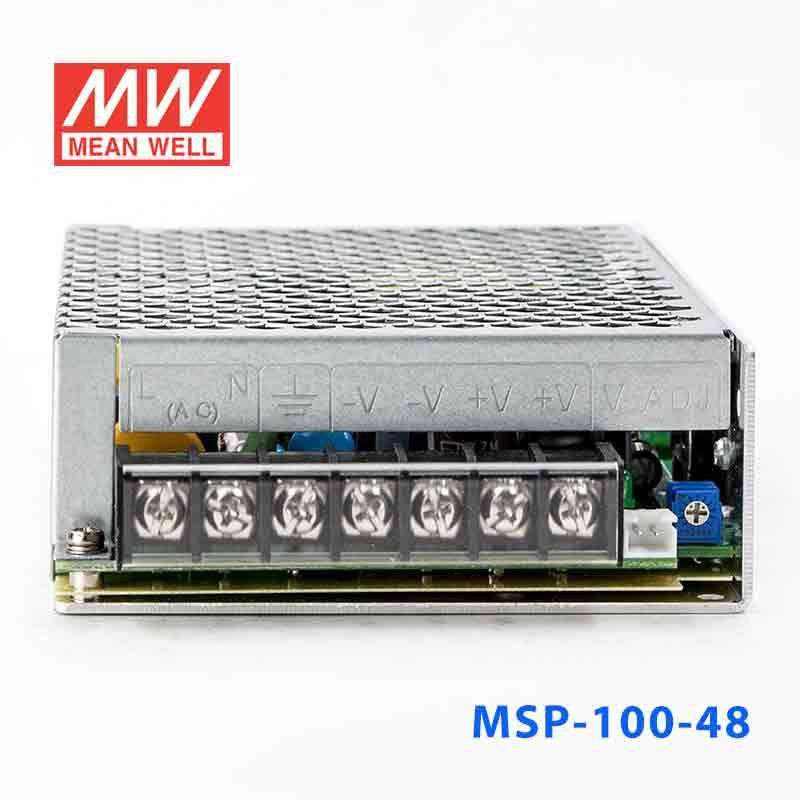

Mean Well MSP-100-48 Power Supply 105.6W 48V 2.2A

Name: Mean Well MSP-100-48 Power Supply 105.6W 48V 2.2A
Brand: Mean Well
SKU: MSP-100-48
Price: 62.05 USD
Availability: InStock

built-in active PFCmedical safety approvedhigh efficiencyno load power consumption < 0.5~0.8W

SKU MSP-100-48

$62.05 USD

Shipping calculated at checkout.

Select model — 6 in this family

MSP-100-48

MSP-100-48 100W 48V Backorder$62.05 USD

MSP-200-48 200W 48V Backorder$100.89 USD

MSP-300-48 300W 48V Backorder$138.78 USD

MSP-450-48 450W 48V In stock$188.46 USD

MSP-600-48 600W 48V Low stock$210.75 USD

MSP-1000-48 1000W 48V In stock$259.39 USD

Product variants

Available to order

Overview

MSP-100-48 is the 48V output model of this series: rated current 2.2A, rated power 105.6W, typical efficiency 90%.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 90%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage
Protections: Over temperature (optional)
Cooling by free air convection
1U low profile 38mm
Medical safety approved (MOOP level)
Built-in remote ON-OFF control
No load power consumption<0.5W
All using 105℃ long life electrolytic capacitors
5 years warranty

Specifications

MSP-100-48Specifications from the official datasheet (2025-03-17 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 2.2A
CURRENT RANGE: 0 ~ 2.2A
RATED POWER: 105.6W
RIPPLE & NOISE (max.)^Note.2: 240mVp-p
VOLTAGE ADJ. RANGE: 45.6 ~ 55.2V
VOLTAGE TOLERANCE^Note.3: ±1.5%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 2500ms, 100ms/230VAC 2500ms, 100ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 1.2A/115VAC 0.6A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 65A/230VAC
LEAKAGE CURRENT^Note.6: Earth leakage current < 300μA/264VAC , Touch leakage current < 100μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed
OVER VOLTAGE: 57.6 ~ 67.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL: RC+/RC- : 0 ~ 0.8V= power on ; 4 ~ 10V = power off

ENVIRONMENT

WORKING TEMP.: -40 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.04%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.4: IEC 60601-1:2005+A1+A2, ANSI/AAMI ES 60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2, EAC TP TC 004 approved Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)
ISOLATION LEVEL: Primary-Secondary: 2×MOOP, Primary-Earth: 1×MOOP, Secondary-Earth: 1×MOOP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, BS EN/ EN60601-1-2 , EAC TP TC 020

OTHERS

MTBF: 2272.8K hrs min. Telcordia SR-332 (Bellcore) ; 352.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 159*97*38mm (L*W*H)
PACKING: 0.55Kg; 24pcs/ 14.3Kg/0.9CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. Touch current was measured from primary input to DC output.
7. When the input voltage is less than 40VAC, the SPS may exhibit degradation of performance. The final product manufacturers must re-confirm this deviation that does not affect basic safety or essential performance.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MSP-100-48 Mechanical Specification — Mechanical Specification

MSP-100-48 Block Diagram — Block Diagram

MSP-100-48 Derating Curve — Derating Curve

Downloads

Datasheet1

MSP-100-48 datasheetMSP-100-SPEC.PDF · 2025-03-17 edition PDF Download

Certificates3

UL Certificate(MSP-100)(EN) PDF Download

CB Certificate(MSP-100)(EN) PDF Download

EMC Certificate(MSP-100)(EN) PDF Download

Test reports1

Test Report(MSP-100-48)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the MSP-100-48 for 48V telecom or network power applications?

Yes, if the equipment requires constant 48V DC and the total load does not exceed 2.2A. This model provides 105.6W, which fits lower-power 48V telecom, network, or IT hardware that matches those electrical limits.

Is the MSP-100-48 suitable for 48V industrial automation or control equipment?

It can be used for 48V automation or control devices that need a constant-voltage supply and remain within 105.6W. The maximum output is 48V at 2.2A, so the load has to fit that rating.

Can this model power 48V embedded or communications hardware in mixed AC environments?

Yes, the input range is 85-264VAC, which supports use where AC supply conditions vary. The DC output is fixed at 48V constant voltage with up to 2.2A available.

Is the MSP-100-48 rated for outdoor environments?

The unit is specified for operation from -40°C to +60°C, so the temperature range is broad. However, no IP rating is listed in the supplied specs, so outdoor suitability is not confirmed from this product data.

How does the MSP-100-48 compare to the other MSP-100 output options?

The MSP-100-48 is the highest-voltage MSP-100 version at 48V, 2.2A, and 105.6W. Other MSP-100 models are 3.3V 20A 66W, 5V 17A 85W, 7.5V 13.5A 101.3W, 12V 8.5A 102W, 15V 7A 105W, 24V 4.5A 108W, and 36V 2.9A 104.4W.
