Mean Well

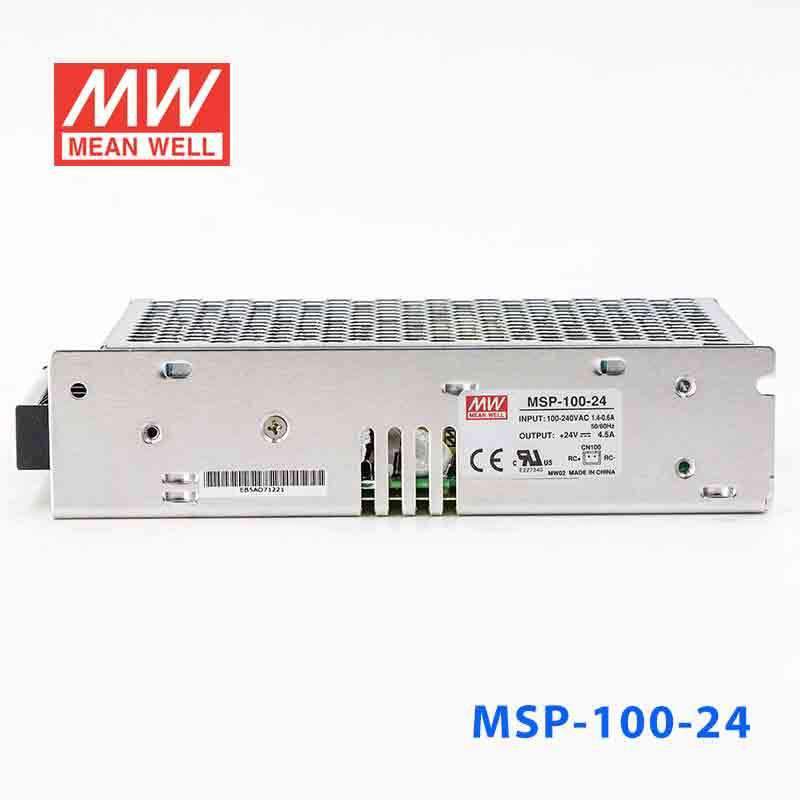

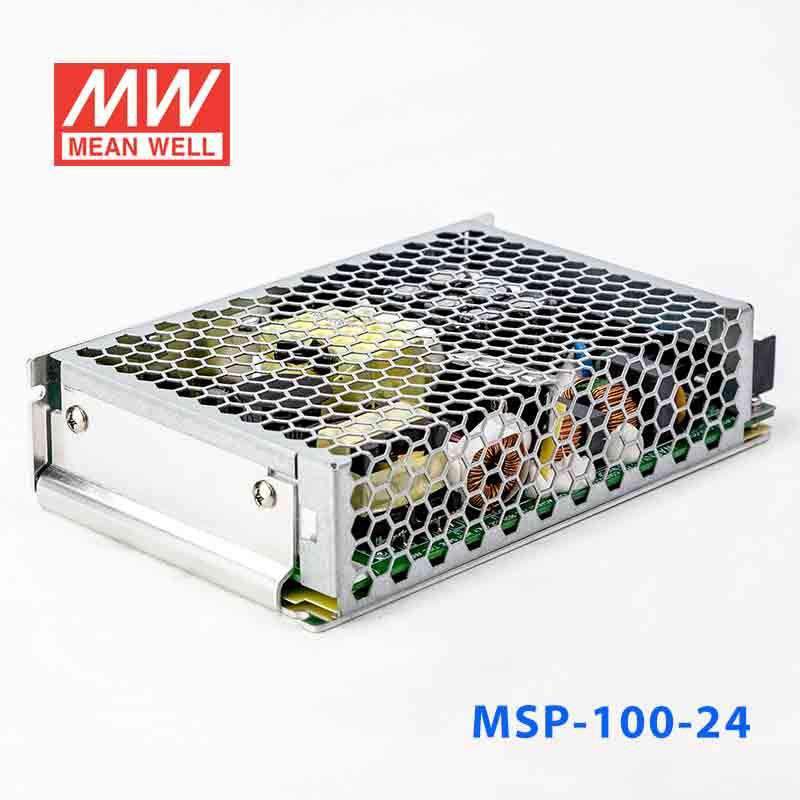

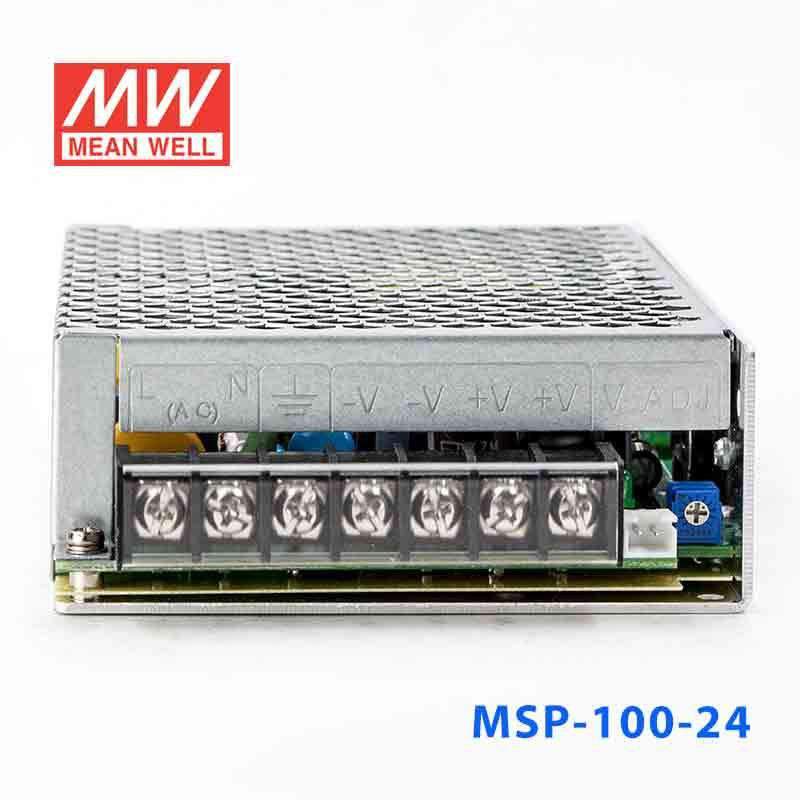

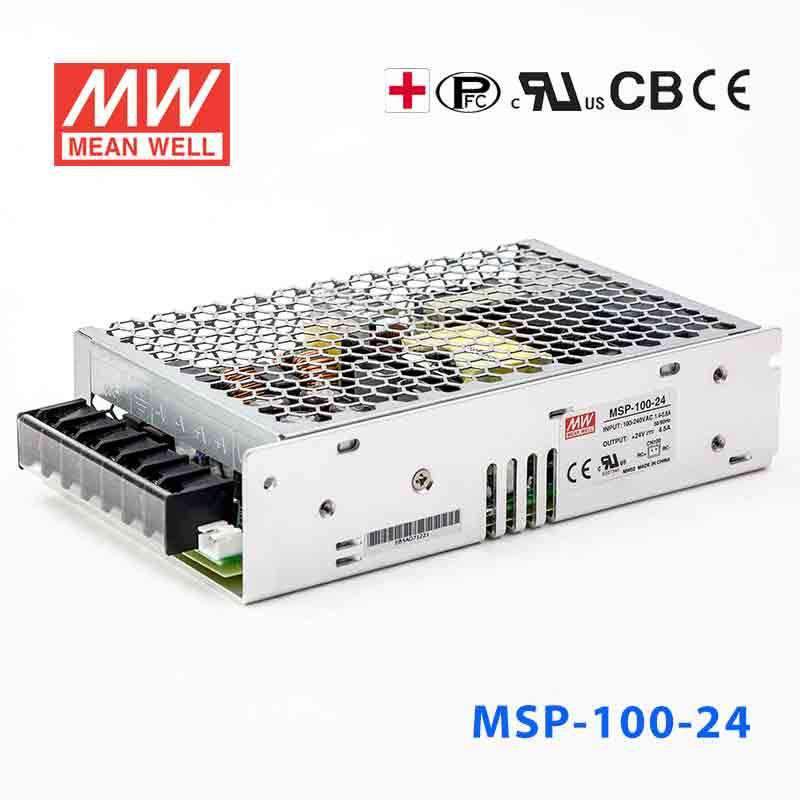

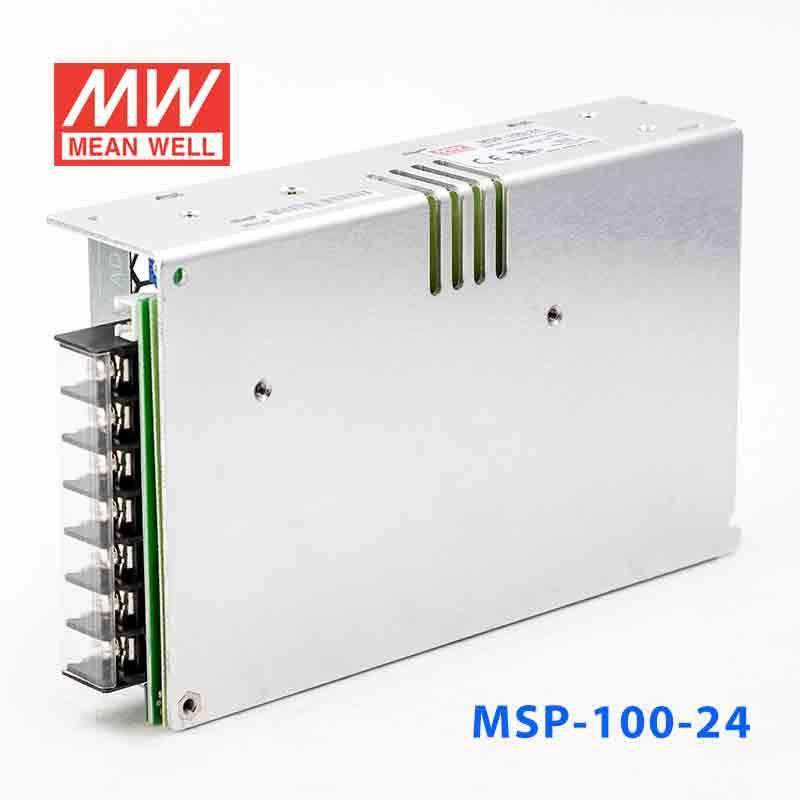

Mean Well MSP-100-24 Power Supply 108W 24V 4.5A

built-in active PFCmedical safety approvedhigh efficiencyno load power consumption < 0.5~0.8W
SKU MSP-100-24
$62.03 USD
Shipping calculated at checkout.

Select model — 6 in this family

MSP-100-24
Available to order
|

Overview

MSP-100-24 is the 24V output model of this series: rated current 4.5A, rated power 108W, typical efficiency 88.5%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 90%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage
  • Protections: Over temperature (optional)
  • Cooling by free air convection
  • 1U low profile 38mm
  • Medical safety approved (MOOP level)
  • Built-in remote ON-OFF control
  • No load power consumption<0.5W
  • All using 105℃ long life electrolytic capacitors
  • 5 years warranty

Specifications

MSP-100-24Specifications from the official datasheet (2025-03-17 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
4.5A
CURRENT RANGE
0 ~ 4.5A
RATED POWER
108W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
22.8 ~ 28.8V
VOLTAGE TOLERANCENote.3
±1.5%
LINE REGULATION
±0.2%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
2500ms, 100ms/230VAC 2500ms, 100ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)
88.5%
AC CURRENT (Typ.)
1.2A/115VAC 0.6A/230VAC
INRUSH CURRENT (Typ.)
35A/115VAC 65A/230VAC
LEAKAGE CURRENTNote.6
Earth leakage current < 300μA/264VAC , Touch leakage current < 100μA/264VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed
OVER VOLTAGE
30 ~ 34.8V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL
RC+/RC- : 0 ~ 0.8V= power on ; 4 ~ 10V = power off

ENVIRONMENT

WORKING TEMP.
-40 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.04%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.4
IEC 60601-1:2005+A1+A2, ANSI/AAMI ES 60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2, EAC TP TC 004 approved Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)
ISOLATION LEVEL
Primary-Secondary: 2×MOOP, Primary-Earth: 1×MOOP, Secondary-Earth: 1×MOOP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, BS EN/ EN60601-1-2 , EAC TP TC 020

OTHERS

MTBF
2272.8K hrs min. Telcordia SR-332 (Bellcore) ; 352.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
159*97*38mm (L*W*H)
PACKING
0.55Kg; 24pcs/ 14.3Kg/0.9CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. Touch current was measured from primary input to DC output.
  7. 7. When the input voltage is less than 40VAC, the SPS may exhibit degradation of performance. The final product manufacturers must re-confirm this deviation that does not affect basic safety or essential performance.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MSP-100-24 Mechanical Specification
Mechanical Specification
MSP-100-24 Block Diagram
Block Diagram
MSP-100-24 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the MSP-100-24 for 24V PLC or industrial automation equipment?

Yes, if the equipment needs constant 24V DC and the total load stays within 4.5A. This unit is rated for 108W, which makes it suitable for 24V PLC-related loads, automation controls, or industrial electronics that match those output limits.

Is the MSP-100-24 a fit for 24V sensors, relays, or control modules?

It can be used for 24V control modules, relay assemblies, or sensor-powered systems when the combined demand does not exceed 108W. The output is fixed at 24V constant voltage with a maximum current of 4.5A.

Can this power supply support 24V embedded or IT equipment with global AC input requirements?

It is designed for 85-264VAC input, so it supports a wide AC input range for installations that need that flexibility. The DC output remains 24V constant voltage up to 4.5A, with 108W available to the connected load.

Can the MSP-100-24 be used in harsh indoor environments or exposed outdoor locations?

The specified operating temperature is -40°C to +60°C, which covers a broad environmental range for indoor equipment. No IP rating is listed in the provided specs, so exposed outdoor use is not established by this data alone.

What are the voltage and current differences across the MSP-100 family?

The MSP-100-24 version provides 24V, 4.5A, and 108W. The other MSP-100 models are 3.3V 20A 66W, 5V 17A 85W, 7.5V 13.5A 101.3W, 12V 8.5A 102W, 15V 7A 105W, 36V 2.9A 104.4W, and 48V 2.2A 105.6W.
