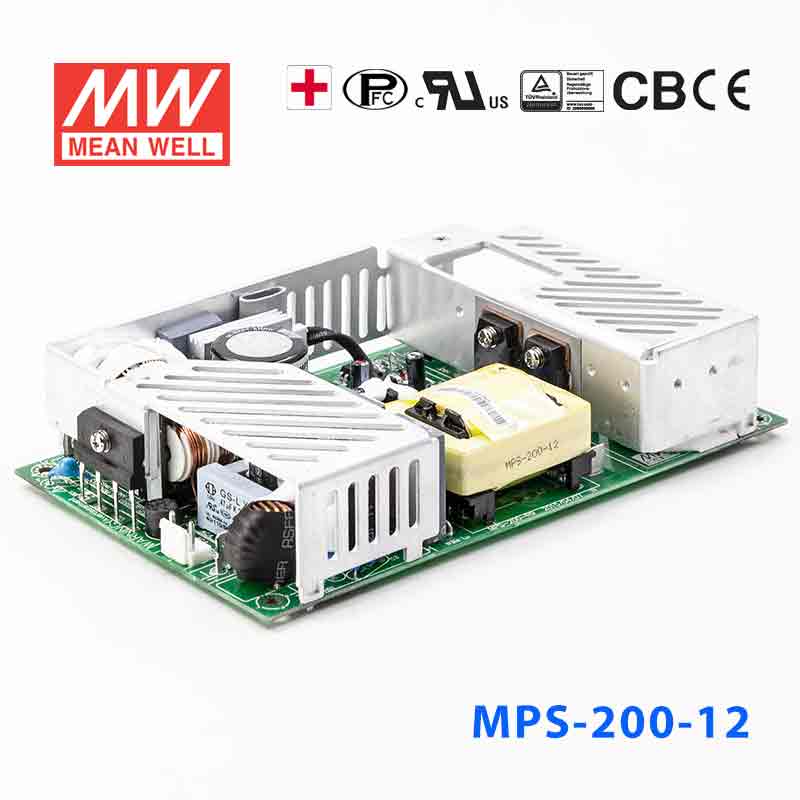

Mean Well MPS-200-12 Power Supply 200W 12V he rated current is base...
$145.68 USD
Unit price /
Unavailable
Description
Description
MEAN WELL MPS-200 Series Power Supplies are 200W medical type power supplies with high reliability and 3 years warranty.
Features
- Universal AC input
- Full range
- Low leakage Current<180uA
- Protections:
- Short circuit
- Overload/Over voltage/Over temperature
- Free air convection for 140W and forced air convection 200W
- ANSI/AAMIES60601-1 medical safety approved
- With power good and fail signal output
- Built-in remote ON-OFF control
- Built-in remote sense function
- Fixed switching frequency at 100KHz
- 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating200 Watt
-
Output Voltage12 Volt
-
Rated Current16.7 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7 in
-
Width4.22 in
-
Height1.4 in
-
Weight1.46 lb
