Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

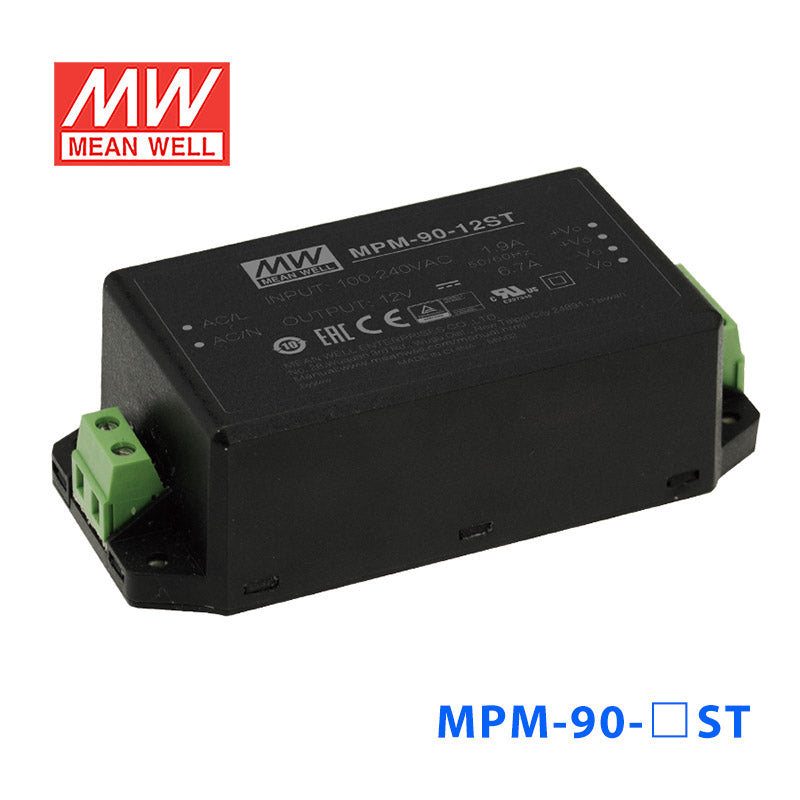

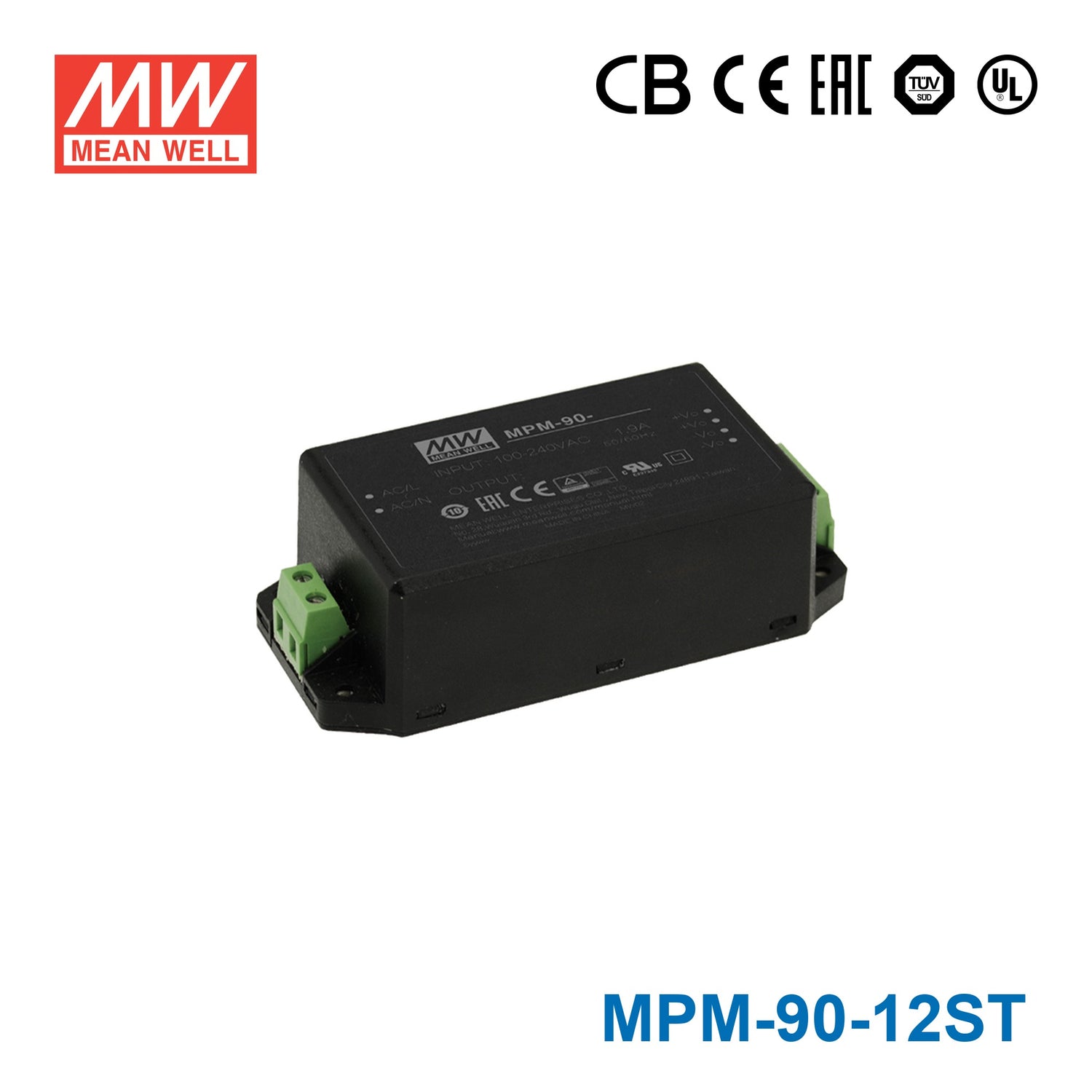

Mean Well MPM-90-12ST Power Supply 90W 12V 6.7A
$37.25 USD
Unit price /
Unavailable
Description
Description
3.43"x2.05", compact size
PCB, chassis or screw terminal mounting version
EMI class B without additional components
Isolation Class II
Protections: Short circuit/ Overload/ Over voltage/Over temperature
No minimum load required
Touch current<100 μA/264VAC
Key Features
- ✓3.43"x2.05", compact sizePCB, chassis or screw terminal mounting version
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -30~+80°C
- ✓EMI class B without additional componentsIsolation Class II
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperatureNo minimum load required
- ✓Operating altitude up to 4000 meters ( Note.7 )100W peak (10 sec.)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating80.4 Watt
-
Output Voltage12 Volt
-
Rated Current6.7 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length4.29 in
-
Width2.05 in
-
Height1.32 in
-
Weight0.48 lb
File Downloads
File Downloads
::specification::
