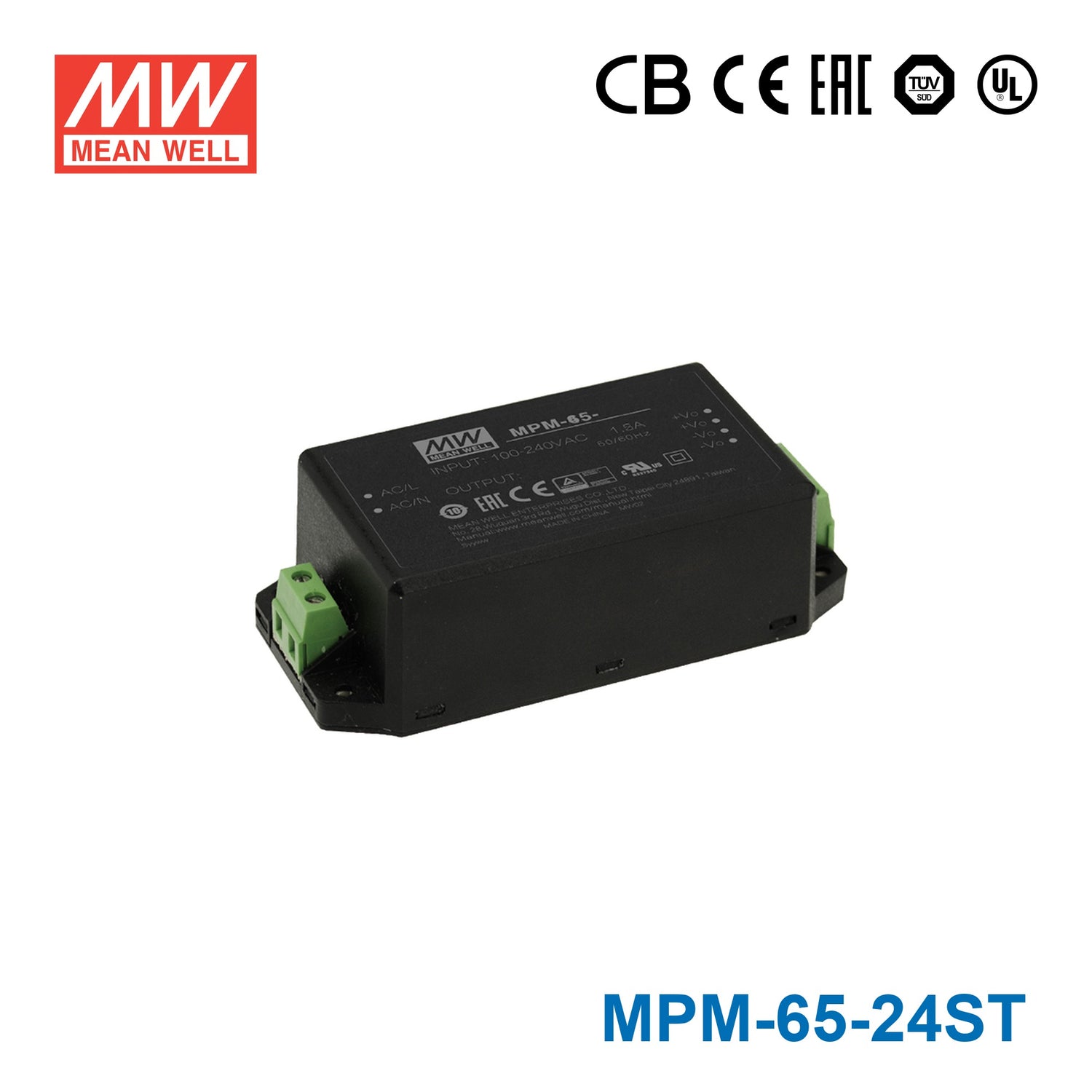

Mean Well MPM-65-24ST Power Supply 65W 24V
$33.59 USD
Unit price /
Unavailable
Description
Description
Features
|
3.43"x2.05" compact size PCB chassis or screw terminal mounting version |
| Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1 |
| Suitable for BF application with appropriate system consideration |
| No-load power consumption<0.1W |
| Extremely low leakage current |
| Wide operating temp. range -30~+85°C |
| EMI Class B for class II configuration |
| Protections: Short circuit/ Overload/ Over voltage/Over temperature |
| No minimum load required |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC; 113~370VDC |
| AC inrush current | Cold start 45A |
| Leakage current | Touch current<80 μA/264VAC |
| Overload protection | 110 ~ 150% rated output power |
| Over-voltage protection | 106%~144% rated output voltage |
| Setup, rise, hold up time | 1000ms, 30ms, 50ms |
| Withstand voltage | I/P-O/P:4KVAC |
| Working temperature | -30~+80°C |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
| Safety standards | IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; Design refer to BS EN/EN60335-1(by request) |
| EMC standards | EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Case No | IRM60 |
| Dimension (LxWxH) | 87x52.2x29.5 |
| Packing | 60pcs / 12.5kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating65 Watt
-
Output Voltage24 Volt
-
Rated Current2.71 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length4.29 in
-
Width2.05 in
-
Height1.32 in
-
Weight0.48 lb
