Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

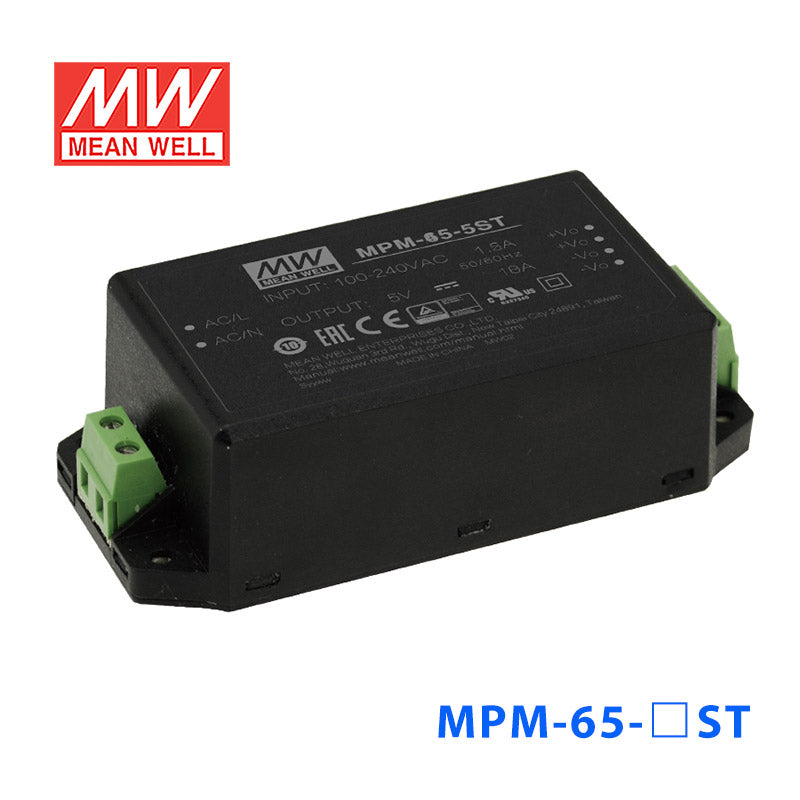

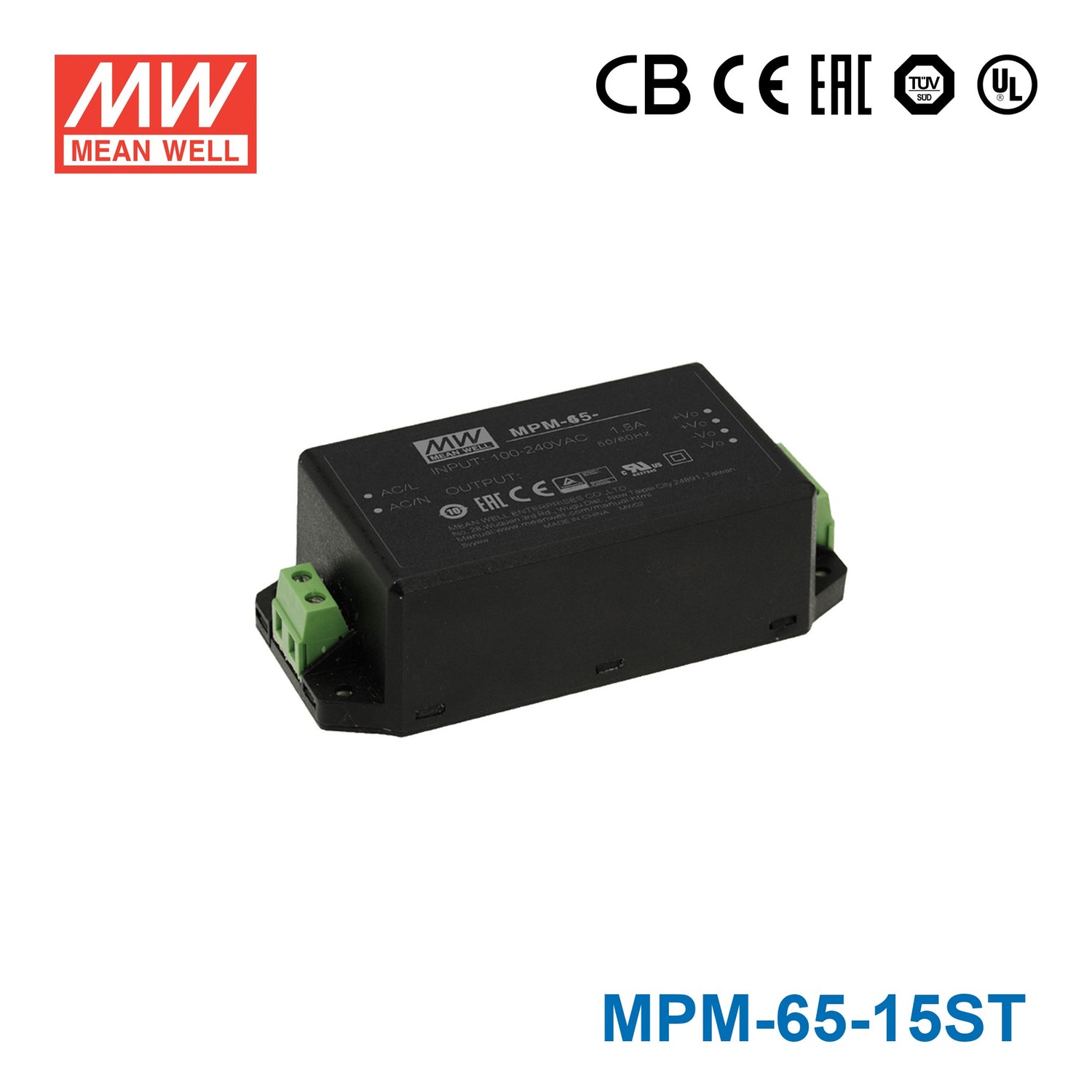

Mean Well MPM-65-15ST Power Supply 65W 15V 4.33A
$33.67 USD
Unit price /
Unavailable
Description
Description
The MPM-65-15ST is a 65W Mean Well open-frame power supply (input: 80~264VAC, operating temperature: -30~+80°C).
Key Features
- ✓ Input voltage: 80~264VAC
- ✓ Output voltage (max): 15V
- ✓ Rated output current: 4.33A
- ✓ Operating temperature: -30~+80°C
- ✓ Safety certifications: CB, CE, EAC, TÜV, UL
- ✓ 3 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating65 Watt
-
Output Voltage15 Volt
-
Rated Current4.33 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length4.29 in
-
Width2.05 in
-
Height1.32 in
-
Weight0.48 lb
