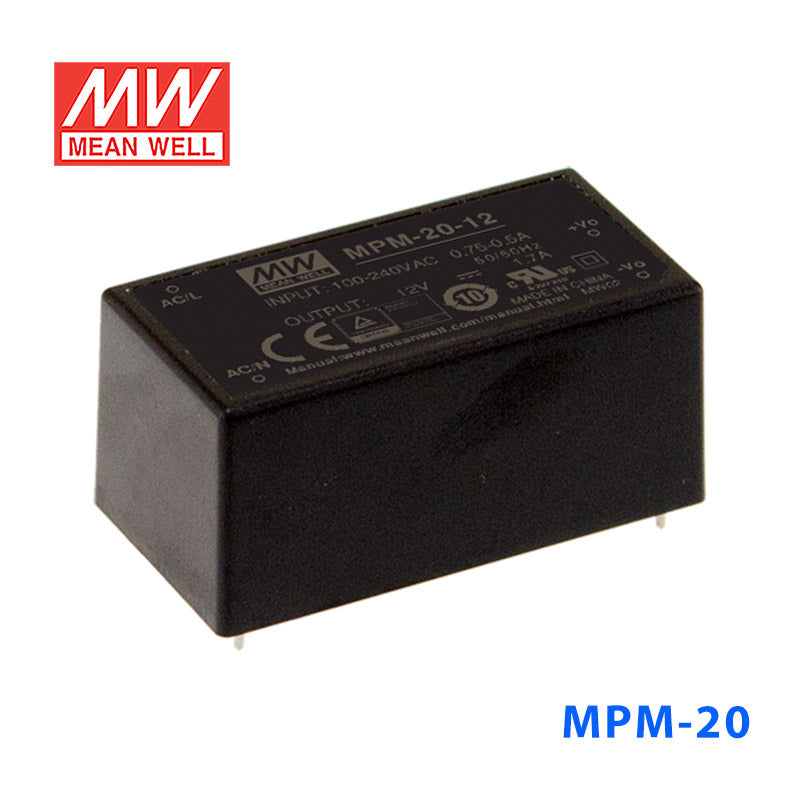

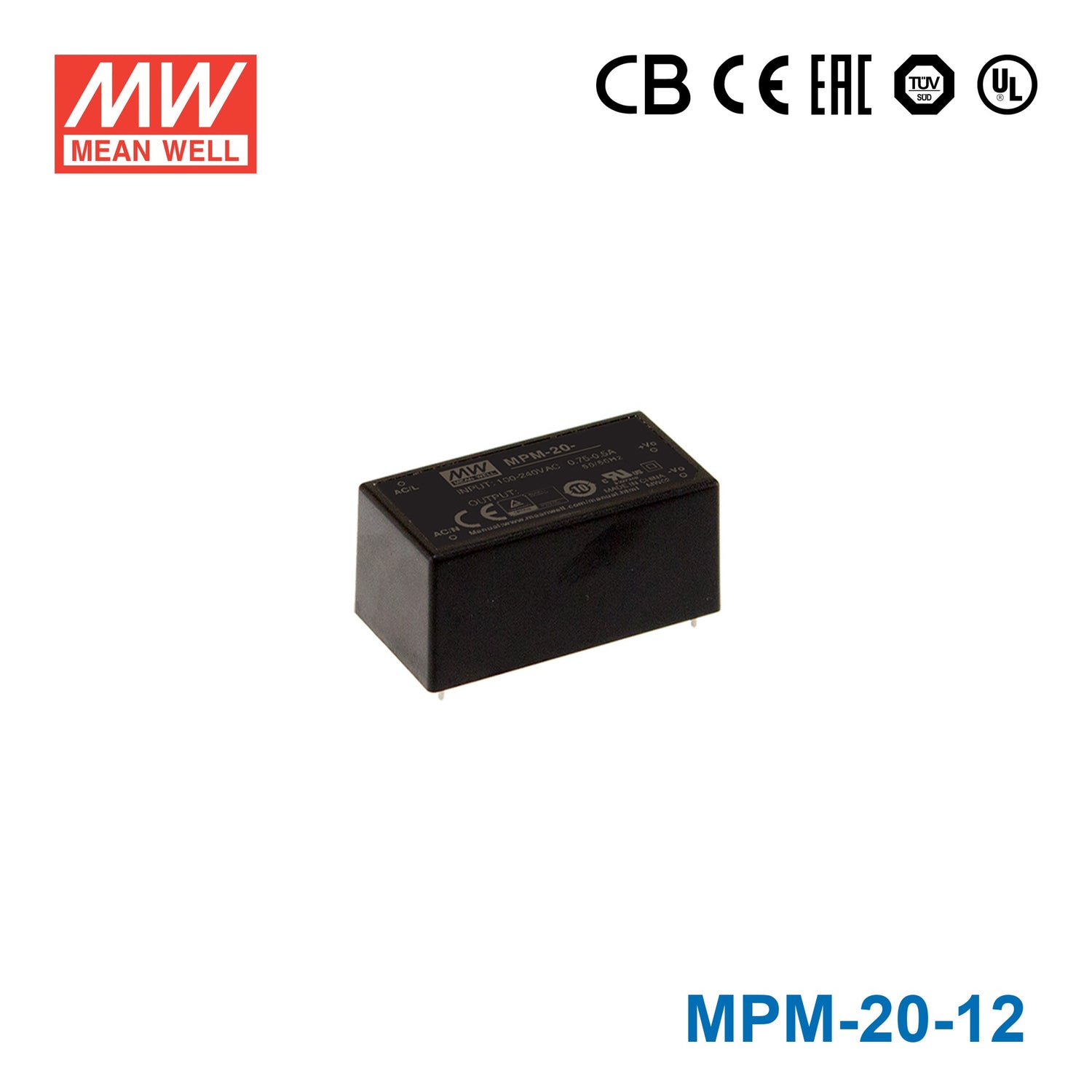

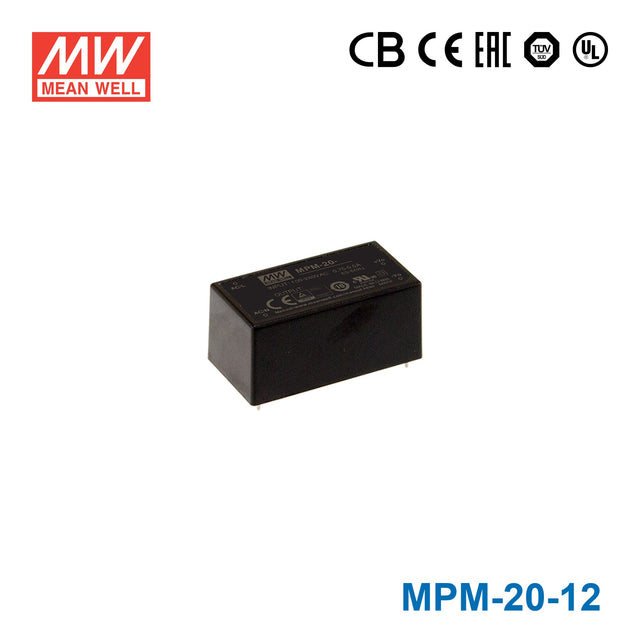

Mean Well MPM-20-12 Power Supply 20W 12V 1.8A

Name: Mean Well MPM-20-12 Power Supply 20W 12V 1.8A
Brand: Mean Well
SKU: MPM-20-12
Price: 18.18 USD
Availability: InStock

encapsulatedcompact sizemedical safety approvedno load power consumption < 0.1Wextremely low leakage current

SKU MPM-20-12

$18.18 USD

Shipping calculated at checkout.

Available to order

Overview

MPM-20-12 is the 12V output model of this series: rated current 1.8A, rated power 21.6W, typical efficiency 85.5%.

MPM-20 is a 20W high density and small size (52 . 4 * 27 . 2 * 24mm) AC/DC module type medical power supply series offered in pin type. It features the operation for 80~264VAC, a low no load power consumption less than 0.1W, a high efficiency up to 87%, Class Ⅱ (no FG) double insulation, outstanding dissipation and high lifespan thanks to the interior potting, 2G anti-vibration, high EMC performance, 4KVAC isolation, etc. The design observes IEC / BS EN/EN60601 - 1 and ANSI/AAMI ES60601 - 1version three with 2xMOPP level and ultra-low leakage current (<80μA). It is very suitable for BF (patient contact) type medical device or relevant equipment.

Features

2.06"x1.07" compact size
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Suitable for BF application with appropriate system consideration
No load power consumption<0.1W
Extremely low leakage current
Wide operating temp. range -35 ~ +85℃
EMI class B for class Ⅱ configuration
Protections: Short circuit / Overload / Over voltage / Over temperature
No minimum load required
3 years warranty

Specifications

MPM-20-12Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 1.8A
CURRENT RANGE^Note.2: 0 ~ 1.8A
PEAK CURRENT: 1.98A
RATED POWER: 21.6W
PEAK LOAD(10sec.)^Note.3: 23.8W
RIPPLE & NOISE (max.)^Note.4: 150mVp-p
VOLTAGE TOLERANCE^Note.5: ±2.0%
LINE REGULATION: ±0.3%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1500ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 40ms/230VAC 10ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.6: 80 ~ 264VAC 113V~370VDC
FREQUENCY RANGE: 47 ~ 440Hz
EFFICIENCY (Typ.): 85.5%
AC CURRENT (Typ.): 0.75A/115VAC 0.5A/230VAC
INRUSH CURRENT (Typ.): COLD START 20A/115VAC 45A/230VAC
LEAKAGE CURRENT (max.)^Note.7: Touch current <80μA/264VAC

PROTECTION

OVERLOAD: 110% ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 13.8 ~ 16.2V Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURE: Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -35 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 55℃)
SOLDERING TEMPERATURE: Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.8: 5000 meters

SAFETY & EMC

SAFETY STANDARDS: IEC 60601-1:2005+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2,ANSI/AAMI ES60601-1:2005/A2:2021, CAN/CSA C22.2 No. 60601-1:2014+A2,IEC 60335-1:2010/AMD2:2016, Dekra BS EN/ EN 60335-1:2012+A11+A13+A1+A14+A2+A15 ,EAC TP TC 004 approved
ISOLATION LEVEL: Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11) Class B
Radiated emission BS EN/EN55011 (CISPR11) Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY^Note.9: BS EN/EN55035, BS EN/EN60601-1-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11)	Class B
Radiated emission	BS EN/EN55011 (CISPR11)	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 3, 10V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF: 7319.8K hrs min. Telcordia SR-332 (Bellcore) ; 1210.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 52.4*27.2*24mm (L*W*H) or 2.06″*1.07″*0.94″ inch
PACKING: 0.056Kg; 240pcs/14.4Kg/0.94CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. No minimum load required.
3. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
4. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
5. Tolerance : includes set up tolerance, line regulation and load regulation.
6. Derating may be needed under low input voltages. Please check the derating curve for more details.
7. Touch current was measured from primary input to DC output.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

MPM-20-12 Derating Curve — Derating Curve

MPM-20-12 Mechanical Specification (2) — Mechanical Specification (2)

Typical applications

Portable medical device
Mobile clinical workstation
Medical computer monitor
Medical examination instrument

Downloads

Datasheet1

MPM-20-12 datasheetMPM-20-SPEC.PDF · 2024-10-30 edition PDF Download

Certificates8

Mean Well MFM-MPM-15-20-TUV Certificate PDF Download

Mean Well MFM-MPM-15-20-CB Certificate PDF Download

Mean Well MFM-MPM-15-20-CB(60335) Certificate PDF Download

Mean Well MFM-MPM-15-20-EMC Certificate PDF Download

Mean Well MFM-MPM-15-20-CE-dec Certificate PDF Download

Mean Well MFM-MPM-15-20-UK-dec Certificate PDF Download

Mean Well 0147476-EAC Certificate PDF Download

Mean Well E227340 UL Certificate PDF Download

Test reports1

Mean Well MPM-20-12 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the MPM-20-12 to power a 12V PLC accessory or industrial control circuit?

Yes, it provides constant-voltage 12V output up to 21.6W and 1.8A, which fits low-power 12V control electronics that stay within those limits. The 80-264VAC input also makes it flexible for different AC supply regions.

Is the MPM-20-12 suitable for 12V instrumentation or automation sensors in a compact machine enclosure?

It can be a fit for enclosed 12V instrumentation and automation loads that need up to 1.8A. The encapsulated design and 52.4 x 27.2 x 24.0 mm size help where available space is tight.

Can this model be used in medical or monitoring equipment that runs on 12V?

It can be used for low-power 12V monitoring or medical devices when the load remains within 21.6W. The listed features include medical safety approval and extremely low leakage current, which are relevant for that kind of equipment.

Is the MPM-20-12 outdoor-rated, or is it better for protected indoor equipment?

The operating temperature range is -35C to +85C, with output derating at higher ambient temperatures per the derating curve, so it can handle broad equipment temperatures in a protected enclosure. No IP rating is stated, so the specs do not support calling it outdoor-rated or waterproof.
