Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

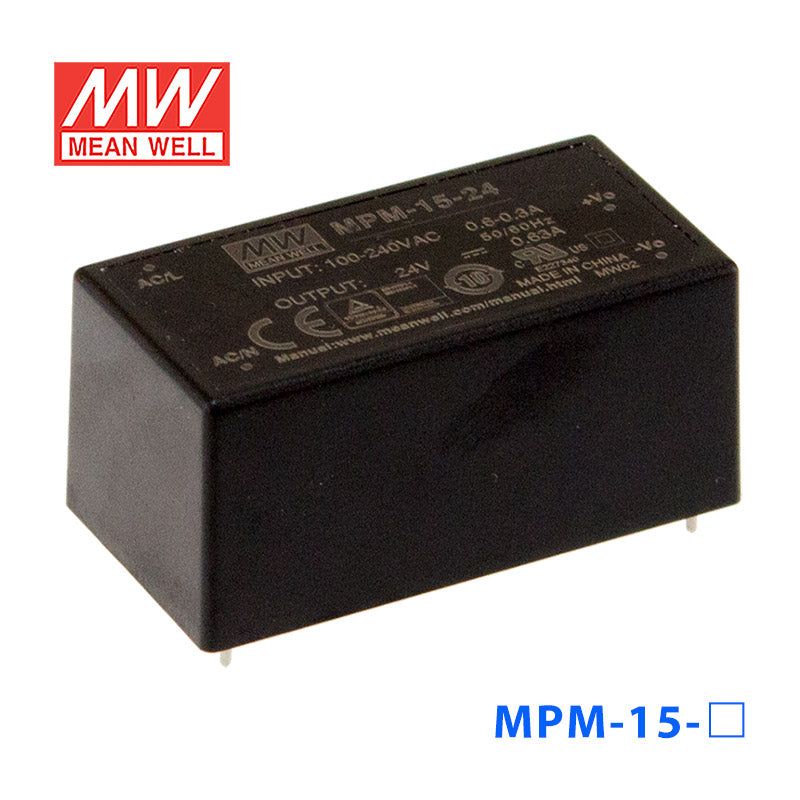

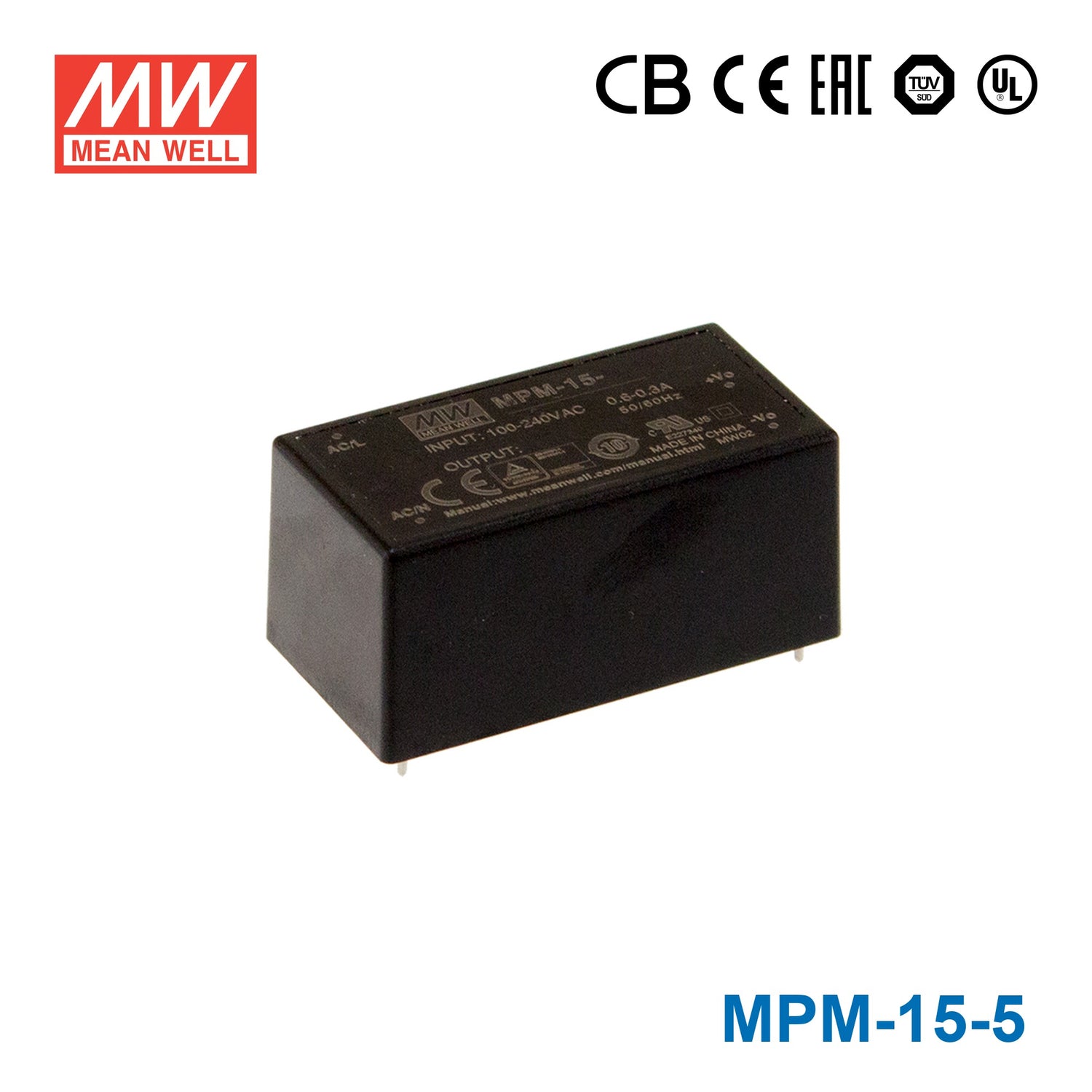

Mean Well MPM-15-5 Power Supply 15W 5V 3A
$14.41 USD
$63.00
Unit price /
Unavailable
Description
Description
Touch current <80 μA/264VAC
Key Features
- ✓2.06"x1.07" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -40~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length2.06 in
-
Width1.07 in
-
Height0.94 in
-
Weight0.12 lb
