Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

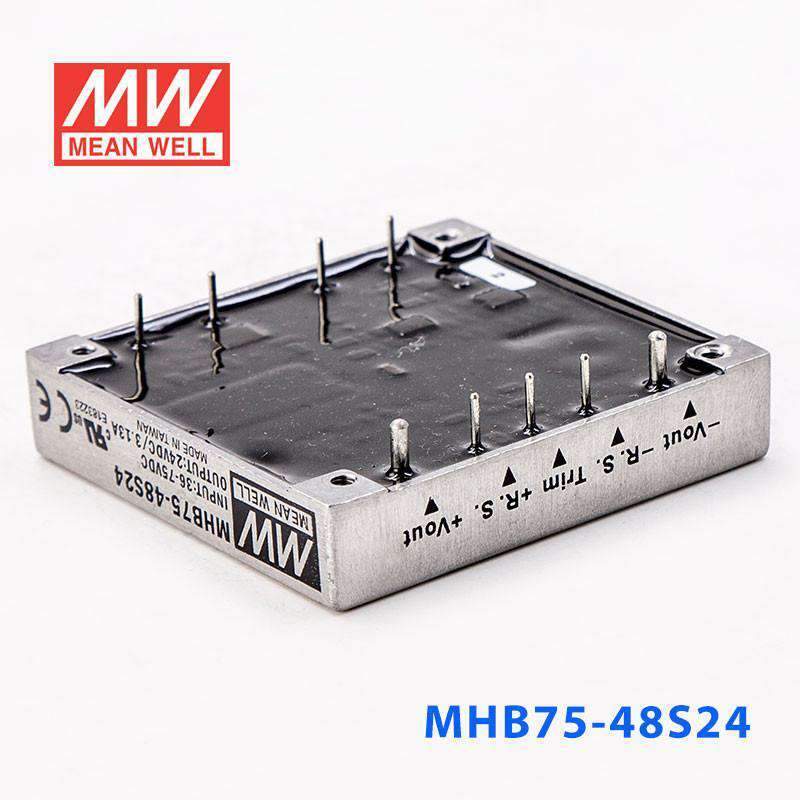

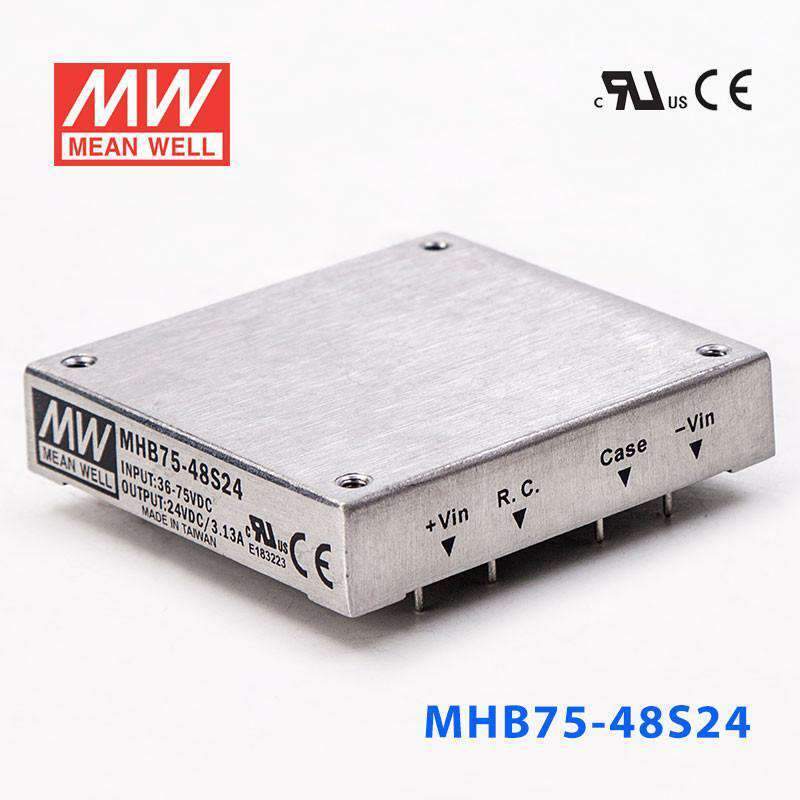

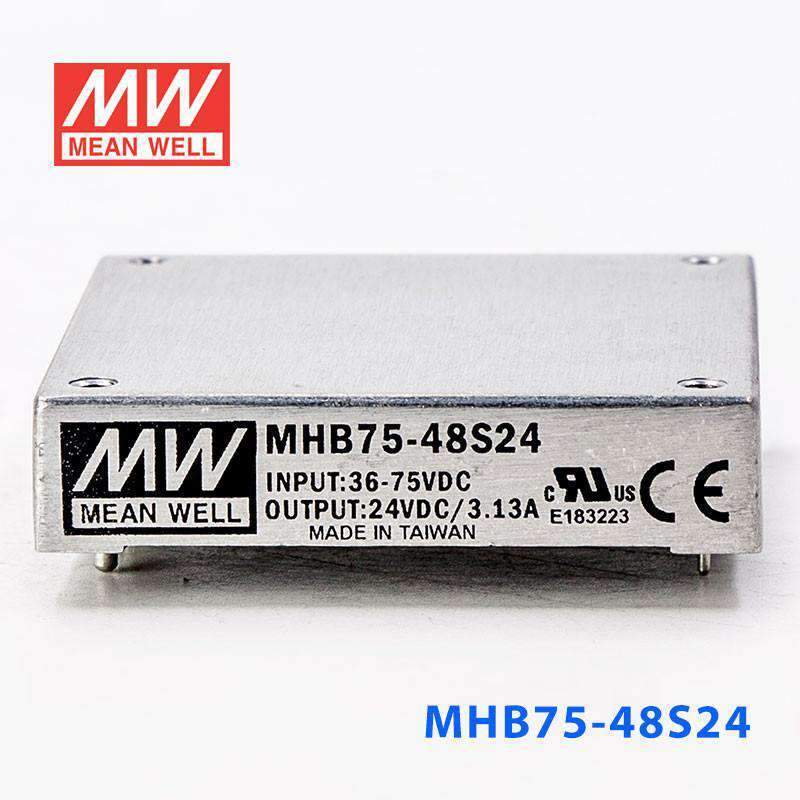

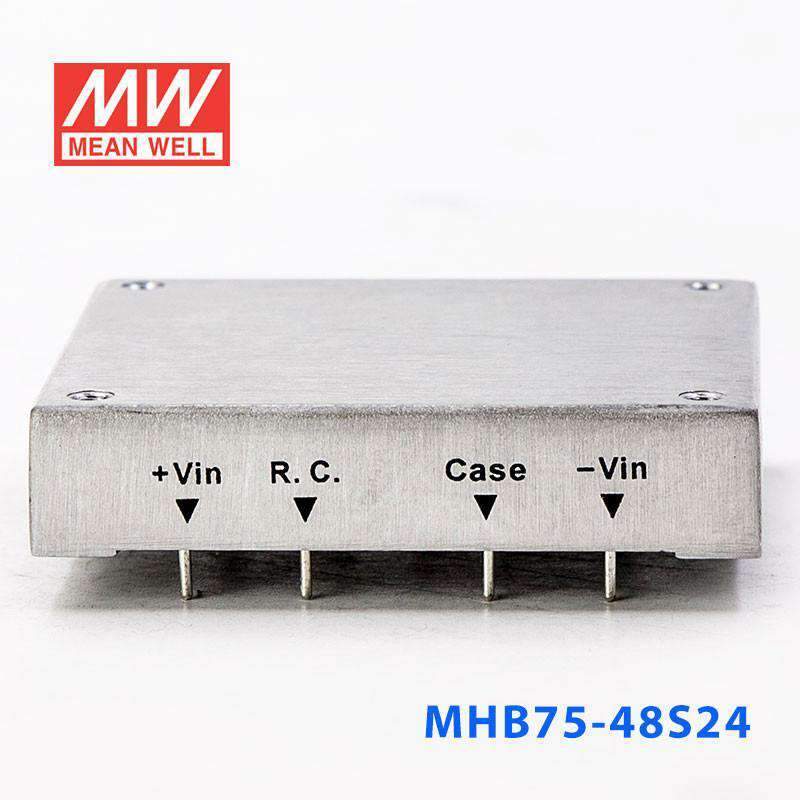

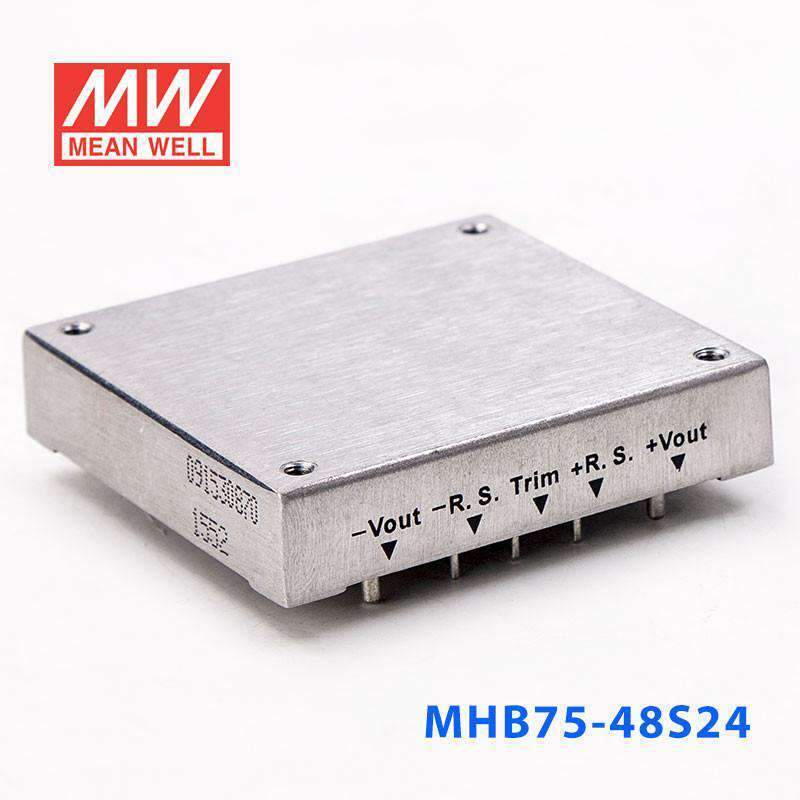

Mean Well MHB75-48S24 DC-DC Converter - 75W - 36~72V in 24V out
$78.26 USD
Unit price /
Unavailable
Description
Description
Features
| Half-brick size (2.28" 2.4" 0.5") with industry standard pin out |
| 2:1 wide input range |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| High efficiency up to 89% |
| 1500VDC I/O isolation |
| Built-in remote ON/OFF control |
| Built-in remote sense function |
| Trimming output ±10% |
| Five-sided shield metal case |
| Optional heat sinks for extended operating temperature |
| Output 2.5V/3.3V/15V available |
| Approvals: UL / CUL / CE |
| 3 years warranty |
General Specification
| Over current protection | 110%~150% rated output power; Protection type: over current limiting, recovers automatically after fault condition is removed |
| Over temperature protection | Case temperature 100°C±5°C, Over temperature protection enabled |
| Over voltage protection | 115%~140%; Protection mode: Output Voltage clamping by zener diode |
| Withstand voltage | I/P-O/P:1500VDC,I/P-Case:1500VDC,O/P-Case:1500VDC |
| Working temperature | -40~100°C; Thermal shutdown at 100°C±5°C of case temperature(Please refer to Thermal Curve) |
| Safety standards | UL60950-1 approved |
| EMC standards | With external components Compliance to EN55022 Class A(Please refer to ¨¹EMC Suggestion Circuit¨¹) |
| Dimension (LxWxH)(mm) | 57.9 x 61 x 12.7 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesMHB Series
-
Power Rating75 Watt
-
Output Voltage24 Volt
-
Rated Current3.13 Ampere
-
Input Voltage36V~72V
-
Standards MetCB,CE,EAC,EMC,RCM,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~105°C
-
Warranty3 Year
-
Length2.4 in
-
Width2.28 in
-
Height0.5 in
-
Weight0.2 lb
