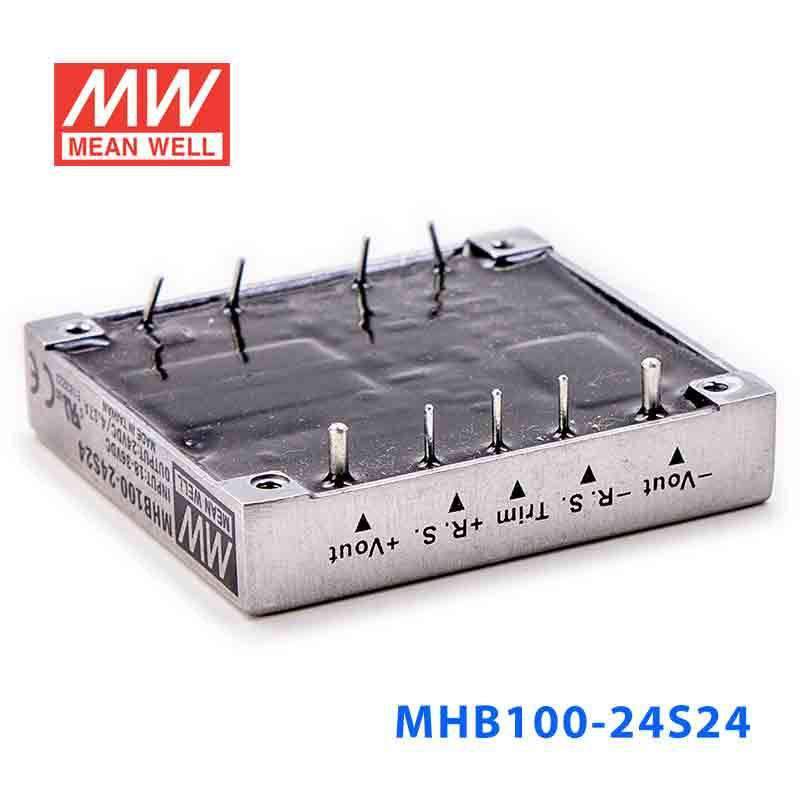

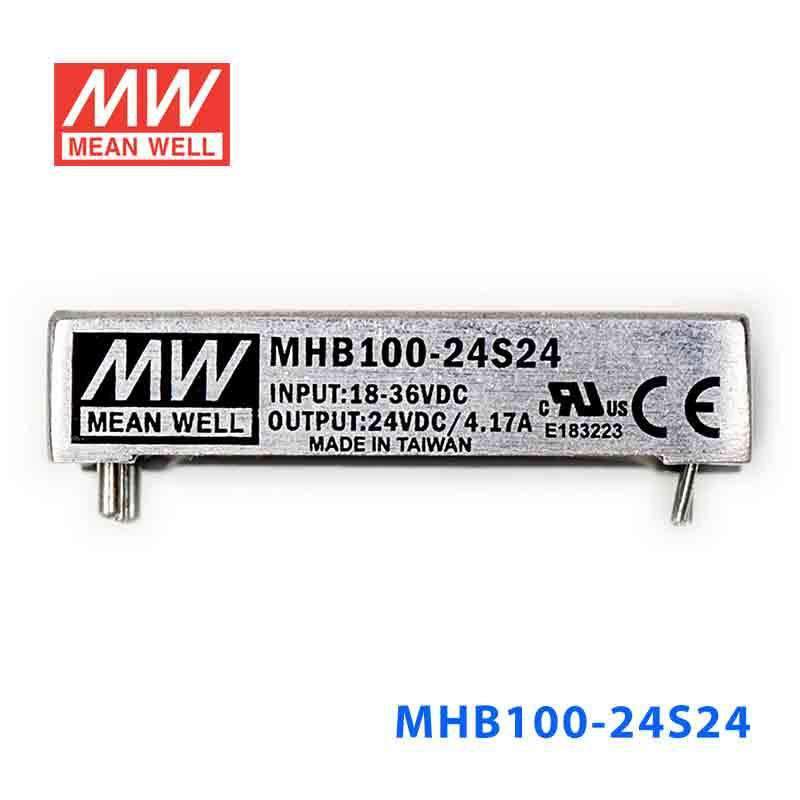

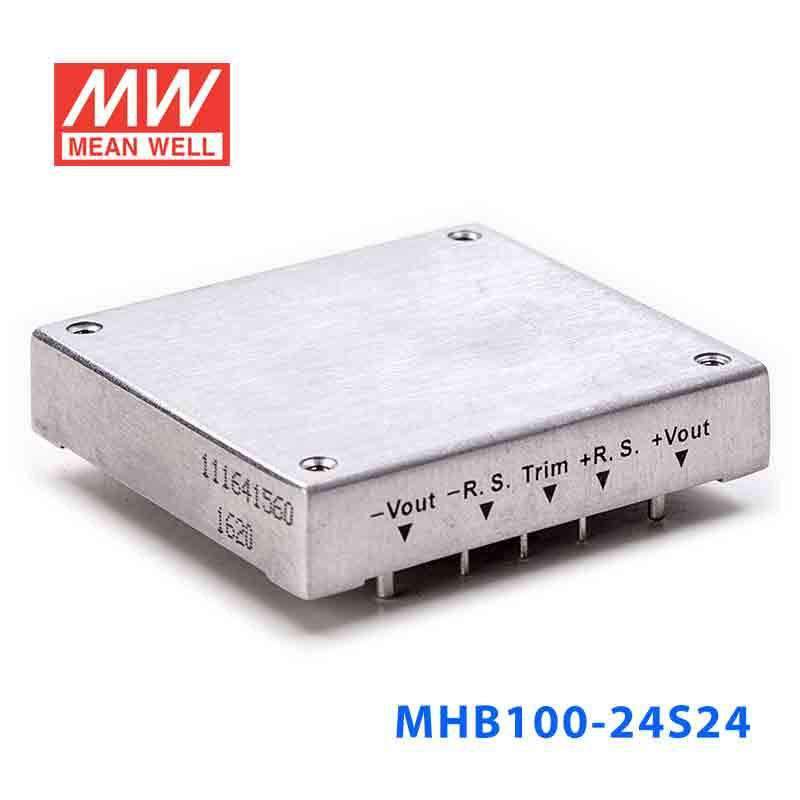

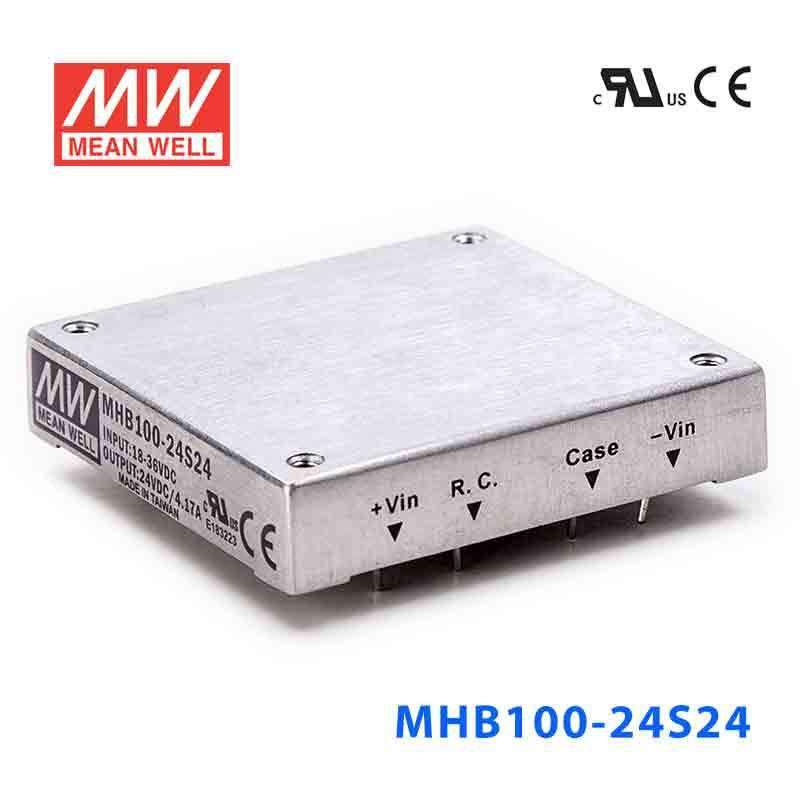

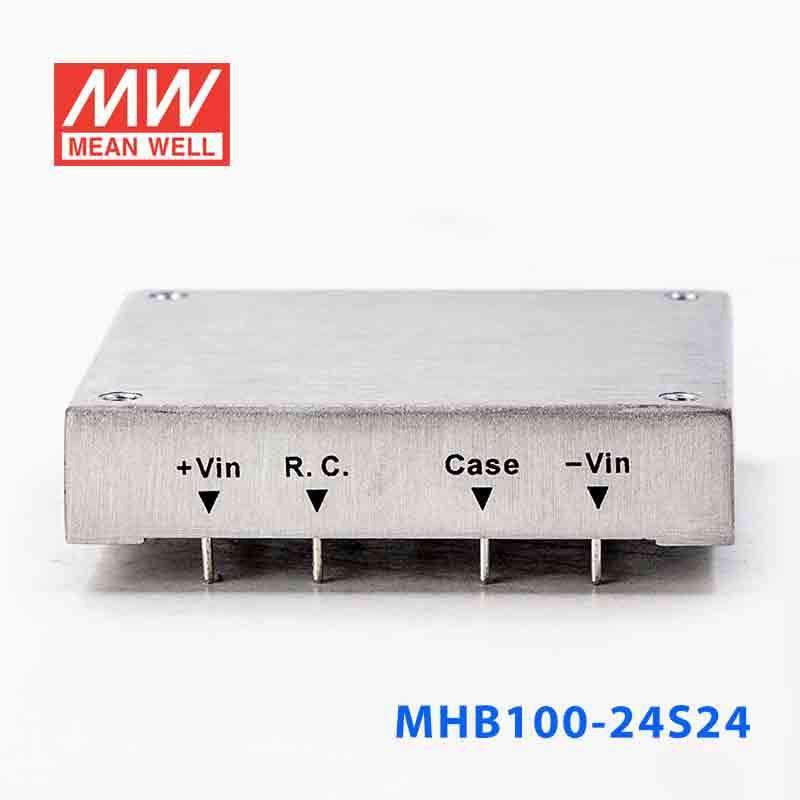

Mean Well MHB100-24S24 DC-DC Converter - 100W - 18~36V in 24V out 4...
Overview
MHB100-24S24 is the 24V output model of this series: rated power 100W, typical efficiency 87%.
Features
- Half-brick size (2.28"X2.4"X0.5") with industry standard pin out
- 2:1 wide input range
- Protections: Short circuit / Over current / Over voltage / Over temperature
- High efficiency up to 89%
- 1500VDC I/O isolation
- Built-in remote ON/OFF control
- Built-in remote sense function
- Trimming output ±10%
- Five-sided shield metal case
- Optional heat sinks for extended operating temperature
- Output 3.3V/15V available
- Approvals: UL / CUL / EAC / CE / UKCA
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- CURRENT RANGE
- 0 ~ 4.17A
- RATED POWER
- 100W
- RIPPLE & NOISE (max.)Note.2
- 240mVp-p
- VOLTAGE ACCURACYNote.3
- ±1.0%
- LINE REGULATION
- ±0.2%
- LOAD REGULATION
- ±0.2%
- SWITCHING FREQUENCY (Typ.)
- 500KHz
- EXTERNAL TRIM ADJ. RANGE (Typ.)
- ±10%
- EXTERNAL CAPACITIVE LOAD (max.)
- 4170uF
INPUT
- RATED DC INPUT
- 24VDC
- VOLTAGE RANGE
- 18 ~ 36VDC
- SURGE VOLTAGE (100ms max.)
- 50VDC
- UNDER VOLTAGE LOCKOUT
- Power up: 17VDC, Power down: 16VDC
- EFFICIENCY (Typ.)
- 87%
- DC CURRENT FULL LOAD
- 4905mA
- DC CURRENT NO LOAD
- 50mA
- FILTER
- Pi-network
PROTECTION
- OUTPUT OVER CURRENT
- 110 ~ 140% rated output power Protection type : Over current limiting, recovers automatically after fault condition is removed
- OUTPUT OVER VOLTAGE (Typ.)
- 115 ~ 140% rated output voltage Protection type : Output voltage clamp
- OUTPUT SHORT CIRCUIT
- Protection type : Can be continuous, recovers automatically after fault condition is removed
- OVER TEMPERATURE
- 100℃±5℃of case temperature
FUNCTION
- REMOTE CONTROL
- Please refer to "Remote ON/OFF Control" for details
OPERATING
- OUTPUT TRIMMING
- ±10%, Please refer to "External Output Trimming" for details
ENVIRONMENT
- WORKING TEMPERATURE (Typ.)
- -40 ~ +100℃ ; Thermal shutdown at 100℃±5℃of case temperature (please refer to "Thermal Curve")
- WORKING HUMIDITY
- 0% ~ 95% RH max.
- STORAGE TEMP., HUMIDITY
- -55 ~ +105℃, 0 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0~60℃)
SAFETY & EMC
- SAFETY STANDARDS
- UL60950-1, EAC TP TC 020/2011(EAC TP TC 004 for 48Vin type only) approved
- ISOLATION VOLTAGE
- I/P-O/P:1500VDC, I/P-Case:1500VDC, O/P-Case:1500VDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class A with external components (please refer to "EMC Suggestion Circuit"), EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8; BS EN/EN55024, light industry level, criteria A, EAC TP TC 020
OTHERS
- CASE MATERIAL
- Aluminum
- MTBF
- 900K hrs typ. MIL-HDBK-217F (25℃)
- DIMENSION
- 57.9*61*12.7mm (2.28"*2.40"*0.5") (L*W*H)
- PACKING
- 95g ; 12pcs/EPE, 60pcs/5 per carton
Test conditions and notes4
- 1. All parameters NOT specially mentioned are measured at 24,48VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 1uf ceramic & 10uf tantalum capacitor across output.
- 3. The power supply need to connect "+Vout" to "+R.S" and "-Vout" to "-R.S".
- 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies."
Technical drawings
Downloads
FAQ
Can I use the MHB100-24S24 for 24V industrial control equipment on an 18-36VDC source?
Yes, this converter accepts 18-36VDC input and delivers a regulated 24V output. With 100W total power and 4.17A output current, it fits 24V control loads that stay within those ratings.
Is this a good fit for 24V PLC I/O modules or automation interfaces?
It is suitable for 24V automation electronics that require constant voltage and draw no more than 4.17A or 100W. The 24V output matches many industrial control and interface loads better than the 5V or 12V versions in the same series.
Can the MHB100-24S24 power 24V embedded or communications devices inside industrial systems?
Yes, when the device expects a steady 24V supply and its load remains within 4.17A and 100W. Its 61.0 x 57.9 x 12.7 mm form factor and 0.095 kg weight also support compact equipment layouts.
Will this converter handle cold or high-heat environments?
The specified operating range is -40°C to +100°C case temperature, with thermal shutdown at 100°C±5°C, so derating or added cooling is needed per the thermal curve. No IP rating is listed in the provided specs, so direct outdoor exposure is not confirmed here.
What is the difference between the MHB100-24S24 and the other listed MHB100 siblings?
All listed siblings are 100W models, but they differ by input family and output level. The 24S family includes 5V 20A, 12V 8.3A, and 24V 4.17A versions, and the 48S family includes 5V 20A, 12V 8.3A, and 24V 4.17A versions.
