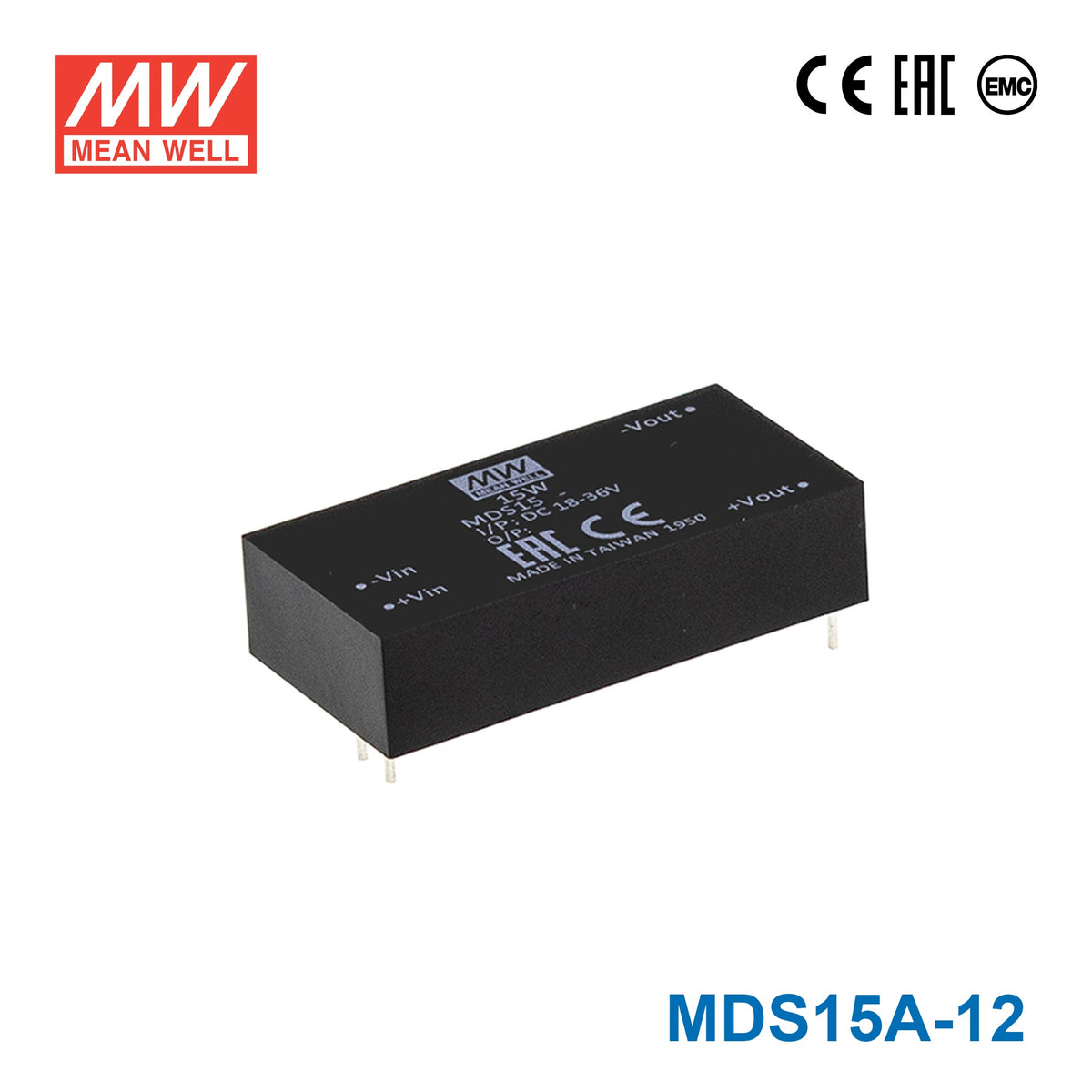

Mean Well MDS15A-12 DC-DC Converter - 15W - 9~18V in 12V out
$33.06 USD
Unit price /
Unavailable
Description
Description
Features
| DIP 2"x1" package with international standard pinout |
| 2:1 wide input range |
| Low patient leakage current <5µA |
| Wide operating temperature range -40~+90℃ |
| Medical safety approved(2xMOPP) according to IEC60601-1 |
| Protections: Short circuit(Continuous)/Overload/Input under voltage |
| 4000VAC high I/O isolation(Reinforced isolation) |
| 3 years warranty |
General Specification
| Voltage accuracy | ±1% |
| Efficiency | 88% |
| Short circuit protection | Continuous, automatic recovery |
| Working temperature | -40°C to +90°C |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 70℃) |
| Dimension (LxWxH) (mm) | 50.8*25.4*12mm (2*1*0.47 inch) |
Specifications
Specifications
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating15 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage9V~18V
-
Standards MetCE,EAC,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length2 in
-
Width1 in
-
Height0.47 in
-
Weight0.07 lb
