Mean Well

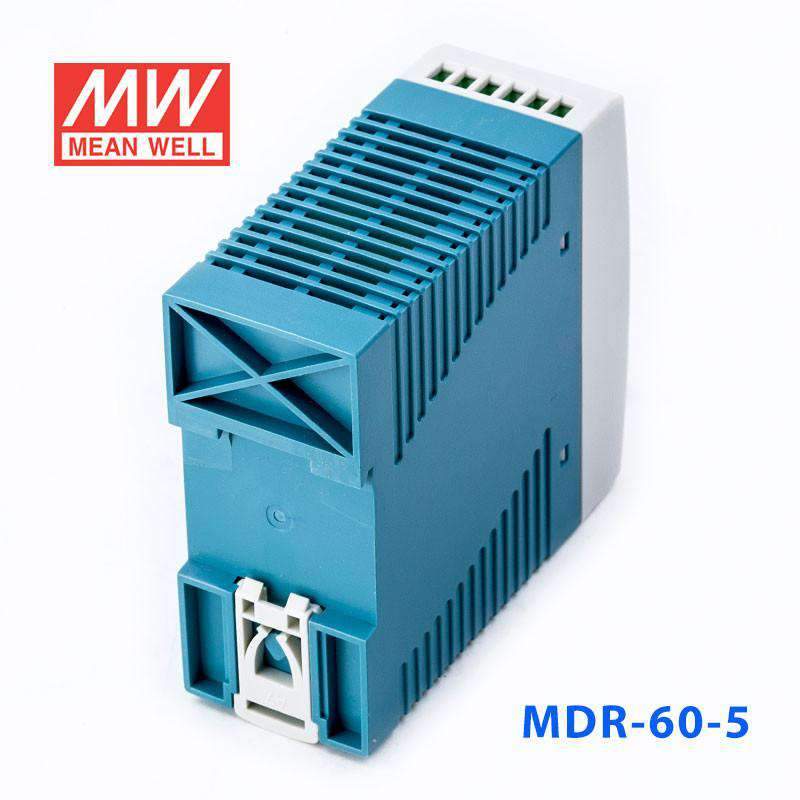

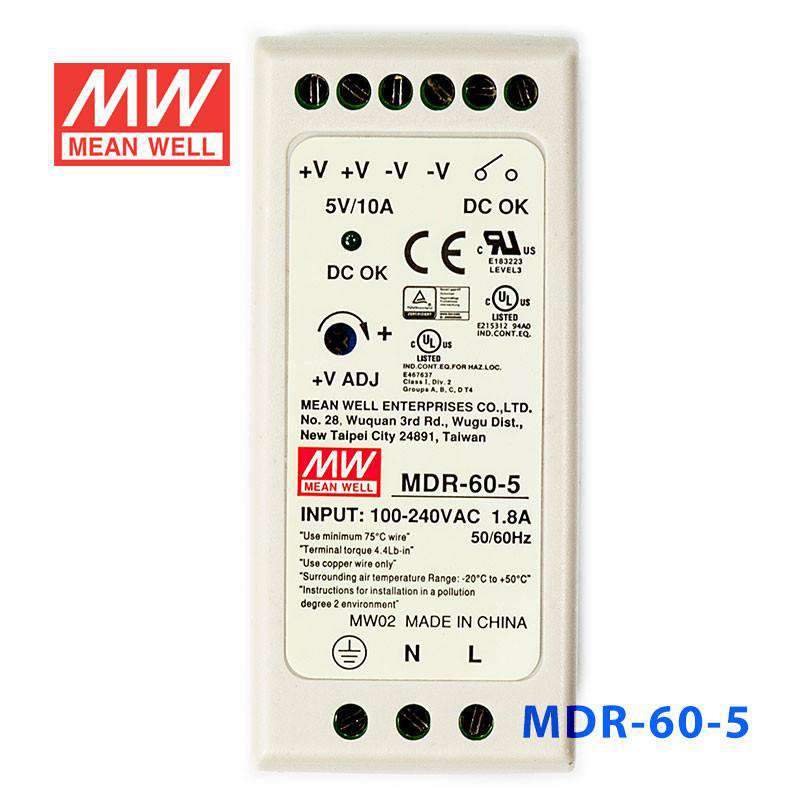

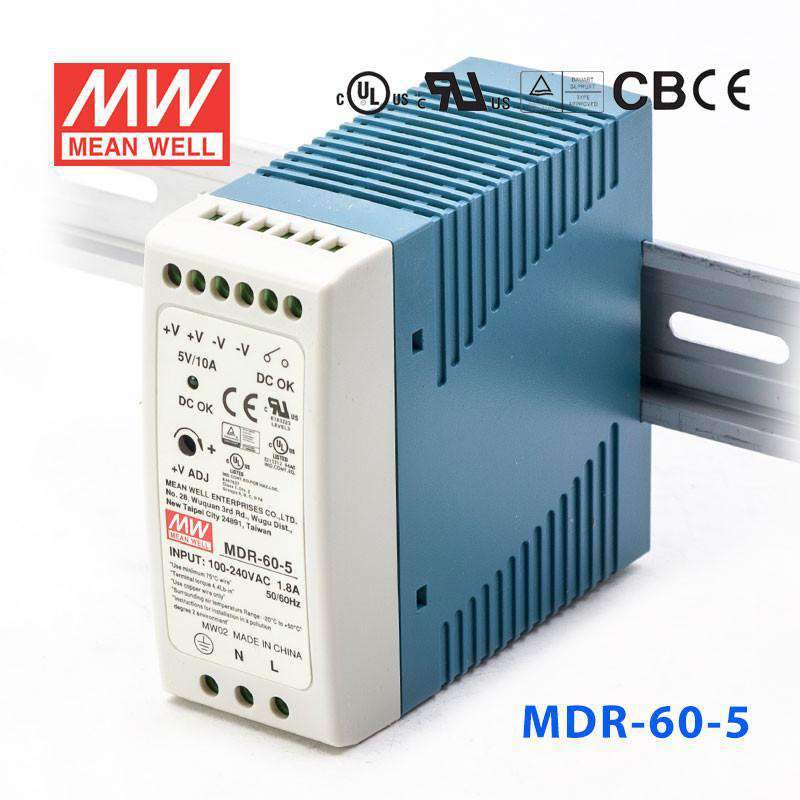

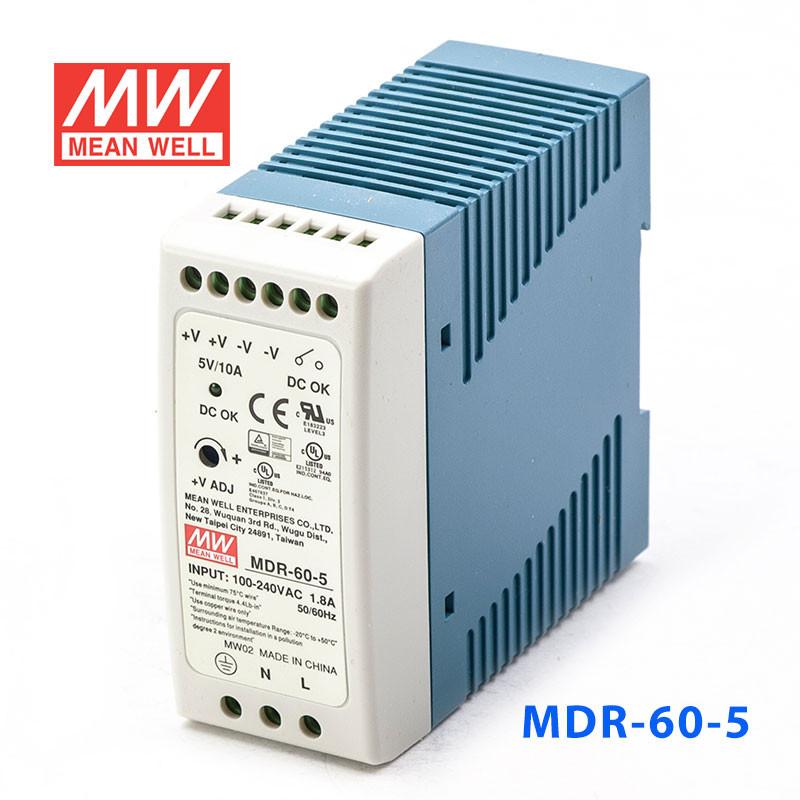

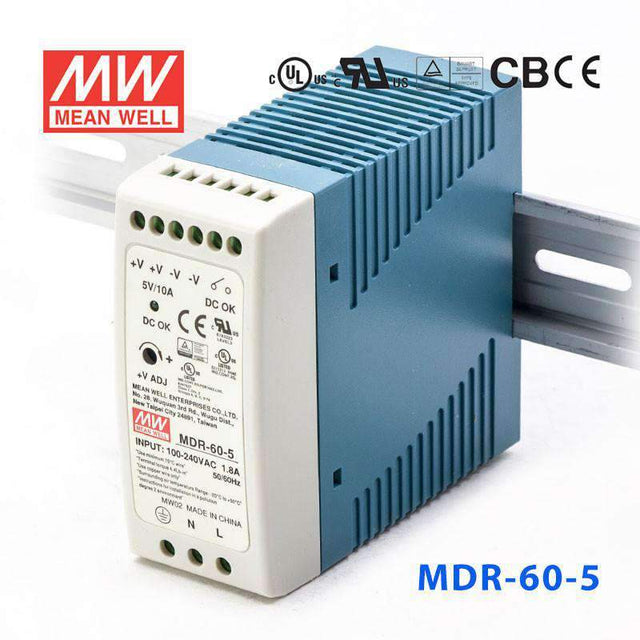

Mean Well MDR-60-5 Single Output Industrial Power Supply 60W 5V 10A - DIN Rail

ultra slimbuilt-in active PFC function
SKU MDR-60-5
$27.93 USD
Shipping calculated at checkout.

Select model — 4 in this family

MDR-60-5
In stock
|

Overview

MDR-60-5 is the 5V output model of this series: rated current 10A, rated power 50W, typical efficiency 78%.

Features

  • Universal AC input/Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection

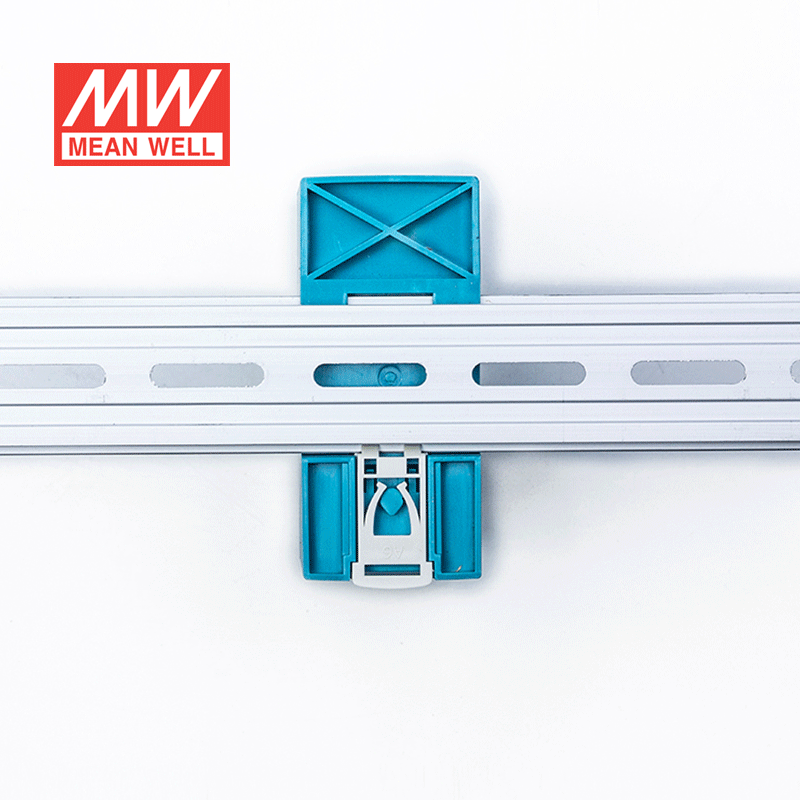

  • Can be installed on DIN rail TS-35/7.5 or 15
  • Class I, Div 2 Hazardous Locations T4
  • LED indicator for power on
  • DC OK relay contact
  • No load power consumption<0.75W
  • 100% full load burn-in test
  • 3 years warranty

Specifications

MDR-60-5Specifications from the official datasheet (2025-07-25 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
10A
CURRENT RANGE
0 ~ 10A
RATED POWER
50W
RIPPLE & NOISE (max.)Note.2
80mVp-p
VOLTAGE ADJ. RANGE
5 ~ 6V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±1.5%
SETUP, RISE TIMENote.5
500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
78%
AC CURRENT (Typ.)
1.8A/115VAC 1A/230VAC
INRUSH CURRENT (Typ.)
COLD START 30A/115VAC 60A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
6.25 ~ 7.25V Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

DC OK SIGNAL
Relay contact rating(max.): 30V/1A resistive

ENVIRONMENT

WORKING TEMP.
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
Component : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ; Mounting : Compliance to IEC60068-2-6

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL508, UL62368-1, TUV BS EN/EN62368-1,Class I, Div. 2 Group A, B, C, D Hazardous Locations T4, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 60950.1 , BIS IS13252(Part1): 2010/IEC 60950-1:2005(except 48V) approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3, heavy industry level, EAC TP TC 020

OTHERS

MTBF
2355.2K hrs min. Telcordia SR-332 (Bellcore) ; 489.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
40*90*100mm (W*H*D)
PACKING
287g; 42pcs/13.05Kg/0.82CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

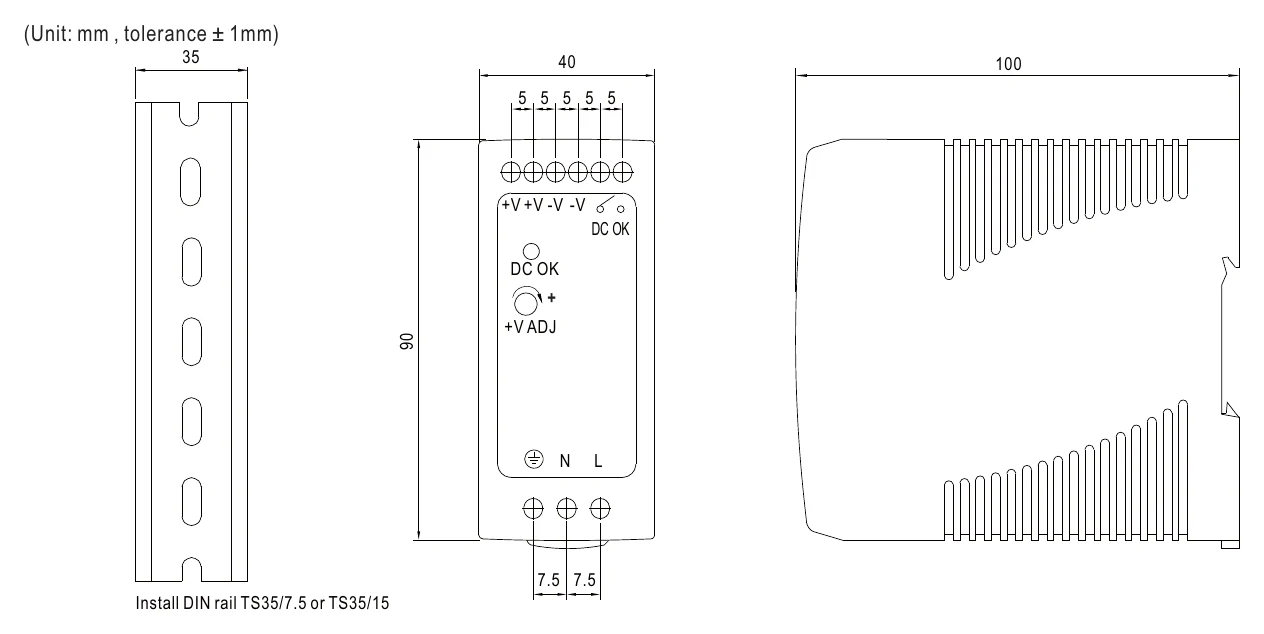

MDR-60-5 Mechanical Specification
Mechanical Specification

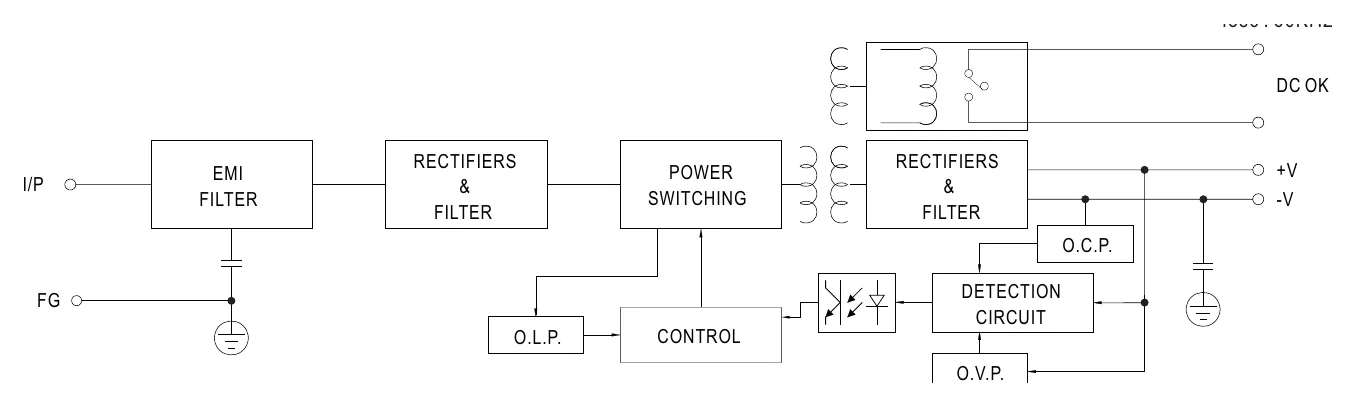

MDR-60-5 Block Diagram
Block Diagram

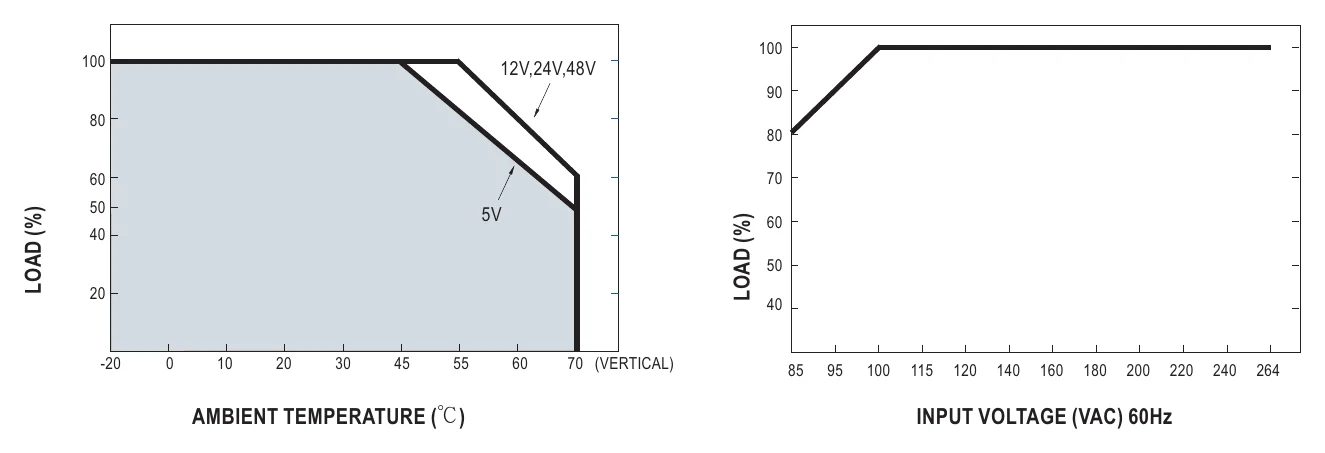

MDR-60-5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the MDR-60-5 for 5V industrial controllers or logic devices in a control panel?

Yes, this model is intended for 5VDC loads and can supply up to 10A with a 50W rating. That makes it suitable for 5V industrial controllers, logic devices, and related panel-mounted electronics that stay within those limits. Its DIN rail format supports organized installation inside control cabinets.

Is the MDR-60-5 suitable for powering multiple 5V modules in an automation enclosure?

It can be used for grouped 5V modules in an automation enclosure as long as the combined demand does not exceed 50W or 10A. The single-output design works for centralized 5V distribution in cabinet-based systems. Its 40 mm wide housing also helps when DIN rail space is limited.

Can this 5V DIN rail power supply be used in building management or industrial monitoring panels?

Yes, it can fit building management or industrial monitoring panels that use 5VDC electronics and require no more than 10A from a single 5V output. The 85-264VAC input allows it to accept a broad AC input range for panel conversion. The compact 100.0 × 90.0 × 40.0 mm size is useful in tight enclosures.

Is the MDR-60-5 a good fit when I need high current at 5V on DIN rail?

Yes, this version is the 5V member of the MDR-60 series and provides up to 10A at 5V with a 50W rating. That higher 5V current is useful for control cabinet applications that need more current at low voltage from a single DIN rail supply. The housing keeps the footprint compact at 100.0 × 90.0 × 40.0 mm.

Is the MDR-60-5 meant for inside-cabinet use or exposed environmental conditions?

This unit is better matched to control cabinet or enclosure installation because the provided specifications do not include an external IP rating for exposed use. Its operating temperature range is -20°C to +70°C, with output derating at higher temperatures per the 5V derating curve, which supports industrial enclosure conditions. For direct exposure to weather or washdown, a model with a stated protection rating is typically preferred.

How does the MDR-60-5 compare to the other MDR series power supplies?

Within the MDR-60 series, the MDR-60-5 provides 50W at 5V and 10A. The other models on the same sheet are the MDR-60-12 at 60W, 12V, 5A; the MDR-60-24 at 60W, 24V, 2.5A; and the MDR-60-48 at 60W, 48V, 1.25A.
