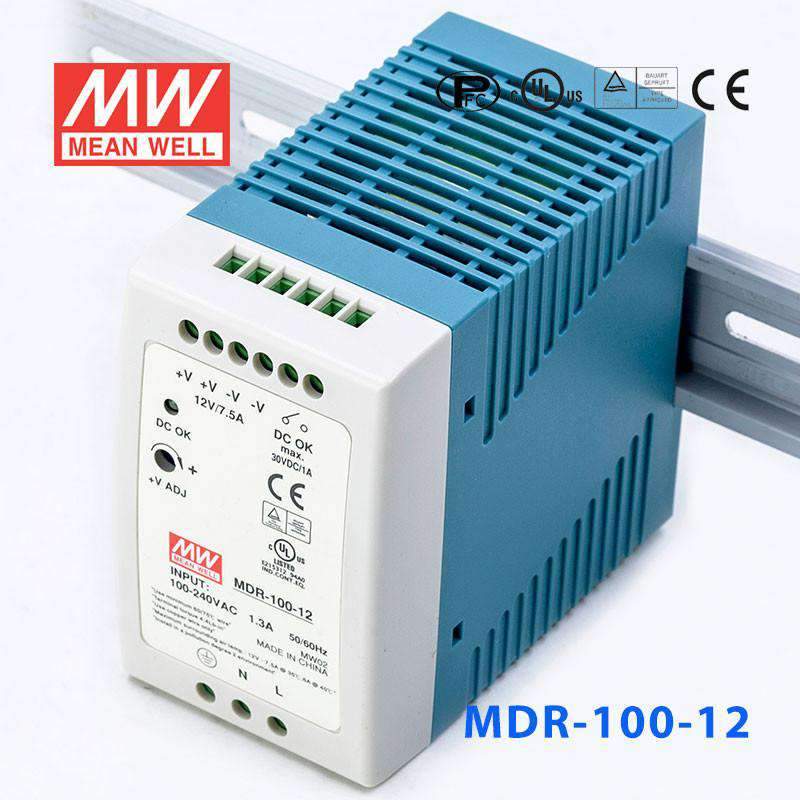

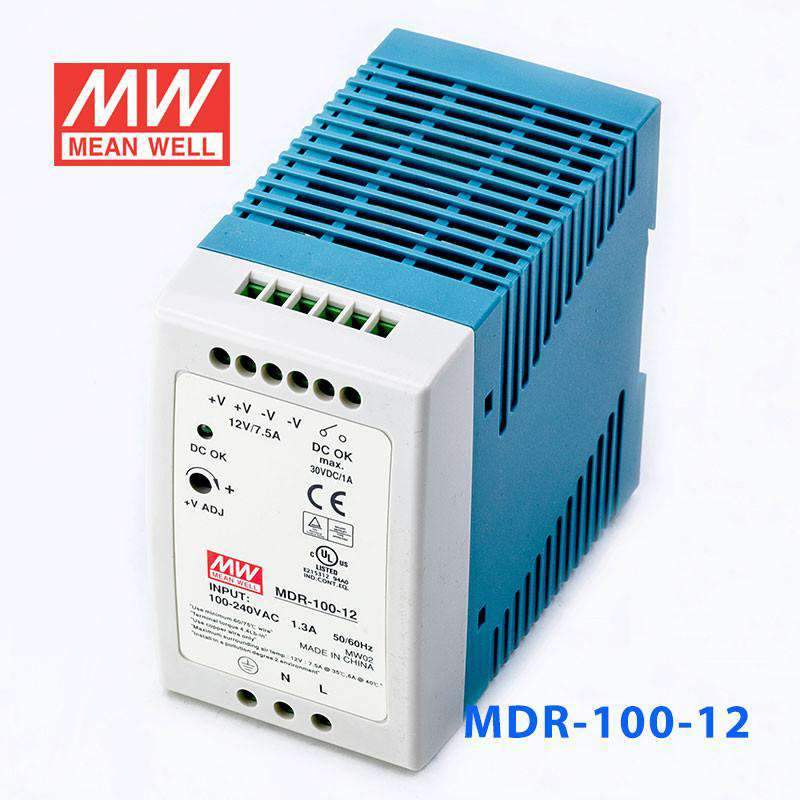

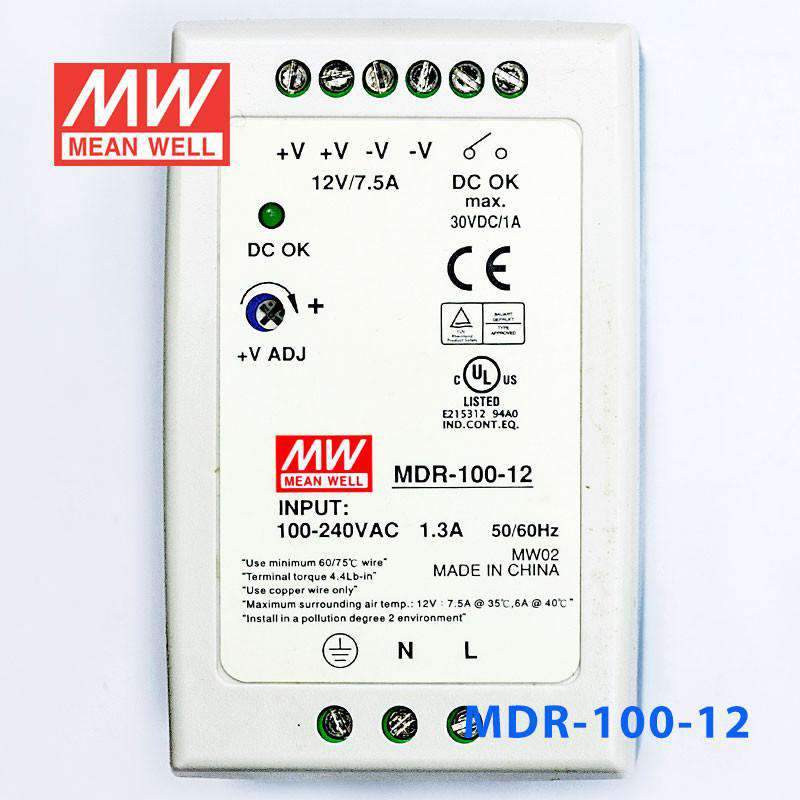

Mean Well MDR-100-12 Single Output Industrial Power Supply 100W 12V...
$44.50 USD
Unit price /
Unavailable
Description
Description
The MDR-100 is a 90W Mean Well DIN rail power supply (input: 85~264VAC, operating temperature: -10~+60°C).
Key Features
- ✓ Input voltage: 85~264VAC
- ✓ Output voltage (max): 12V
- ✓ Rated output current: 7.5A

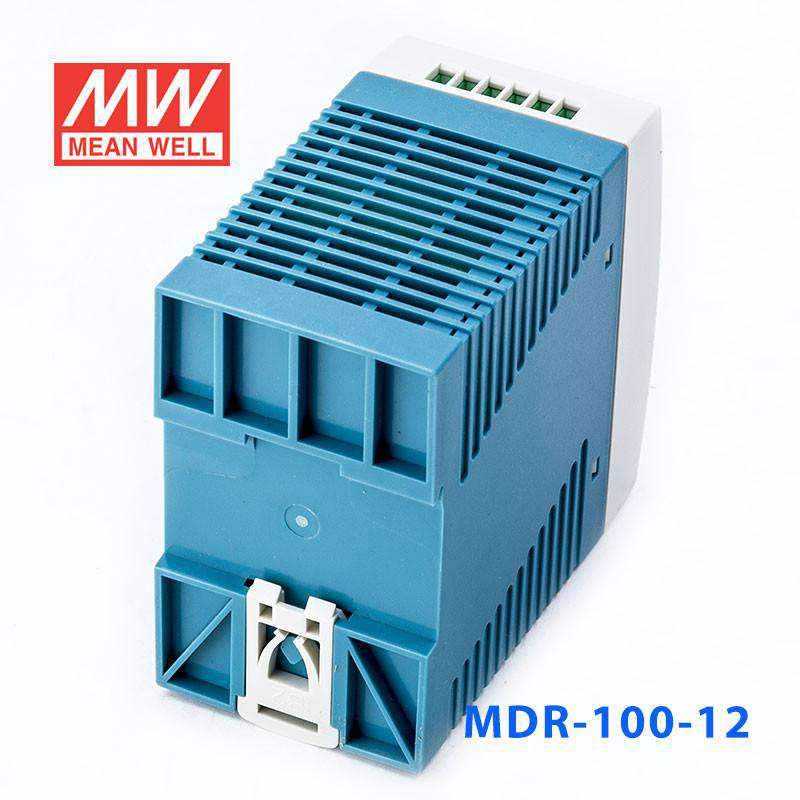

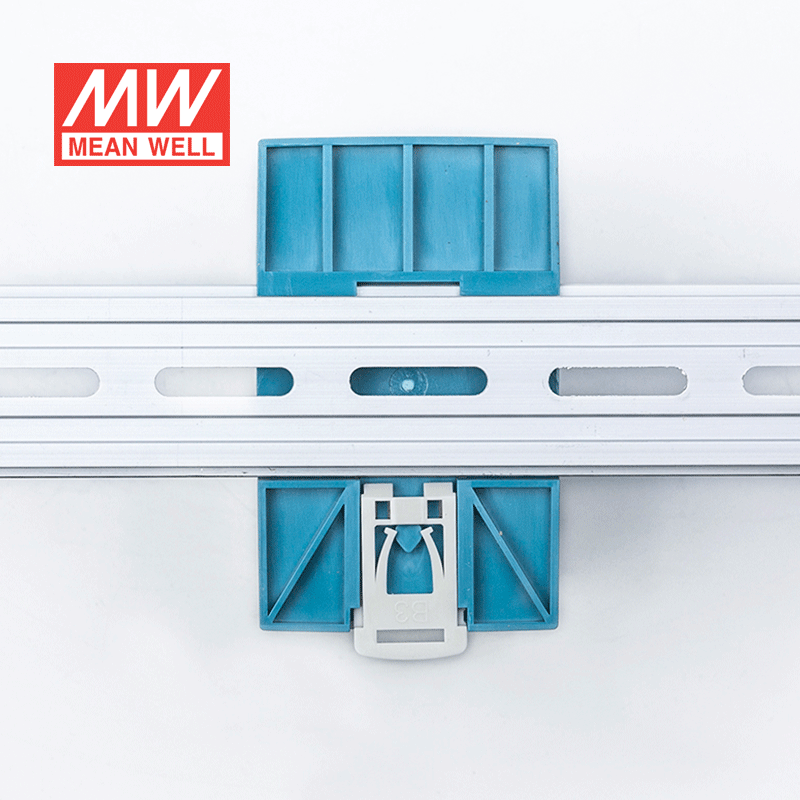

- ✓ DIN rail TS-35 mountable
- ✓ Operating temperature: -10~+60°C
- ✓ Active PFC — meets international energy efficiency standards
- ✓ Safety certifications: BSMI, CE, cUL, EAC, RCM, TÜV
- ✓ 3 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDR Series
-
Power Rating90 Watt
-
Output Voltage12 Volt
-
Rated Current7.5 Ampere
-
Input Voltage85V~264V
-
Standards MetBSMI,CE,cUL,EAC,RCM,TUV
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length3.94 in
-
Width3.54 in
-
Height2.17 in
-
Weight0.93 lb
