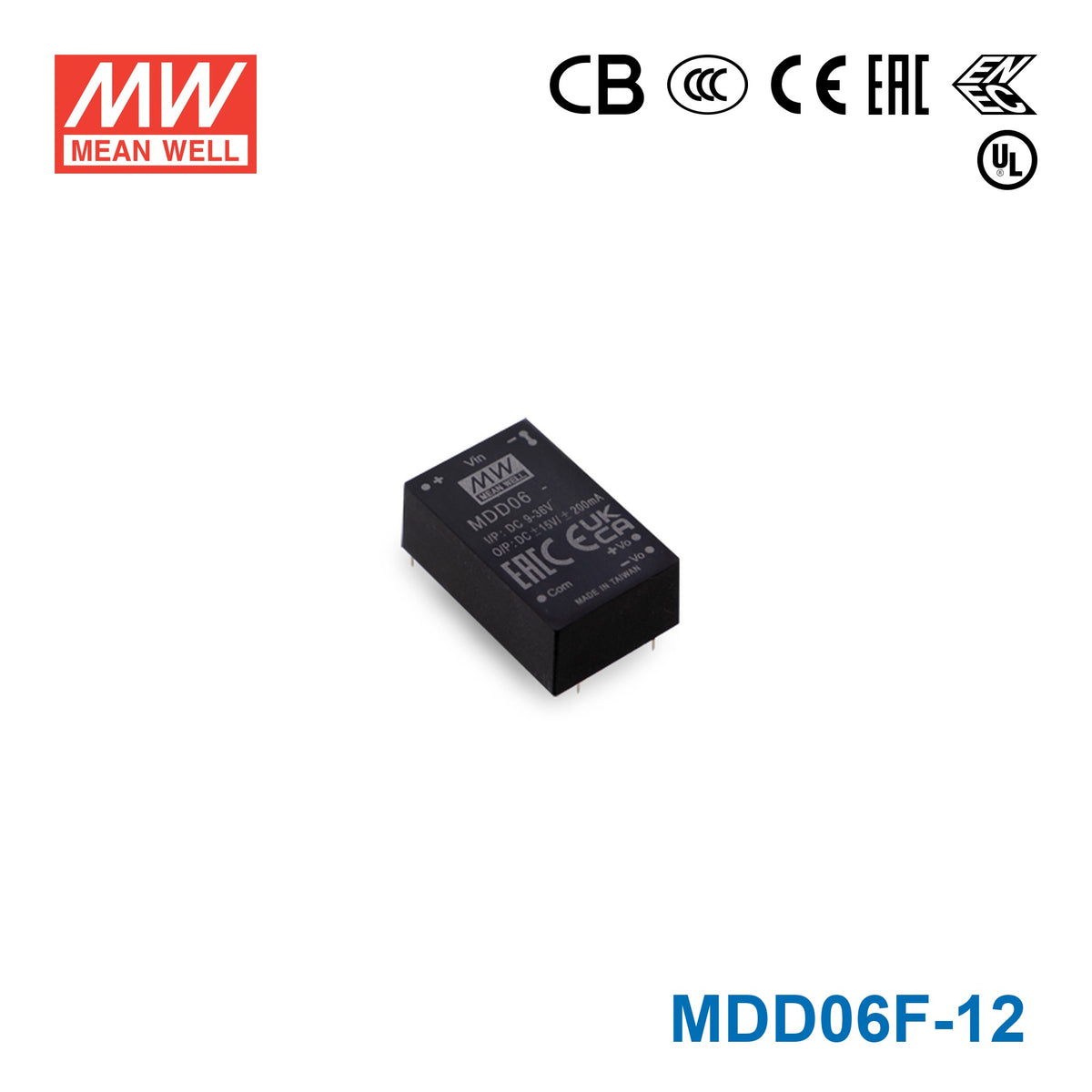

Mean Well MDD06F-12 Medical Grade DC/DC Converter 6W - 9-36V input,...
$18.42 USD
Unit price /
Unavailable
Description
Description
Features
| DIP 24 package with international standard pinout |
| 4:1 wide input range |
| Low patient leakage current <5µA |
| Wide operating temperature range -40~+90℃ |
| Medical safety approved(2xMOPP) according to IEC60601-1 |
| Protections: Short circuit(Continuous)/Overload |
| 6KVDC or 4.2KVAC high I/O isolation(Reinforced isolation) |
| 3 years warranty |
General Specification
| Voltage accuracy | ±2% |
| Efficiency | 84% |
| Short circuit protection | Continuous, automatic recovery |
| Working temperature | -40°C to +90°C |
| Temp. Coefficient | 0.05% / ℃ (0 ~ 71℃) |
| Dimension (LxWxH) (mm) | 31.8*20.3*12.2mm (1.25*0.8*0.48 inch) |
Specifications
Specifications
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating6 Watt
-
Output Voltage12 Volt
-
Rated Current0.25 Ampere
-
Input Voltage9V~36V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.04 lb
