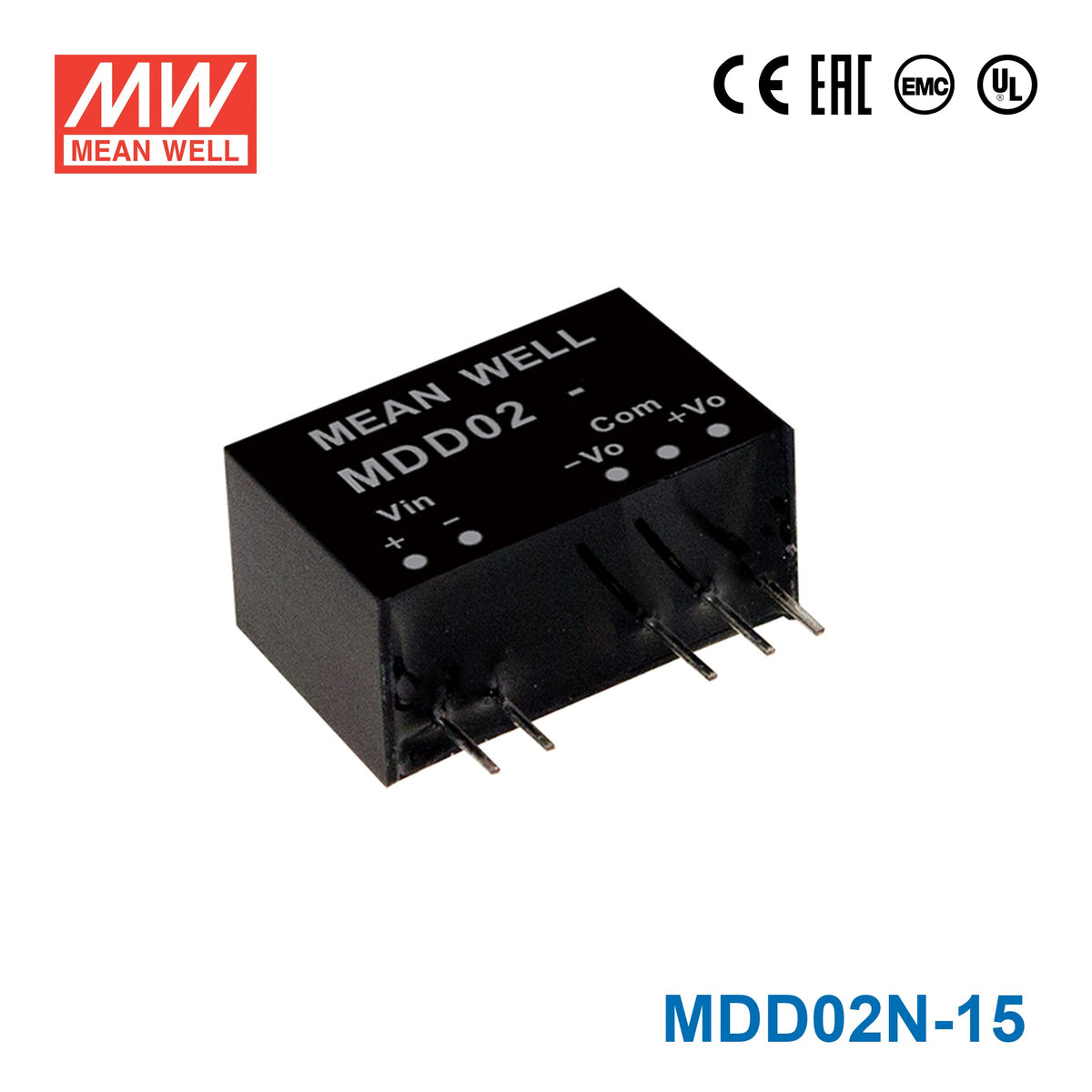

Mean Well MDD02N-15 DC-DC Converter - 2W - 21.6~26.4V in ±15V out 67mA

Name: Mean Well MDD02N-15 DC-DC Converter - 2W - 21.6~26.4V in ±15V out 67mA
Brand: Mean Well
SKU: MDD02N-15
Price: 6.68 USD
Availability: InStock

SKU MDD02N-15

$6.68 USD

Shipping calculated at checkout.

Available to order

Overview

MDD02N-15 is the ±15V output model of this series: rated power 2W, typical efficiency 82%.

MDS02 and MDD02 series are 2W isolated and unregulated module type medical grade DC-DC converter with SIP 7 package. It features international standard pins, a high efficiency up to 8 5 %, wide working temperature range -40~+ 85℃, 6 KVDC or 4 . 2KVAC I/P-O/P hight isolation voltage, short circuit protection, etc. The models account for different input voltage 5V/12V/24V±10%, and various output voltage, 5V/12V/ 15V for single output and ±5V /±9 V/±12V/±15V for dual outputs, which are suitable for medical systems, ultra low leakage current.

Features

SIP7 package with international standard pinout
Operating temperature range -40 ~ +85℃
Medical safety approved (1xMOPP/2xMOOP) according to ANSI/AAMI ES60601-1
Low patient leakage current <2μA
Protection: Short circuit(3 second max.)
6KVDC or 4.2VAC hight I/O isolation (Reinforced isolation)
Low cost
3 years warranty

Specifications

MDD02N-15Specifications from the official datasheet (2022-05-24 edition)

INPUT

INPUT VOLTAGE (RANGE): Normal 24V (21.6 ~ 26.4V)
INPUT CURRENT NO LOAD: 12mA
INPUT CURRENT FULL LOAD: 103mA
VOLTAGE RANGE: 21.6 ~ 26.4Vdc
SURGE VOLTAGE (100ms max.): 5Vin models : 9Vdc 12Vin models : 18Vdc 24Vin models : 30Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 500mA Slow-Blow Type for all models

OUTPUT

OUTPUT VOLTAGE: ±15V
OUTPUT CURRENT: ±7 ~ 67mA
EFFICIENCY (TYP.): 82%
CAPACITOR LOAD (MAX.)^{* For each output}: *220μF
VOLTAGE ACCURACY: ±5.0%
RATED POWER: 2W
RIPPLE & NOISE^Note.2: 75mVp-p
LINE REGULATION^Note.3: 1.2% for 1% input variation
LOAD REGULATION^Note.4: ±10%
SWITCHING FREQUENCY (Typ.): 100KHz

PROTECTION

SHORT CIRCUIT: 3 second max.

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.02% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.6)

SAFETY STANDARDS: UL60601-1, EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:6KVDC or 4.2KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION LEVEL: Primary-secondary: 1xMOPP / 2xMOOP when system input voltage is with 250VAC, 50/60Hz
ISOLATION CAPACITANCE (Typ.): 5pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55011(CISPR11) Class B
Radiated BS EN/EN55011(CISPR11) Class B
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV contact

Parameter	Standard	Test Level
Conducted	BS EN/EN55011(CISPR11)	Class B
Radiated	BS EN/EN55011(CISPR11)	Class B

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV contact

OTHERS

MTBF: 3500Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 19.5*9.8*12.5mm (0.77*0.386*0.492 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 4.2g ; 25pcs/per tube, 3000pcs/120 tube/per carton

Test conditions and notes6

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.Patient leakage current(2μA max.) and reinforced isolation is based on a 250VAC, 50/60Hz system input voltage.
6.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

MDD02N-15 Mechanical Specification — Mechanical Specification

MDD02N-15 EMC Suggestion — EMC Suggestion

Typical applications

Medical devices
Medical oxygen monitor
CT scanning
Medical carts
Oral care equipment

Downloads

Datasheet1

MDD02N-15 datasheetMDS02,MDD02-SPEC.PDF · 2022-05-24 edition PDF Download

Certificates3

Mean Well E227340 UL Certificate PDF Download

Mean Well MDD01-02- LVD Certificate PDF Download

Mean Well MDD01-02-UK-dec Certificate PDF Download

Test reports1

Mean Well MDD02N-15 Test Report PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the MDD02N-15 in a 24V automation system that needs isolated +/-15V for analog circuitry?

It is intended for 24V-class systems operating within the 21.6~26.4Vdc input range and needing an unregulated +/-15V output. With 2W total power and up to 67mA per output, it is best for low-power analog or interface sections rather than higher-current loads.

Is the MDD02N-15 a good fit for compact embedded boards that require a small +/-15V rail?

This converter is built for space-constrained designs, with dimensions of 19.5 x 9.8 x 12.5 mm and a weight of 0.0042 kg. It suits embedded or industrial boards that need a small unregulated +/-15V auxiliary supply within the 2W rating.

Can the MDD02N-15 support low-power measurement or amplifier sections in industrial electronics?

Yes, when the circuit needs +/-15V and remains within the converter's 2W and 67mA-per-output limits. That makes it more appropriate for low-power signal paths, measurement stages, or interface electronics than for heavier subsystem loads.

Does the MDD02N-15 handle harsh temperature conditions in enclosed equipment?

Its specified operating range is -40°C to +85°C, which supports use in equipment exposed to broad industrial temperature variation. The listed specs do not provide an IP rating, so environmental sealing has to come from the enclosure rather than the converter itself.

What is the difference between the MDD02N-15 and the other MDD02N versions?

All MDD02N models share the 2W power class and 21.6~26.4V input while changing output ratings: MDD02N-05 is +/-5V, +/-20~200mA; MDD02N-09 is +/-9V, +/-12~111mA; MDD02N-12 is +/-12V, +/-9~83mA; and MDD02N-15 is +/-15V, +/-7~67mA. The MDD02N-15 is the +/-15V option.
