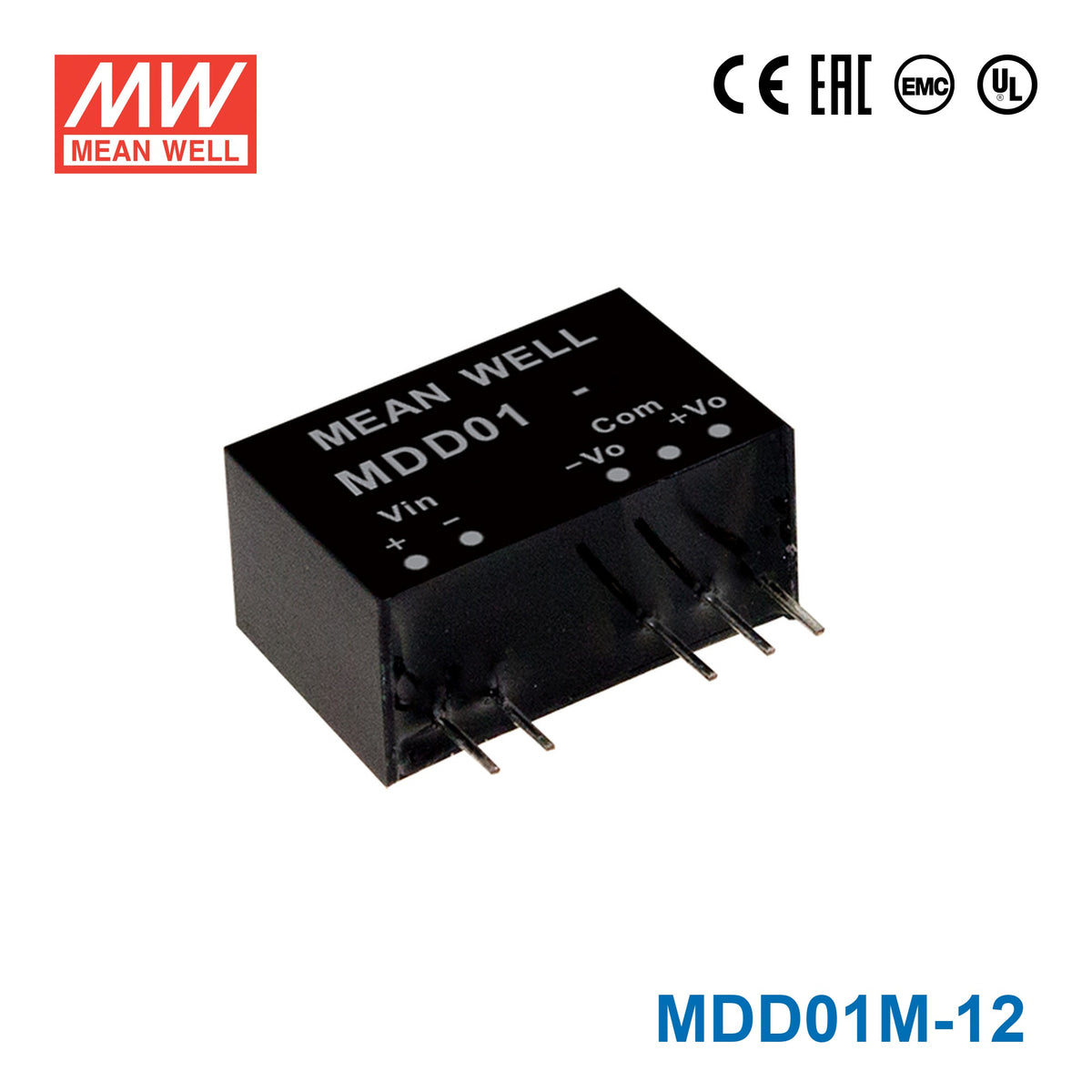

Mean Well MDD01M-12 DC-DC Converter - 1W - 10.8~13.2V in ±12V out 42mA

Name: Mean Well MDD01M-12 DC-DC Converter - 1W - 10.8~13.2V in ±12V out 42mA
Brand: Mean Well
SKU: MDD01M-12
Price: 7.03 USD
Availability: InStock

SKU MDD01M-12

$7.03 USD

Shipping calculated at checkout.

Available to order

Overview

MDD01M-12 is the ±12V output model of this series: rated power 1W, typical efficiency 75%.

MDS01 and MDD01 series are 1W isolated and unregulated module type medical grade DC-DC converter with SIP7 package. It features international standard pins, a high efficiency up to 83%, wide working temperature range -40~+85℃, 6KVDC or 4.2KVAC I/P-O/P high isolation voltage, short circuit protection, etc. The models account for different input voltage 5V/12V/24V±10%, and various output voltage, 3.3V/ 5V/ 12 V/15V for single output and ±5V /±9 V/±12V/±15V for dual outputs, which are suitable for medical systems , ultra low leakage current.

Features

SIP7 package with international standard pinout
Operating temperature range -40 ~ +85℃
Medical safety approved (1xMOPP/2xMOOP) according to ANSI/AAMI ES60601-1
Low patient leakage current <2μA
Protection: Short circuit(3 second max.)
6KVDC or 4.2KVAC hight I/O isolation (Reinforced isolation)
Low cost
3 years warranty

Specifications

MDD01M-12Specifications from the official datasheet (2022-05-24 edition)

INPUT

INPUT VOLTAGE (RANGE): Normal 12V (10.8 ~ 13.2V)
VOLTAGE RANGE: 10.8 ~ 13.2Vdc
INPUT CURRENT (NO LOAD): 22mA
INPUT CURRENT (FULL LOAD): 114mA
SURGE VOLTAGE (100ms max.): 5Vin models : 9Vdc 12Vin models : 18Vdc 24Vin models : 30Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 500mA Slow-Blow Type for all models

OUTPUT

OUTPUT VOLTAGE: ±12V
OUTPUT CURRENT: ±5 ~ 42mA
EFFICIENCY (TYP.): 75%
CAPACITOR LOAD (MAX.)^{* For each output}: *220μF
VOLTAGE ACCURACY: ±5.0%
RATED POWER: 1W
RIPPLE & NOISE^Note.2: 75mVp-p
LINE REGULATION^Note.3: 1.2% for 1% input variation
LOAD REGULATION^Note.4: ±10%
SWITCHING FREQUENCY (Typ.): 100KHz

PROTECTION

SHORT CIRCUIT: 3 second max.

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.02% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL60601-1, EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:6KVDC or 4.2KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION LEVEL: Primary-secondary: 1xMOPP / 2xMOOP when system input voltage is with 250VAC, 50/60Hz
ISOLATION CAPACITANCE (Typ.): 5pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55011(CISPR11) Class B
Radiated BS EN/EN55011(CISPR11) Class B
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV contact

Parameter	Standard	Test Level
Conducted	BS EN/EN55011(CISPR11)	Class B
Radiated	BS EN/EN55011(CISPR11)	Class B

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV contact

OTHERS

MTBF: 3500Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 19.5*9.8*12.5mm (0.77*0.386*0.492 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 4.2g ; 25pcs/per tube, 3000pcs/120 tube/per carton

Test conditions and notes6

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.Patient leakage current(2μA max.) and reinforced isolation is based on a 250VAC, 50/60Hz system input voltage.
6.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

MDD01M-12 Mechanical Specification — Mechanical Specification

MDD01M-12 EMC Suggestion — EMC Suggestion

Typical applications

Medical devices
Medical oxygen monitor
CT scanning
Medical carts
Oral care equipment

Downloads

Datasheet1

MDD01M-12 datasheetMDS01,MDD01-SPEC.PDF · 2022-05-24 edition PDF Download

Certificates4

Mean Well E227340 UL Certificate PDF Download

Mean Well MDD01-02-EMC Certificate PDF Download

Mean Well MDD01-02-CE-dec Certificate PDF Download

Mean Well EAC-0147414 Certificate PDF Download

Test reports1

Mean Well MDD01M-12 Test Report PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the MDD01M-12 in a 12V nominal industrial controller that needs ±12V output rails?

Yes, this converter is designed for a 10.8~13.2VDC input and provides a fixed ±12V output. Its 1W power rating and up to 42mA per output make it suitable for low-power controller, interface, or conditioning sections that need ±12V.

Is the MDD01M-12 a good fit for embedded analog circuitry powered from a 12V DC source?

It is appropriate for embedded analog circuits that need a ±12V rail and stay within the 1W and 42mA-per-output limits. The compact 19.5 × 9.8 × 12.5 mm package supports use on small embedded boards.

Can this model be used in compact automation monitoring hardware where space and weight matter?

The converter measures 19.5 × 9.8 × 12.5 mm and weighs 0.0042 kg, so it suits dense monitoring and automation assemblies. Its fixed ±12V output from a 10.8~13.2VDC input is aimed at low-power electronics rather than larger loads.

Is the MDD01M-12 suitable for indoor enclosures exposed to low and high temperatures?

The specified operating temperature range is -40°C to +85°C (with load derating at higher temperatures, see the derating curve), which covers demanding indoor equipment conditions. No IP rating appears in the provided specs, so it should be used in protected enclosures instead of exposed outdoor locations.

How does the MDD01M-12 compare with other models in the same series?

The 1W MDD01M family also includes ±5V at up to 100mA for MDD01M-05, ±9V at up to 56mA for MDD01M-09, and ±15V at up to 34mA for MDD01M-15. The MDD01M-12 is the ±12V version rated at up to 42mA per output.
