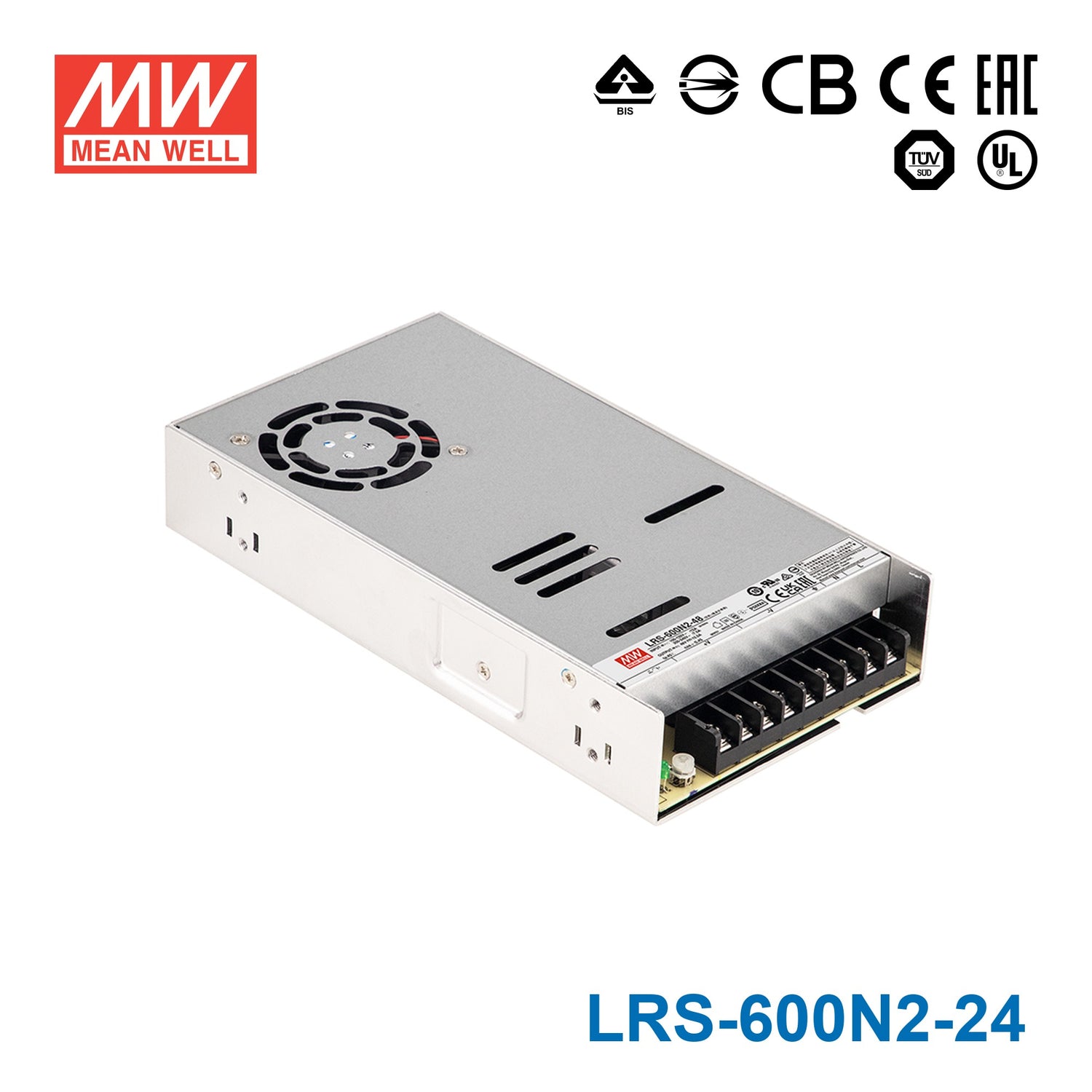

Description
Description
Features:
- AC input range selectable by switch
- Withstand 300VAC surge input for 5 second
- Up to 200% peak power capability
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Forced air cooling
- Built-in cooling Fan ON-OFF control
- Compliance to IEC/BS EN/EN61558-1 and 62368-1
- Withstand 5G vibration test
- Overvoltage category III(OVC III)
- High operating temperature up to 65℃
- Operating altitude up to 2000 meters
- 3 years warranty
General Specification
AC input voltage range
90 ~ 132VAC / 180 ~ 264VAC by switch 255 ~ 370VDC (swith on 230VAC)
AC inrush current (max.)
35A/115VAC 60A/230VAC
Overload protection
Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover
Constant current limiting for output power >200% rated for more than 5 seconds and then shut down o/p voltage, re-power on to recover
Over-voltage protection
| 13.8 ~ 16.2V | 27.6 ~ 32.4V | 41.4 ~ 48.6V | 55.2 ~ 64.8V |
Protection type: Shut down o/p voltage, re-power on to recover
Over temperature protection
Shut down o/p voltage, re-power on to recover
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature
-20 ~ +65℃ (Refer to "Derating Curve")
Safety standards
BS IEC/UL 62368-1, EAC TP TC 004, BIS IS13252(Part1):2010/IEC60950-1:2005(except for 48V), BSMI CNS15598-1,GB 4943.1, BS EN/EN61558-1,BS EN/EN61558-2-16, design refer to AS/NZS61558.1/2.16,AS/NZS62368.1
Dimension (LxWxH)
225x124x41mm
Specifications
Specifications
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating600 Watt
-
Output Voltage24 Volt
-
Rated Current25 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,CQC,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~65°C
-
Warranty3 Year
-
Length8.86 in
-
Width4.88 in
-
Height1.61 in
-
Weight2.09 lb
