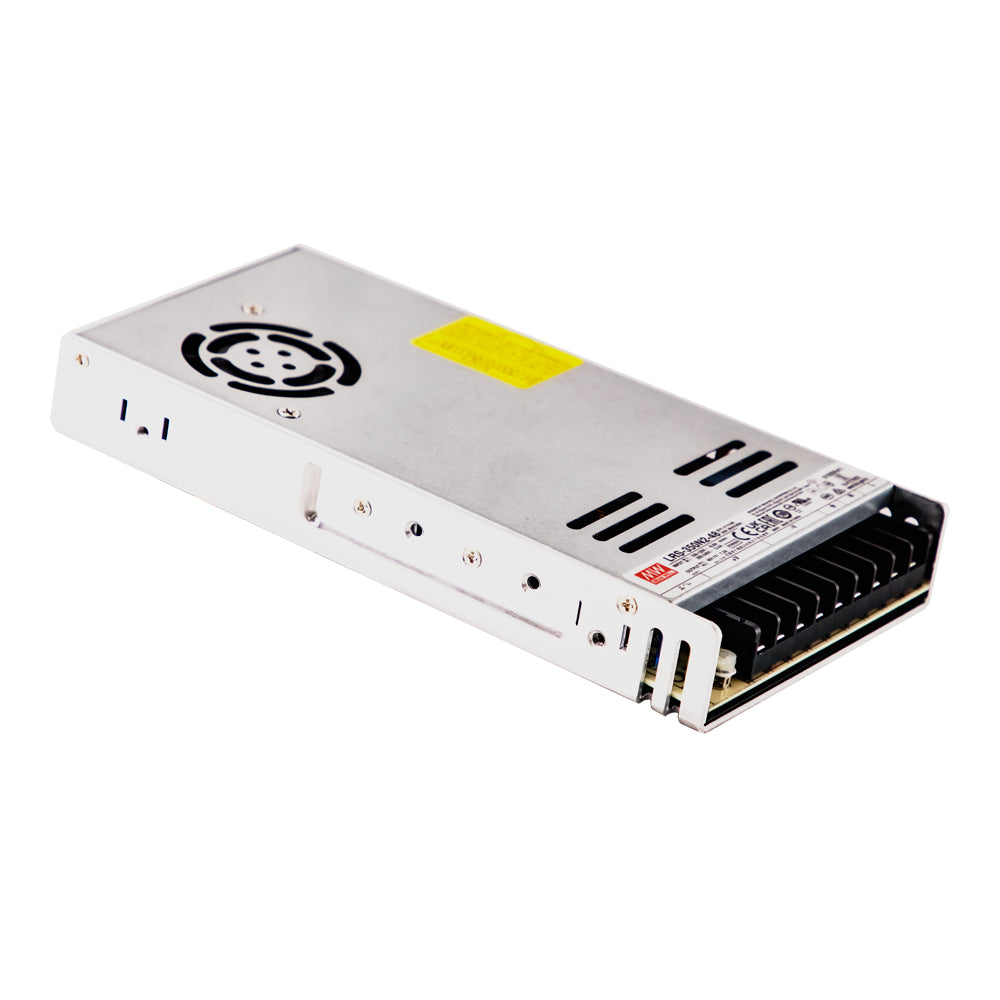

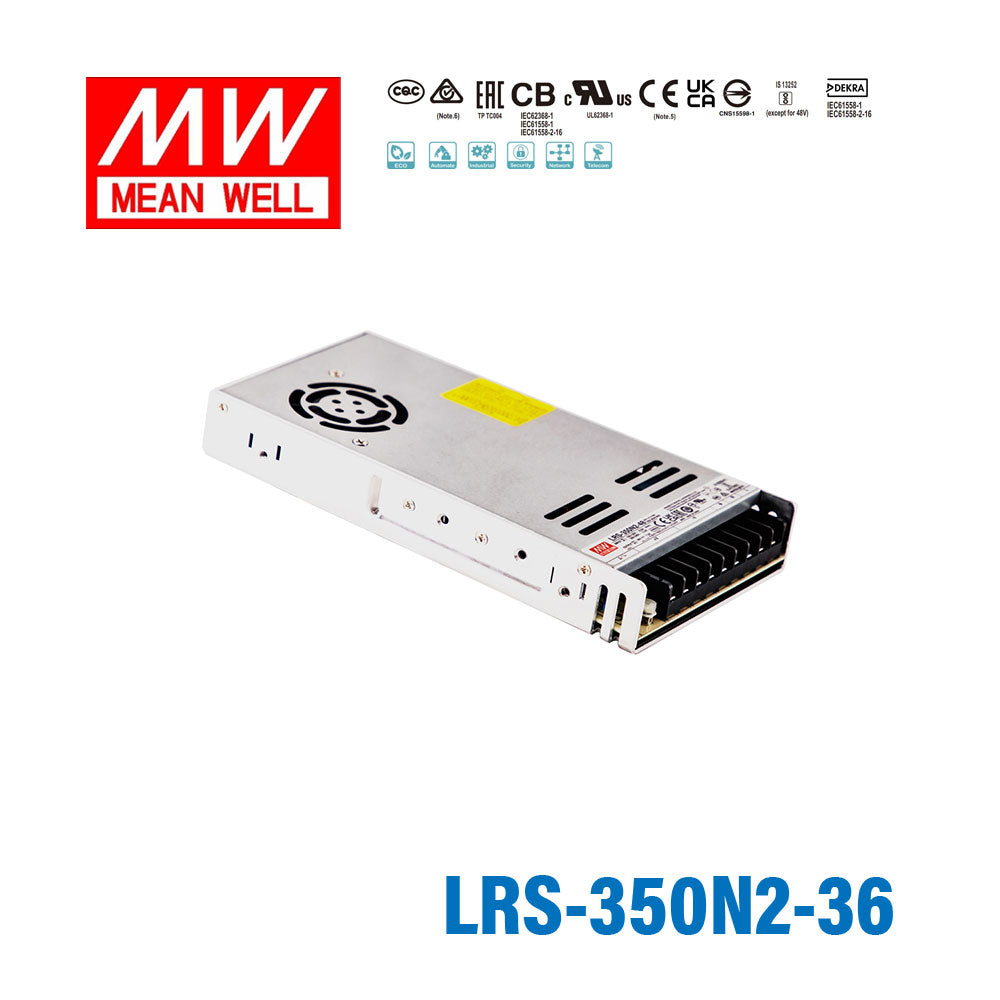

Mean Well LRS-350N2-36 Single Output High Peak Power Supply 349.2W 36V, 2 Times Peak Power 9.7A

Name: Mean Well LRS-350N2-36 Single Output High Peak Power Supply 349.2W 36V, 2 Times Peak Power 9.7A
Brand: Mean Well
SKU: LRS-350N2-36
Price: 74.27 USD
Availability: InStock

$74.27 USD ~~$183.00~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The Mean Well LRS-350N2-36 is a 349.2W enclosed switching power supply delivering 36V DC at up to 9.7A, and will supply up to twice its rated power for short peaks — useful for motor, solenoid and other inrush-heavy loads that would otherwise need a much larger supply.

It runs from 90~264VAC single-phase input across a -25°C to 70°C range, cools by free-air convection and carries CB, CE, CQC, EAC, TÜV and UL approvals, and includes short circuit, overload, over-voltage and over-temperature protection. Backed by a 3-year warranty.

Key Features

✓AC input range selectable by switch
✓Withstand 300VAC surge input for 5 second
✓Up to 200% peak power capability
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Forced air cooling by built-in DC fan
✓Built-in cooling Fan ON-OFF control
✓Compliance to IEC/BS EN/EN61558-1 and 62368-1
✓Withstand 5G vibration test
✓LED indicator for power ON
✓No load power consumption<1W
✓Overvoltage category III(OVC III)
✓High operating temperature up to 70℃
✓Operating altitude up to 2000 meters
✓High efficiency, long life, and high reliability
✓3 years warranty

Specifications

Brand

Mean Well
Series

LRS Series
Power Rating

349.2 Watt
Output Voltage

36 Volt
Rated Current

9.7 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,CQC,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-25°C~70°C
Warranty

3 Year
Length

8.46 in
Width

4.53 in
Height

1.18 in
Weight

1.68 lb
