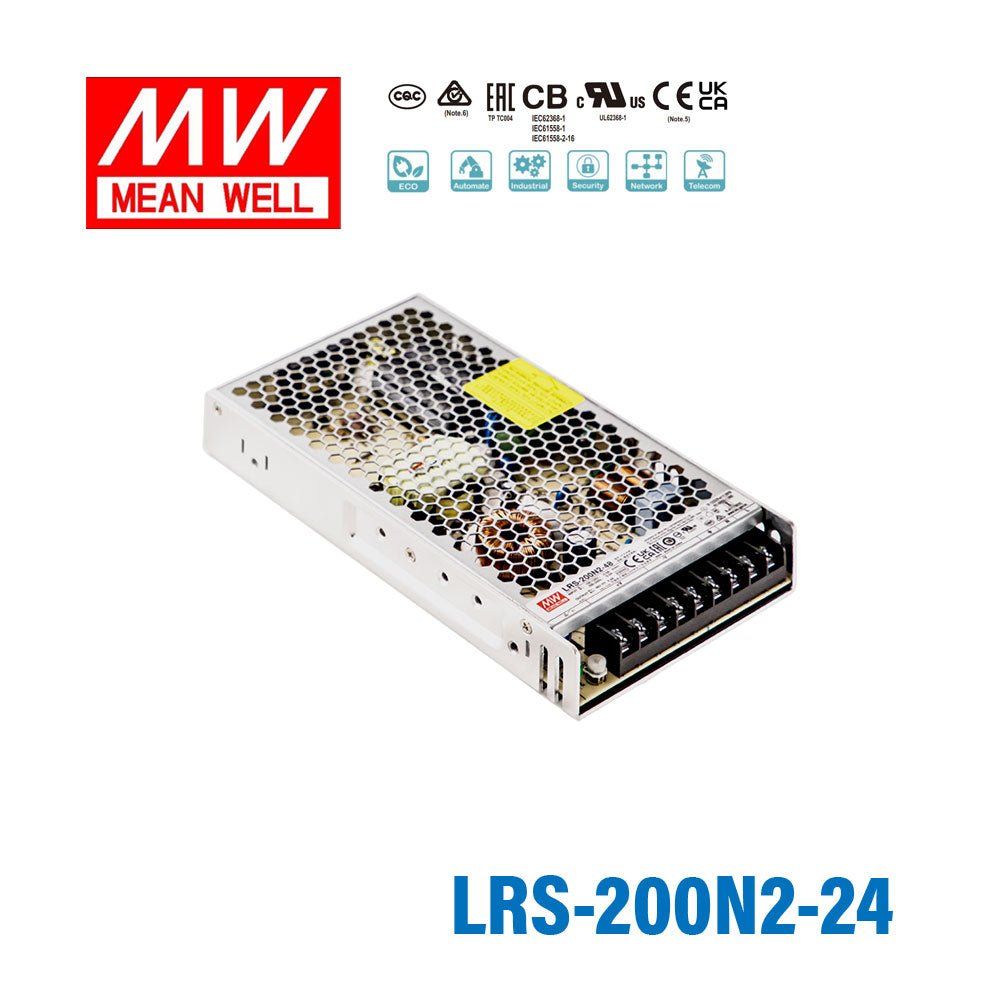

Mean Well LRS-200N2-24 Single Output High Peak Power Supply 211.2W 24V, 2 Times Peak Power

$57.16 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features:

  • AC input range selectable by switch
  • Withstand 300VAC surge input for 5 second
  • Up to 200% peak power capability
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Compliance to IEC/BS EN/EN61558-1 and 62368-1
  • Withstand 5G vibration test
  • LED indicator for power ON
  • No load power consumption<1W
  • Overvoltage category III(OVC III)
  • High operating temperature up to 70℃
  • Operating altitude up to 2000 meters
  • High efficiency, long life, and high reliability
  • 3 years warranty

General Specification

AC input voltage range

90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC)

AC inrush current (max.)

COLD STAR 60A/115VAC 60A/230VAC

Overload protection

Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover

Output power >200% rated, hiccup mode, recovers automatically after fault condition is removed

Over-voltage protection

| 13.8 ~16.2V | 28.8 ~ 33.6V | 41.4 ~ 46.8V | 55.2 ~ 64.8V |

Shut down and latch off o/p voltage, and re-power on to recover

Over temperature protection

Shut down and latch off o/p voltage, and re-power on to recover.

Withstand voltage

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

Working temperature

-25 ~ +70℃ (Refer to "Derating Curve")

Safety standards

IEC/UL 62368-1, BSMI CNS15598-1,EAC TP TC 004,BIS IS13252(Part1): 2010/IEC 60950-1: 2005(except for 48V); GB 4943.1, BS EN/EN61558-1, BS EN61558-2-16; Designed by BS/EN/EN62368-1, AS/NZS 61558.1/2.16, AS/NZS 62368.1

Dimension (LxWxH)

215x115x30mm

Specifications

  • Brand
    Mean Well
  • Series
    LRS Series
  • Power Rating
    211.2 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    8.8 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,CQC,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -25°C~70°C
  • Warranty
    3 Year
  • Length
    8.46 in
  • Width
    4.53 in
  • Height
    1.18 in
  • Weight
    1.46 lb
