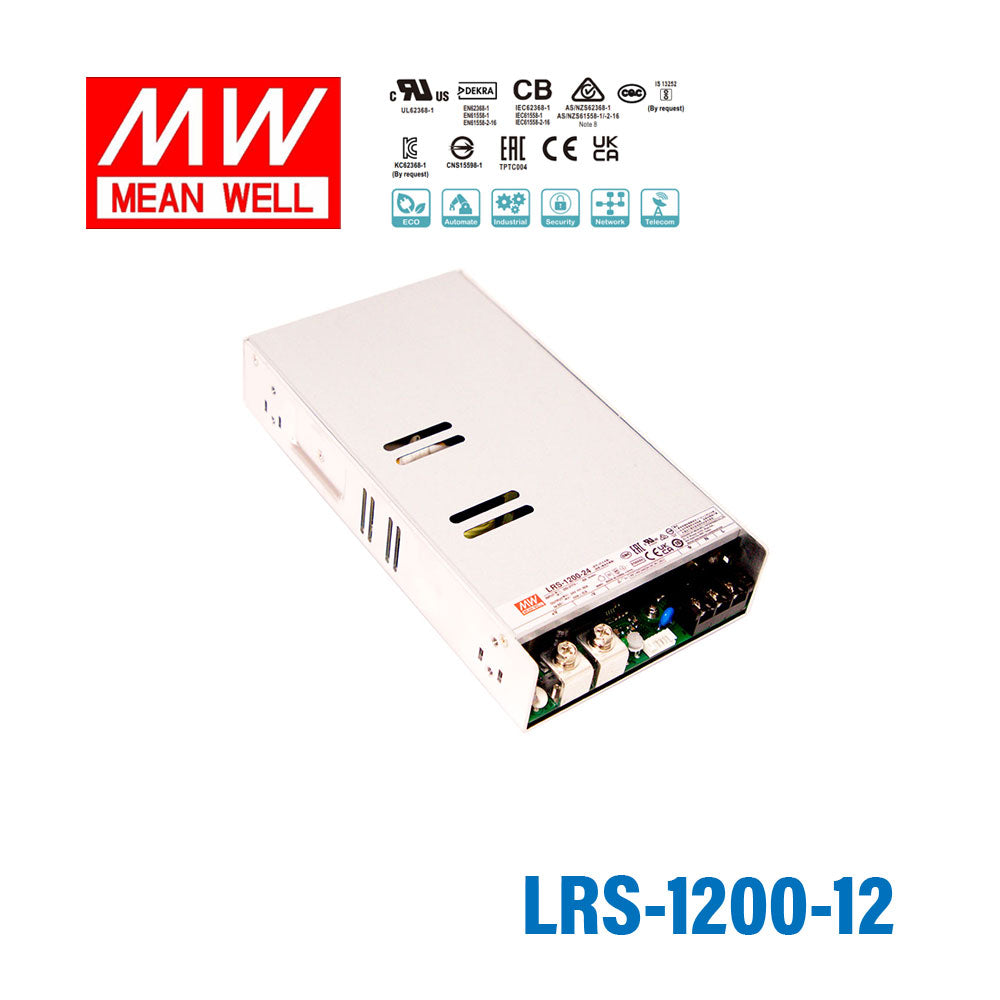

Mean Well LRS-1200-12 Enclosed Power supply 1104W 12V 92A

Name: Mean Well LRS-1200-12 Enclosed Power supply 1104W 12V 92A
Brand: Mean Well
SKU: LRS-1200-12
Price: 148.53 USD
Availability: InStock

$148.53 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The Mean Well LRS-1200-12 is a 1,200W enclosed switching power supply delivering 12V DC at up to 92A. Its slim enclosed case suits panel and cabinet mounting where depth is limited.

It runs from 180~305VAC single-phase input across a -30°C to 70°C range, cools by free-air convection and carries CB, CE, CQC, DEKRA, EAC, KC and UL approvals, and includes short circuit, overload, over-voltage and over-temperature protection. Backed by a 3-year warranty.

Key Features

✓AC input 180~305Vac input
✓Global certificates in multi-fields (ITE 62368-1, Industrial 61558-1/-2-16)
✓Compact size with low profile (17W/inch³)
✓150% peak power @5s
✓High efficiency up to 94%
✓Built-in constant current limiting circuit
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Forced air cooling, cooling fan speed control
✓Built-in DC OK/Remote Control/Remote Sense
✓-30~+70℃ wide range operation temperature
✓Over voltage category (OVC III)
✓Operating altitude up to 5000 meters
✓Conformal coating
✓3 years warranty

Specifications

Brand

Mean Well
Series

LRS Series
Power Rating

1200 Watt
Output Voltage

12 Volt
Rated Current

92 Ampere
Input Voltage

180V~305V
Standards Met

CB,CE,CQC,DEKRA,EAC,KC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

8.86 in
Width

4.88 in
Height

1.61 in
Weight

2.82 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

{ "id":9846487974208, "variants" :[{ "context":"default", "variant_id": 50835131236672, "sku":"LRS-1200-12", "inventory_qty" : 0, "customer" : true, "custom_html" :"\u003cdiv class=\"price\"\u003e\n \u003cdiv class=\"price__default\"\u003e\n \u003cstrong class=\"price__current\"\u003e$148.53\u003c\/strong\u003e\n \u003cs class=\"price__was\"\u003e\u003c\/s\u003e\n \u003c\/div\u003e\n\n \u003cdiv class=\"unit-price relative\" hidden\u003e\u003cspan class=\"visually-hidden\"\u003eUnit price\u003c\/span\u003e\u003cspan class=\"unit-price__price\"\u003e\u003c\/span\u003e\u003cspan class=\"unit-price__separator\"\u003e \/ \u003c\/span\u003e\u003cspan class=\"unit-price__unit\"\u003e\u003c\/span\u003e\u003c\/div\u003e\n\n \u003cdiv class=\"price__no-variant\" hidden\u003e\n \u003cstrong class=\"price__current\"\u003eUnavailable\u003c\/strong\u003e\n \u003c\/div\u003e\n\n \u003c\/div\u003e\n", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓AC input 180~305Vac input

✓Global certificates in multi-fields (ITE 62368-1, Industrial 61558-1/-2-16)

✓Compact size with low profile (17W/inch³)

✓150% peak power @5s

✓High efficiency up to 94%

✓Built-in constant current limiting circuit

✓Protections: Short circuit / Overload / Over voltage / Over temperature

✓Forced air cooling, cooling fan speed control

✓Built-in DC OK/Remote Control/Remote Sense

✓-30~+70℃ wide range operation temperature

✓Over voltage category (OVC III)

✓Operating altitude up to 5000 meters

✓Conformal coating

✓3 years warranty
