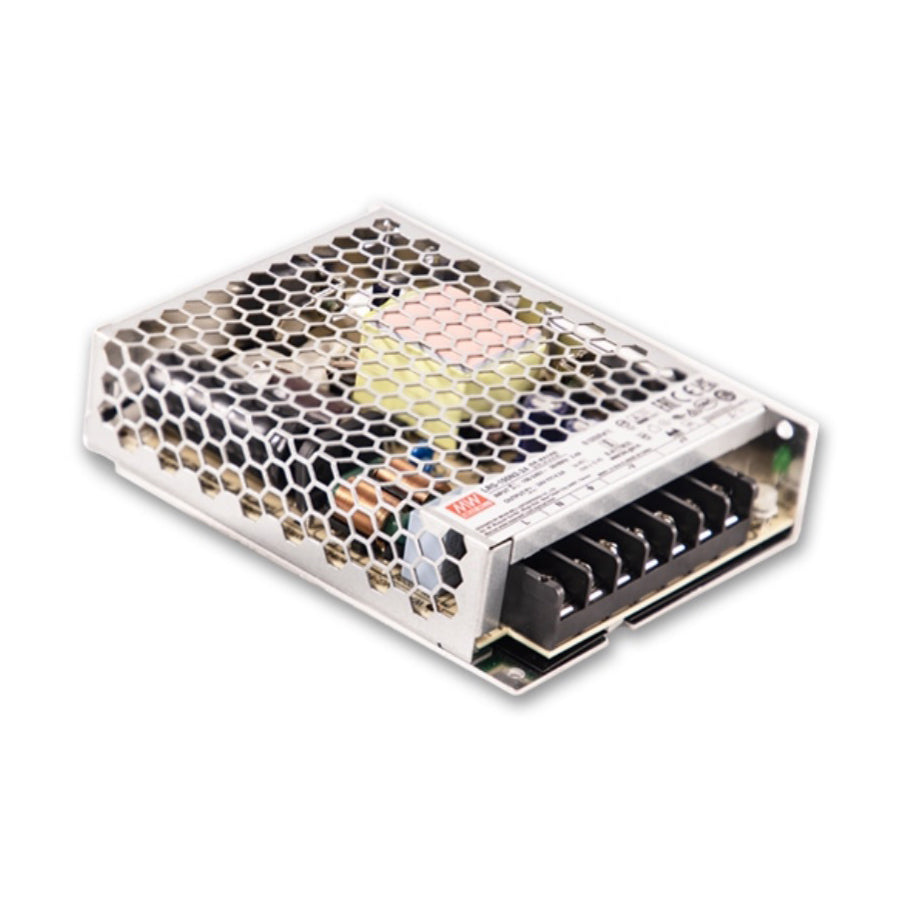

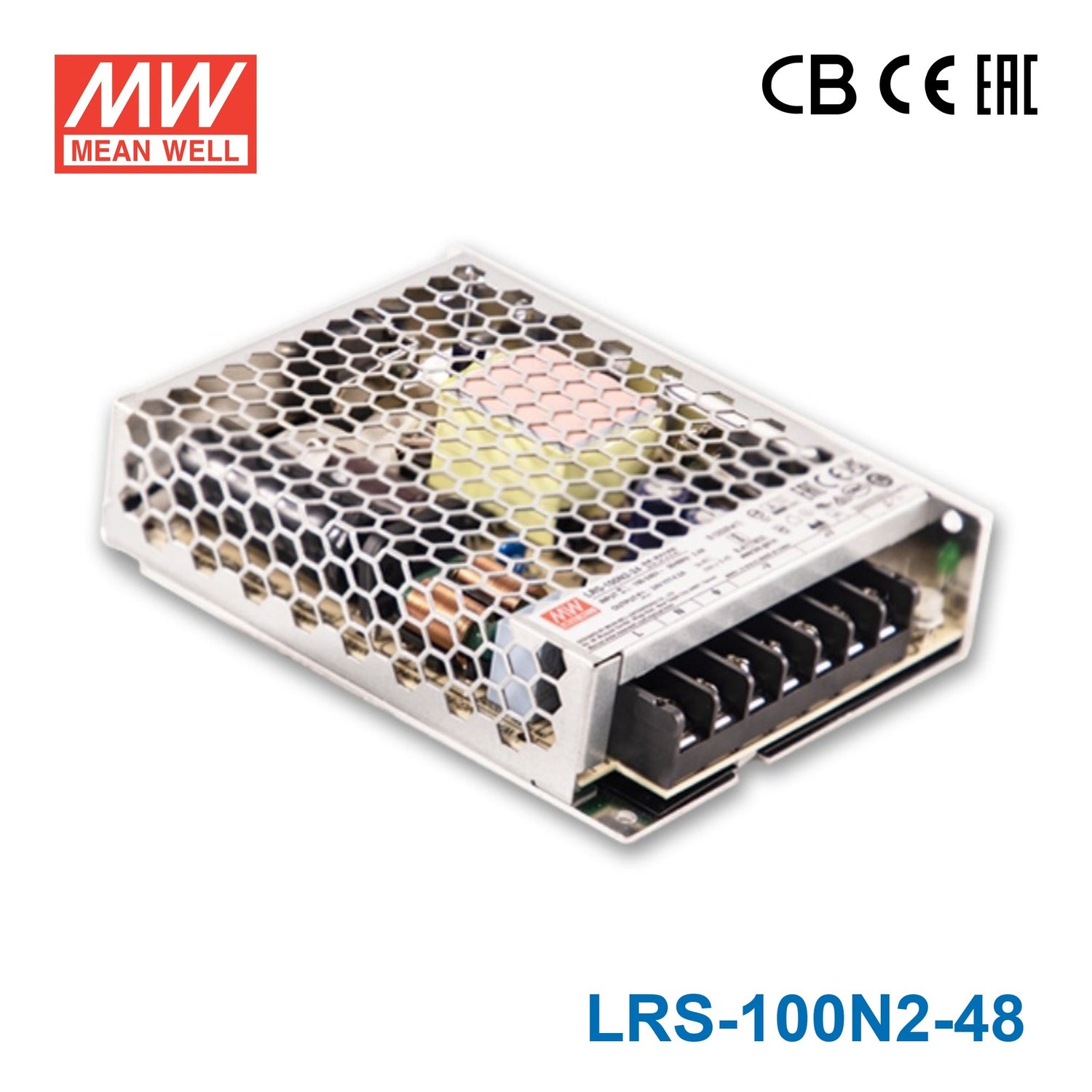

Mean Well LRS-100N2-48 Single Output High Peak Power Supply 102W 48V, 2 Times Peak Power 2.1A

Name: Mean Well LRS-100N2-48 Single Output High Peak Power Supply 102W 48V, 2 Times Peak Power 2.1A
Brand: Mean Well
SKU: LRS-100N2-48
Price: 18.31 USD
Availability: InStock

$18.31 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The Mean Well LRS-100N2-48 is a 100W enclosed switching power supply delivering 48V DC at up to 2.1A, and will supply up to twice its rated power for short peaks — useful for motor, solenoid and other inrush-heavy loads that would otherwise need a much larger supply.

It runs from 85~264VAC single-phase input across a -30°C to 70°C range, cools by free-air convection and carries CB, CE and EAC approvals, and includes short circuit, overload, over-voltage and over-temperature protection. Backed by a 3-year warranty.

Key Features

✓Universal AC input / Full range
✓Withstand 300VAC surge input for 5 second
✓Up to 200% peak power capability
✓Protections: Short circuit / Overload / Over voltage
✓Cooling by free air convection
✓Miniature size and 1U low profile
✓Compliance to IEC/BS EN/EN61558-1 and 62368-1
✓Operating altitudes up to 4000 meters
✓Withstand 5G vibration test
✓LED indicator for power ON
✓No load power consumption<0.5W
✓Overvoltage category III(OVC III)
✓High operating temperature up to 70℃
✓Operating altitude up to 2000 meters
✓High efficiency, long life, and high reliability
✓3 years warranty

Specifications

Brand

Mean Well
Series

LRS Series
Power Rating

100 Watt
Output Voltage

48 Volt
Rated Current

2.1 Ampere
Input Voltage

85V~264V
Standards Met

CB,CE,EAC
Operation Mode

Constant Current
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

5.08 in
Width

3.82 in
Height

1.18 in
Weight

0.77 lb
