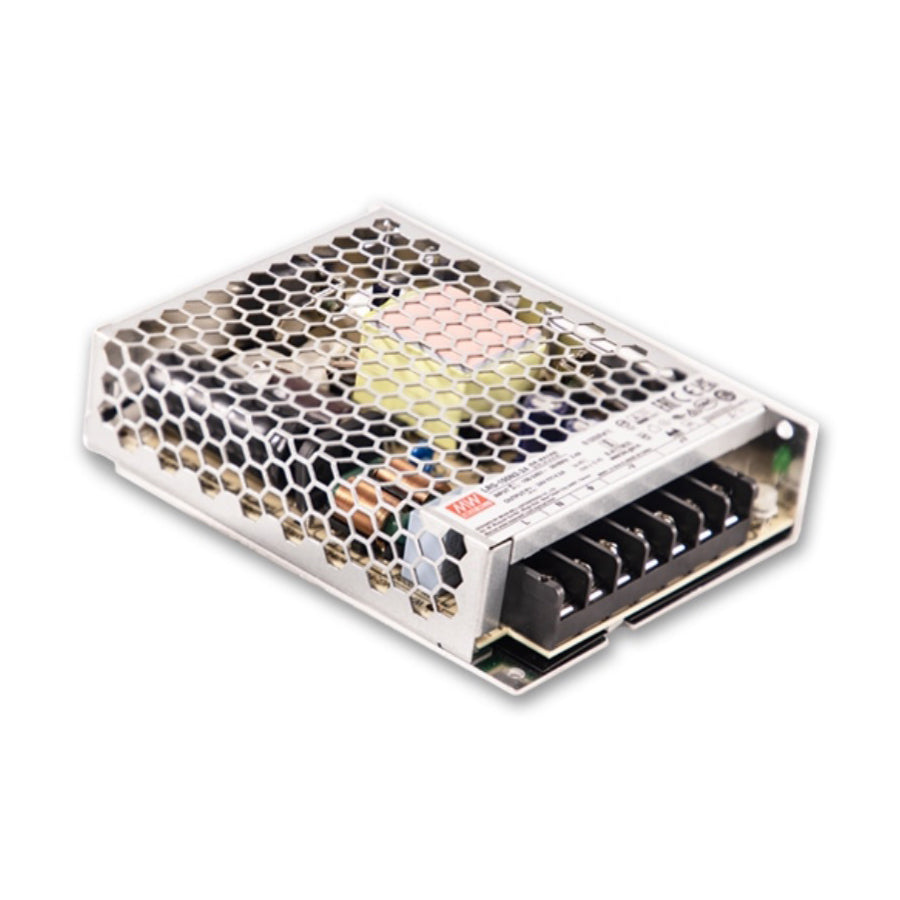

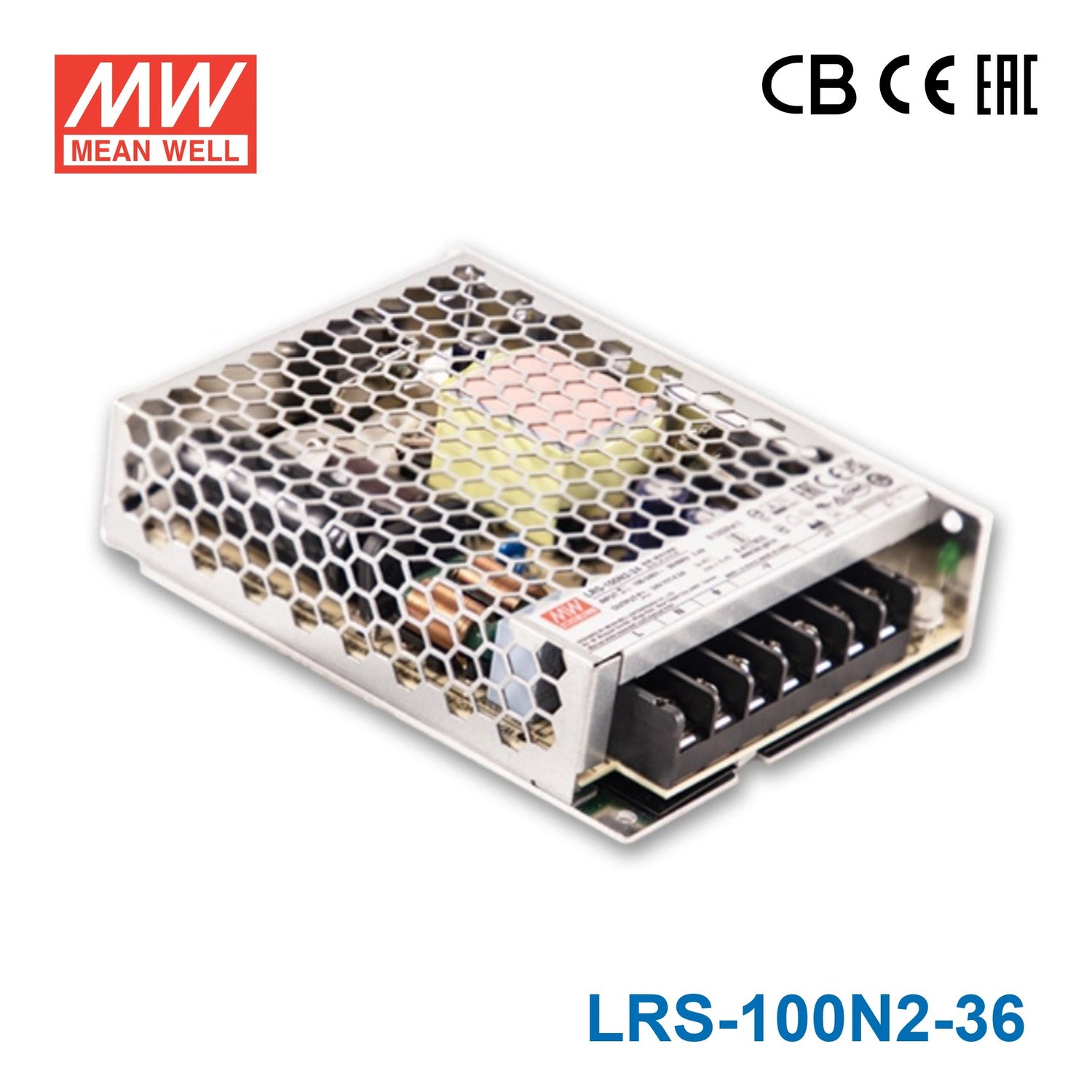

Mean Well LRS-100N2-36 Single Output High Peak Power Supply 102W 36V, 2 Times Peak Power

$18.31 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features:

  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 second
  • Up to 200% peak power capability
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Miniature size and 1U low profile
  • Compliance to IEC/BS EN/EN61558-1 and 62368-1
  • Operating altitudes up to 4000 meters
  • Withstand 5G vibration test
  • LED indicator for power ON
  • No load power consumption<0.5W
  • Overvoltage category III(OVC III)
  • High operating temperature up to 70℃
  • Operating altitude up to 2000 meters
  • High efficiency, long life, and high reliability
  • 3 years warranty

General Specification

AC input voltage range

85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)

AC inrush current (max.)

COLD START 55A/230VAC

Overload protection

Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover

Output power >200% rated, hiccup mode, recovers automatically after fault condition is removed

Over-voltage protection

| 13.8 ~ 16.2V | 28.8 ~ 33.6V | 41.4 ~ 48.6V | 55.2 ~ 64.8V |

Shut down and latch off o/p voltage, and re-power on to recover

Withstand voltage

I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC

Working temperature

-30 ~ +70℃ (Refer to "Derating Curve")

Safety standards

UL 62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1/-2-16,GB 4943.1,BSMI CNS15598-1, EAC TP TC 004,S/NZS62368.1(by CB), BIS IS13252(Part1): 2010/IEC 60950-1: 2005(except for 48V) approved Designed refer to AS/NZS 61558.1/2.16, AS/NZS 62368.1

Dimension (LxWxH)

129x97x30mm

Specifications

  • Brand
    Mean Well
  • Series
    LRS Series
  • Power Rating
    100 Watt
  • Output Voltage
    36 Volt
  • Rated Current
    2.8 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    CB,CE,EAC
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    5.08 in
  • Width
    3.82 in
  • Height
    1.18 in
  • Weight
    0.77 lb

File Downloads
