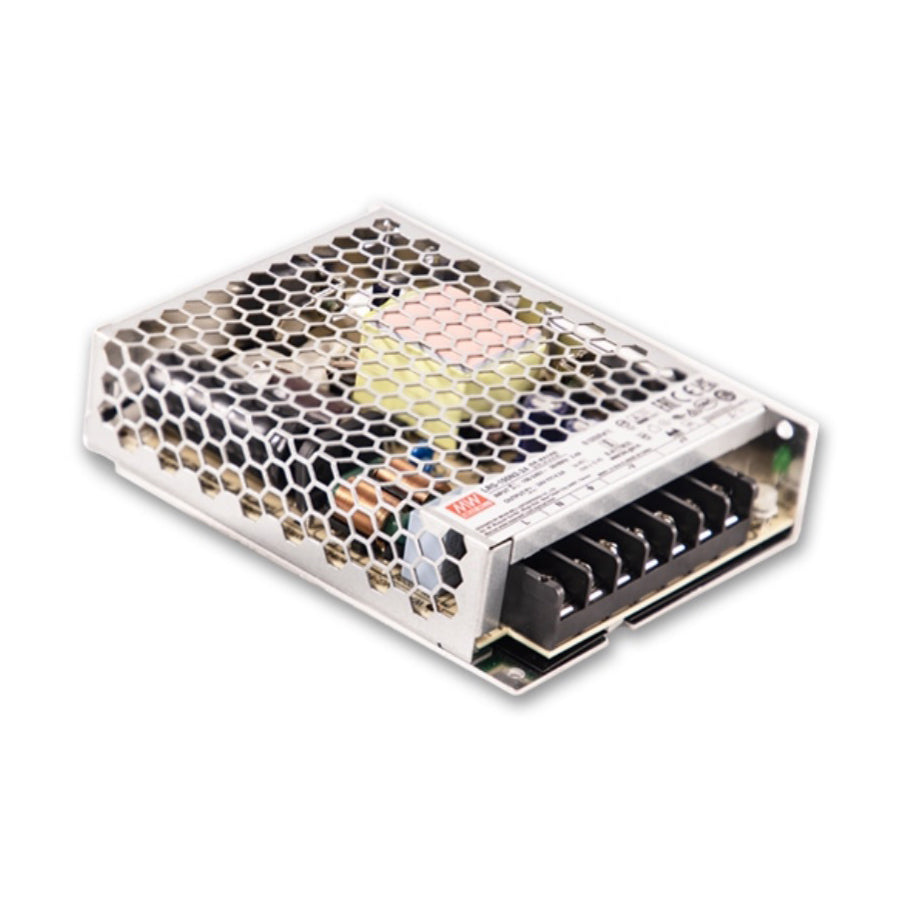

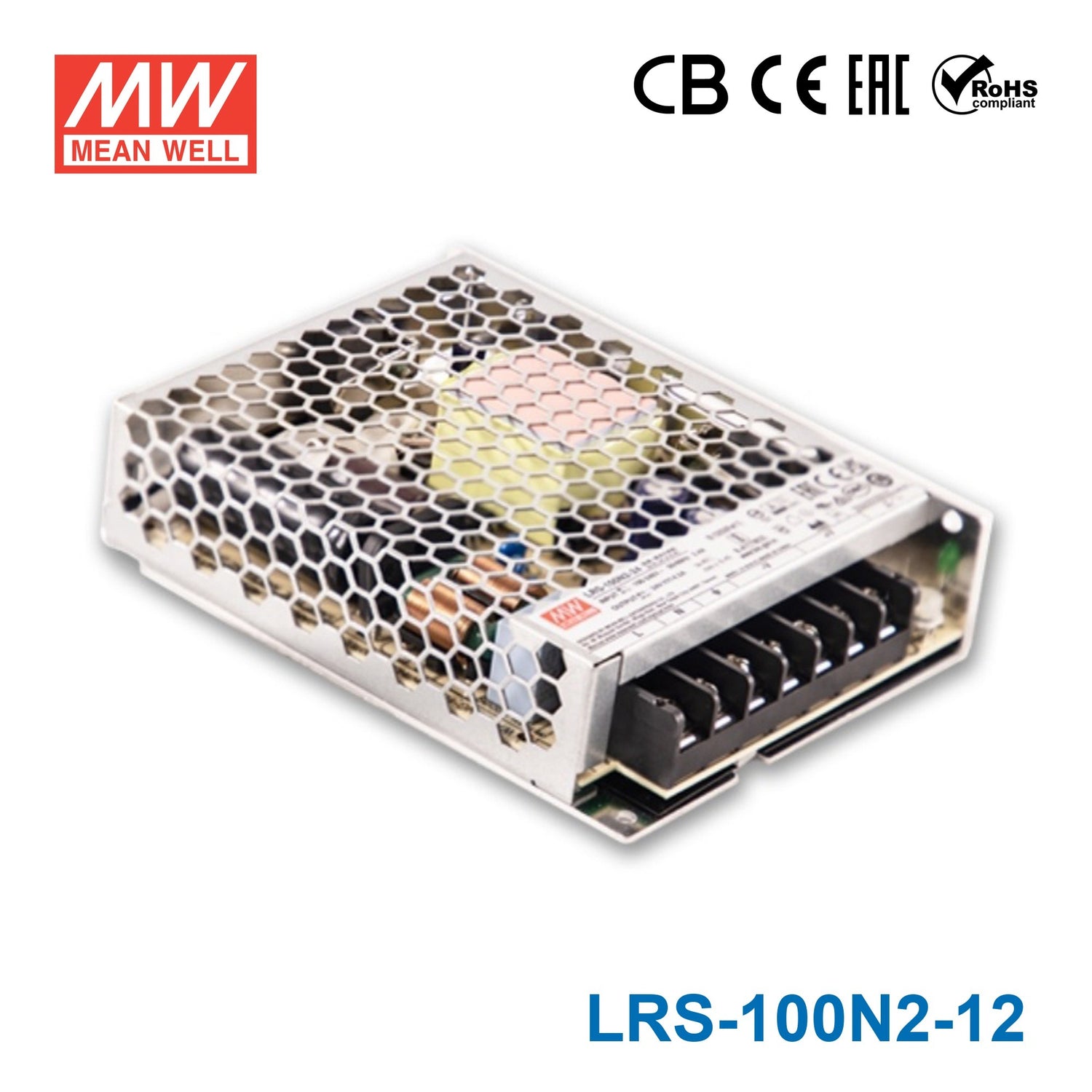

Mean Well LRS-100N2-12 Single Output High Peak Power Supply 102W 12V, 2 Times Peak Power

Name: Mean Well LRS-100N2-12 Single Output High Peak Power Supply 102W 12V, 2 Times Peak Power
Brand: Mean Well
SKU: LRS-100N2-12
Price: 18.31 USD
Availability: InStock

$18.31 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features:

Universal AC input / Full range
Withstand 300VAC surge input for 5 second
Up to 200% peak power capability
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Miniature size and 1U low profile
Compliance to IEC/BS EN/EN61558-1 and 62368-1
Operating altitudes up to 4000 meters
Withstand 5G vibration test
LED indicator for power ON
No load power consumption<0.5W
Overvoltage category III(OVC III)
High operating temperature up to 70℃
Operating altitude up to 2000 meters
High efficiency, long life, and high reliability
3 years warranty

General Specification

AC input voltage range

85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)

AC inrush current (max.)

COLD START 55A/230VAC

Overload protection

Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover

Output power >200% rated, hiccup mode, recovers automatically after fault condition is removed

Over-voltage protection

| 13.8 ~ 16.2V | 28.8 ~ 33.6V | 41.4 ~ 48.6V | 55.2 ~ 64.8V |

Shut down and latch off o/p voltage, and re-power on to recover

Withstand voltage

I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC

Working temperature

-30 ~ +70℃ (Refer to "Derating Curve")

Safety standards

UL 62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1/-2-16,GB 4943.1,BSMI CNS15598-1, EAC TP TC 004,S/NZS62368.1(by CB), BIS IS13252(Part1): 2010/IEC 60950-1: 2005(except for 48V) approved Designed refer to AS/NZS 61558.1/2.16, AS/NZS 62368.1

Dimension (LxWxH)

129x97x30mm

Specifications

Brand

Mean Well
Series

LRS Series
Power Rating

100 Watt
Output Voltage

12 Volt
Rated Current

8.5 Ampere
Input Voltage

85V~264V
Standards Met

CB,CE,EAC,EN,ROHS
Operation Mode

Constant Current
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

5.08 in
Width

3.82 in
Height

1.18 in
Weight

0.77 lb
