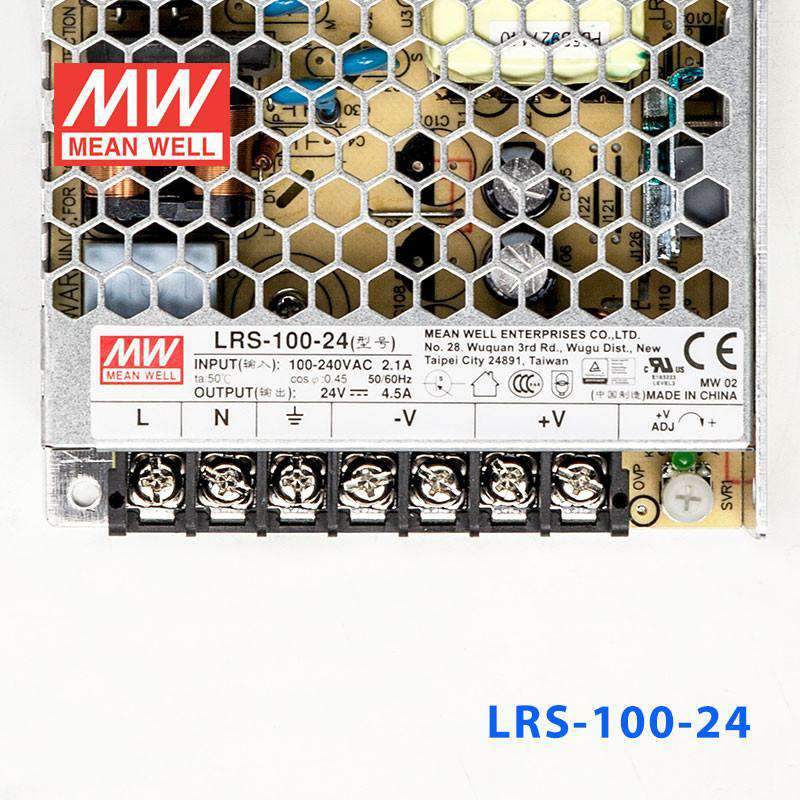

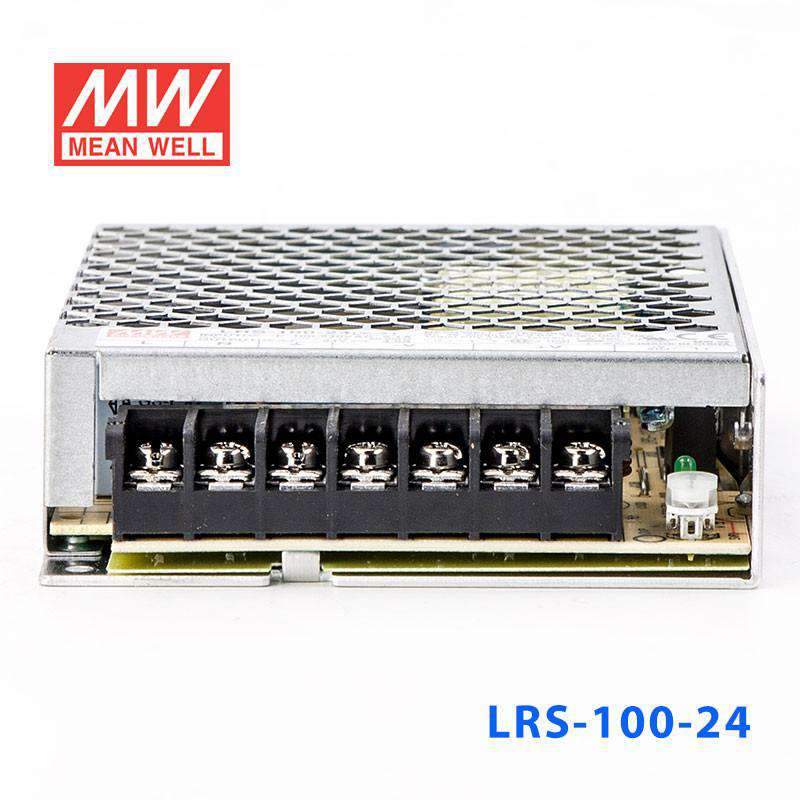

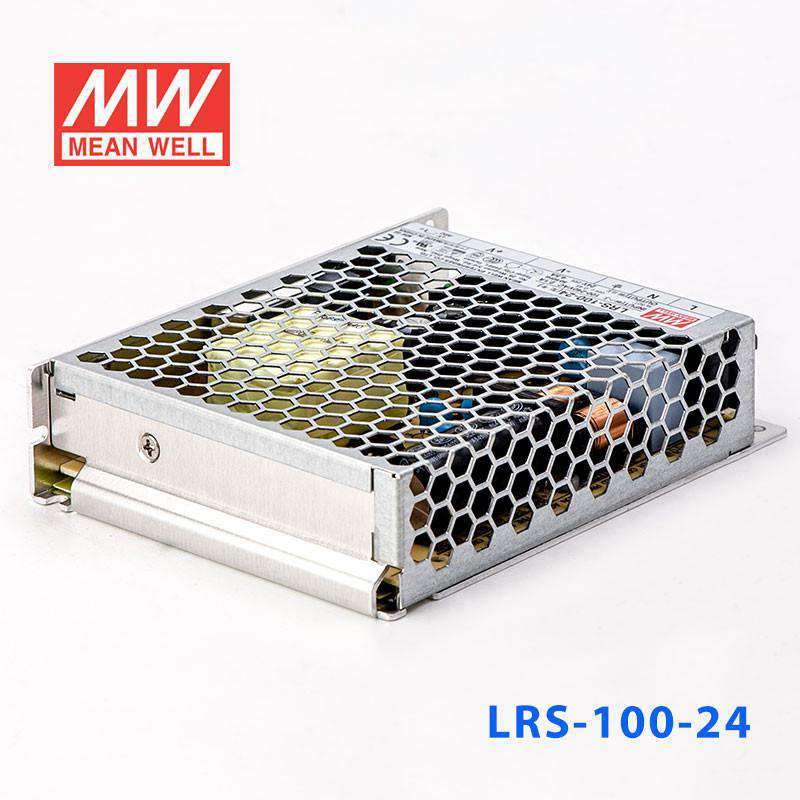

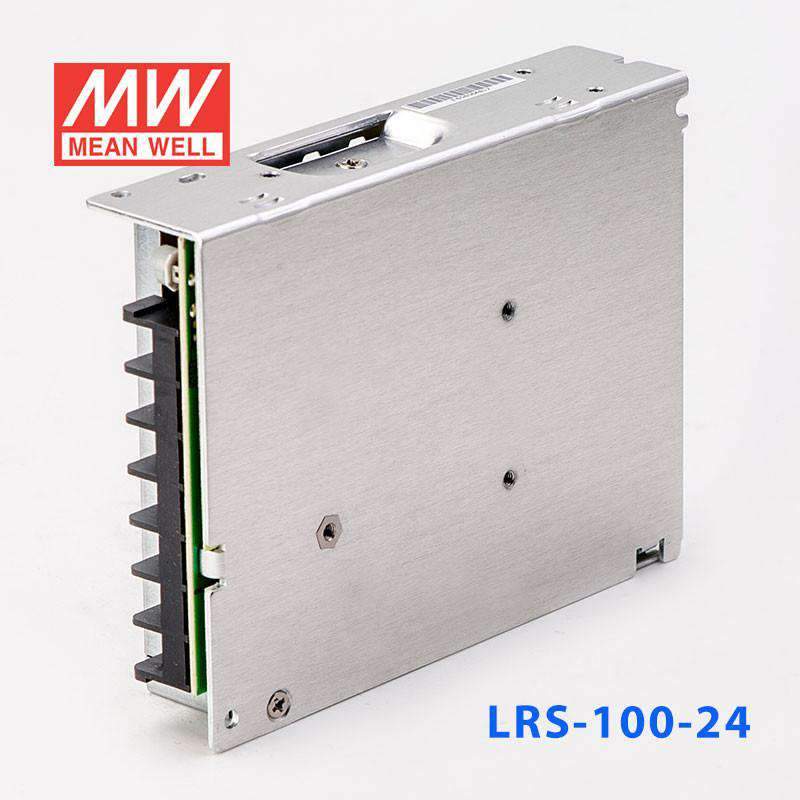

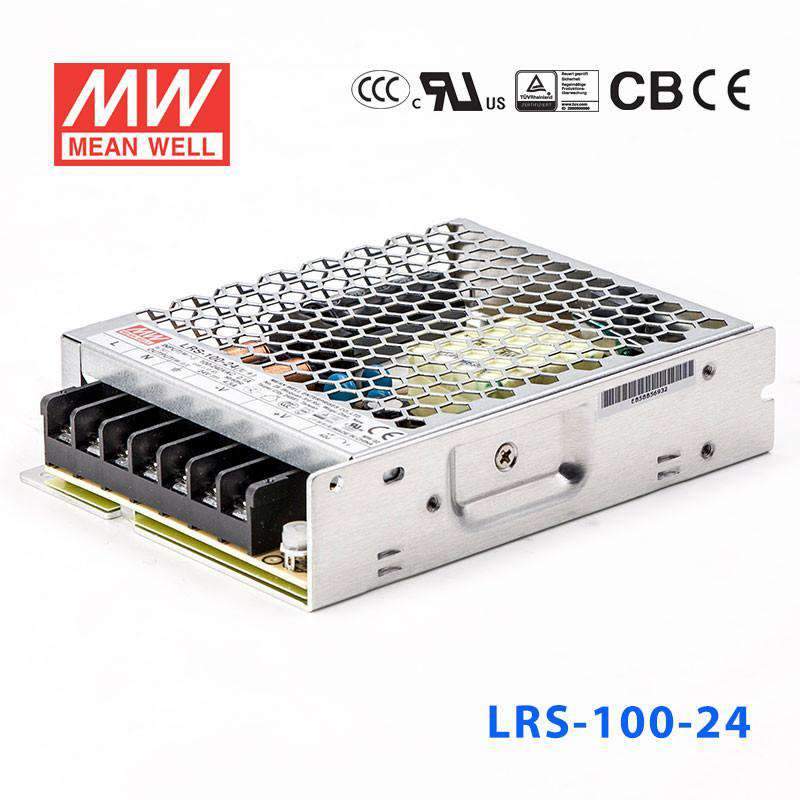

Mean Well LRS-100-24 Power Supply 100W 24V

Name: Mean Well LRS-100-24 Power Supply 100W 24V
Brand: Mean Well
SKU: LRS-100-24
Price: 19.05 USD
Availability: InStock

$19.05 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100WUniversal AC input / Full rangeWithstand 300VAC surge input for 5 secondsUltra compact and 1U low profileWithstand 5G vibration testHigh operating temperature up to 70oCProtections: Short circuit / Overload / Over voltageCooling by free air convectionCompliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliancesOperating altitude up to 5000 metersHigh efficiency, long life and high reliabilityLED indicator for power onLow cost3 years warranty

Key Features

✓85~264VAC; 120~370VDC
✓Cold start, 50A at 230VAC
✓±10% by potentiometer
✓110%~150%
✓Hiccup mode, auto-recovery
✓115%~135% rated output voltage
✓Shut down o/p voltage, re-power on to recover
✓3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
✓-30~+70°C (refer to output derating curve)
✓UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
✓EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254
✓7P/9.5mm pitch terminal block
✓129x 97x 30

Specifications

Brand

Mean Well
Series

LRS Series
Power Rating

108 Watt
Output Voltage

24 Volt
Rated Current

4.5 Ampere
Input Voltage

85V~264V
Standards Met

BSMI,CB,CCC,CE,EAC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

5.08 in
Width

3.82 in
Height

1.18 in
Weight

0.73 lb

File Downloads

::specification::
