Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

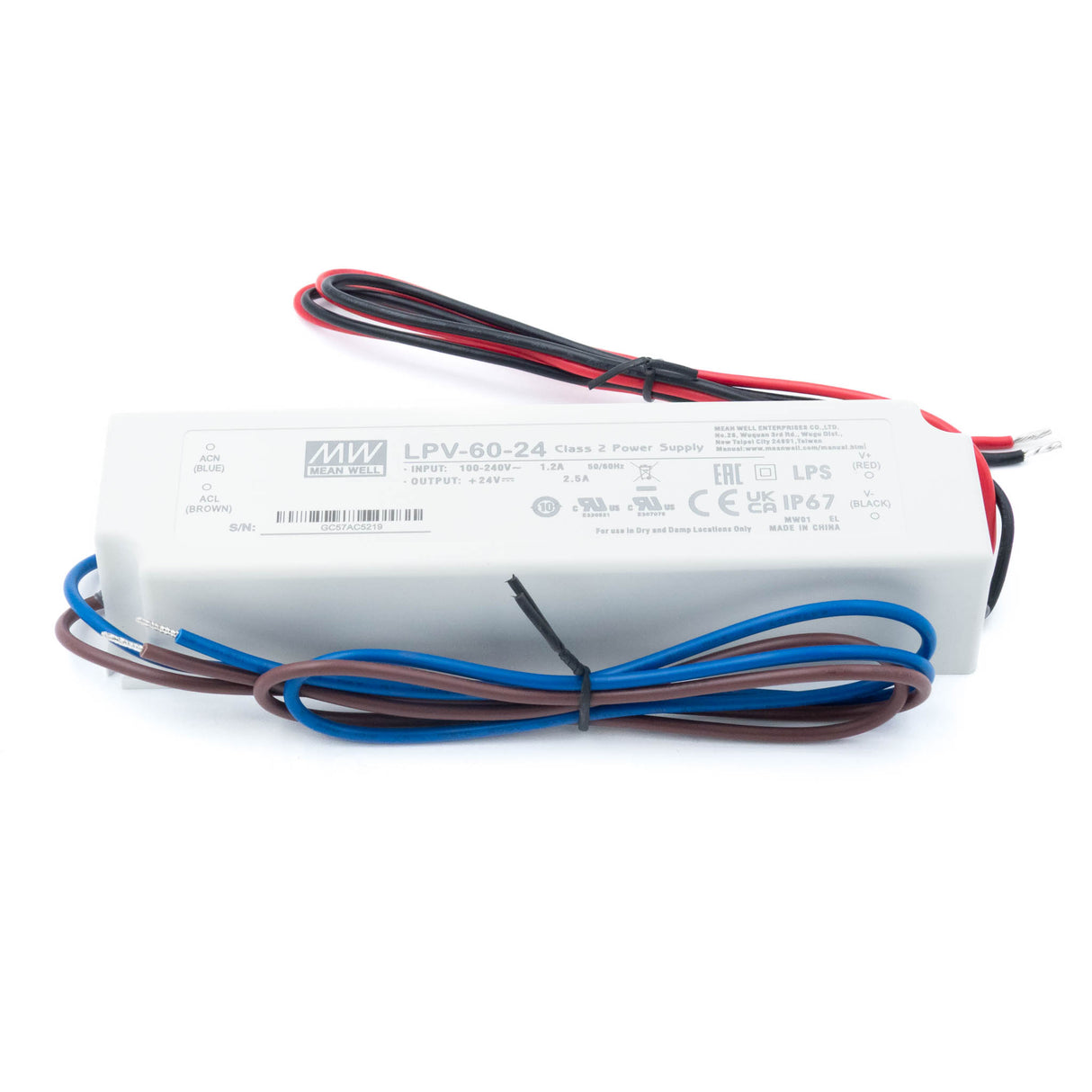

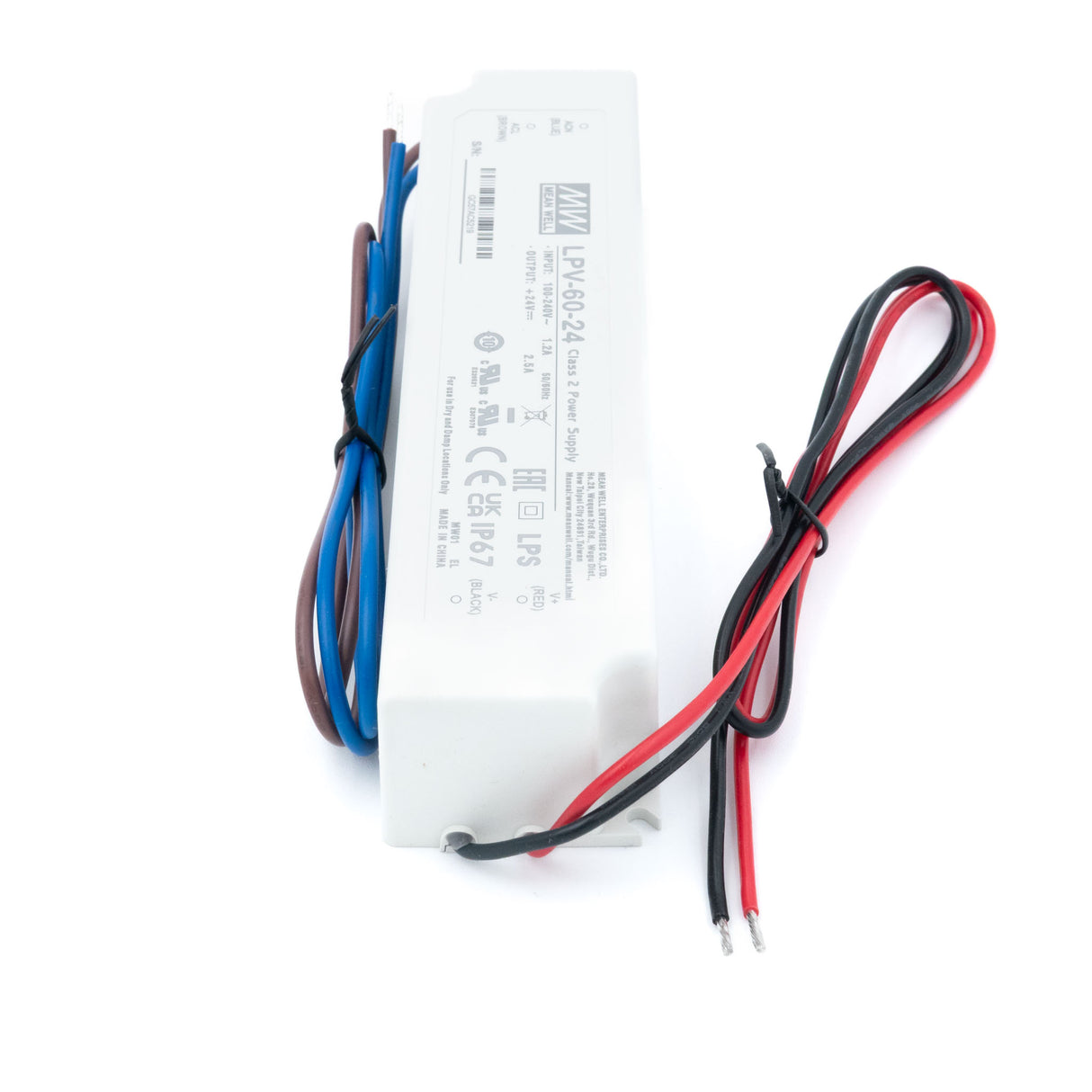

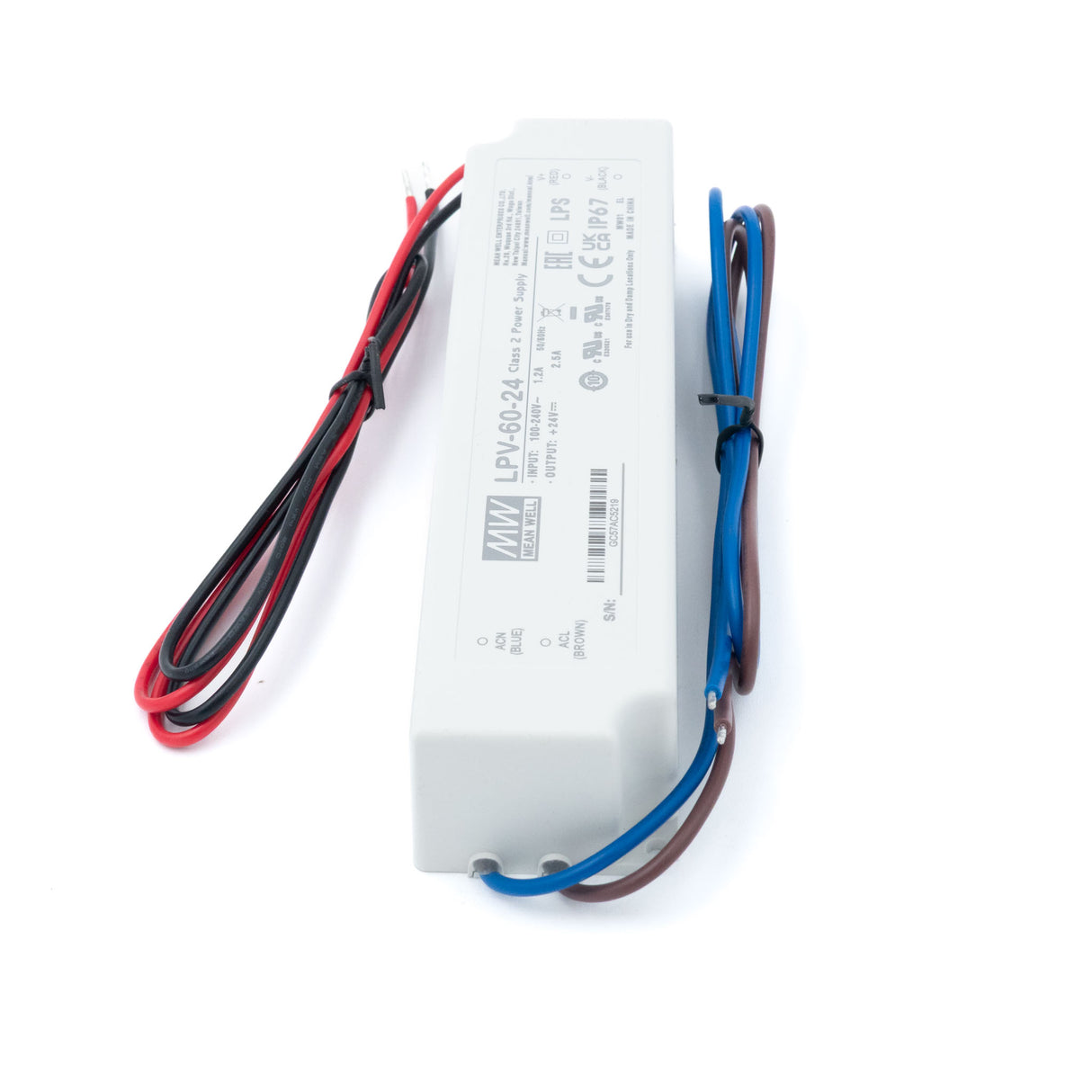

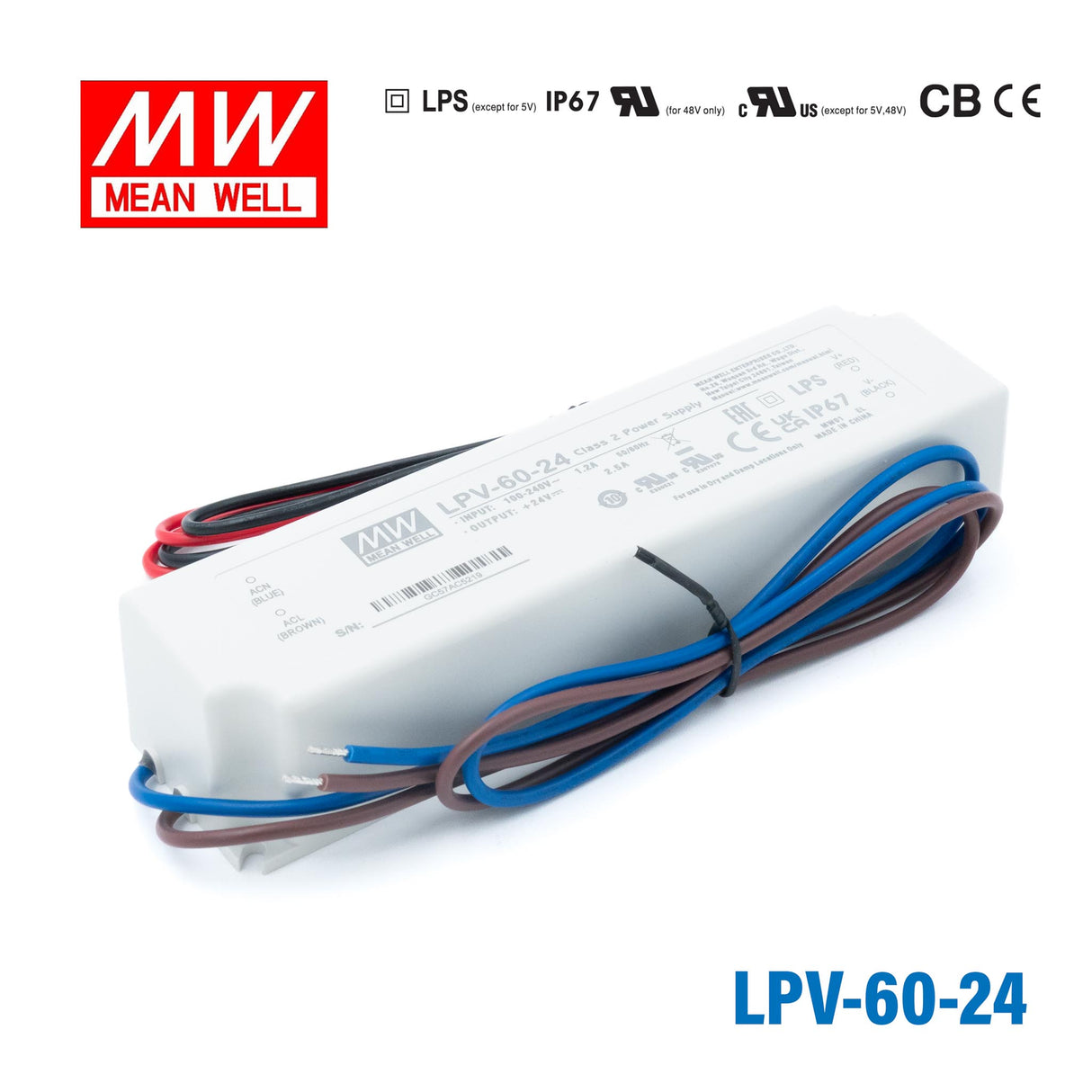

Mean Well LPV-60-24 Power Supply 60W 24V
$18.90 USD
Unit price /
Unavailable
Description
Description
Features:
- 90~264VAC input
- Fully encapsulated with IP67 level
- Protections: Short circuit / Overload / Over voltage
- Constant voltage design (C.V. mode)
- Class 2 power unit / Pass LPS
- Isolation class II, no F.G.
- Withstand 300VAC surge input for 5 seconds
- Cooling by free air convection
- 100% full load burn-in test
- Low cost, high reliability
- Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays
- 2 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLP Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length6.4 in
-
Width1.67 in
-
Height1.26 in
-
Weight0.88 lb
