Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

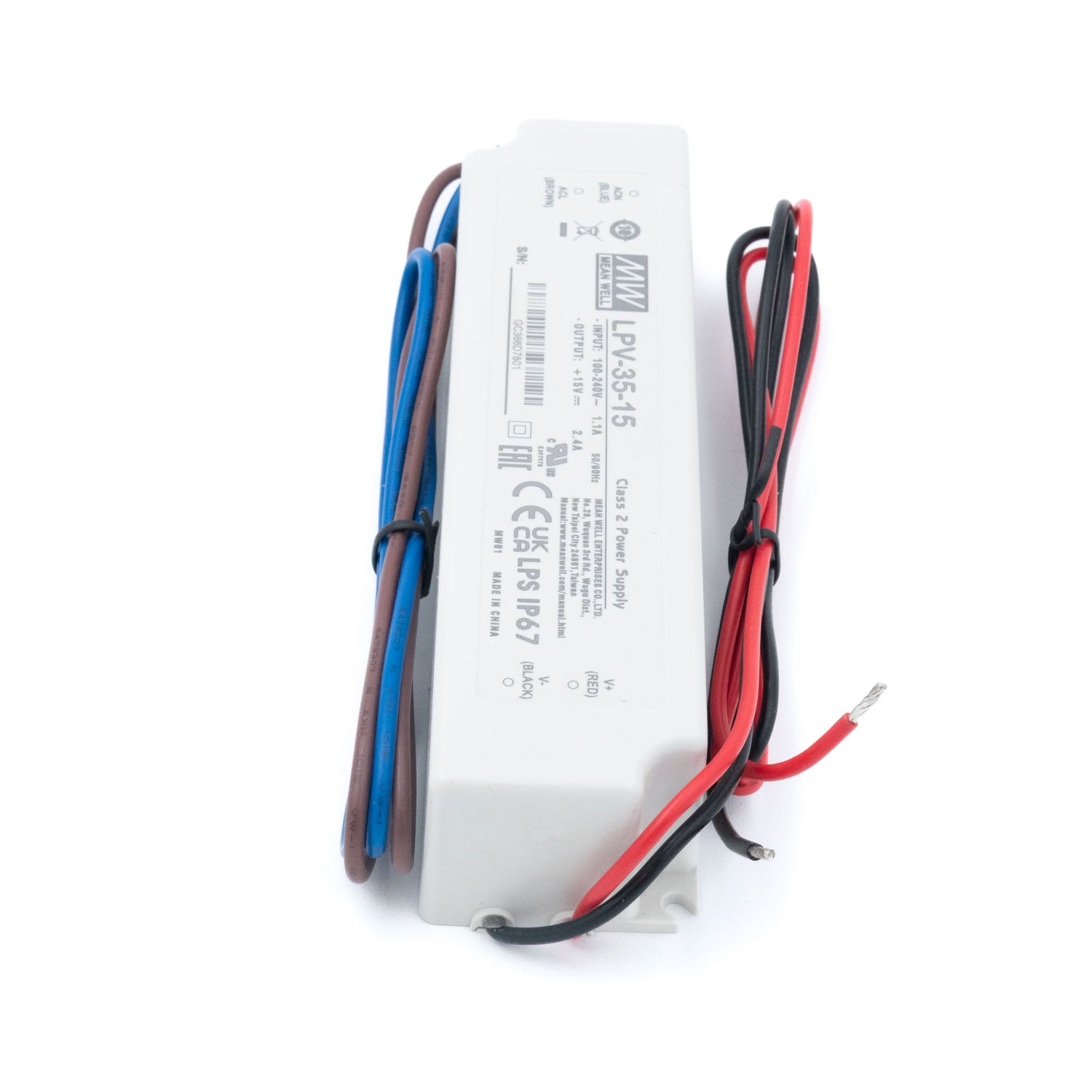

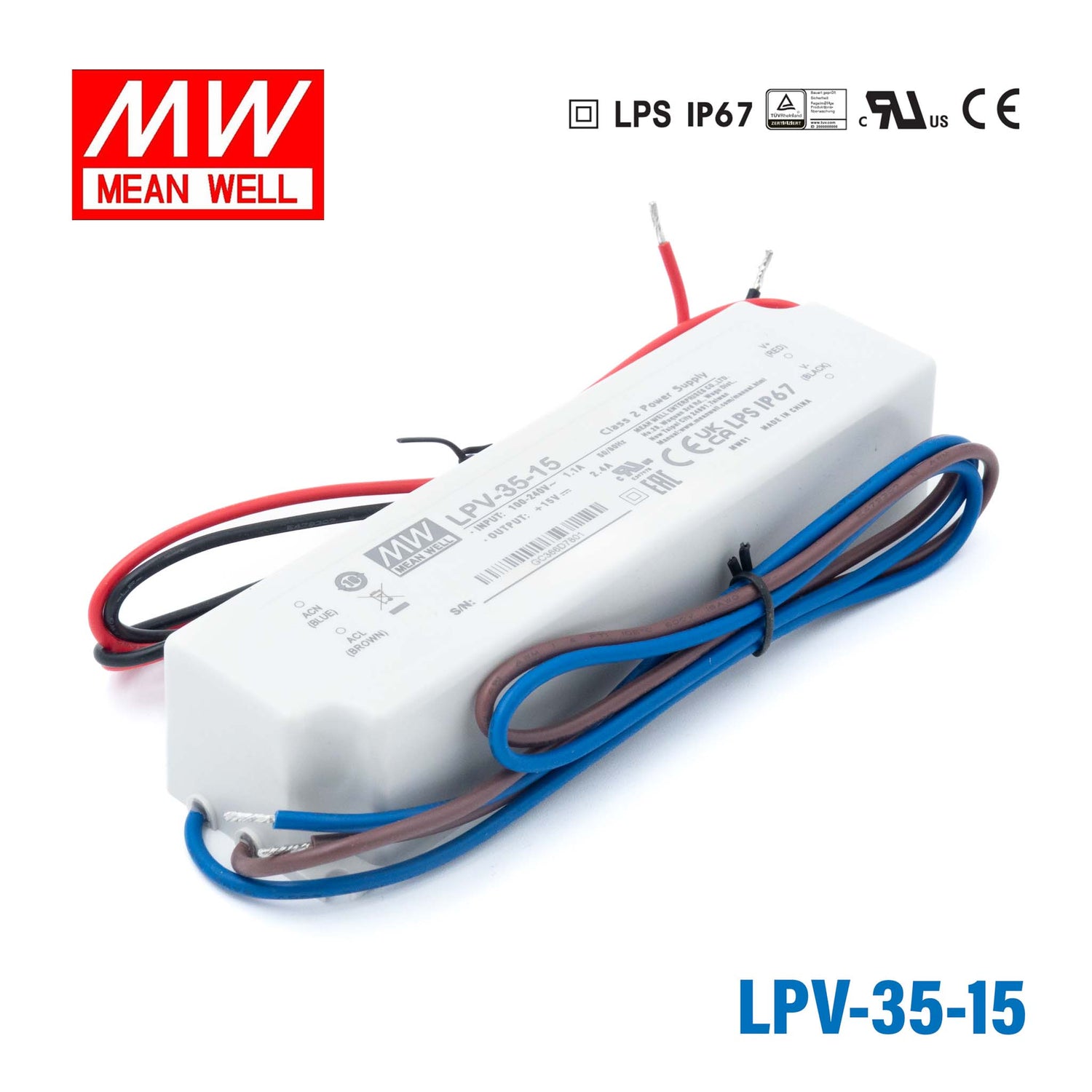

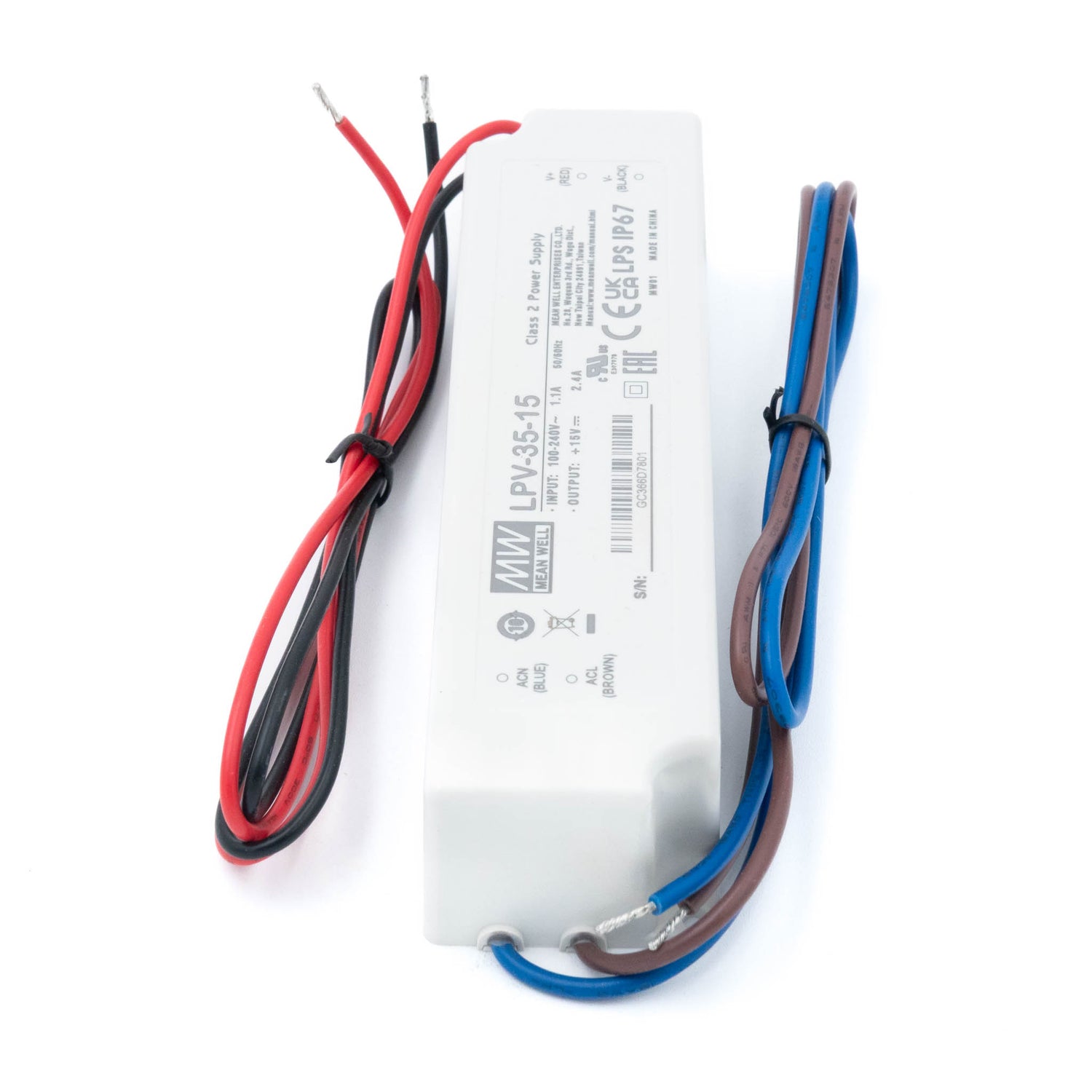

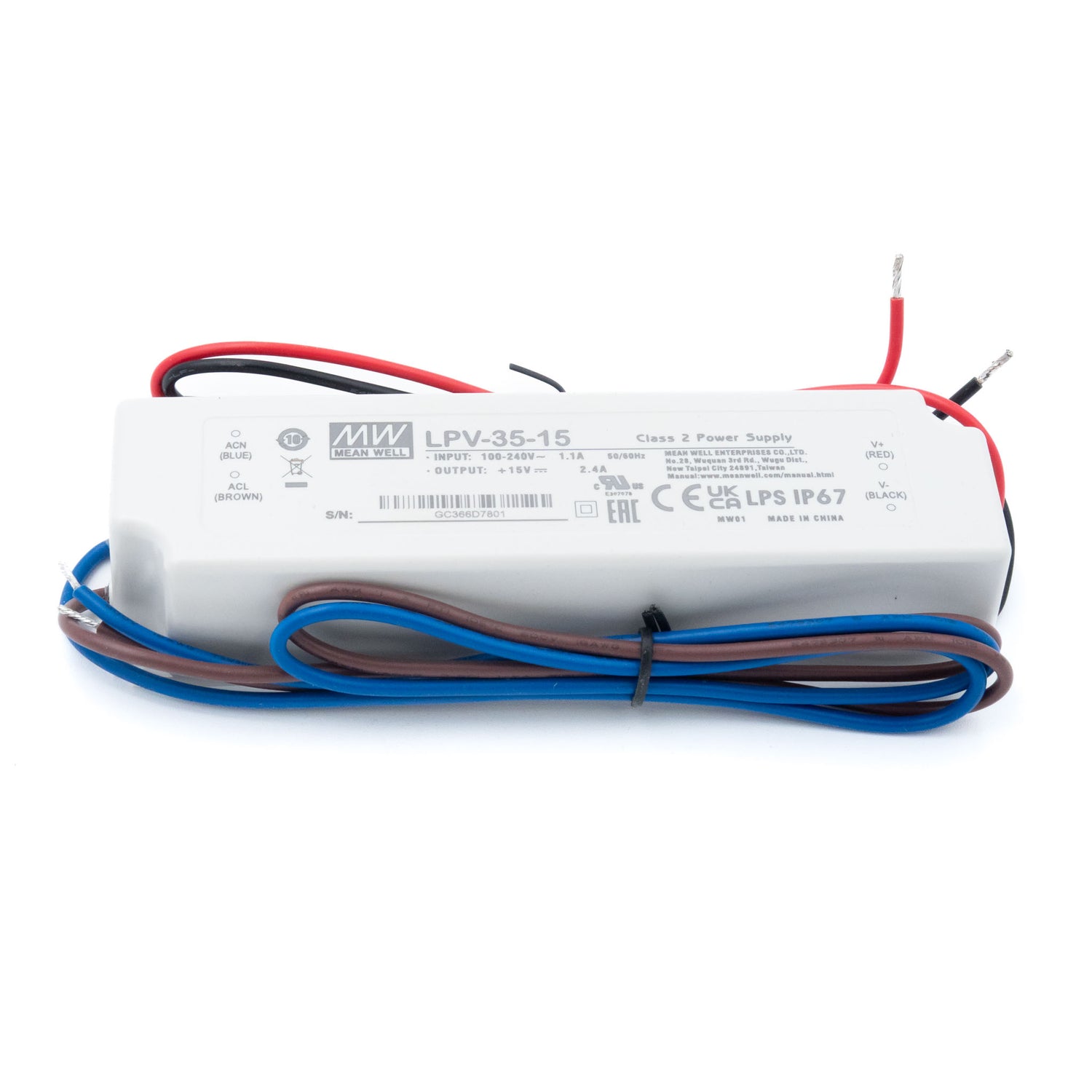

Mean Well LPV-35-15 LED Driver — 36W 15V 2.4A IP67 Waterproof

Constant VoltageCE/EAC/TÜV/UL Certified90-264VAC Universal Input2-Year Warranty
SKU LPV-35-15
$16.88 USD
Shipping calculated at checkout.

Select model — 4 in this family

LPV-35-15
In stock
|

Overview

LPV-35-15 is the 15V output model of this series: rated current 2.4A, rated power 36W, typical efficiency 84%.

Features

  • Constant voltage design
  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Fully encapsulated with IP67 level (Note.8)
  • Fully isolated plastic case
  • Class Ⅱ power unit, no FG
  • Class 2 power unit
  • Pass LPS
  • Display devices for decorative & advertising accessories (Note.12)
  • General-purpose electronics operated in dusty or damp environments
  • 100% full load burn-in test
  • Low cost, high reliability
  • 2 years warranty

Specifications

LPV-35-15Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
2.4A
CURRENT RANGE
0 ~ 2.4A
RATED POWER
36W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE TOLERANCENote.3
±5.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±2.0%
SETUP, RISE TIMENote.6
500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.4
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
84%
AC CURRENT (Typ.)
1.1A/115VAC 0.7A/230VAC
INRUSH CURRENT(Typ.)
COLD START 55A(twidth=510μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
0.25mA / 240VAC

PROTECTION

OVERLOAD
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
17.25 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +65℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL1310 class 2, CAN/CSA No. 223-M91, BIS IS15885(Note 13), IEC62368-1, EAC TP TC 004, IP67, BS EN/EN62368-1 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC
ISOLATION RESISTANCE
I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
5170.3K hrs min. Telcordia SR-332 (Bellcore) ; 743.5Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
148*40*30mm (L*W*H)
PACKING
0.31Kg; 40pcs/13.5Kg/0.73CUFT
Test conditions and notes13
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  5. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. LPV-35-5 can provide 6A of output current continuously. Based on the requirement of UL1310 class 2, the output current is only certified up to 5A for the test report of LPV-35-5.
  8. 8. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute.
  9. 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  10. 10. Products sourced from the Americas regions may not have the TUV/BIS/CCC logo. Please contact your MEAN WELL sales for more information.
  11. 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  12. 12. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
  13. 13. Products sourced from the China regions may not have the BIS logo, please contact your MEAN WELL sales for more information.

Technical drawings

LPV-35-15 Recommend Mounting Direction
Recommend Mounting Direction
LPV-35-15 Block Diagram
Block Diagram
LPV-35-15 Derating Curve
Derating Curve

Downloads

FAQ

Is the LPV-35-15 suitable for outdoor LED strip lighting?

Yes. The LPV-35-15 carries an IP67 rating, meaning it is fully protected against dust and can withstand temporary immersion in water (avoid immersion over 30 minutes). This makes it appropriate for outdoor signage, facade lighting, and covered exterior installations out of direct sunlight where exposure to rain or condensation is likely.

How many metres of 15V LED strip can the LPV-35-15 power?

The LPV-35-15 delivers a maximum of 36W at 15V. To find the compatible strip length, divide 36W by your strip's rated power per metre — for example, a strip rated at 6 W/m would support up to 6 metres (36 ÷ 6 = 6 m). Always check your specific strip's rated power per metre before sizing.

What certifications does the LPV-35-15 hold?

The LPV-35-15 is approved to UL1310 Class 2, CAN/CSA No. 223-M91, IEC62368-1, BS EN/EN62368-1, EAC TP TC 004 and BIS IS15885. These confirm compliance with North American, international/European, Eurasian and Indian safety standards, making the unit suitable for deployments across multiple regions.

Can the LPV-35-15 operate in very cold environments?

Yes. Its operating temperature range spans -30°C to +65°C, so it can run in sub-zero conditions such as outdoor winter installations or unheated enclosures. At higher ambient temperatures the output load must be derated according to the sheet's derating curve.

How does the LPV-35-15 compare to the LPV-35-24 and LPV-35-36 at the same wattage?

All three are 36W IP67 constant-voltage drivers in the same 148 × 40 × 30 mm enclosure. The LPV-35-15 outputs 15V at 2.4A, the LPV-35-24 outputs 24V at 1.5A, and the LPV-35-36 outputs 36V at 1A. Select the voltage that matches your LED strip or signage specification.
