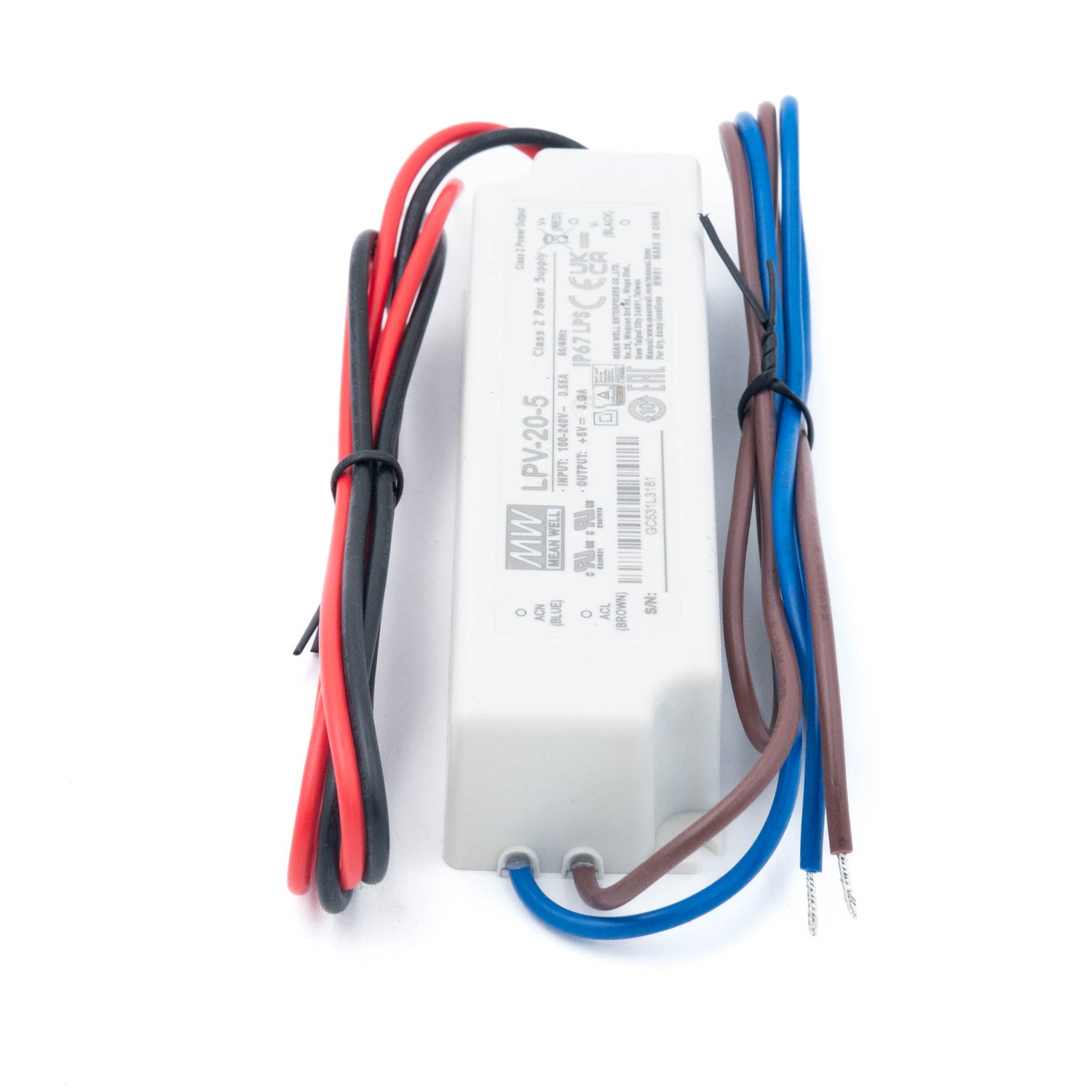

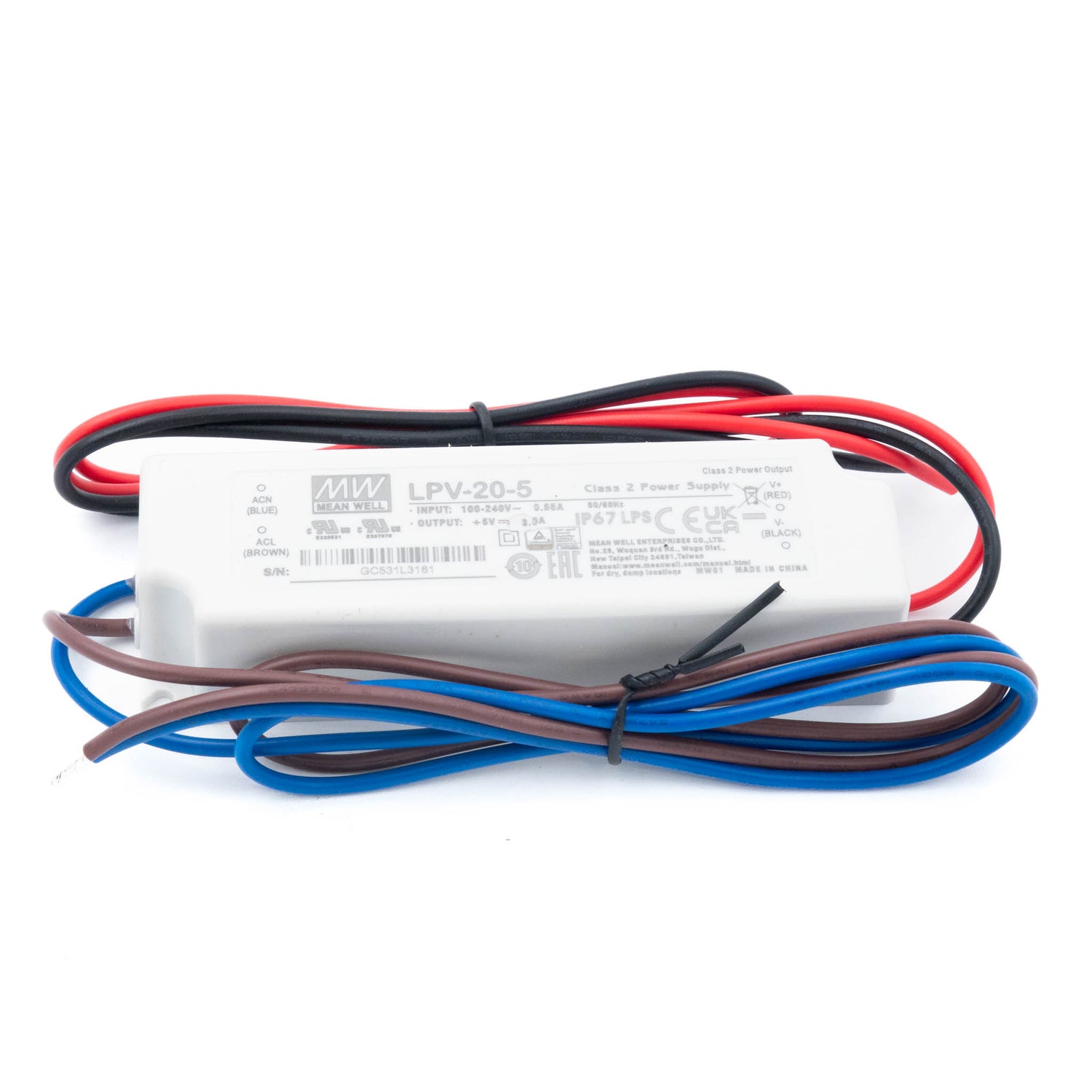

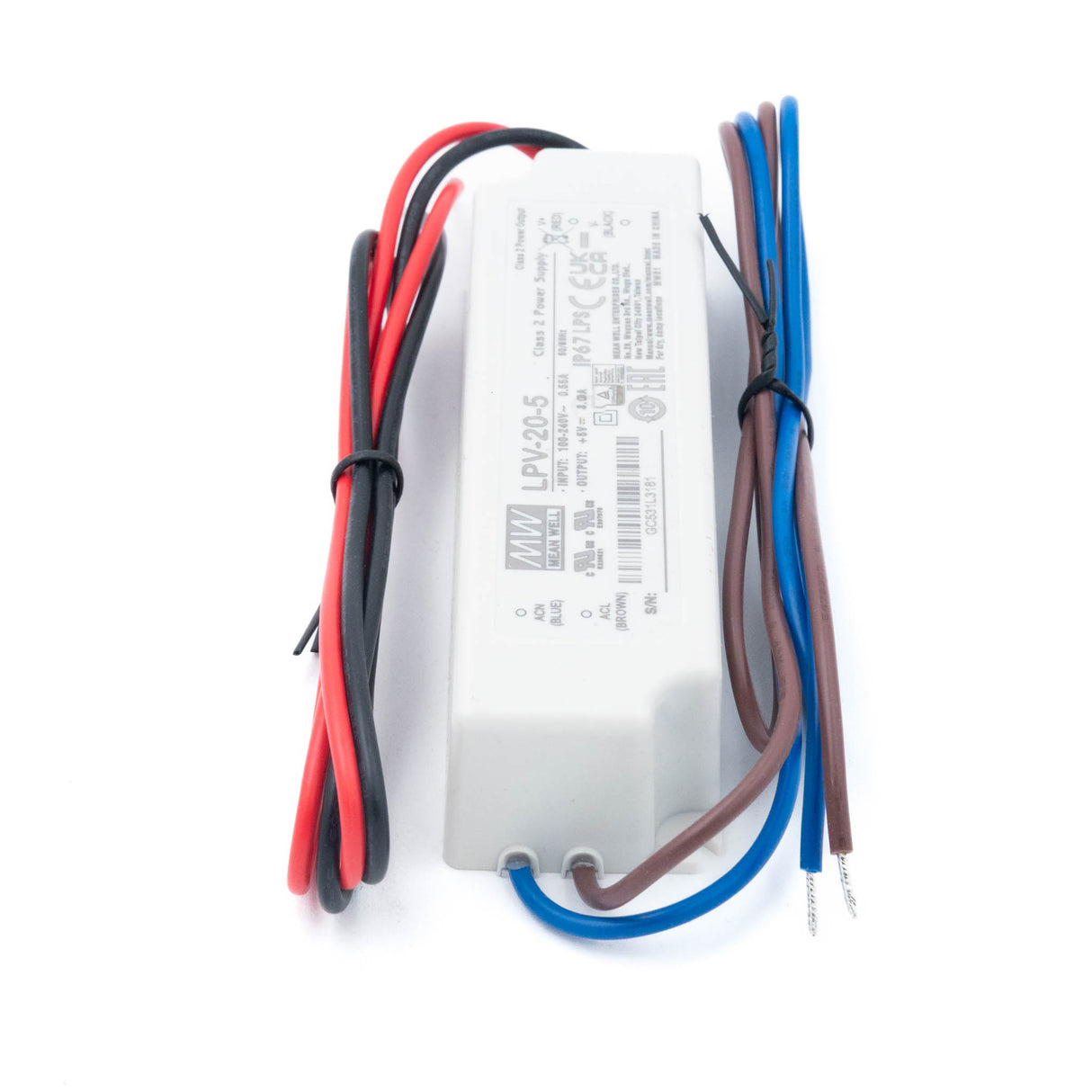

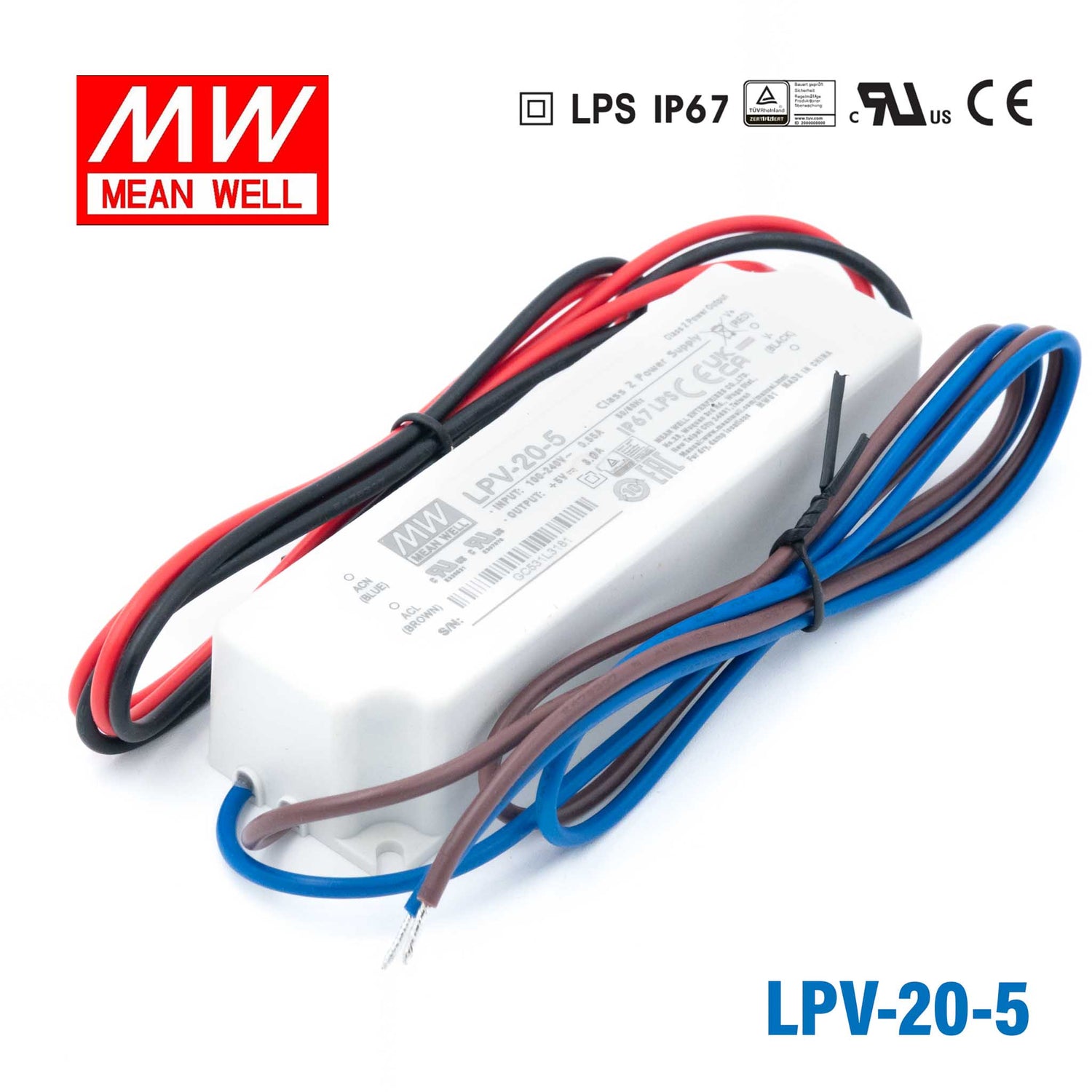

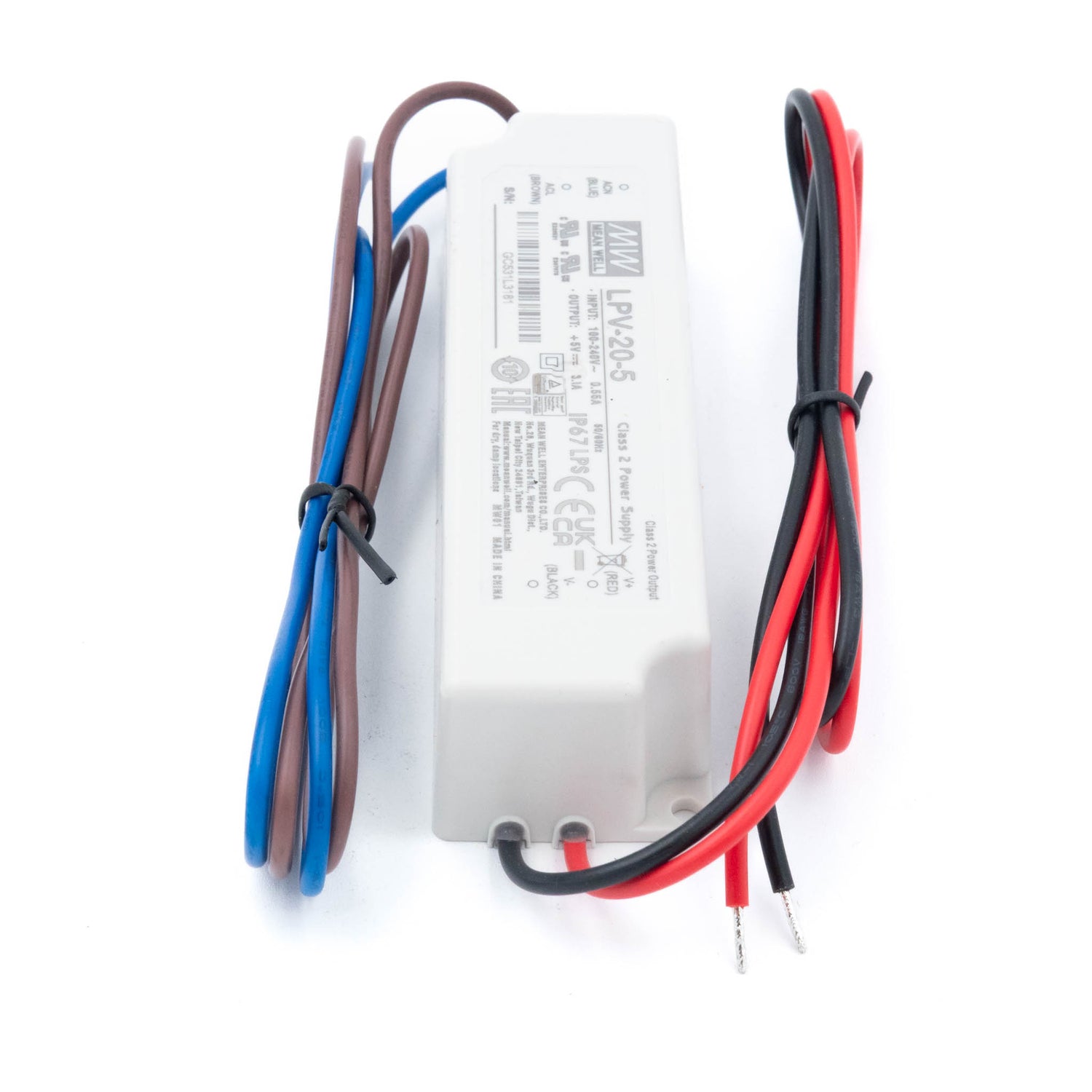

Mean Well LPV-20-5 LED Driver — 15W 5V 3A IP67 Waterproof

Name: Mean Well LPV-20-5 LED Driver — 15W 5V 3A IP67 Waterproof
Brand: Mean Well
SKU: LPV-20-5
Price: 12.47 USD
Availability: InStock

Constant VoltageCE/EAC/TÜV/UL Certified90-264VAC Universal Input2-Year Warranty

SKU LPV-20-5

$12.47 USD

Shipping calculated at checkout.

Select model — 4 in this family

LPV-20-5

LPV-20-5 20W 5V In stock$12.47 USD

LPV-35-5 35W 5V Low stock$16.08 USD

LPV-60-5 60W 5V Low stock$18.02 USD

LPV-100-5 100W 5V Low stock$28.50 USD

Product variants

In stock

Overview

LPV-20-5 is the 5V output model of this series: rated current 3A, rated power 15W, typical efficiency 77%.

Features

Constant voltage design
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Over load / Over voltage
Cooling by free air convection
Small and compact size
Fully encapsulated with IP67 level (Note.7)
Fully isolated plastic case
Class Ⅱ power unit, no FG
Class 2 power unit
Pass LPS
Display devices for decorative & advertising accessories (Note.11)
General-purpose electronics operated in dusty or damp environments
100% full load burn-in test
Low cost, high reliability
2 years warranty

Specifications

LPV-20-5Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 3A
CURRENT RANGE: 0 ~ 3A
RATED POWER: 15W
RIPPLE & NOISE (max.)^Note.2: 80mVp-p
VOLTAGE TOLERANCE^Note.3: ±5.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: 500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 77%
AC CURRENT (Typ.): 0.55A/115VAC 0.35A/230VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=215μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 8 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: 0.25mA / 240VAC

PROTECTION

OVER LOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 5.75 ~ 6.75V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL879, UL1310, CSA C22.2 No. 207-M89,CAN/CSA C22.2 No. 223-M91,IEC/BS EN/EN 62368-1, IS 15885(Part2/Sec13)(NOTE 12) , EAC TP TC 004, IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 6025.8K hrs min. Telcordia SR-332 (Bellcore) ; 786.5Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 118*35*26mm (L*W*H)
PACKING: 0.20Kg; 60pcs/13.3Kg/0.74CUFT

Certifications & ratings

IP67: IP67

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. Products sourced from the Americas regions may not have the TUV/BIS/CCC logo. Please contact your MEAN WELL sales for more information.
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
12. Products sourced from the China regions may not have the BIS logo, please contact your MEAN WELL sales for more information.

Technical drawings

LPV-20-5 Recommend Mounting Direction — Recommend Mounting Direction

LPV-20-5 Derating Curve — Derating Curve

Downloads

Datasheet1

LPV-20-5 datasheetLPV-20-SPEC.PDF · 2026-09-07 edition PDF Download

Certificates3

UL Certificate (LPV)(EN) PDF Download

TUV Certificate (LPV-20)(EN) PDF Download

EMC Certificate (LPV-20)(EN) PDF Download

Test reports1

Test Report (LPV-20-5)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What LED applications can the LPV-20-5 power at 5V?

The LPV-20-5 outputs 5V DC at up to 3A (15W total), making it suited for 5V LED pixel strips (such as WS2812-based addressable strips), small 5V LED panels, and compact low-voltage LED accent lighting. The total connected load must remain at or below 15W.

How many meters of 5V LED strip can the LPV-20-5 support?

The driver provides a maximum of 15W at 5V. Divide 15W by your strip's rated power per meter — for example, at 3W/m the result is 5 m. Always verify the strip's rated power consumption per meter and keep total load within the 15W ceiling.

Can the LPV-20-5 be used in damp or outdoor locations?

Yes. The unit is fully encapsulated to IP67, dust-tight and protected against temporary submersion (avoid more than 30 minutes), so it can be housed in outdoor enclosures out of direct sunlight and in damp-location fixtures. The operating temperature range of -30°C to +70°C (see derating curve) also supports cold-climate outdoor deployments.

Does the LPV-20-5 work on international mains voltages?

Yes. The 90–264VAC input range covers 110V/120V North American supplies, 220V/230V European supplies, and other voltages in that window. No manual voltage switching is required.

How does the LPV-20-5 compare to the LPV-100-5 and LPV-60-5 for 5V LED projects?

The LPV-20-5 delivers 5V at up to 3A, or 15W. For small 5V LED loads up to 15W the LPV-20-5 is sufficient; larger installations requiring more than 15W at 5V need a higher-power model such as the LPV-60-5 or LPV-100-5 — check their own datasheets for their current and power ratings.
