Mean Well

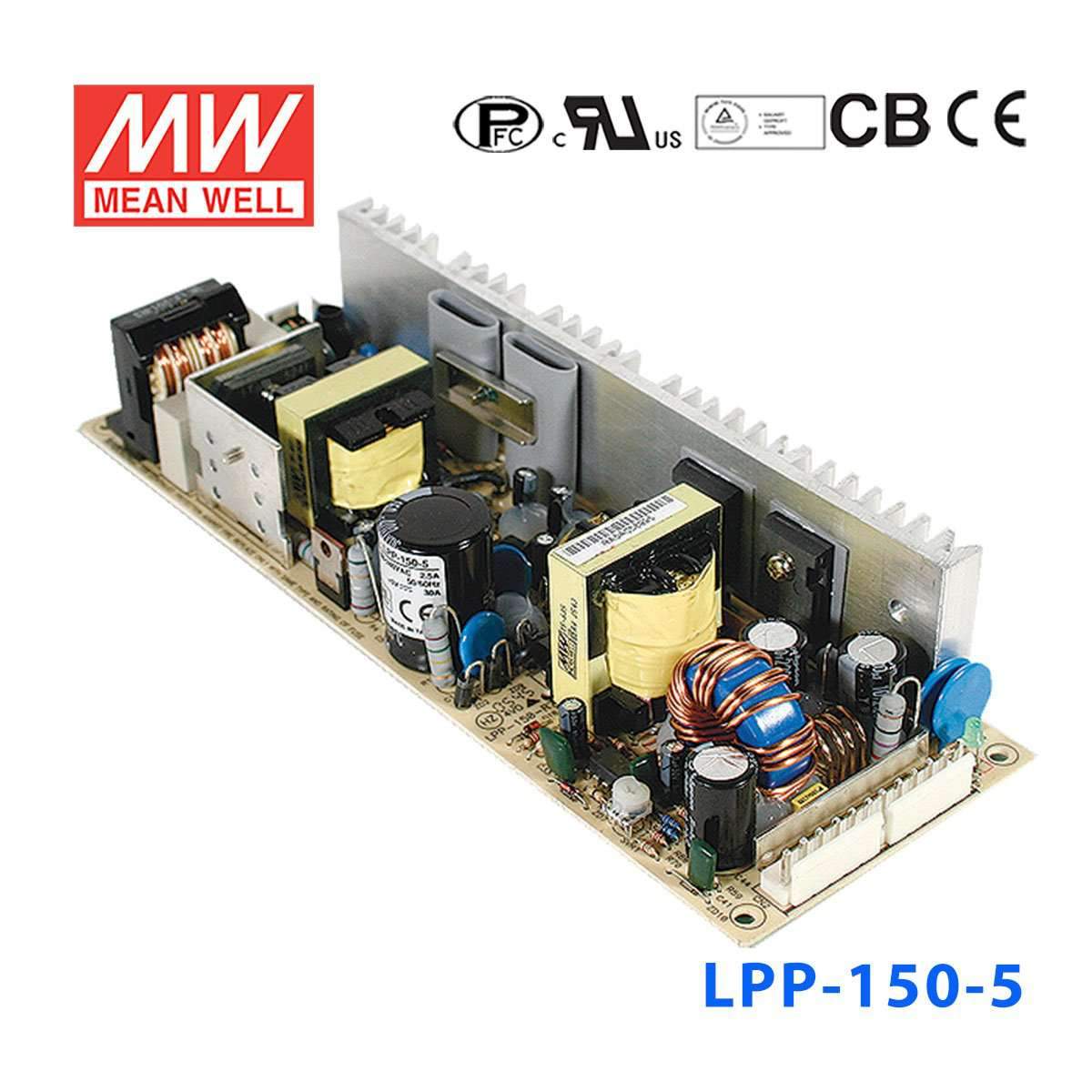

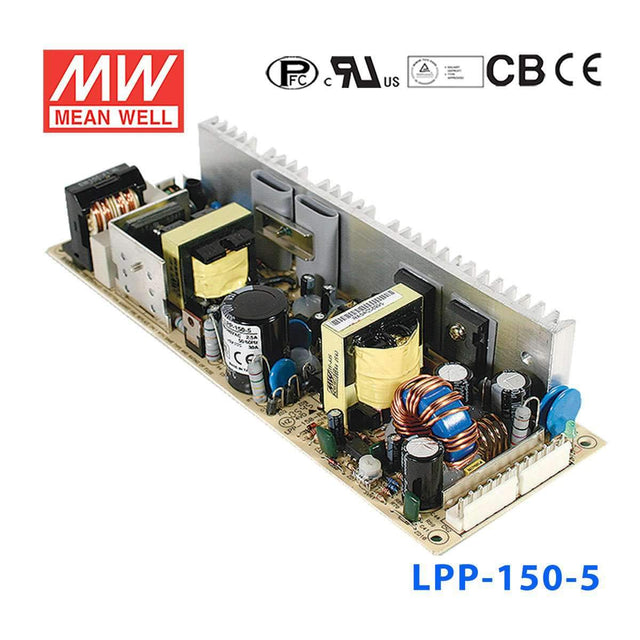

Mean Well LPP-150-5 Power Supply 150W 5V 30A

small and compactbuilt-in active PFC function
SKU LPP-150-5
$43.94 USD
Shipping calculated at checkout.
Available to order
|

Overview

LPP-150-5 is the 5V output model of this series: rated current 30A, rated power 150W, typical efficiency 76%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.96
  • Protections: Short circuit / Overload / Over voltage
  • Protections:Over temperature(option)
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fixed switching frequency at PFC:67KHz PWM:134KHz
  • 3 years warranty

Specifications

LPP-150-5Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
30A
CURRENT RANGE
0 ~ 30A
RATED POWER
150W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
4.75 ~ 5.5V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
600ms, 30ms at full load
HOLD UP TIME (Typ.)
30ms at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.96/230VAC PF≧0.97/115VAC at full load
EFFICIENCY(Typ.)
76%
AC CURRENT (Typ.)
2.5A/115VAC 1.2A/230VAC
INRUSH CURRENT (Typ.)
COLD START 55A/230VAC
LEAKAGE CURRENT
<3.5mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
5.5 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ with cooling FAN (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
2635.3K hrs min. Telcordia SR-332 (Bellcore) ; 292.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
222*75*41mm (L*W*H)
PACKING
0.62Kg; 24pcs/16.6Kg/1.63CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

LPP-150-5 Mechanical Specification
Mechanical Specification
LPP-150-5 Block Diagram
Block Diagram
LPP-150-5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the LPP-150-5 for 5V industrial control electronics or SBC-based systems?

Yes, it is a constant voltage 5V power supply rated for up to 30A. That makes it suitable for 5V industrial control, embedded computing, or automation electronics that need a high-current 5V rail within 150W.

Is the LPP-150-5 appropriate for powering 5V LED pixels or other 5V DC loads?

It can be used with 5V constant-voltage loads because the output is 5V and the maximum output current is 30A. The practical limit is the 150W rating, so the total connected 5V load has to stay inside that output capacity.

Can this 5V model support high-current electronics in a production or test environment?

Yes, the 30A output current makes it relevant for high-current 5V electronics in bench, production, or embedded environments. It also accepts 85-264VAC input, which is useful where mains input conditions vary.

How does the LPP-150-5 differ from other LPP power supplies in the same family?

Within the LPP-150 series, the other models are LPP-150-3.3 at 99W, 3.3V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; LPP-150-12 at 150W, 12V, 12.5A; LPP-150-13.5 at 151.2W, 13.5V, 11.2A; LPP-150-15 at 150W, 15V, 10A; LPP-150-24 at 151.2W, 24V, 6.3A; LPP-150-27 at 151.2W, 27V, 5.6A; and LPP-150-48 at 153.6W, 48V, 3.2A. All share the 85-264VAC universal input, active PFC and 222*75*41mm size. The LPP-150-5 is the 150W, 5V, 30A version.

Is the LPP-150-5 intended for outdoor use?

The provided specs show an operating temperature range of -10°C to +60°C with a cooling fan, subject to the derating curve (the sheet gives curves with an 18CFM fan and with no fan, where the load must be derated; 3.3V-7.5V models derate further under 100VAC with no fan), but no IP rating is listed. That means exposure resistance to rain, dust, or washdown is not specified in the data provided here.
