Mean Well

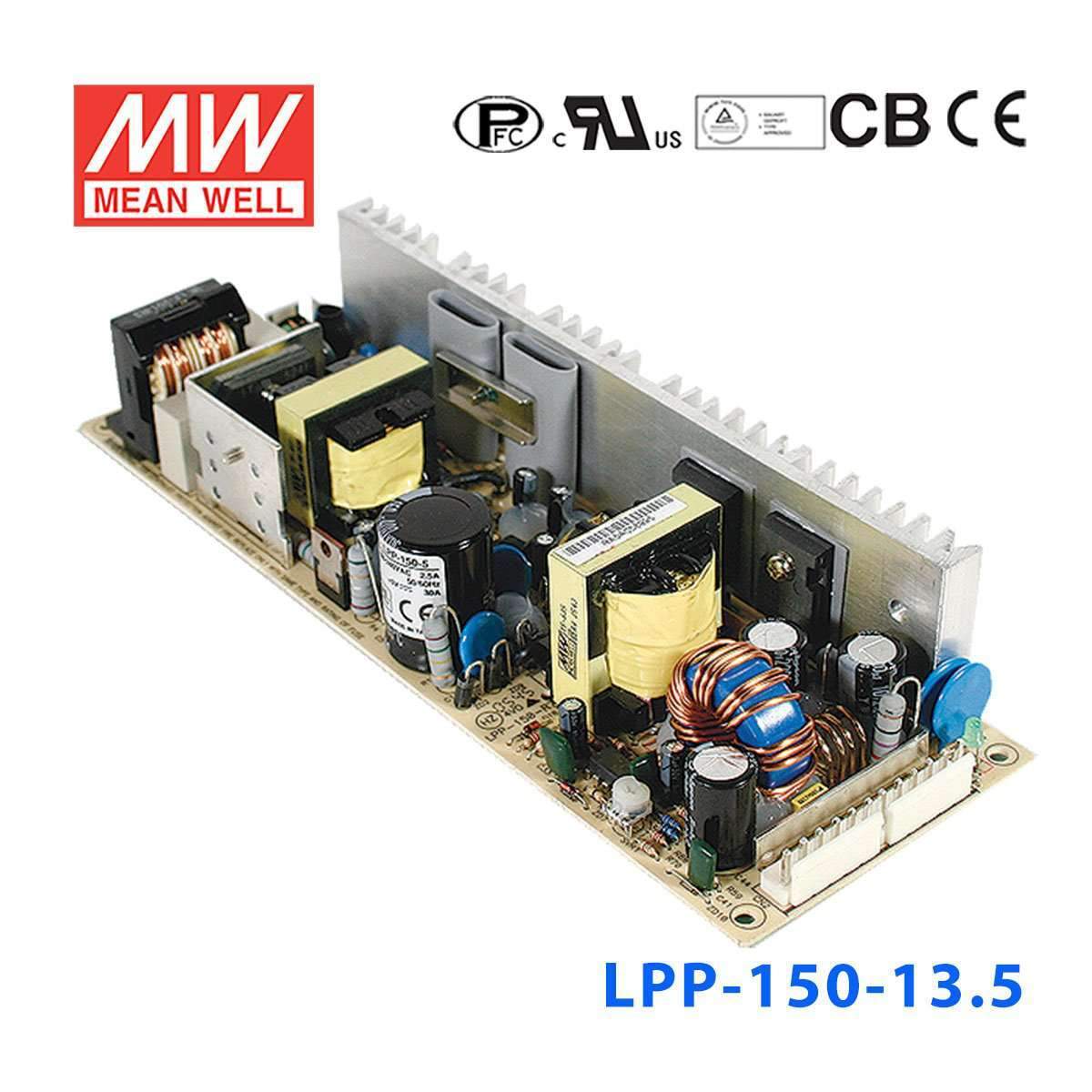

Mean Well LPP-150-13.5 Power Supply 151W 13.5V 11.2A

small and compactbuilt-in active PFC function
SKU LPP-150-13.5
$43.94 USD
Shipping calculated at checkout.
In stock
|

Overview

LPP-150-13.5 is the 13.5V output model of this series: rated current 11.2A, rated power 151.2W, typical efficiency 83%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.96
  • Protections: Short circuit / Overload / Over voltage
  • Protections:Over temperature(option)
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fixed switching frequency at PFC:67KHz PWM:134KHz
  • 3 years warranty

Specifications

LPP-150-13.5Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
13.5V
RATED CURRENT
11.2A
CURRENT RANGE
0 ~ 11.2A
RATED POWER
151.2W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
12.8 ~ 14.9V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
600ms, 30ms at full load
HOLD UP TIME (Typ.)
30ms at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.96/230VAC PF≧0.97/115VAC at full load
EFFICIENCY(Typ.)
83%
AC CURRENT (Typ.)
2.5A/115VAC 1.2A/230VAC
INRUSH CURRENT (Typ.)
COLD START 55A/230VAC
LEAKAGE CURRENT
<3.5mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
14.85 ~ 18.2V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ with cooling FAN (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
2635.3K hrs min. Telcordia SR-332 (Bellcore) ; 292.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
222*75*41mm (L*W*H)
PACKING
0.62Kg; 24pcs/16.6Kg/1.63CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

LPP-150-13.5 Mechanical Specification
Mechanical Specification
LPP-150-13.5 Block Diagram
Block Diagram
LPP-150-13.5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the LPP-150-13.5 for 13.5V communications or control equipment?

Yes, if the equipment is designed for 13.5V constant voltage DC input. This model provides 13.5V output at up to 11.2A, with a total power rating of 151.2W.

Is the LPP-150-13.5 appropriate for 13.5V embedded systems that need more current than the 100W version?

It is suited to 13.5V embedded loads that need up to 11.2A and up to 151.2W. The 100W version is not covered by this datasheet, so compare against its own spec sheet to confirm the current difference.

Can this power supply support 13.5V industrial electronics in a universal AC-input environment?

It can support 13.5V industrial electronics when the load requires constant voltage DC and the available AC input is within 85-264VAC. On the output side, the load must stay within 13.5V, 11.2A, and 151.2W.

How does the LPP-150-13.5 compare with other LPP siblings?

The LPP-150-13.5 is rated at 151.2W, 13.5V, and 11.2A. The other LPP-150 models are LPP-150-3.3 at 99W, 3.3V, 30A; LPP-150-5 at 150W, 5V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; LPP-150-12 at 150W, 12V, 12.5A; LPP-150-15 at 150W, 15V, 10A; LPP-150-24 at 151.2W, 24V, 6.3A; LPP-150-27 at 151.2W, 27V, 5.6A; and LPP-150-48 at 153.6W, 48V, 3.2A. All share the 85-264VAC universal input, active PFC and 222*75*41mm size.

Can the LPP-150-13.5 be used outdoors?

The provided specs give an operating temperature range of -10°C to +60°C with a cooling fan, subject to the derating curve (the sheet gives curves with an 18CFM fan and with no fan, where the load must be derated), but they do not list an IP rating for this model. That means wet or outdoor exposure should not be assumed from the provided specs alone.
