Mean Well

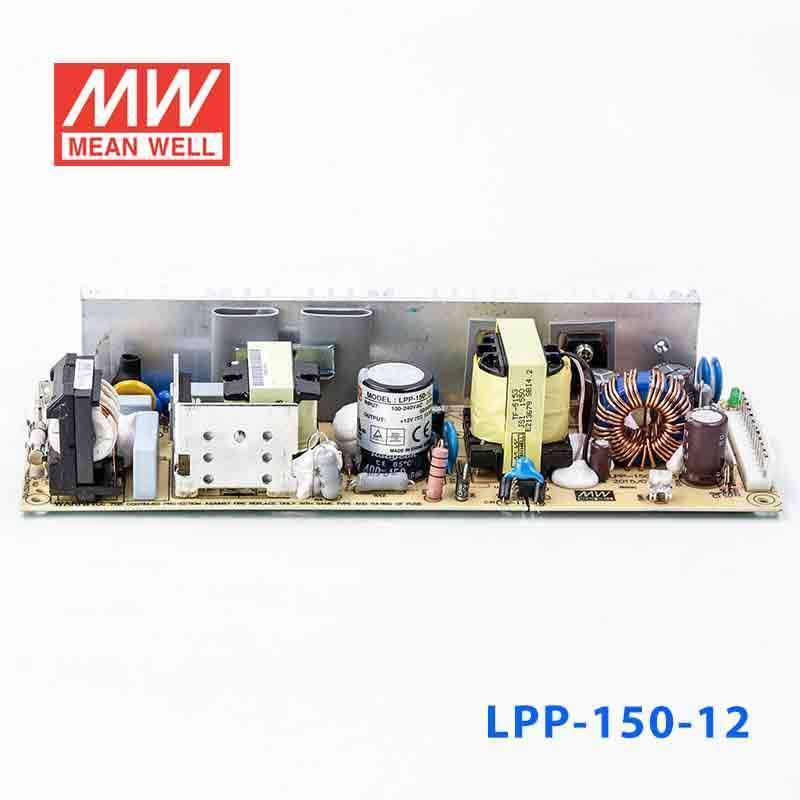

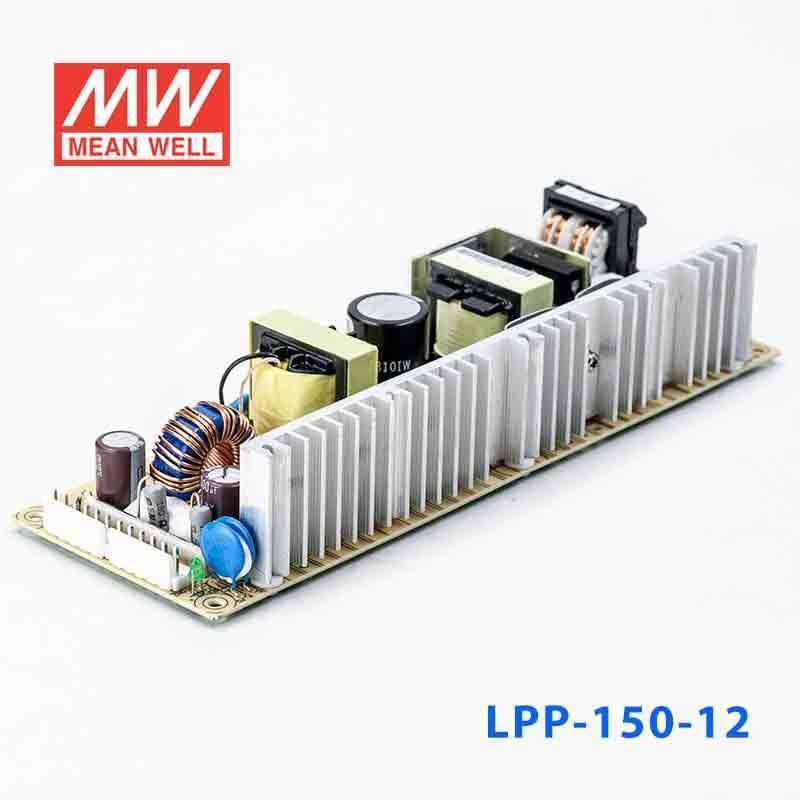

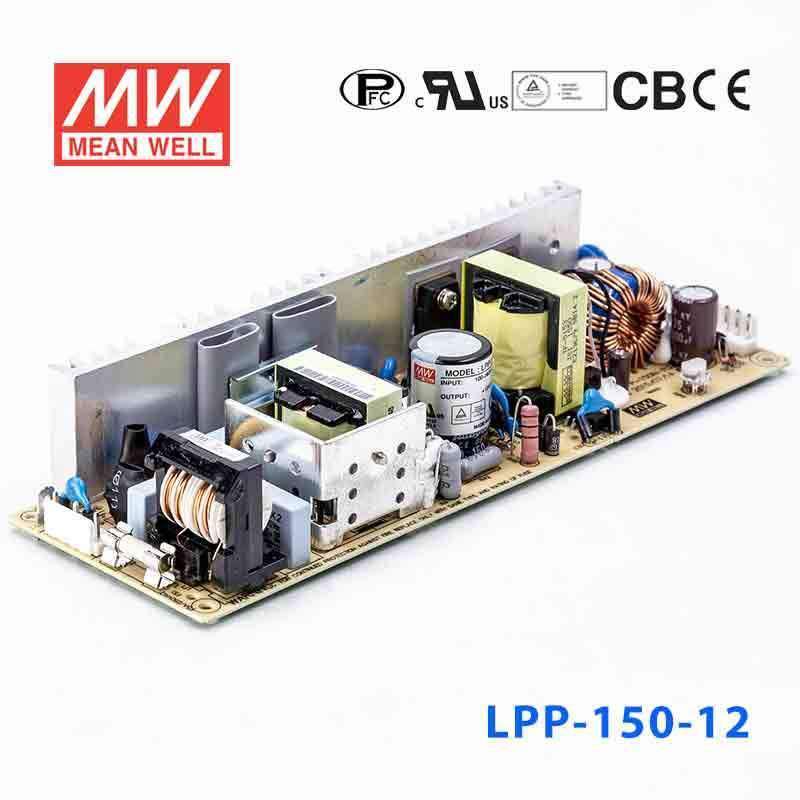

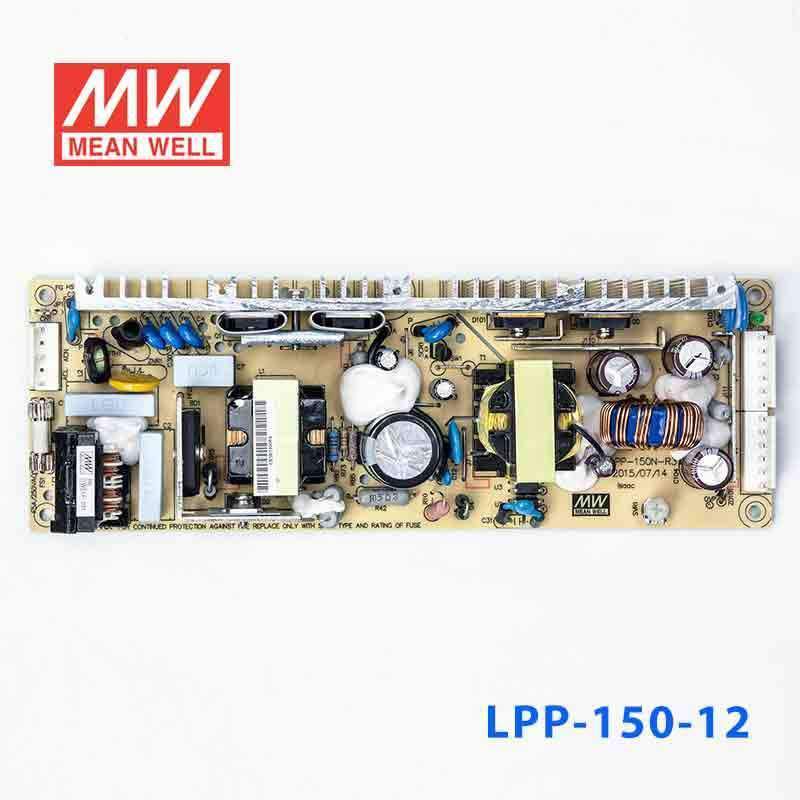

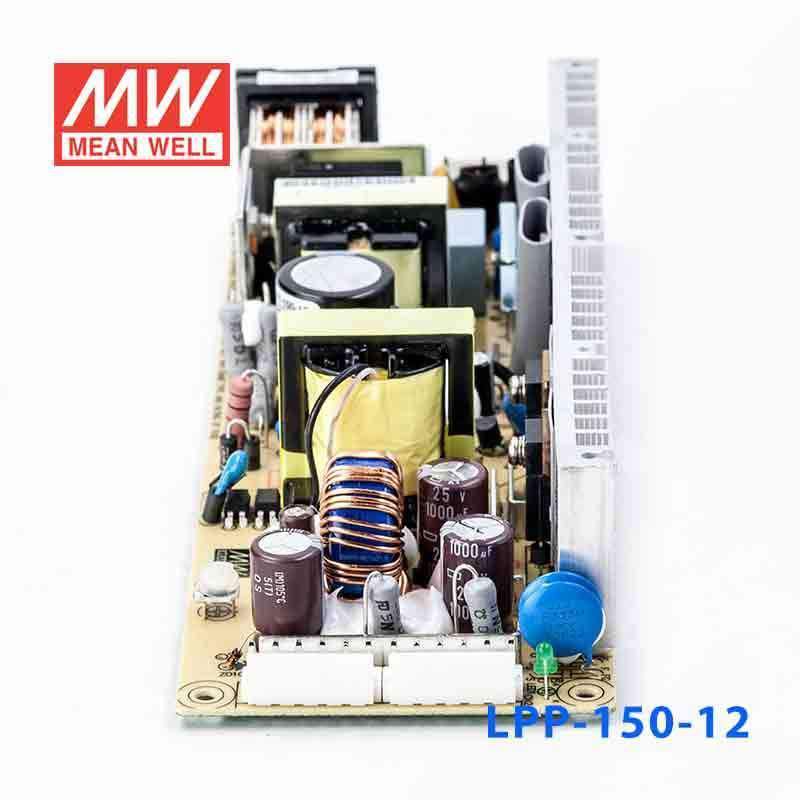

Mean Well LPP-150-12 Power Supply 150W 12V 12.5A

slim plastic caseeconomicalIP67
SKU LPP-150-12
$42.54 USD
Shipping calculated at checkout.
In stock
|

Overview

LPP-150-12 is the 12V output model of this series: rated current 12.5A, rated power 150W, typical efficiency 82%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.96
  • Protections: Short circuit / Overload / Over voltage
  • Protections:Over temperature(option)
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fixed switching frequency at PFC:67KHz PWM:134KHz
  • 3 years warranty

Specifications

LPP-150-12Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
12.5A
CURRENT RANGE
0 ~ 12.5A
RATED POWER
150W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
11.4 ~ 13.2V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
600ms, 30ms at full load
HOLD UP TIME (Typ.)
30ms at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.96/230VAC PF≧0.97/115VAC at full load
EFFICIENCY(Typ.)
82%
AC CURRENT (Typ.)
2.5A/115VAC 1.2A/230VAC
INRUSH CURRENT (Typ.)
COLD START 55A/230VAC
LEAKAGE CURRENT
<3.5mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
13.2 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ with cooling FAN (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
2635.3K hrs min. Telcordia SR-332 (Bellcore) ; 292.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
222*75*41mm (L*W*H)
PACKING
0.62Kg; 24pcs/16.6Kg/1.63CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

LPP-150-12 Mechanical Specification
Mechanical Specification
LPP-150-12 Block Diagram
Block Diagram
LPP-150-12 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the LPP-150-12 for 12V industrial control equipment?

Yes, if the equipment requires 12V constant voltage DC. This model provides 12V output at up to 12.5A with a 150W power rating, which makes it suitable for 12V control loads within those limits.

Is the LPP-150-12 a fit for 12V embedded systems or edge devices?

It is a fit for embedded or edge devices that are designed for 12V constant voltage input. The available output is 12V and 12.5A, with total power up to 150W.

Can this model power 12V security, monitoring, or low-voltage IT hardware?

It can, provided the hardware is specified for 12V DC and does not exceed 12.5A or 150W. Because it is a constant voltage unit, voltage matching is the first requirement.

How does the LPP-150-12 compare with nearby LPP models?

The LPP-150-12 is rated at 150W, 12V, and 12.5A. The other LPP-150 models are LPP-150-3.3 at 99W, 3.3V, 30A; LPP-150-5 at 150W, 5V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; LPP-150-13.5 at 151.2W, 13.5V, 11.2A; LPP-150-15 at 150W, 15V, 10A; LPP-150-24 at 151.2W, 24V, 6.3A; LPP-150-27 at 151.2W, 27V, 5.6A; and LPP-150-48 at 153.6W, 48V, 3.2A. All share the 85-264VAC universal input, active PFC and 222*75*41mm size.

Is the LPP-150-12 suitable for outdoor or damp industrial locations?

No IP rating is listed on the datasheet; it is a component power supply to be installed inside final equipment, rated for 20-90% RH non-condensing, so outdoor or damp locations are not supported on their own. Its operating range is -10°C to +60°C with a cooling fan, subject to the derating curve (the sheet gives curves with an 18CFM fan and with no fan, where the load must be derated).
