Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

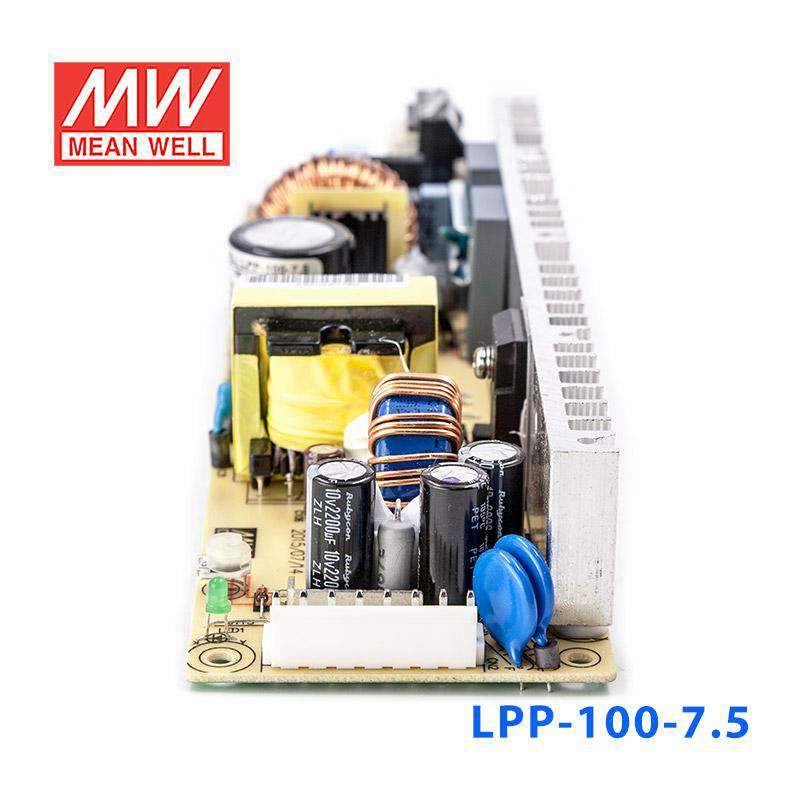

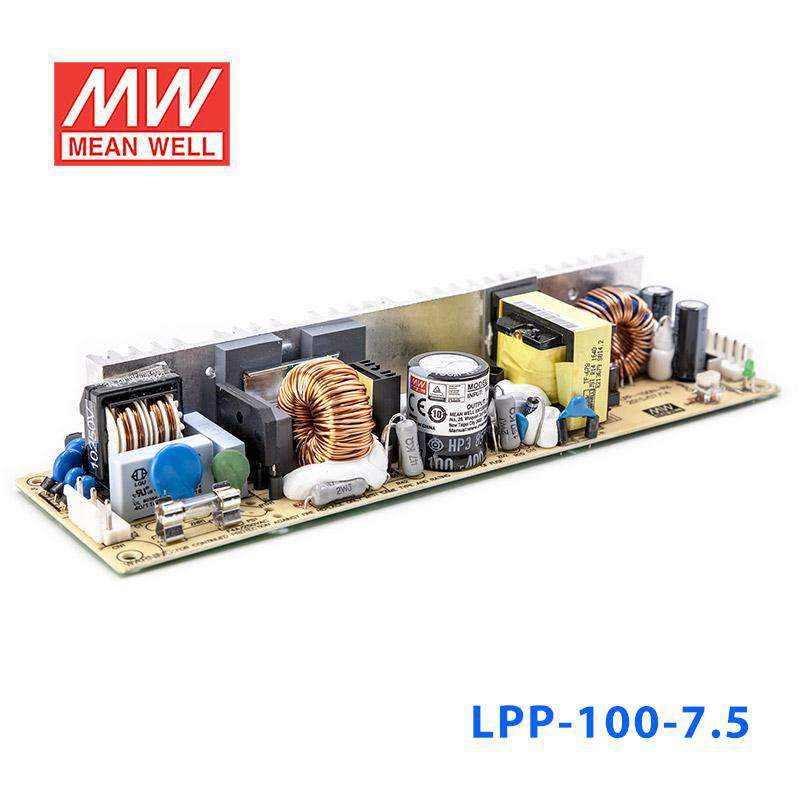

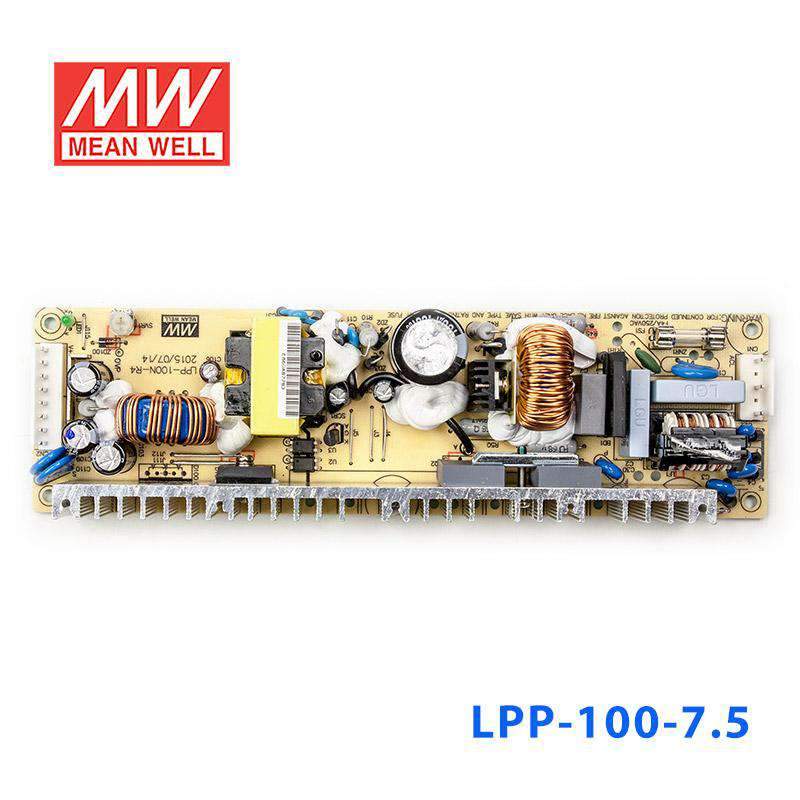

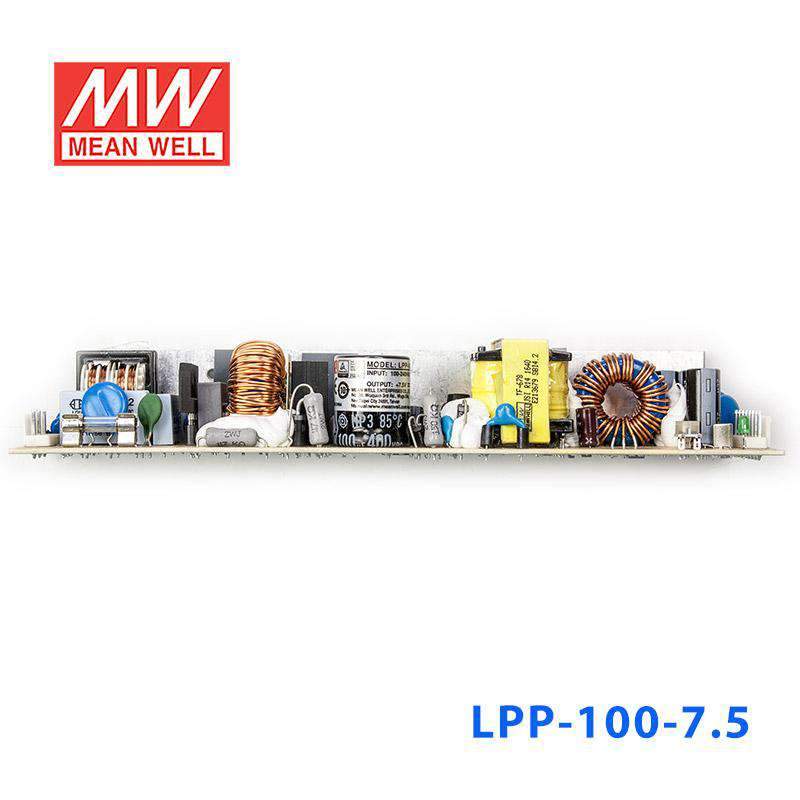

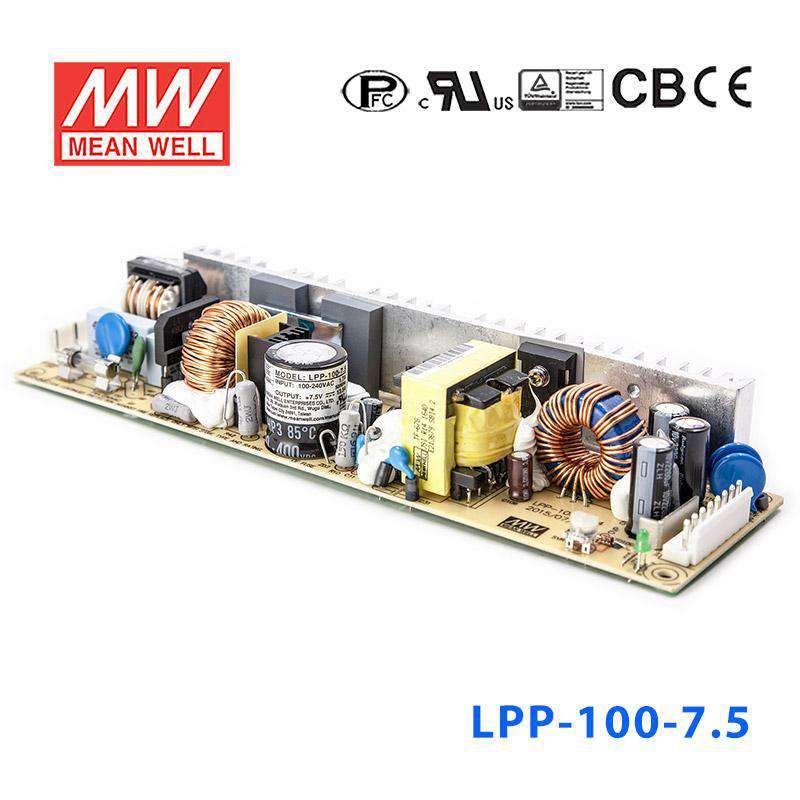

Mean Well LPP-100-7.5 Power Supply 101W 7.5V 13.5A

slim plastic caseeconomicalIP67
SKU LPP-100-7.5
$41.24 USD
Shipping calculated at checkout.
In stock
|

Overview

LPP-100-7.5 is the 7.5V output model of this series: rated current 13.5A, rated power 101.25W, typical efficiency 76%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fixed switching frequency at PFC:67KHz PWM:134KHz
  • 3 years warranty

Specifications

LPP-100-7.5Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
7.5V
RATED CURRENT
13.5A
CURRENT RANGE
0 ~ 13.3A
RATED POWER
101.25W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
7.13 ~ 8.25V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
600ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
28ms/230VAC 28ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY(Typ.)
76%
AC CURRENT (Typ.)
1.7A/115VAC 0.75A/230VAC
INRUSH CURRENT (Typ.)
COLD START 30A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
8.6 ~ 10.1V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
2586.7K hrs min. Telcordia SR-332 (Bellcore) ; 287.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
222*62*33.6mm (L*W*H)
PACKING
0.51Kg; 24pcs/13.9Kg/1.63CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

LPP-100-7.5 Mechanical Specification
Mechanical Specification
LPP-100-7.5 Block Diagram
Block Diagram
LPP-100-7.5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the LPP-100-7.5 for 7.5V embedded control hardware?

Yes, this model is a constant voltage power supply with a 7.5V output and up to 13.5A output current. It fits embedded or industrial electronics that specifically require a regulated 7.5V DC supply and stay within the unit's 101.25W power rating.

Is the LPP-100-7.5 suitable for 7.5V automation panels or low-voltage industrial devices?

It can be suitable for automation or industrial devices that are designed for 7.5V constant voltage input. The key match points are the 7.5V output, 13.5A maximum current, and 101.25W capacity.

Can this power supply run 7.5V IT or communications equipment?

It can power IT or communications equipment only if that equipment is rated for 7.5V constant voltage DC. This unit provides 7.5V at up to 13.5A, so the load has to stay within those output limits.

What is the difference between the LPP-100-7.5 and other LPP series models?

Within the LPP-100 series, the LPP-100-7.5 is rated at 101.25W, 7.5V, and 13.5A. The series outputs are 3.3V 20A 66W, 5V 20A 100W, 7.5V 13.5A 101.25W, 12V 8.5A 102W, 13.5V 7.5A 101.25W, 15V 6.7A 100.5W, 24V 4.2A 100.8W, 27V 3.8A 102.6W, and 48V 2.1A 100.8W. All share the 85-264VAC input with active PFC, the 222 x 62 x 33.6 mm size and the same short circuit, overload and over voltage protections; the main differences are output voltage, current, power and efficiency. LPP-150 ratings are not covered by the LPP-100 spec sheet.

Can the LPP-100-7.5 be used outdoors or in washdown areas?

No IP rating is listed for this product, so it is not specified for outdoor or washdown exposure and should be installed in a protected enclosure. Its operating temperature range is -10°C to +60°C (refer to the derating curve), so the application also needs to stay within that window.
