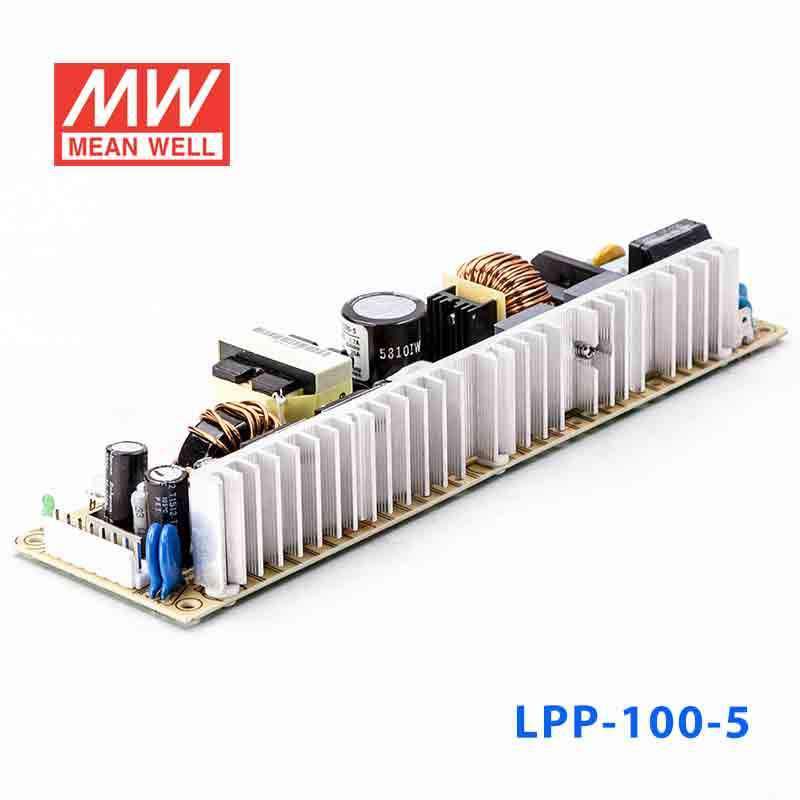

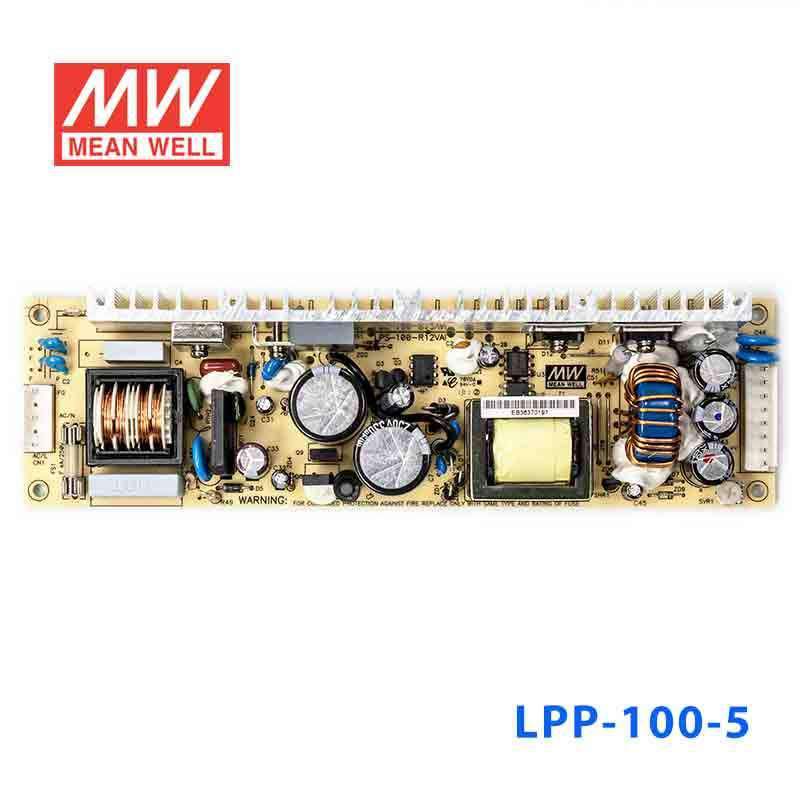

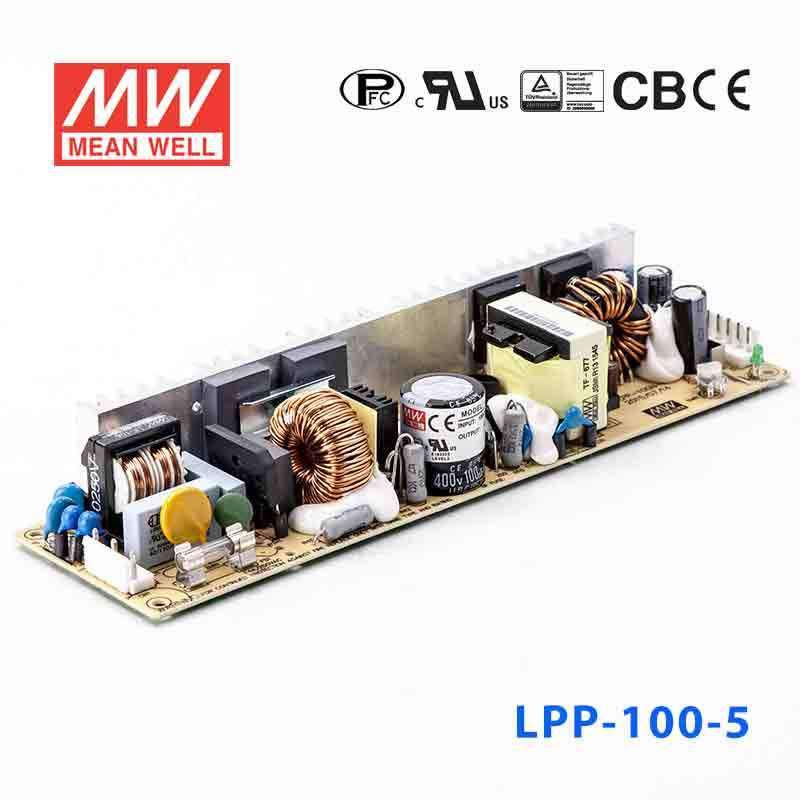

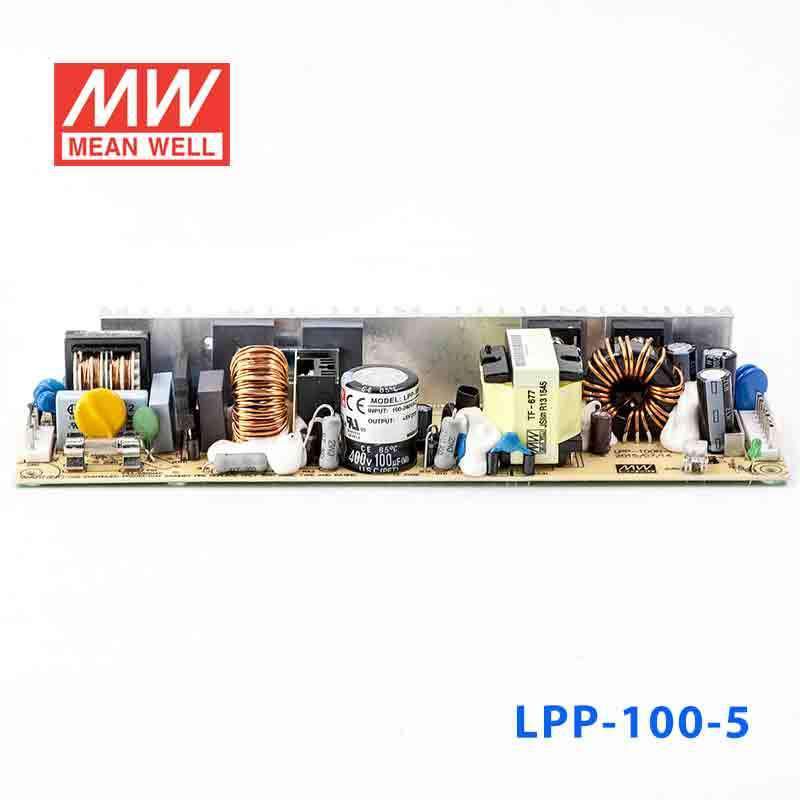

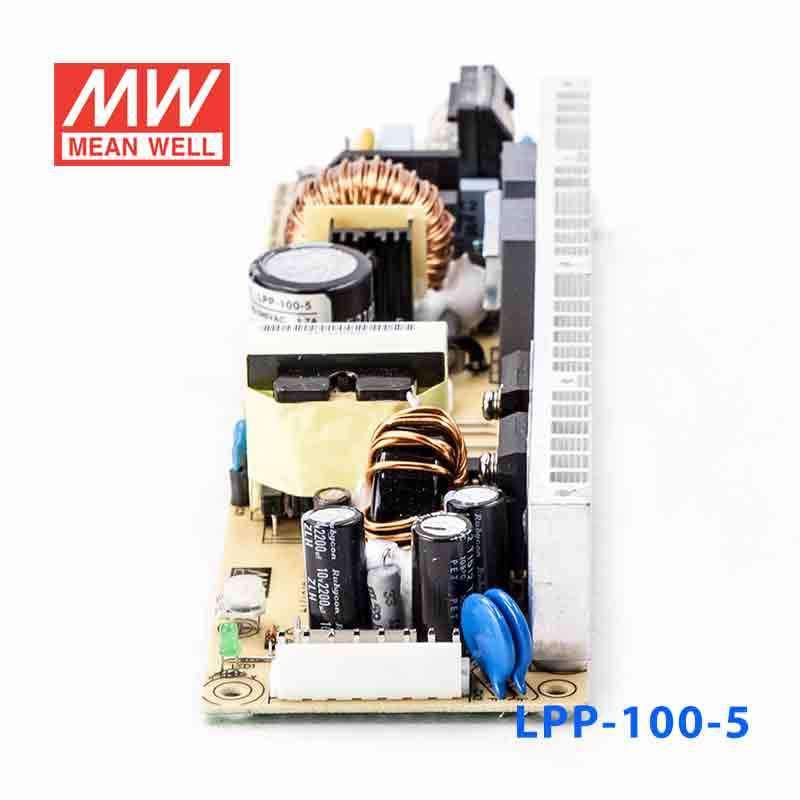

Mean Well LPP-100-5 Power Supply 100W 5V 20A

Name: Mean Well LPP-100-5 Power Supply 100W 5V 20A
Brand: Mean Well
SKU: LPP-100-5
Price: 41.24 USD
Availability: InStock

small and compactbuilt-in active PFC function

SKU LPP-100-5

$41.24 USD

Shipping calculated at checkout.

Available to order

Overview

LPP-100-5 is the 5V output model of this series: rated current 20A, rated power 100W, typical efficiency 75%.

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at PFC:67KHz PWM:134KHz
3 years warranty

Specifications

LPP-100-5Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 20A
CURRENT RANGE: 0 ~ 20A
RATED POWER: 100W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 4.75 ~ 5.5V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 600ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 28ms/230VAC 28ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY(Typ.): 75%
AC CURRENT (Typ.): 1.7A/115VAC 0.75A/230VAC
INRUSH CURRENT (Typ.): COLD START 30A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 2586.7K hrs min. Telcordia SR-332 (Bellcore) ; 287.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 222*62*33.6mm (L*W*H)
PACKING: 0.51Kg; 24pcs/13.9Kg/1.63CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

LPP-100-5 Mechanical Specification — Mechanical Specification

LPP-100-5 Derating Curve — Derating Curve

Downloads

Datasheet1

LPP-100-5 datasheetLPP-100-SPEC.PDF · 2024-10-30 edition PDF Download

Certificates4

EMC Certificate (LPP-100)(EN) PDF Download

UL Certificate (LPP-100)(EN) PDF Download

CB Certificate (LPP-100)(EN) PDF Download

TUV Certificate (LPP-100)(EN) PDF Download

Test reports1

Test Report (LPP-100)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the LPP-100-5 for 5V industrial electronics or controller hardware?

Yes, this model provides a constant 5V DC output with up to 20A available and a total output rating of 100W. That suits 5V equipment that needs a regulated fixed-voltage supply within those limits.

Is the LPP-100-5 suitable for powering 5V logic, processors, or communication boards?

It can be a fit for 5V electronic loads that need high current, because the output is rated at 20A. The total connected load still needs to stay within the 100W rating.

Would the LPP-100-5 work for a 5V automation or embedded subsystem?

Yes, if the subsystem is designed for constant 5V DC input and does not exceed 20A or 100W. The 85-264VAC input range also makes it usable across a wide range of AC supply conditions.

Can this power supply support a 5V test fixture or industrial electronics bench assembly?

It is suitable for fixed 5V applications where a higher current output is required, up to 20A. Its dimensions of 222.0 × 62.0 × 33.6 mm can also help when bench hardware or enclosures have limited space.

Is the LPP-100-5 appropriate for outdoor or wet environments?

The provided specs define an operating temperature range of -10°C to +60°C, but they do not provide an IP rating. That means ambient temperature limits are stated, while water and dust ingress protection is not confirmed in the provided data.
