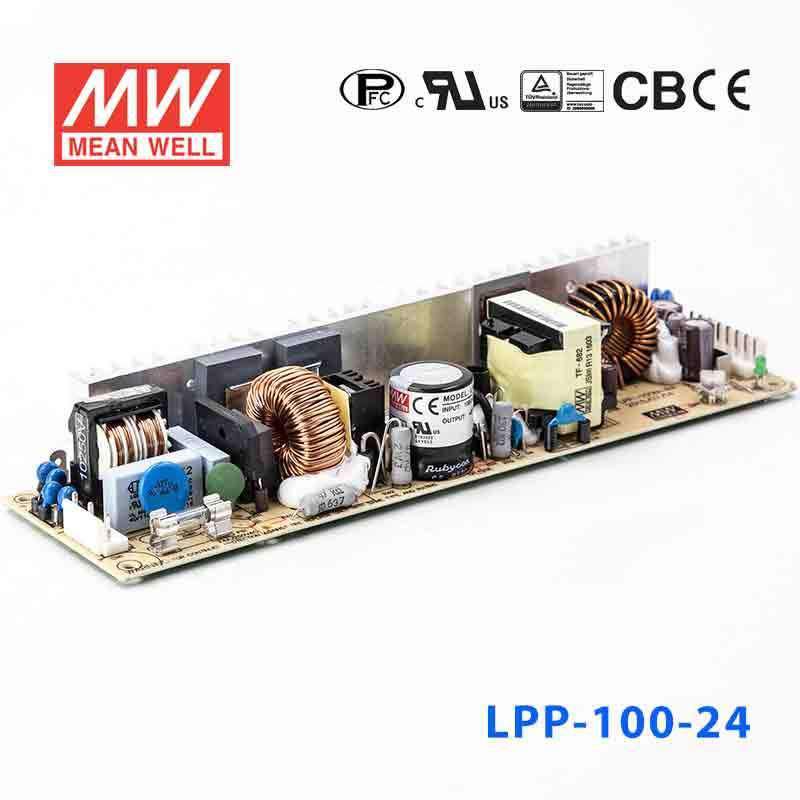

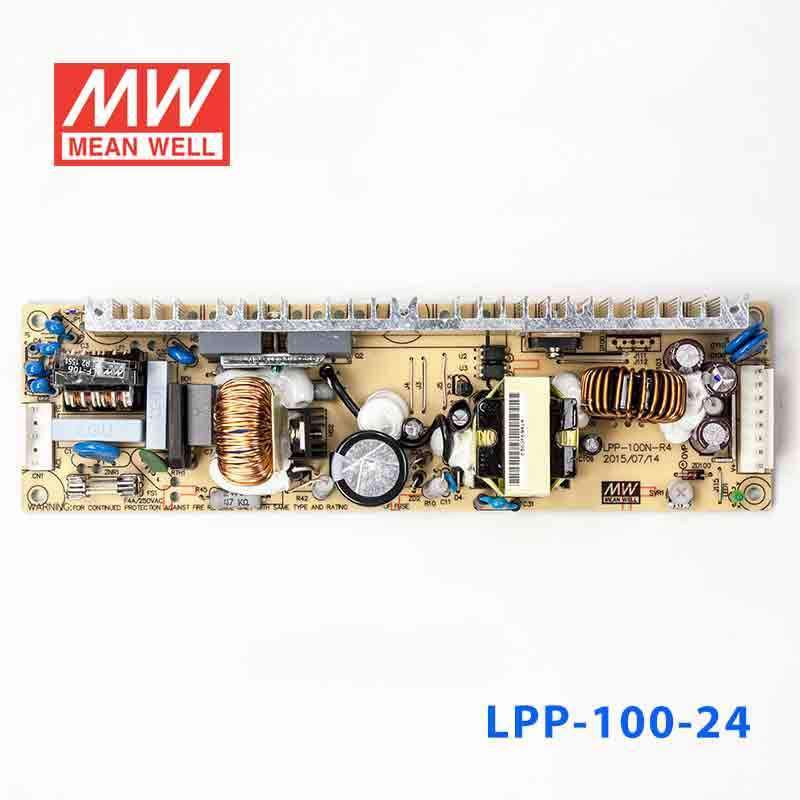

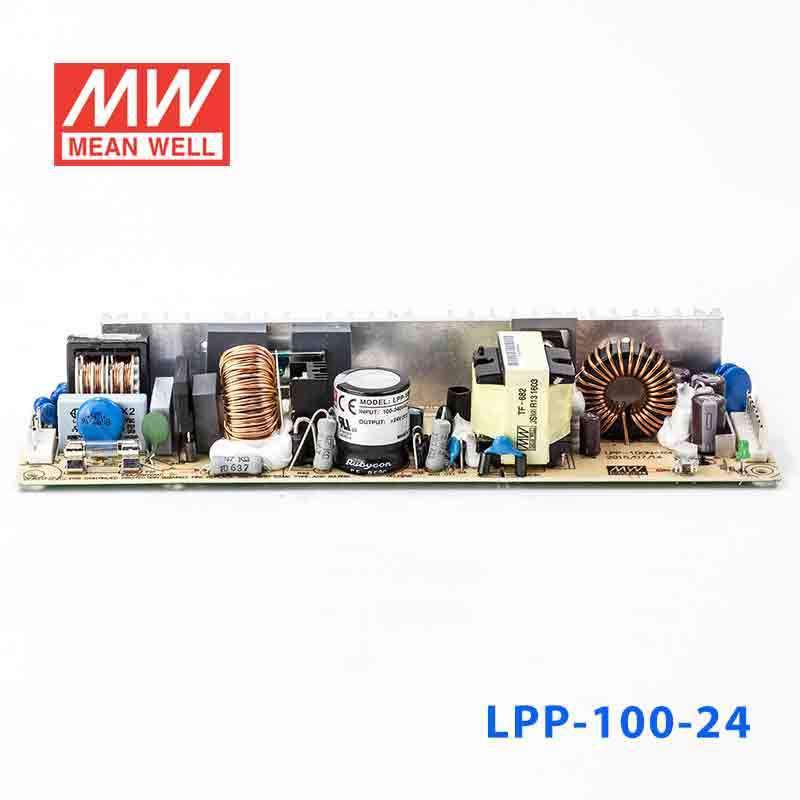

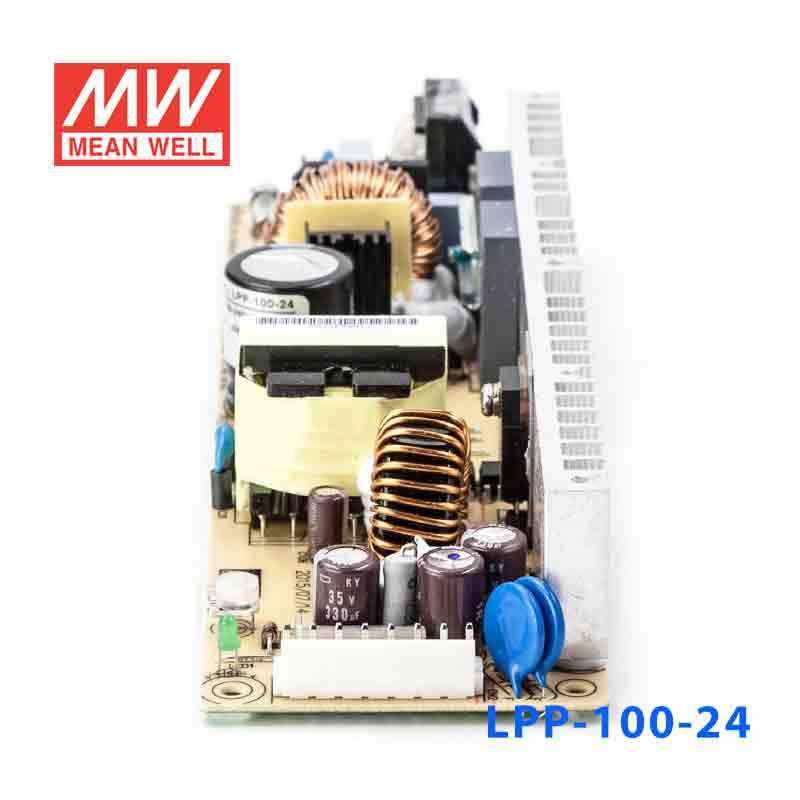

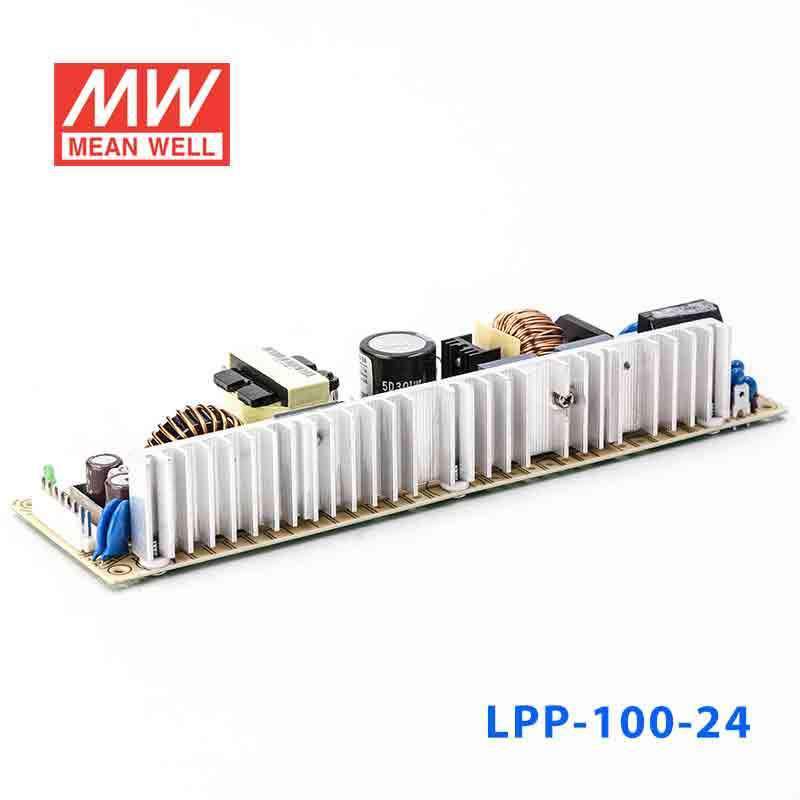

Mean Well LPP-100-24 Power Supply 100W 24V 4.2A

Name: Mean Well LPP-100-24 Power Supply 100W 24V 4.2A
Brand: Mean Well
SKU: LPP-100-24
Price: 41.35 USD
Availability: InStock

small and compactbuilt-in active PFC function

SKU LPP-100-24

$41.35 USD

Shipping calculated at checkout.

In stock

Overview

LPP-100-24 is the 24V output model of this series: rated current 4.2A, rated power 100.8W, typical efficiency 83%.

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at PFC:67KHz PWM:134KHz
3 years warranty

Specifications

LPP-100-24Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 4.2A
CURRENT RANGE: 0 ~ 4.2A
RATED POWER: 100.8W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 22.8 ~ 26.4V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 600ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 28ms/230VAC 28ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY(Typ.): 83%
AC CURRENT (Typ.): 1.7A/115VAC 0.75A/230VAC
INRUSH CURRENT (Typ.): COLD START 30A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 2586.7K hrs min. Telcordia SR-332 (Bellcore) ; 287.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 222*62*33.6mm (L*W*H)
PACKING: 0.51Kg; 24pcs/13.9Kg/1.63CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

LPP-100-24 Mechanical Specification — Mechanical Specification

LPP-100-24 Block Diagram — Block Diagram

LPP-100-24 Derating Curve — Derating Curve

Downloads

Datasheet1

LPP-100-24 datasheetLPP-100-SPEC.PDF · 2024-10-30 edition PDF Download

Certificates4

EMC Certificate (LPP-100)(EN) PDF Download

UL Certificate (LPP-100)(EN) PDF Download

CB Certificate (LPP-100)(EN) PDF Download

TUV Certificate (LPP-100)(EN) PDF Download

Test reports1

Test Report (LPP-100)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the LPP-100-24 for a 24V industrial control panel?

Yes, this model is a constant voltage power supply with a 24V output rated for 4.2A and 100.8W. Those specs fit 24V control equipment that needs a fixed 24V DC source within that power budget.

Is the LPP-100-24 suitable for 24V automation sensors and I/O devices?

It can be a fit for 24V automation loads when the combined demand stays within 4.2A and 100.8W. The unit provides constant voltage output, which is the normal requirement for 24V DC sensors, relays, and I/O hardware.

Can this power supply run a 24V embedded system or industrial PC setup?

It is appropriate for 24V embedded or industrial electronics that are designed for constant voltage input. The available output is 24V at up to 4.2A, with an AC input range of 85-264VAC for broad mains compatibility.

Would the LPP-100-24 work for a 24V HMI or small automation subsystem?

Yes, if the subsystem requires a steady 24V DC supply and stays within 100.8W total load. The compact housing at 222.0 × 62.0 × 33.6 mm can also help in space-constrained equipment layouts.

Is the LPP-100-24 appropriate for outdoor or washdown environments?

The provided specs list an operating temperature range of -10°C to +60°C, but they do not list an IP rating. That means temperature suitability is defined, while enclosure protection for water or dust is not established in the provided data.
