Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

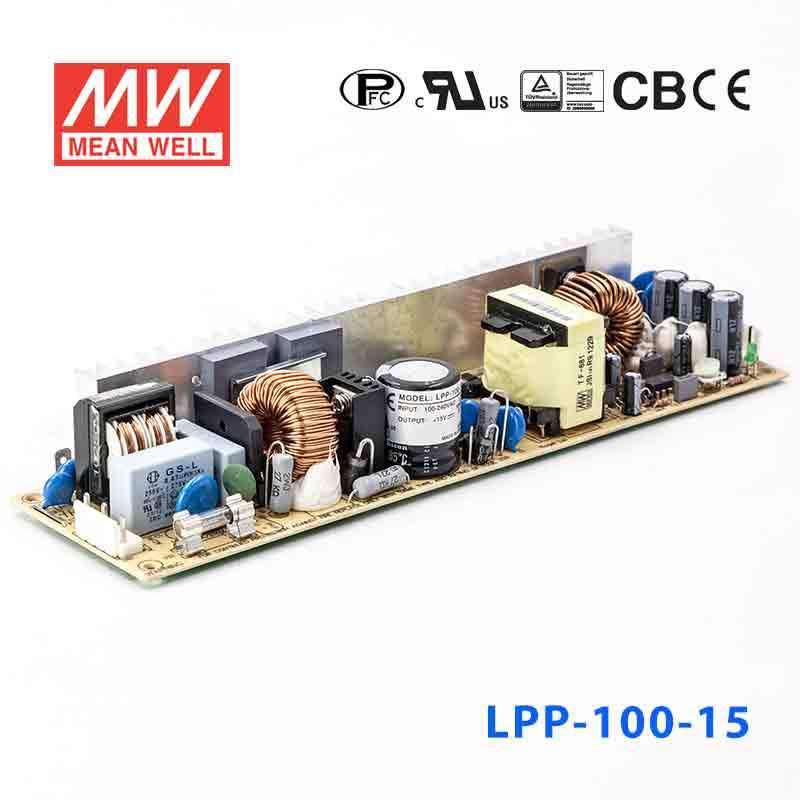

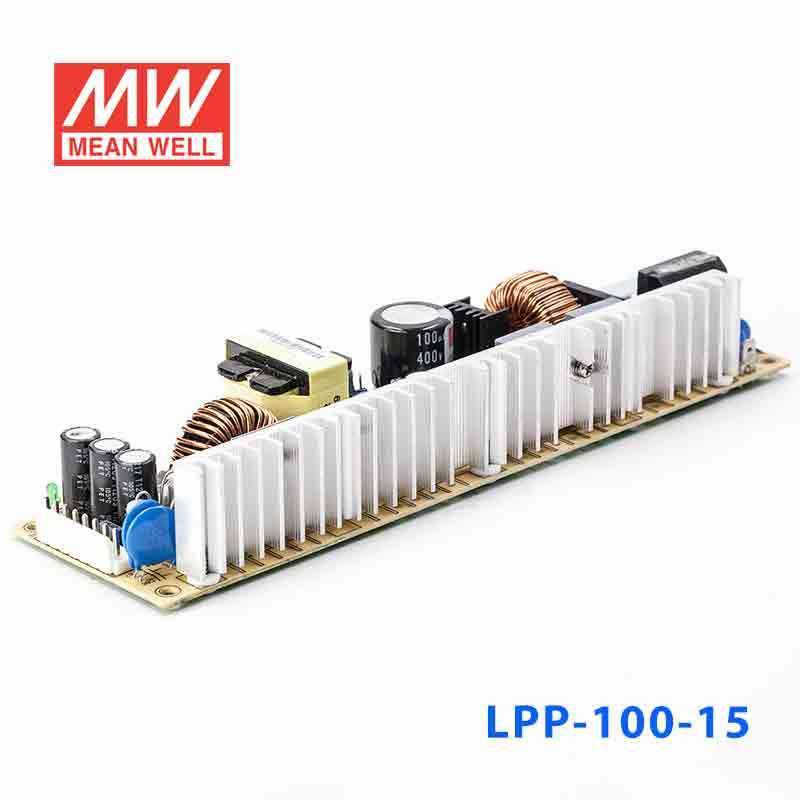

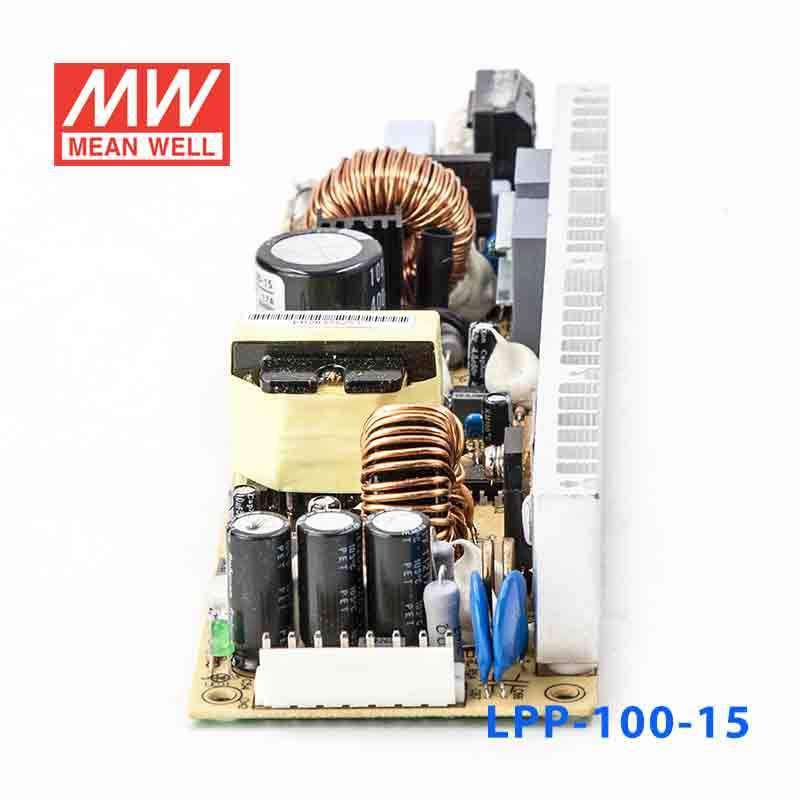

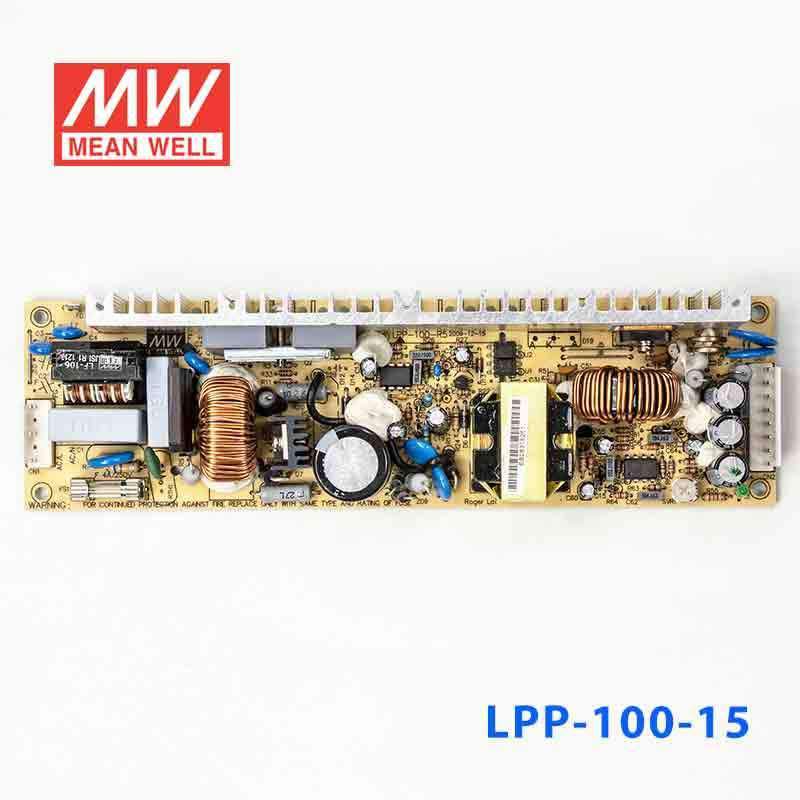

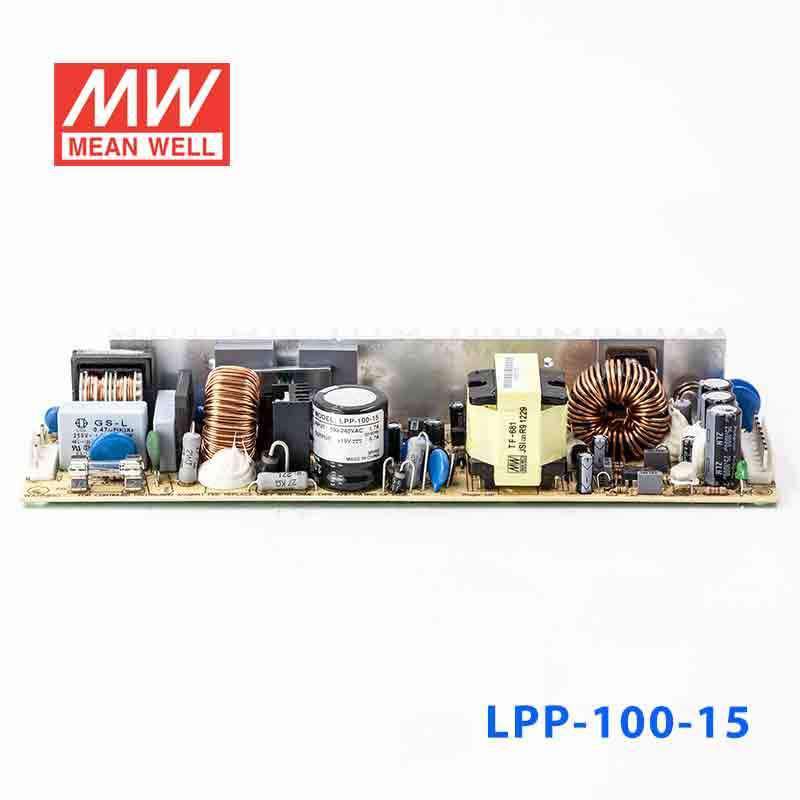

Mean Well LPP-100-15 Power Supply 100W 15V
$41.24 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Cooling by free air convection |
| Protections: Short circuit / Overload / Over voltage |
| 100% full load burn-in test |
| Built-in active PFC function |
| 3 years warranty for LPP series |
General Specification
| AC input voltage range | 85~264VAC |
| AC inrush current(230VAC) | 30A |
| DC adjustment range | -5%~+10% rated output voltage |
| Overload protection Range | 105%~150% rated output power |
| Overload protection Type | Constant current limiting, auto recovery |
| Over voltage protection Range | 110%~135% of rated output voltage |
| Over voltage protection Type | Shut off, AC recycle to re-start |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute |
| Working temperature | -10~+60°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 5P+8P/3.96mm pitch, JST B5P / B8P-VH |
| Dimension (LxWxH) | 222x62x33.6 |
| Packing | 24pcs / 13.9kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPP Series
-
Power Rating100.5 Watt
-
Output Voltage15 Volt
-
Rated Current6.7 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length8.74 in
-
Width2.44 in
-
Height1.32 in
-
Weight1.12 lb
