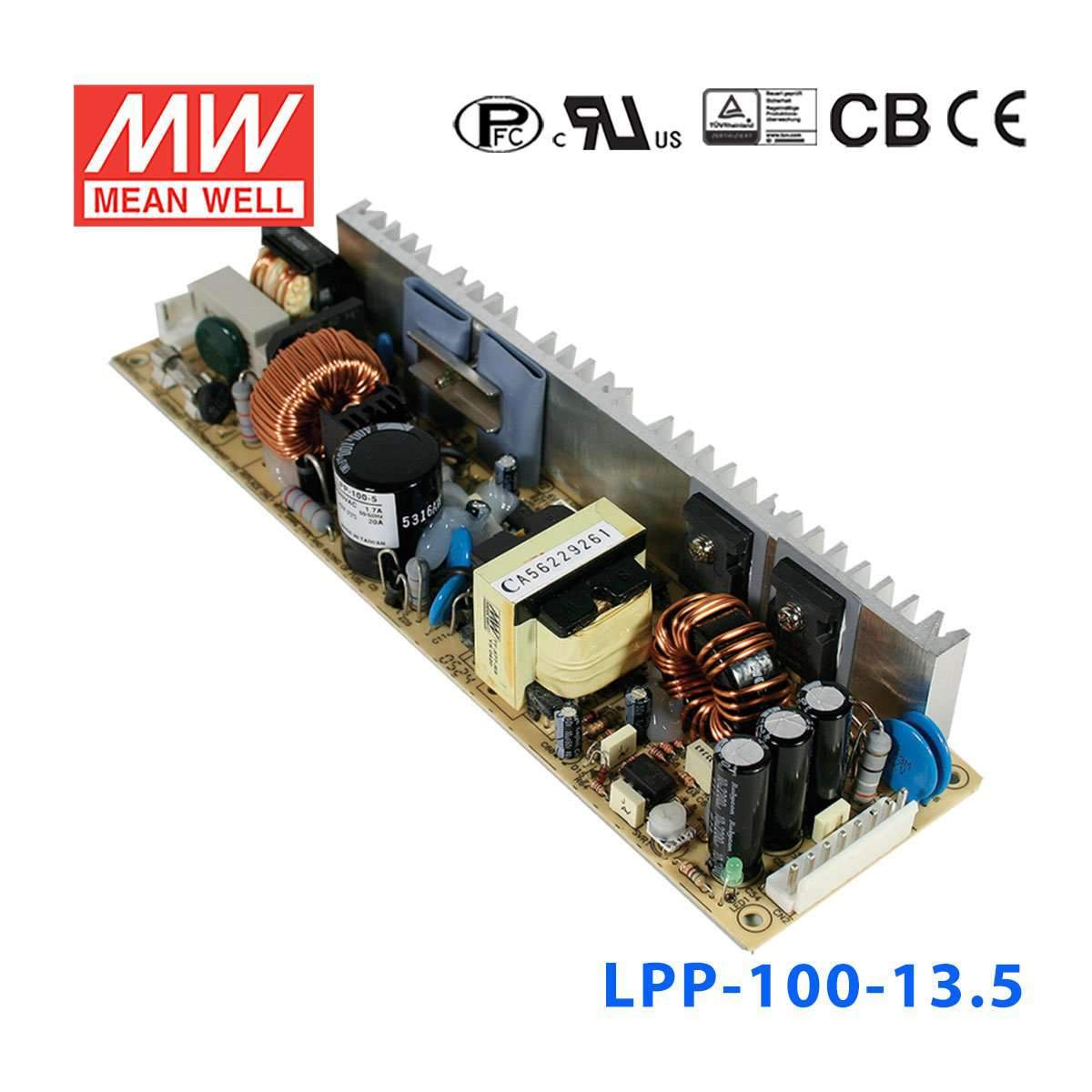

Mean Well LPP-100-13.5 Power Supply 101W 13.5V 7.5A

small and compactbuilt-in active PFC function
SKU LPP-100-13.5
$41.24 USD
Shipping calculated at checkout.
Available to order
|

Overview

LPP-100-13.5 is the 13.5V output model of this series: rated current 7.5A, rated power 101.25W, typical efficiency 79%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fixed switching frequency at PFC:67KHz PWM:134KHz
  • 3 years warranty

Specifications

LPP-100-13.5Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
13.5V
RATED CURRENT
7.5A
CURRENT RANGE
0 ~ 7.5A
RATED POWER
101.25W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
12.8 ~ 14.9V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
600ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
28ms/230VAC 28ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY(Typ.)
79%
AC CURRENT (Typ.)
1.7A/115VAC 0.75A/230VAC
INRUSH CURRENT (Typ.)
COLD START 30A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
15.5 ~ 18.2V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
2586.7K hrs min. Telcordia SR-332 (Bellcore) ; 287.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
222*62*33.6mm (L*W*H)
PACKING
0.51Kg; 24pcs/13.9Kg/1.63CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

LPP-100-13.5 Mechanical Specification
Mechanical Specification
LPP-100-13.5 Block Diagram
Block Diagram
LPP-100-13.5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the LPP-100-13.5 for 13.5V backup, telecom, or control equipment?

It is designed for constant-voltage 13.5V output, so it can fit equipment that specifically calls for a 13.5V DC source. The available output is 101.25W and 7.5A, so the connected load needs to stay within both limits. Its 85-264VAC input also supports operation across a broad AC input range.

Is the LPP-100-13.5 a good fit for embedded systems that require 13.5V DC?

Yes, if the electronics are built for a fixed 13.5V supply and total demand does not exceed 101.25W or 7.5A. This is a constant-voltage model, which makes it more appropriate for regulated DC equipment than for devices that need constant-current drive. The compact 222.0 x 62.0 x 33.6 mm size can also help in constrained enclosures.

Can the LPP-100-13.5 be used in industrial test stands or maintenance benches with mixed AC input conditions?

It can be practical in those settings because the input range is 85-264VAC and the output is a fixed 13.5V DC. That makes it useful where the AC source may vary but the downstream equipment still requires stable 13.5V power. The load still has to remain within the 101.25W and 7.5A ratings.

What are the key differences between the LPP-100-13.5 and the other LPP family options listed here?

The LPP-100 siblings listed are 3.3V 20A 66W, 5V 20A 100W, 7.5V 13.5A 101.25W, 12V 8.5A 102W, 13.5V 7.5A 101.25W, 15V 6.7A 100.5W, 24V 4.2A 100.8W, 27V 3.8A 102.6W, and 48V 2.1A 100.8W. All share the 85-264VAC input with active PFC, the 222 x 62 x 33.6 mm size and the same short circuit, overload and over voltage protections; the main differences are output voltage, current, power and efficiency. LPP-150 ratings are not covered by the LPP-100 spec sheet.

Can the LPP-100-13.5 be used in outdoor cabinets or unsealed environments?

The only environmental figures provided here are the operating range of -10C to +60C and the absence of an IP rating in the listed specs. That means the supplied data supports temperature planning, but it does not confirm protection against rain, washdown, or dust ingress. For that reason, the product information given here supports indoor or enclosure-protected use rather than direct outdoor exposure.
