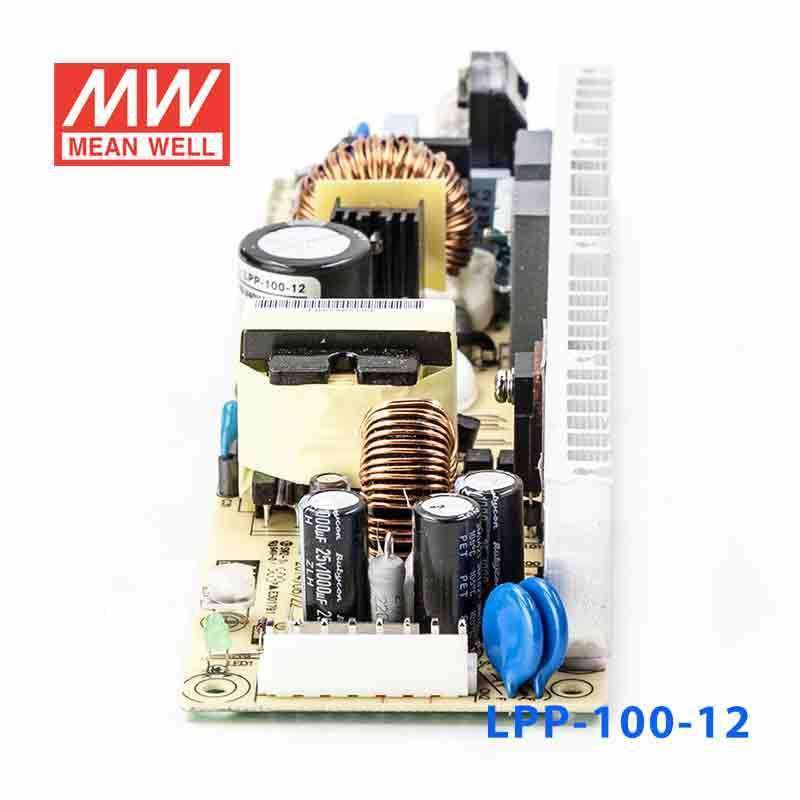

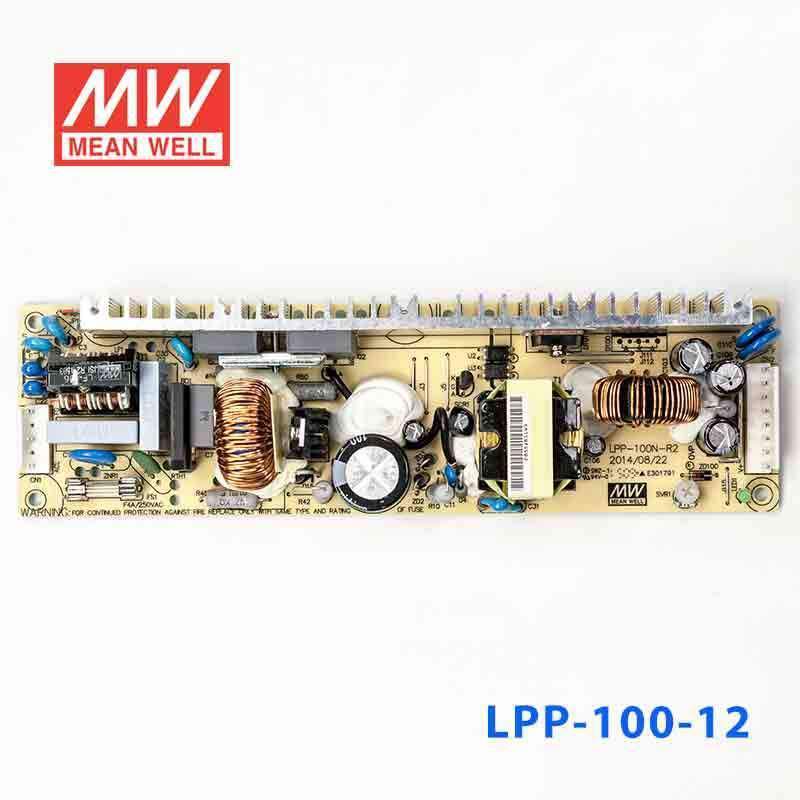

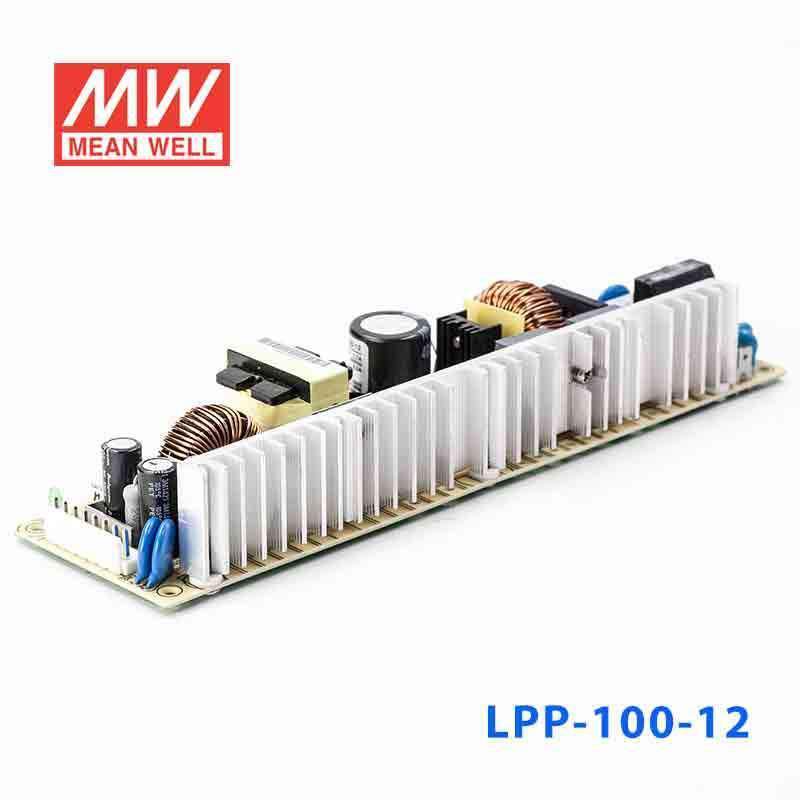

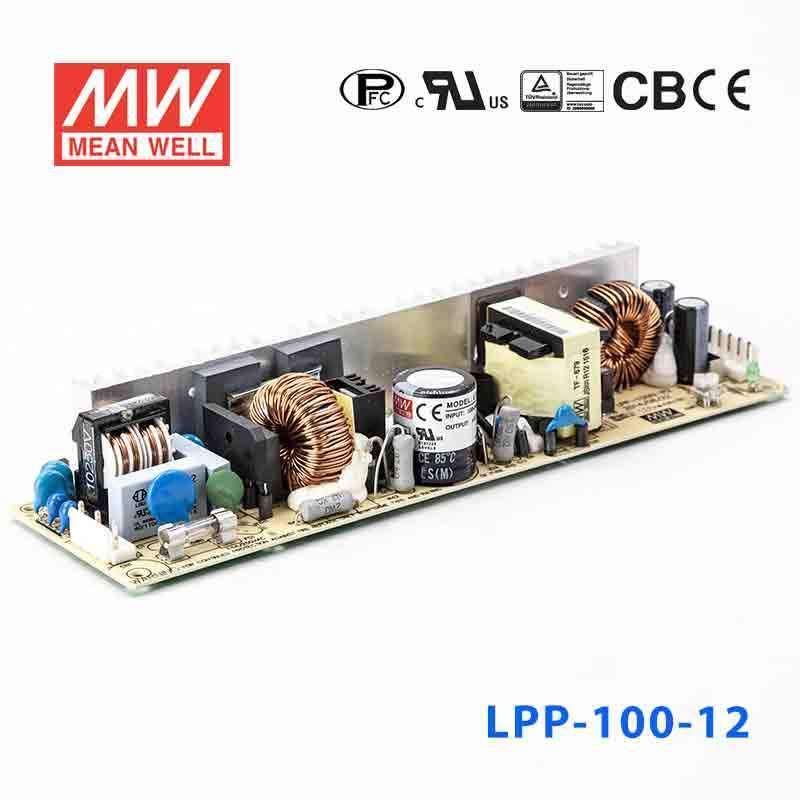

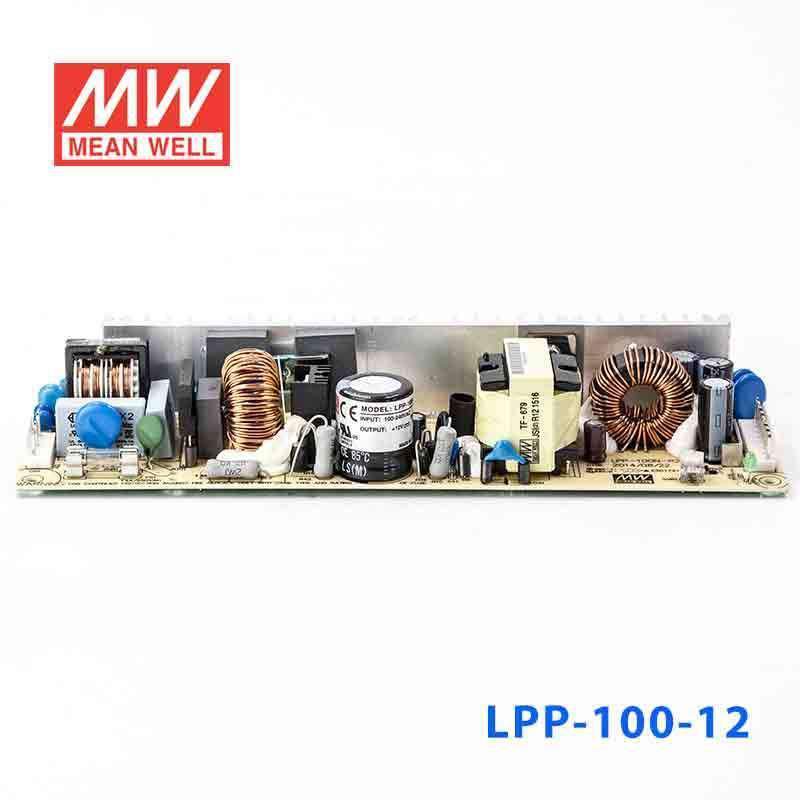

Mean Well LPP-100-12 Power Supply 102W 12V 8.5A

small and compactbuilt-in active PFC function
SKU LPP-100-12
$41.35 USD
Shipping calculated at checkout.
In stock
|

Overview

LPP-100-12 is the 12V output model of this series: rated current 8.5A, rated power 102W, typical efficiency 79%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fixed switching frequency at PFC:67KHz PWM:134KHz
  • 3 years warranty

Specifications

LPP-100-12Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
8.5A
CURRENT RANGE
0 ~ 8.5A
RATED POWER
102W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
11.4 ~ 13.2V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
600ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
28ms/230VAC 28ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY(Typ.)
79%
AC CURRENT (Typ.)
1.7A/115VAC 0.75A/230VAC
INRUSH CURRENT (Typ.)
COLD START 30A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
2586.7K hrs min. Telcordia SR-332 (Bellcore) ; 287.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
222*62*33.6mm (L*W*H)
PACKING
0.51Kg; 24pcs/13.9Kg/1.63CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

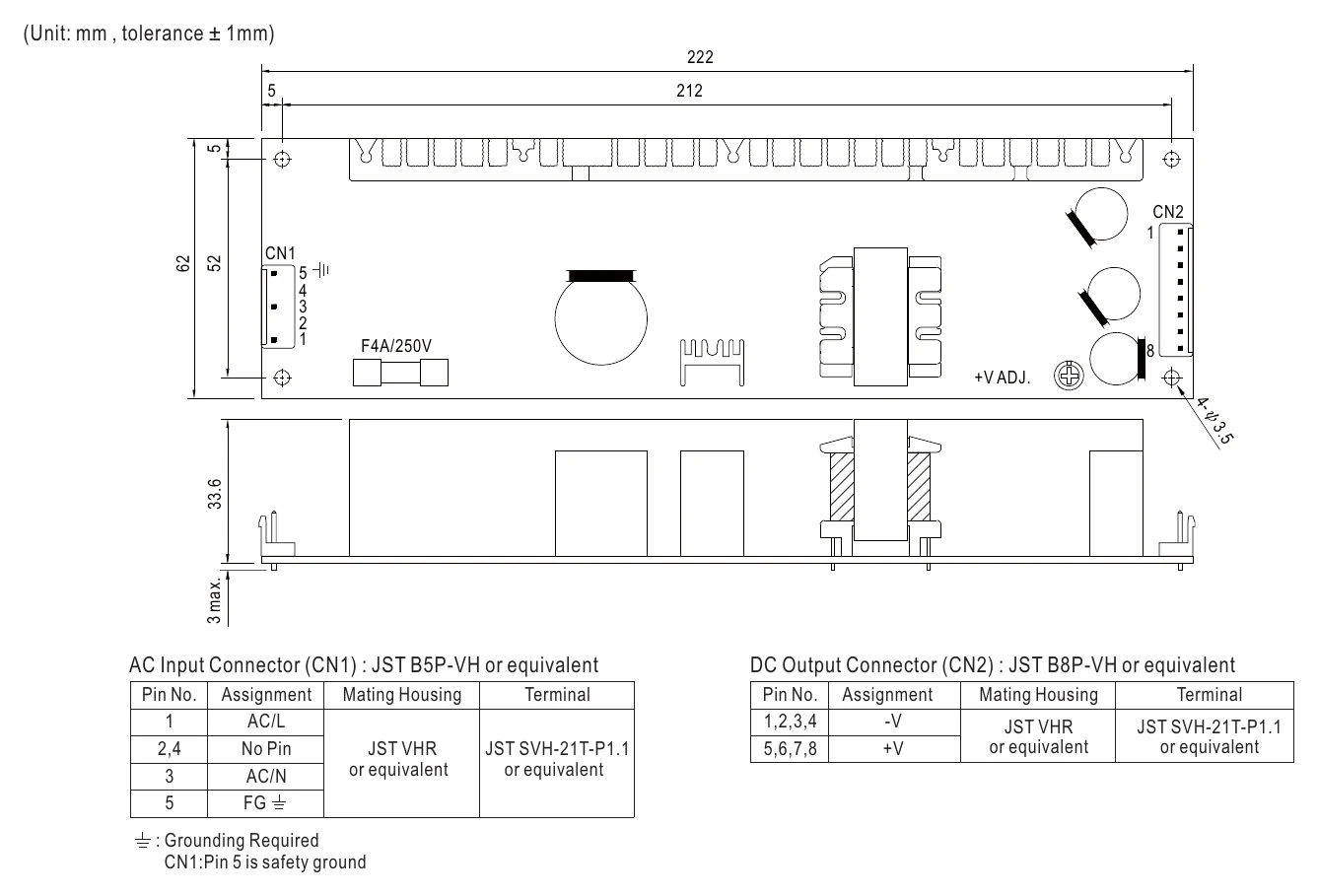

LPP-100-12 Mechanical Specification
Mechanical Specification

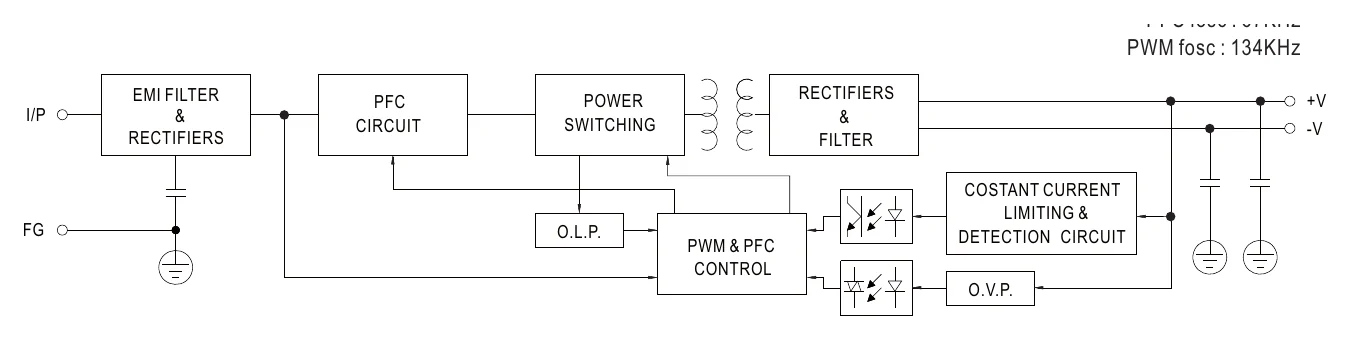

LPP-100-12 Block Diagram
Block Diagram

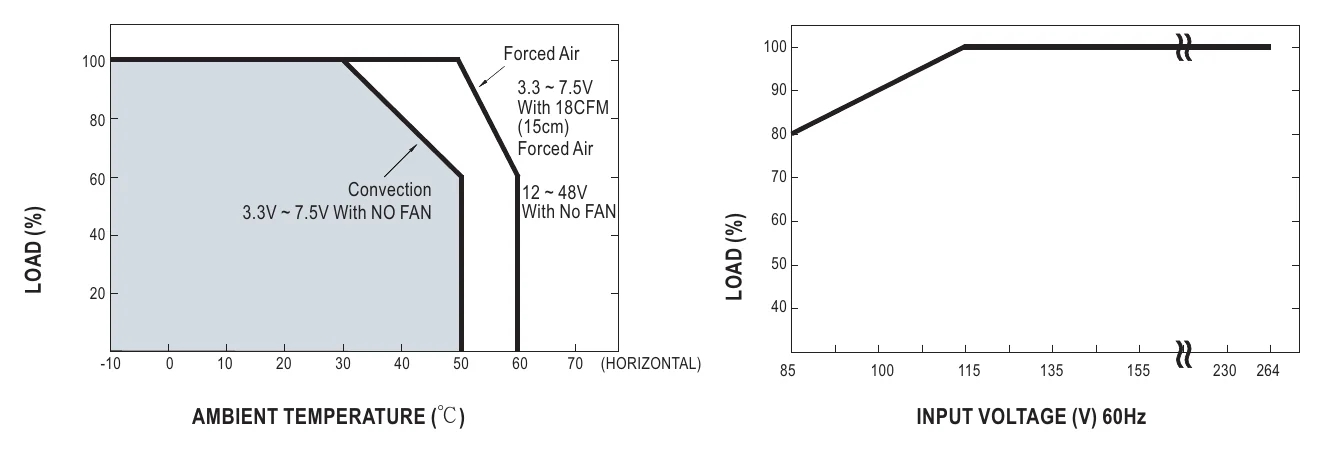

LPP-100-12 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the LPP-100-12 for a 12V industrial control panel or automation cabinet?

It can fit 12V control and automation loads that need constant voltage and stay within the unit's 102W and 8.5A output limits. The wide 85-264VAC input also helps in facilities that may be fed from different AC mains ranges. Its compact 222.0 x 62.0 x 33.6 mm housing is useful where panel space is limited.

Is the LPP-100-12 suitable for embedded 12V electronics or test fixtures?

This model is intended for constant-voltage 12V loads, so it suits embedded electronics, bench fixtures, and similar systems that require a regulated 12V supply. Output capacity is capped at 102W or 8.5A, so the total connected load needs to remain within those figures. The small form factor and 0.51 kg weight can also help in compact assemblies.

Can the LPP-100-12 power a 12V HMI, sensor, or small PLC-related load group?

It is a reasonable match for 12V industrial electronics where the combined demand does not exceed 102W and 8.5A. Because it is a constant-voltage supply, it is better suited to equipment designed for a fixed 12V DC source than to loads requiring constant-current drive. Buyers should size the connected 12V load against both the watt and amp limits.

How does the LPP-100-12 compare with other LPP-100 and LPP-150 models in this family?

Within the LPP-100 range, sibling outputs are 3.3V 20A 66W, 5V 20A 100W, 7.5V 13.5A 101.25W, 12V 8.5A 102W, 13.5V 7.5A 101.25W, 15V 6.7A 100.5W, 24V 4.2A 100.8W, 27V 3.8A 102.6W, and 48V 2.1A 100.8W. All share the 85-264VAC input with active PFC, the 222 x 62 x 33.6 mm size and the same short circuit, overload and over voltage protections; the main differences are output voltage, current, power and efficiency. LPP-150 ratings are not covered by the LPP-100 spec sheet.

Is the LPP-100-12 suitable for outdoor or harsh-environment use?

The provided specs show an operating temperature range of -10C to +60C, so that is the stated thermal envelope. No IP rating is listed here, which means the specs provided do not establish dust or water protection for outdoor exposure. Based on this information alone, it is better treated as a supply that needs an appropriately protected enclosure if the environment is wet or dirty.
