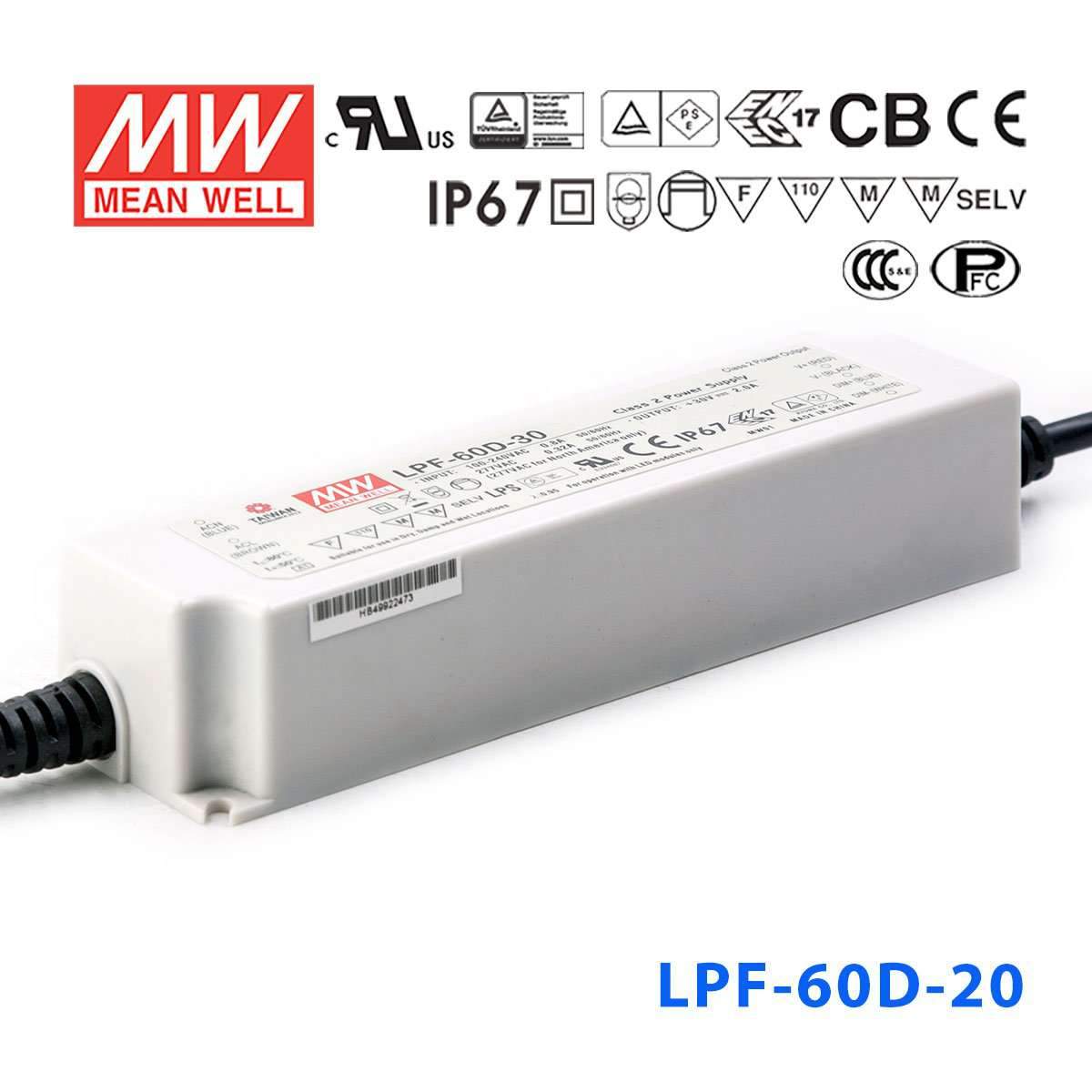

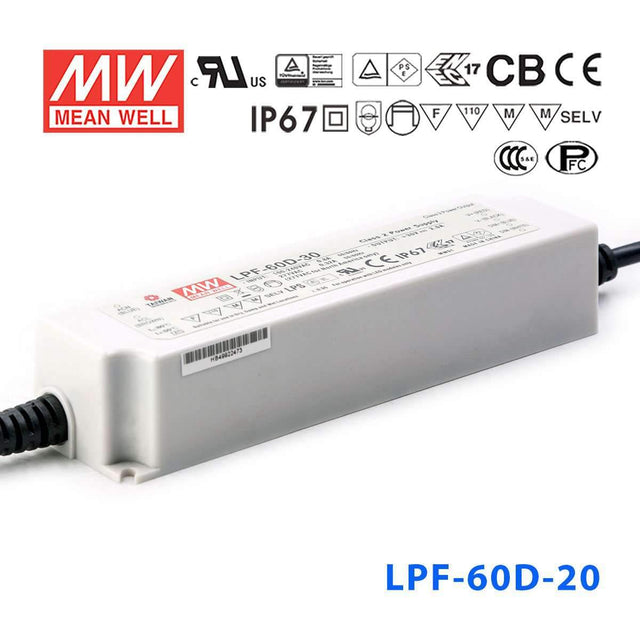

Mean Well LPF-60D-20 Power Supply 60W 20V - Dimmable 3A

fully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming
SKU LPF-60D-20
$37.46 USD
Shipping calculated at checkout.

Select model — 10 in this family

LPF-60D-20
Available to order
|

Overview

LPF-60D-20 is the 20V output model of this series: rated current 3A, rated power 60W, typical efficiency 88%.

LPF-60D series is a 60W AC/DC LED driver featuring the constant current output. LPF-60D operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations. LPF-60D is equipped with the 3 in 1 dimming function so as to provide the design flexibility for LED lighting system.

Features

  • Constant current mode output
  • Plastic housing with Class II design
  • Built-in active PFC function
  • Class 2 power unit
  • IP67 rating for indoor or outdoor installations
  • Function: 3 in 1 dimming
  • Typical lifetiem>50000 hours
  • 5 years warranty

Specifications

LPF-60D-20Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE
20V
RATED CURRENT
3A
RATED POWERNote.5
60W
CONSTANT CURRENT REGIONNote.2
12 ~ 20V
CURRENT RIPPLE
5.0% max. @rated current
CURRENT TOLERANCE
±5.0%
SETUP, RISE TIMENote.6
1000ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)
88%
AC CURRENT
0.8A / 115VAC 0.4A / 230VAC 0.32A/277VAC
INRUSH CURRENT(Typ.)
COLD START 55A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
8 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE
23 ~ 27V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +80℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+80℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004 , IP67, GB/T19510.1,GB/T19510. 213 approved ; design refer to UL60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.8
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF
3614.1K hrs min. Telcordia SR-332 (Bellcore) ; 396.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
162.5*43*32mm (L*W*H)
PACKING
0.45Kg; 32pcs/15.4Kg/0.93CUFT
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

LPF-60D-20 BLOCK DIAGRAM
BLOCK DIAGRAM
LPF-60D-20 DIMMING OPERATION
DIMMING OPERATION
LPF-60D-20 Illustration (page 5)
Illustration (page 5)
LPF-60D-20 OUTPUT LOAD vs TEMPERATURE
OUTPUT LOAD vs TEMPERATURE
LPF-60D-20 STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
LPF-60D-20 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
LPF-60D-20 LIFE TIME
LIFE TIME
LPF-60D-20 MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
LPF-60D-20 Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED panel lighting
  • LED downlight
  • LED decorative lighting
  • LED tunnel lighting
  • Moving sign

Downloads

FAQ

Can I use the LPF-60D-20 for 20V LED strip or tape lighting?

Only if the strip is a constant current load within 12-20V that stays within this driver's 60W maximum and 3A output; this is a constant current driver, so it is not a match for constant voltage strip. To estimate maximum strip length, divide 60W by your strip's rated watts per meter, and check your strip rated power per meter before selecting the final length.

Is the LPF-60D-20 suitable for 20V signage lighting?

It can be used for constant current LED sign loads within 12-20V that stay within 60W and 3A. The built-in 3 in 1 dimming can also be useful where sign brightness needs adjustment.

Can this driver be used for outdoor 20V accent lighting?

Yes, for constant current LED lighting products within 12-20V that do not exceed the rated output. Its IP67 waterproof rating and a working case temperature (Tcase) range of -40°C to +80°C, with load derating at higher temperatures, make it suitable for exposed outdoor conditions.

Would the LPF-60D-20 work for 20V display lighting with dimming?

Yes, when the display lighting is a constant current load within 12-20V that draws no more than 3A or 60W total. This version includes built-in 3 in 1 dimming, so it is intended for applications that need adjustable light output.

Is the LPF-60D-20 rated for wet locations?

Yes, this model is IP67 waterproof, so it is appropriate for wet-location and outdoor use. The sealed design and a working case temperature (Tcase) range of -40°C to +80°C, with load derating at higher temperatures, support demanding environments.
