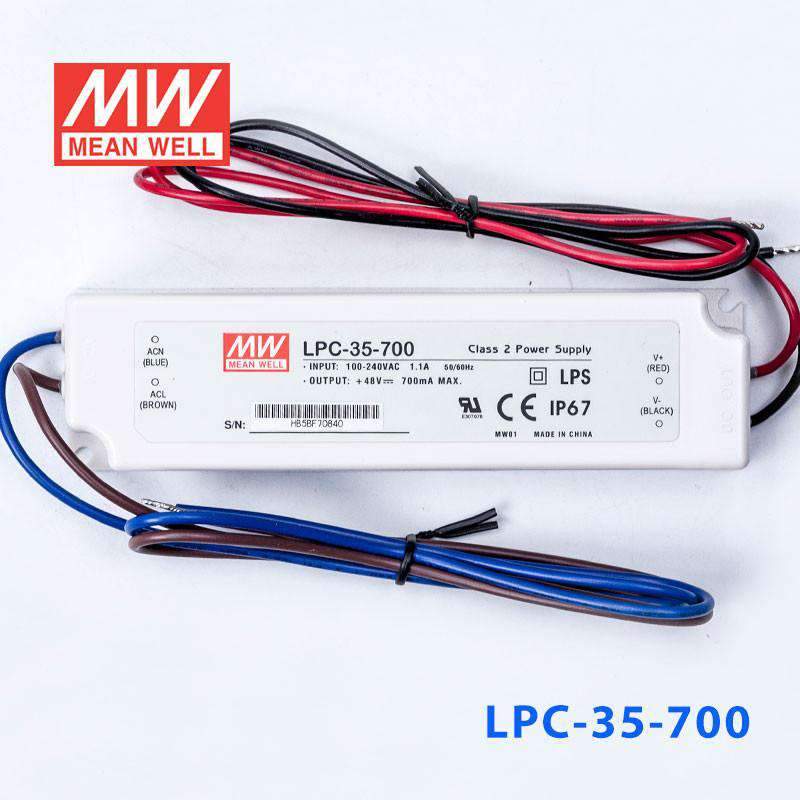

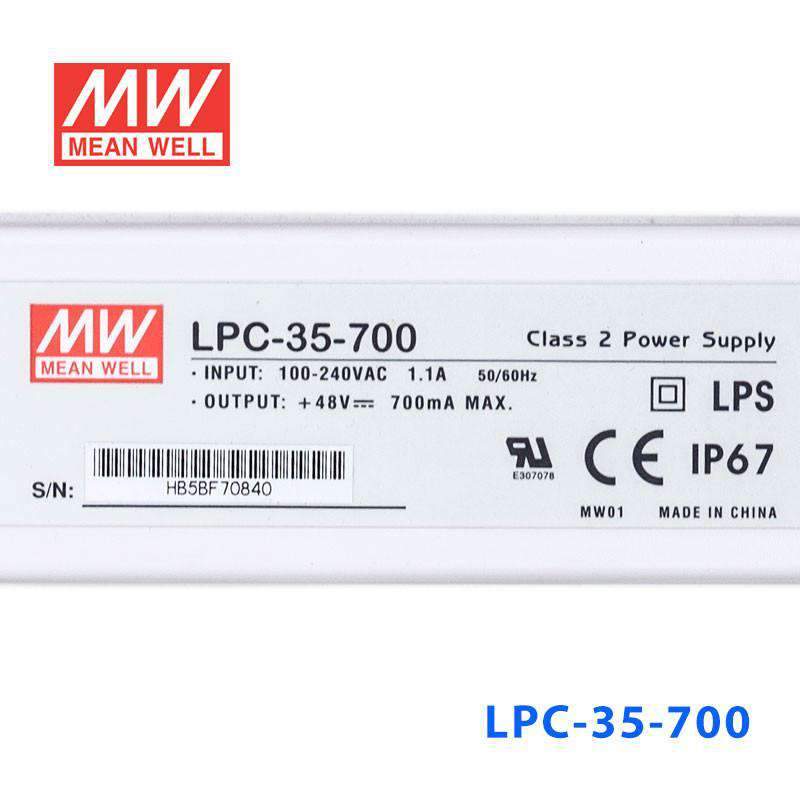

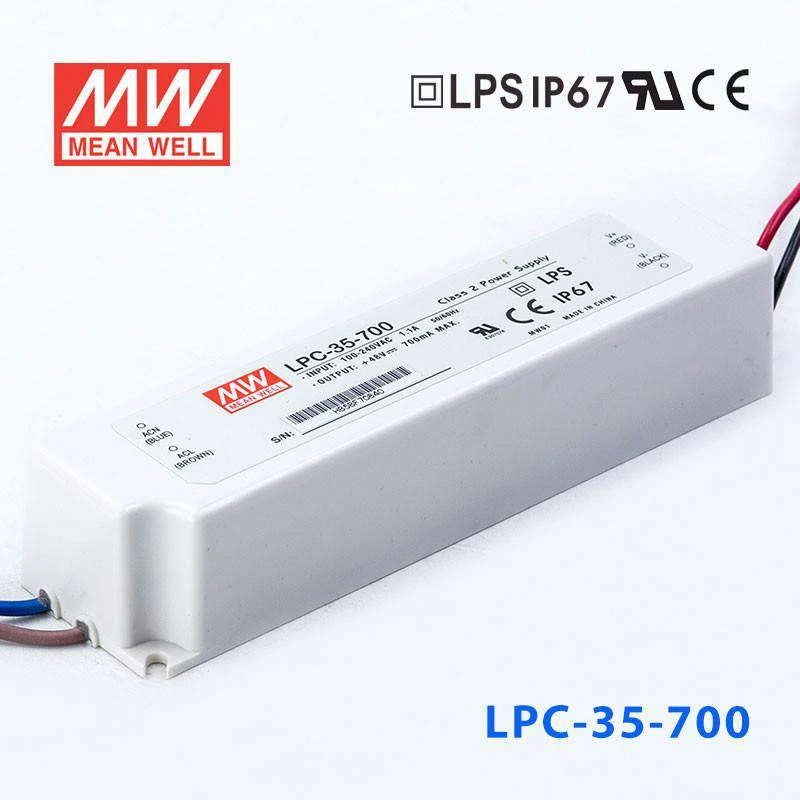

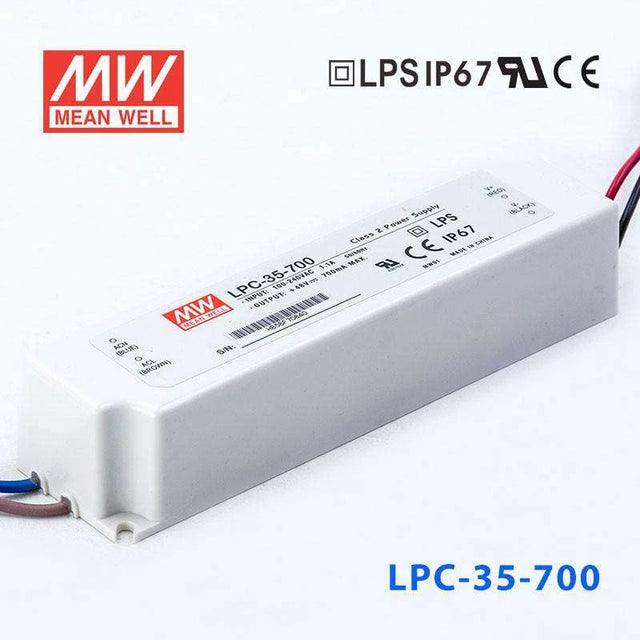

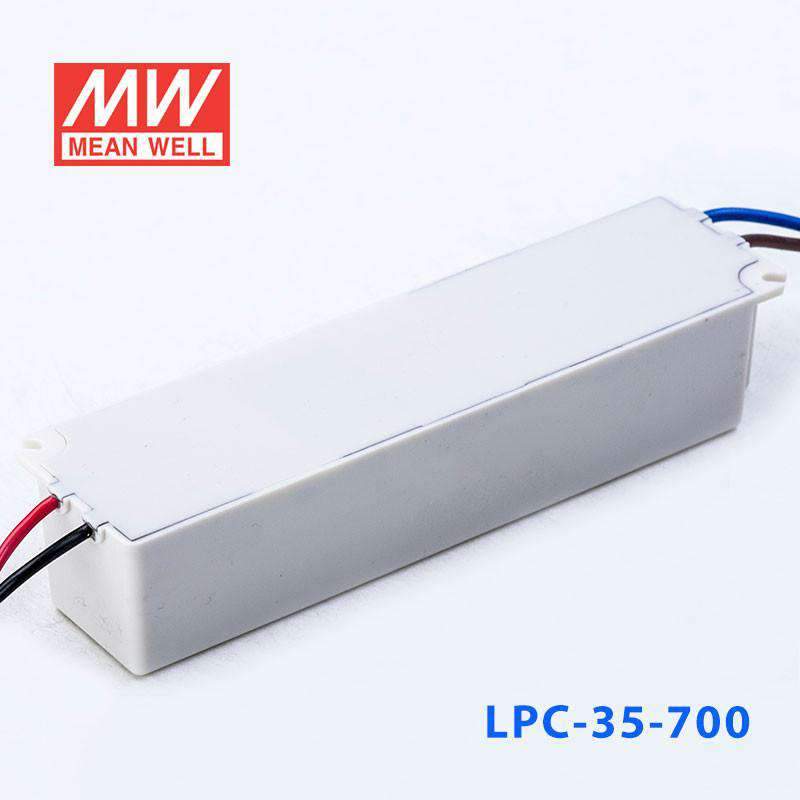

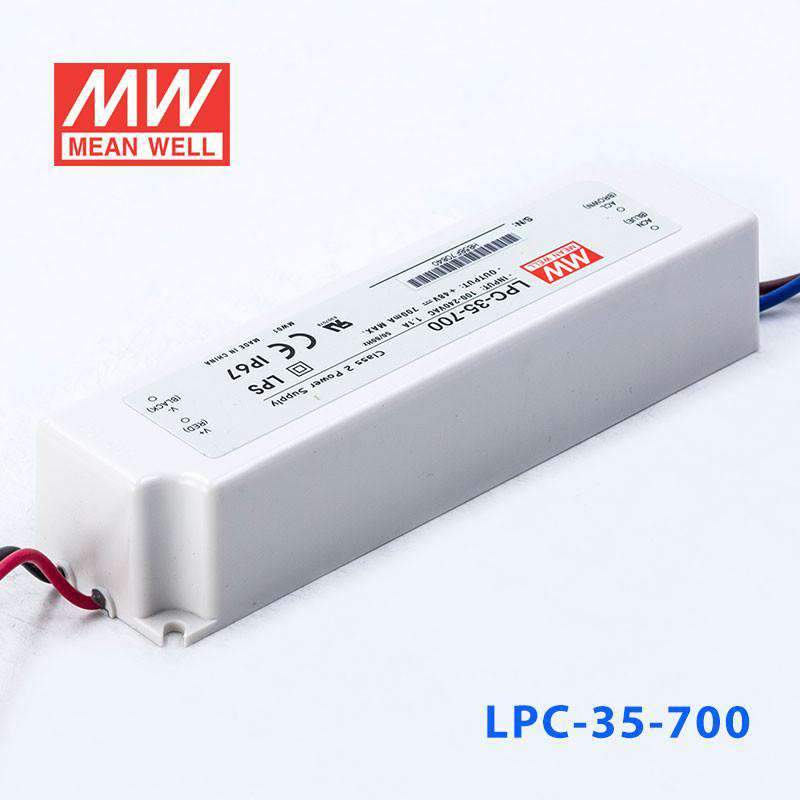

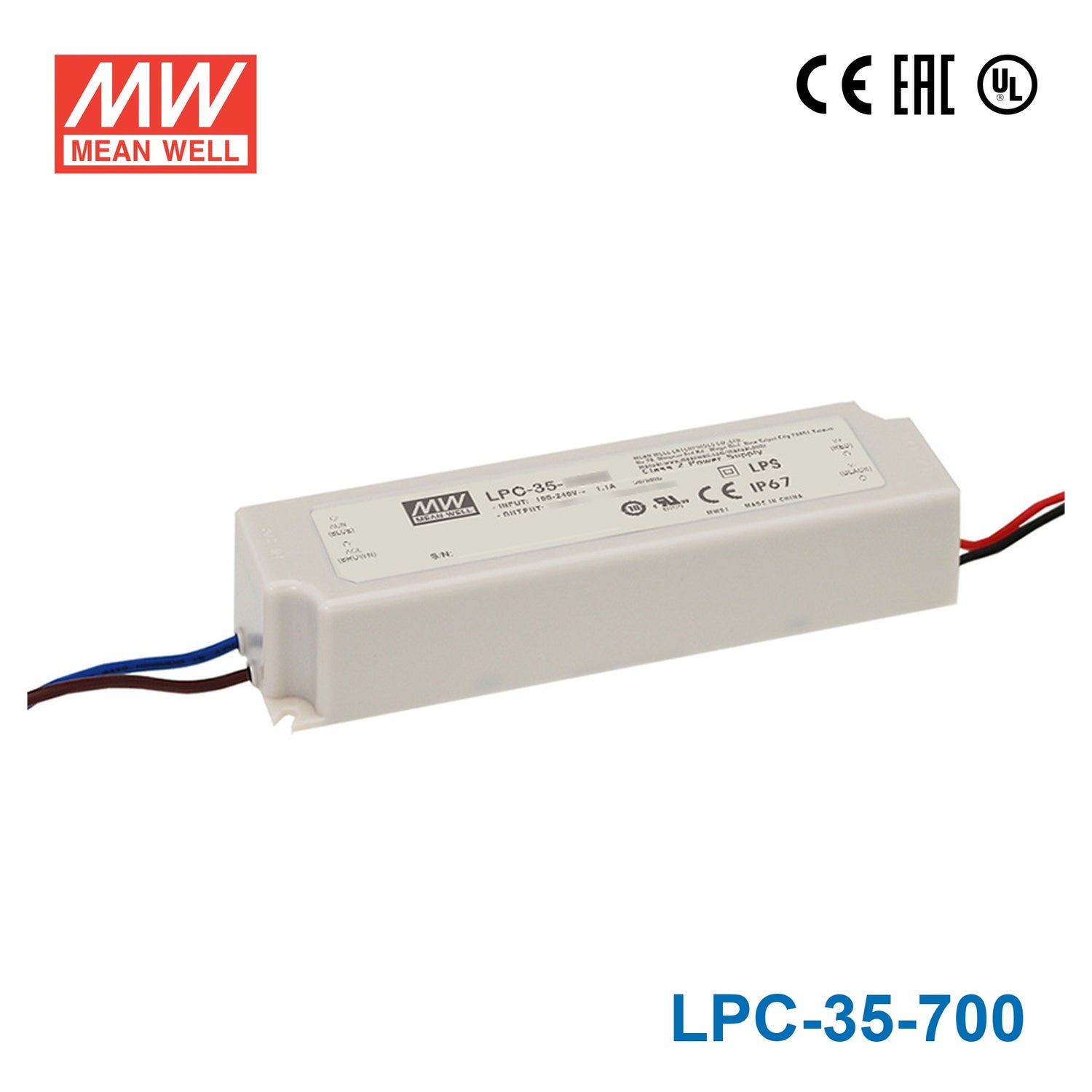

Mean Well LPC-35-700 Power Supply 35W 700mA

Name: Mean Well LPC-35-700 Power Supply 35W 700mA
Brand: Mean Well
SKU: LPC-35-700
Price: 16.08 USD
Availability: InStock

slim plastic caseeconomicalIP67

SKU LPC-35-700

$16.08 USD

Shipping calculated at checkout.

Select model — 3 in this family

LPC-35-700

LPC-20-700 20W 700mA In stock$12.47 USD

LPC-35-700 35W 700mA In stock$16.08 USD

LPC-100-700 100W 700mA Backorder$28.50 USD

Product variants

In stock

Overview

LPC-35-700 is the model of this series: rated current 700mA, rated power 33.6W, typical efficiency 85%.

Features

Constant current design
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Over voltage
Cooling by free air convection
Fully encapsulated with IP67 level (Note.6)
Fully isolated plastic case
Class Ⅱ power unit, no FG
Class 2 power unit
Pass LPS
Display devices for decorative & advertising accessories (Note.9)
100% full load burn-in test
Low cost, high reliability
2 years warranty

Specifications

LPC-35-700Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

RATED CURRENT: 700mA
CONSTANT CURRENT REGION: 9 ~ 48V
RATED POWER: 33.6W
CURRENT RIPPLE^Note.2: ±5%
VOLTAGE TOLERANCE: ±5.0%
CURRENT ACCURACY: ±5.0%
SETUP, RISE TIME^Note.5: 500ms, 120ms / 230VAC 500ms, 120ms / 115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 85%
AC CURRENT (Typ.): 1.1A/115VAC 0.7A/230VAC
INRUSH CURRENT(Typ.): COLD START 55A(twidth=500μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: 0.25mA / 240VAC

PROTECTION

OVER VOLTAGE: 50.4 ~ 60V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL1310, CAN/CSA C22.2 No. 223-M91(except for LPC-35-700), BIS IS15885, IEC62368-1,EAC TP TC 004, BS EN/EN62368-1, IP67 approved;
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 6050.2K hrs min. Telcordia SR-332 (Bellcore) ; 574.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 148*40*30mm (L*W*H)
PACKING: 0.34Kg; 40pcs/14.6Kg/0.70CUFT

Certifications & ratings

IP level: IP67
Marked features: Class II

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Current ripple is measured 60%~100% of maximum voltage under rated power delivery.
3. Derating may be needed under low input voltage. Please check the static characteristics for more details.
4. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
6. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

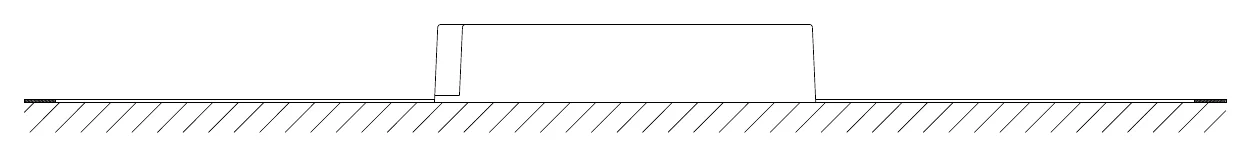

LPC-35-700 Recommend Mounting Direction — Recommend Mounting Direction

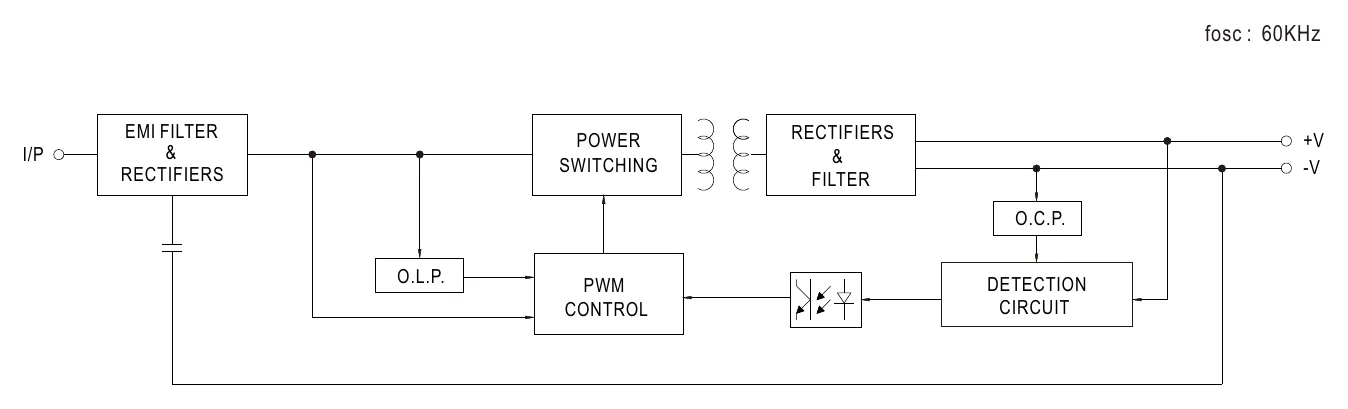

LPC-35-700 Block Diagram — Block Diagram

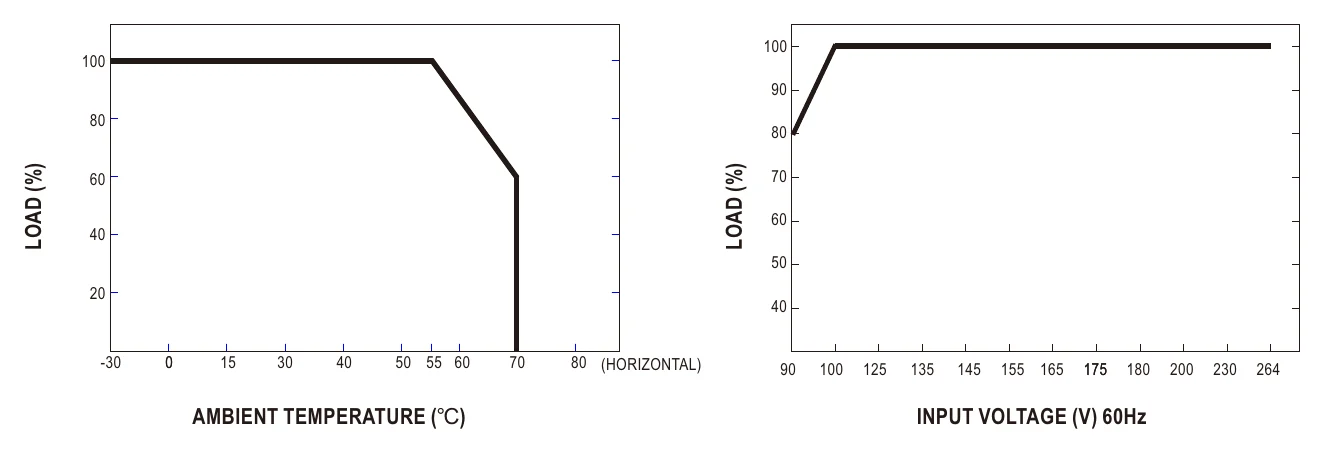

LPC-35-700 Derating Curve — Derating Curve

Downloads

Certificates2

EMC Certificate (LPC-35)(EN) PDF Download

UL Certificate(LPC-35)(EN) PDF Download

Test reports1

Test Report(LPC-35-700)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPC-35-700 for a 700mA LED downlight?

Yes, this driver is designed for constant current LED loads at 700mA. It is a fit for LED downlights that need 700mA and operate within the 9-48V constant current range, with total load power up to 33.6W.

Is the LPC-35-700 suitable for LED signage modules?

It can be suitable for signage modules if the module string is a constant current 700mA load and falls within the 9-48V CC output range. With an IP67 encapsulated design and 33.6W output, it suits indoor signage or outdoor signage that is not exposed to direct sunlight, unlike a non-waterproof indoor-only driver.

Can the LPC-35-700 run a small LED array?

Yes, if the LED array is designed for constant current operation at 700mA. The array's total forward voltage must stay within 9-48V and the total power must remain within 33.6W.

Will the LPC-35-700 work with my LEDs if I do not know the LED count yet?

This depends on the LED string's total forward voltage, not a fixed LED count. The driver supplies 700mA constant current across 9-48V, so the number of LEDs will vary based on each LED's forward voltage; it is not intended for constant voltage LED loads.

Is the LPC-35-700 okay for outdoor or harsh environments?

It is rated IP67 and has a working temperature range of -30°C to +70°C (with derating per the derating curve), so it handles wet or dusty environments when the rest of the fixture is rated appropriately. Outdoors it should be kept out of direct sunlight, and immersion in water for more than 30 minutes should be avoided.
