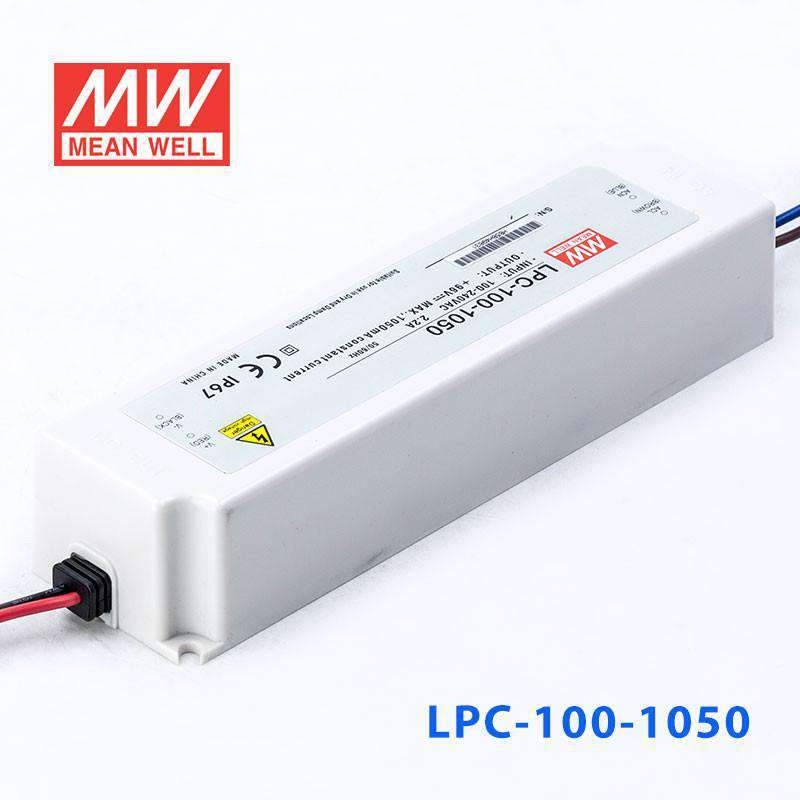

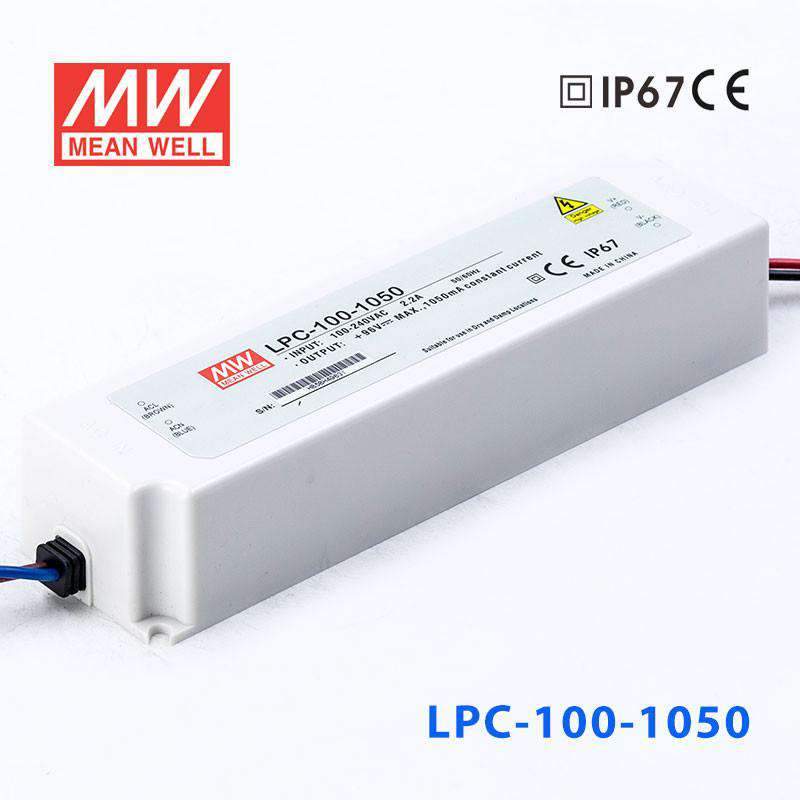

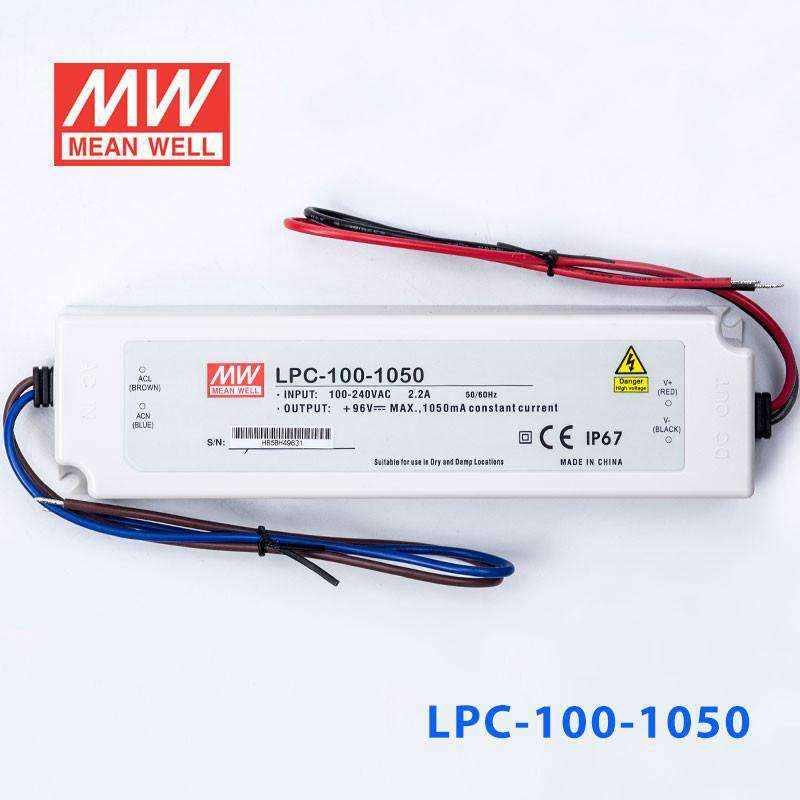

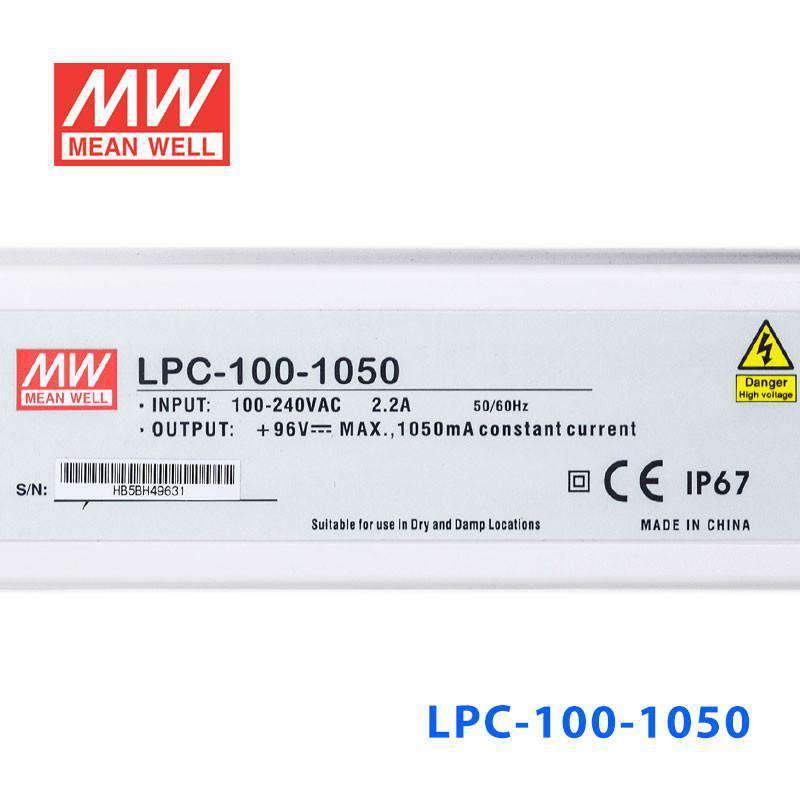

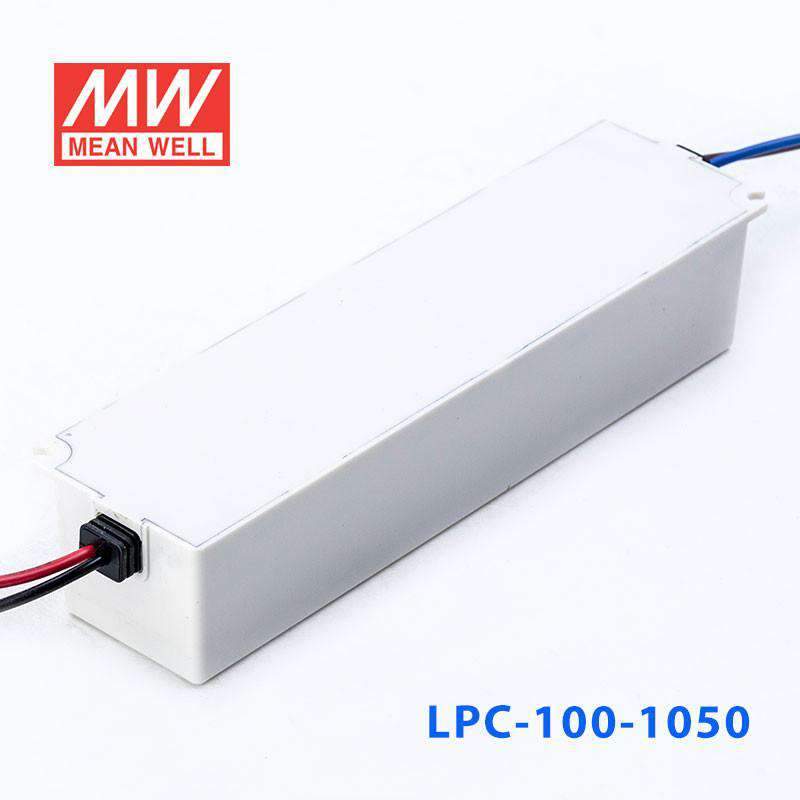

Mean Well LPC-100-1050 Power Supply 100W 1050mA

Name: Mean Well LPC-100-1050 Power Supply 100W 1050mA
Brand: Mean Well
SKU: LPC-100-1050
Price: 28.5 USD
Availability: InStock

slim plastic caseeconomicalIP67

SKU LPC-100-1050

$28.50 USD

Shipping calculated at checkout.

Select model — 3 in this family

LPC-100-1050

LPC-35-1050 35W 1050mA In stock$16.08 USD

LPC-60-1050 60W 1050mA In stock$18.02 USD

LPC-100-1050 100W 1050mA In stock$28.50 USD

Product variants

In stock

Overview

LPC-100-1050 is the model of this series: rated current 1050mA, rated power 100.8W, typical efficiency 90%.

LPC-100 series is one 100W single output AC/DC LED switching power supply. It features the constant current design, providing various models with the output current ranging from 350mA through 2100mA the LED lighting applications employ the most frequently. LPC-100 operates for the range 90~264VAC so it can perfectly work for most of the countries in the world. The whole series is based on class II (without FG pin) design, housed with a 94V-0 flame retardant plastic case. With the working efficiency up to 90%, LPC-100 can work at the ambient temperature between -25℃~+50℃ under air convection.

Features

Constant current design
Universal AC input/full rauge
Withstand 300VAC surge input for 5 seconds
High efficiency up to 90%
Protections: Short circuit / Over voltage
Cooling by free air convection
Fully encapsulated with IP67 level (Note.6)
Fully isolated plastic case
ClassⅡpower unit, no FG
100% full load burn-in test
Low cost, high reliability
2 years warranty (Note.4)

Specifications

LPC-100-1050Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

RATED CURRENT: 1050mA
CURRENT ACCURACY: ±5.0%
CONSTANT CURRENT REGION^Note.5: 48 ~ 96V
RATED POWER: 100.8W
RIPPLE CURRENT: ±5%
VOLTAGE TOLERANCE: ±1.5%
SETUP, RISE TIME: 1000ms, 80ms / 230VAC 2000ms,80ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 10ms/115vac at full load

INPUT

VOLTAGE RANGE^Note.2: 90 ~ 264VAC 127VDC ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 2.2 A / 115VAC 1.2A / 230VAC
INRUSH CURRENT (Typ.): COLD START 75A(twidth=980μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 1 units (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 240VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 108 ~ 120V Protection type : Shut down and latch off o/p voltage re-power on to recovery

ENVIRONMENT

WORKING TEMP.: -25 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: IEC 62368-1;EAC TP TC 004, IP67 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032(CISPR32) Class B; BS EN/EN61000-3-2 Class A(≦80% load); BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level , EAC TP TC 020

OTHERS

MTBF: 4121.8K hrs min. Telcordia SR-332 (Bellcore) ; 511.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 190*52*37mm (L*W*H)
PACKING: 0.61Kg;20pcs/13.2Kg/0.55CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Derating may be needed under low input voltages. Please check the static characteristics for more details.
3. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
4. Refer to warranty statement.
5. Constant current operation region is within 50% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.
6. Suitable for indoor use or outdoor use without direct sunlight exposure, please avoid immerse in the water over 30minutes.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

LPC-100-1050 Mechanical Specification — Mechanical Specification

LPC-100-1050 Recommend Mounting Direction — Recommend Mounting Direction

LPC-100-1050 Block Diagram — Block Diagram

Typical applications

Display devices for decorative & advertising accessories (Note.9)

Downloads

Certificates1

EMC Certificate (LPC-100)(EN) PDF Download

Test reports1

Test Report (LPC-100-1050)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPC-100-1050 for outdoor LED downlights?

Yes, this driver has an IP67 rating and operates from -25°C to +50°C; the datasheet allows indoor use or outdoor use without direct sunlight exposure, and immersion in water over 30 minutes should be avoided. The LED load still needs to be a constant current 1050mA design within the 48-96V CC output range. Note that the datasheet states it is not intended for LED lighting luminaire applications in the EU and China.

Is the LPC-100-1050 suitable for weather-exposed LED signage?

It can be used for signage when the LED load is designed for 1050mA constant current operation and the total LED forward voltage stays within 48-96V. Its IP67 rating suits outdoor locations without direct sunlight exposure; the datasheet does not cover installation in direct sun.

Can this model run a medium-power LED array that needs constant current control?

Yes, the LPC-100-1050 provides 1050mA constant current output with a 48-96V CC range and up to 100.8W. It is intended for LED arrays that need regulated current, not for constant voltage LED strips or modules.

How do I know if my LEDs are compatible with the LPC-100-1050?

Your LED load must be specified for constant current operation at 1050mA, and the total forward voltage of the LEDs must stay within the 48-96V constant current range. The number of LEDs depends on each LED's forward voltage, so there is no single universal LED count for this driver.

Can the LPC-100-1050 be used in wet or dusty locations?

Yes, it is rated IP67 and suitable for indoor use or outdoor use without direct sunlight exposure; avoid immersion in water over 30 minutes. Its operating temperature range is -25°C to +50°C, so the installation environment should stay within those limits.

How does the LPC-100-1050 compare with other LPC-100 models?

In the LPC-100 family, the sibling specs are: LPC-100-350 at 350mA with a 143-286V CC range and 100.1W, LPC-100-500 at 500mA with a 100-200V CC range and 100W, LPC-100-700 at 700mA with a 72-143V CC range and 100.1W, LPC-100-1400 at 1400mA with a 36-72V CC range and 100.8W, LPC-100-1750 at 1750mA with a 29-58V CC range and 101.5W, and LPC-100-2100 at 2100mA with a 24-48V CC range and 100.8W. The LPC-100-1050 sits in the middle of that range at 1050mA with a 48-96V CC range and 100.8W.
