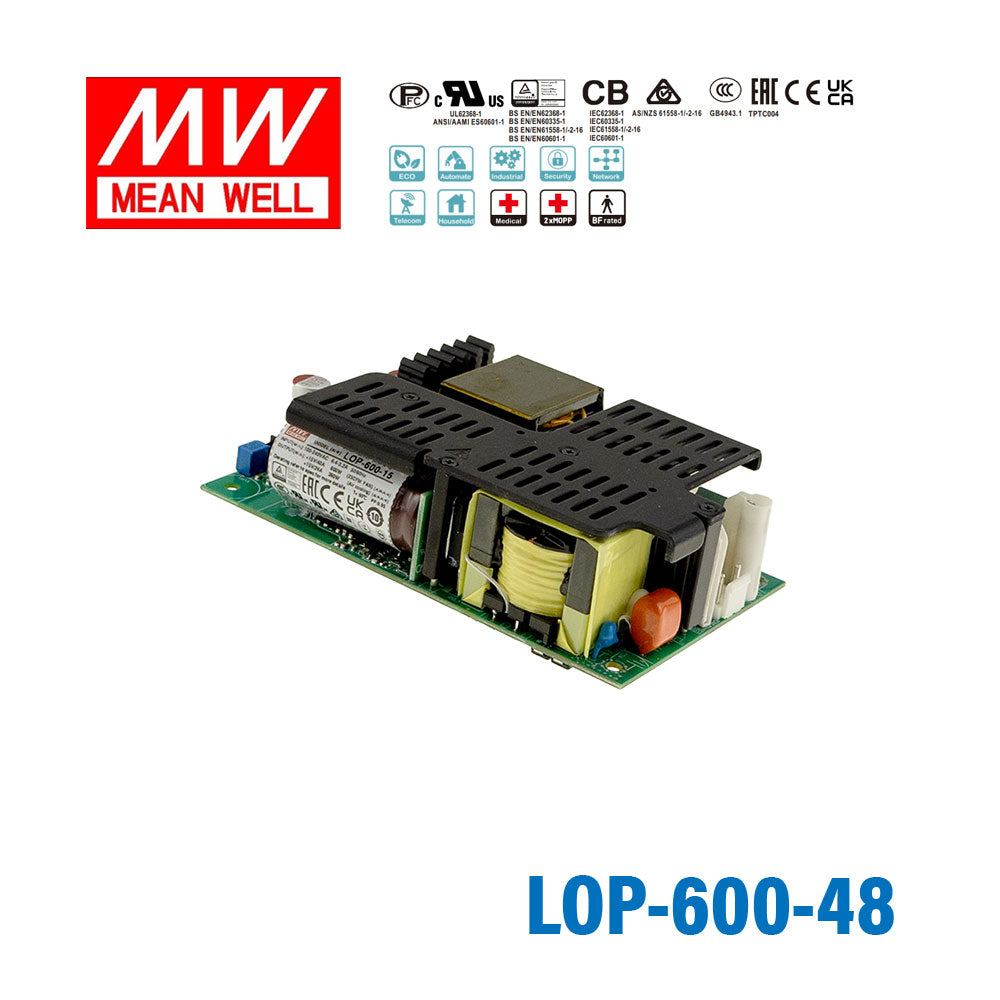

Mean Well LOP-600-48 600W 5"×3" Low Profile Open Frame Power Supply 48V 8.3A

Name: Mean Well LOP-600-48 600W 5"×3" Low Profile Open Frame Power Supply 48V 8.3A
Brand: Mean Well
SKU: LOP-600-48
Price: 140.27 USD
Availability: InStock

$140.27 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The Mean Well LOP-600-48 is a 600W low-profile open-frame power supply delivering 48V DC at up to 8.3A. Its slim board-level format is intended for building into equipment where height is the limiting dimension, and it cools by free-air convection.

Accepting 80~264VAC universal input with built-in active PFC, the LOP-600-48 operates from -40°C to 80°C and carries CB, CCC, CE, EAC, TÜV and UL approvals. Protection against overload, over-voltage and over-temperature is included, and it is backed by a 3-year warranty.

Key Features

✓MEAN WELL Patent Number: ZL 202223277512.1
✓5"x3" compact size with low profile
✓80~264Vac input with PFC, No load power consumption <0.5W
✓Global certificates in multi-fields
✓150% peak load @ 3s
✓400W convection, 600W with FAN 23CFM forced-cooled
✓suitable for Class I or Class II installations
✓Overvoltage category III (OVC III)
✓-40 ~+80°C wide range operation temperature
✓High efficiency up to 95%
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
✓Operating altitude up to 5000 meters
✓Built-in 12V/0.5A for external FAN
✓3 years warranty

Specifications

Brand

Mean Well
Series

Mean Well LOP Series
Power Rating

600 Watt
Output Voltage

48 Volt
Rated Current

8.3 Ampere
Standards Met

CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Warranty

3 Year
Length

5 in
Width

3 in
Height

1.32 in
Weight

1.06 lb
