Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

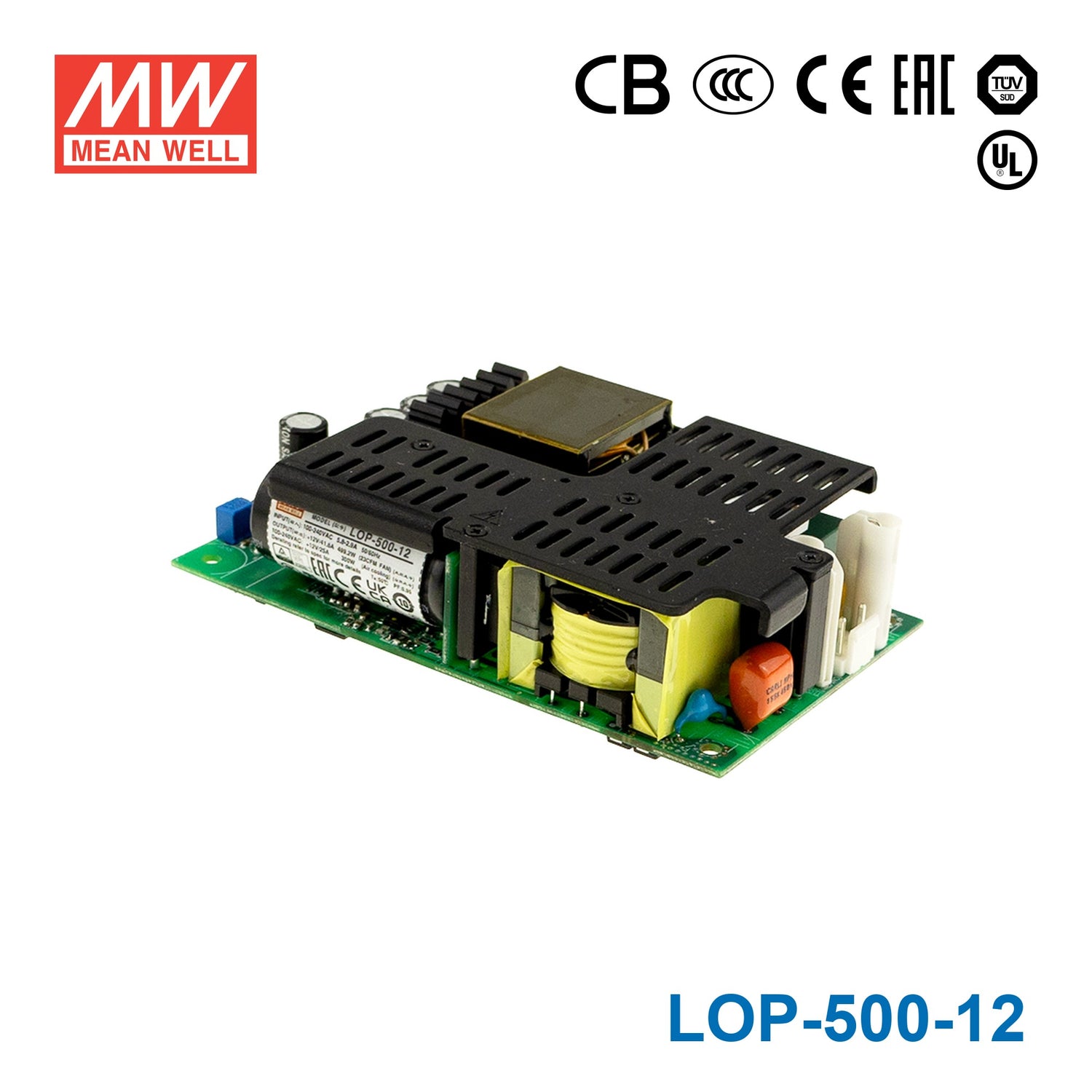

Mean Well LOP-500-12 500W 5"×3" Low Profile Open Frame Po...
$130.75 USD
Unit price /
Unavailable
Description
Description
Key Features
- ✓MEAN WELL Patent Number: ZL 202223277512.1
- ✓5"x3" compact size with low profile (30.5mm)
- ✓80~264Vac input with PFC, No load power consumption <0.5W
- ✓Global certificates in multi-fields
- ✓150% peak load @ 3s
- ✓320W convection, 500W with FAN 23CFM forced-cooled
- ✓suitable for Class I or Class II installations
- ✓Overvoltage category III (OVC III)
- ✓-40 ~+80°C wide range operation temperature
- ✓High efficiency up to 95%
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
- ✓Operating altitude up to 5000 meters
- ✓Built-in 12V/0.5A for external FAN
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well LOP Series
-
Power Rating500 Watt
-
Output Voltage12 Volt
-
Rated Current25 Ampere
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.2 in
-
Weight0.93 lb
