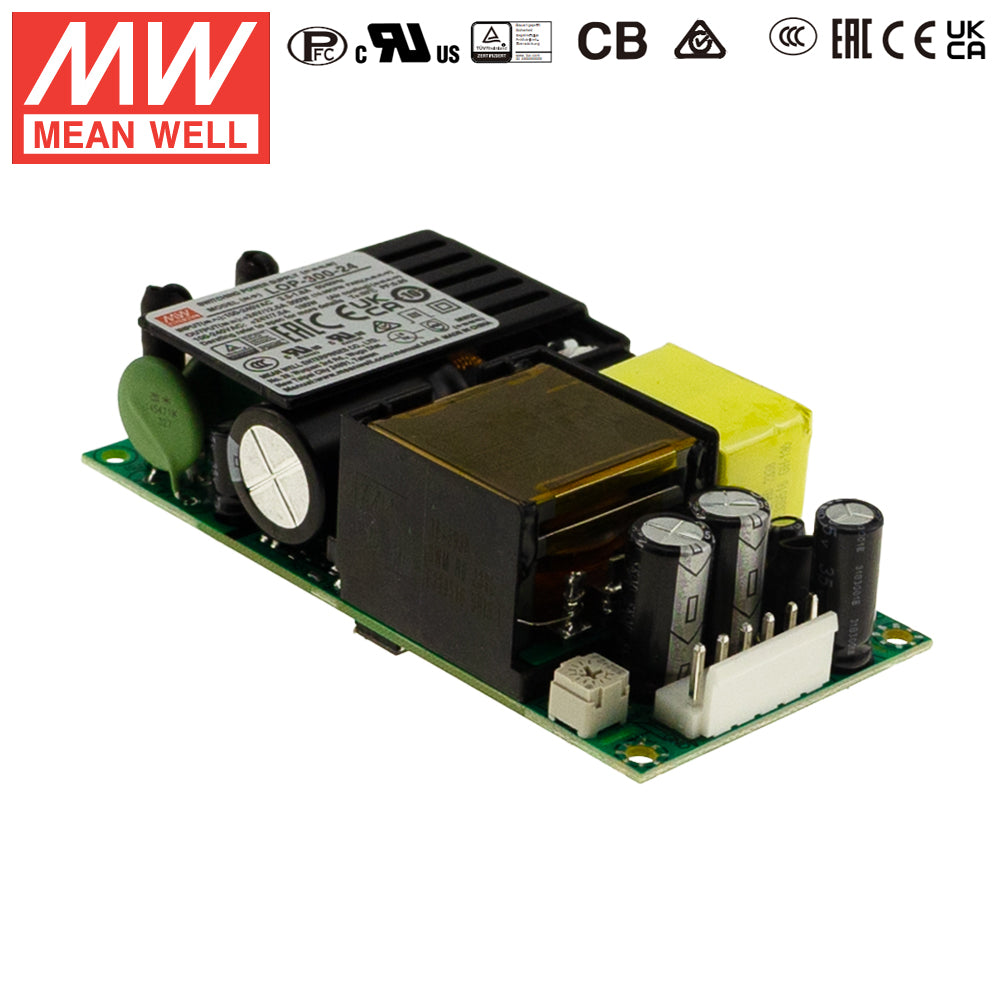

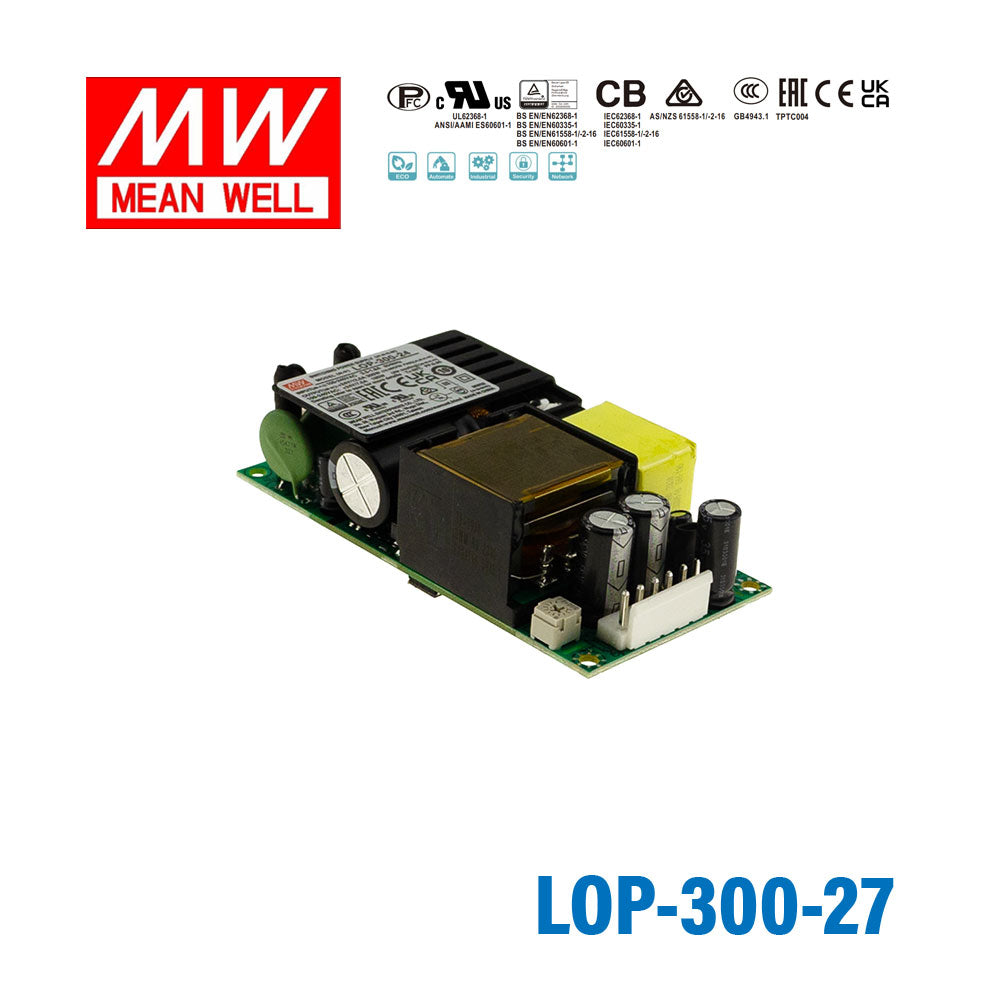

Mean Well LOP-300-27 300W 4"×2" Low Profile Open Frame Power Supply 27V

Name: Mean Well LOP-300-27 300W 4"×2" Low Profile Open Frame Power Supply 27V
Brand: Mean Well
SKU: LOP-300-27
Price: 71.41 USD
Availability: InStock

$71.41 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features:

MEAN WELL Patent Number: ZL 202223277512.1
4"x2" compact size with low profile (25.4mm)
80~264Vac input with PFC, No load power consumption <0.5W
Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-216
150% peak load @ 3s
180W convection, 300W with FAN 10.98CFM forced-cooled
suitable for Class I or Class II installations
Overvoltage category III (OVC III)
-40 ~+80°C wide range operation temperature
High efficiency up to 94%
Protections: Short circuit / Overload / Over voltage / Over temperature
Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
Operating altitude up to 5000 meters
Built-in 12V/0.5A for external FAN
3 years warranty

General Specification

VOLTAGE RANGE

80 ~ 264VAC 113 ~ 370VDC

SETUP, RISE TIME

1000ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load

INRUSH CURRENT (Typ.)

COLD START 40A/115VAC 80A/230VAC

POWER FACTOR

PF>0.95/230VAC PF>0.98/115VAC at full load

OVERLOAD

105 ~ 150% rated output power,

Protection type : Hiccup after 3 sec, recovers automatically(3 sec) after fault condition is removed

OVERVOLTAGE

(13.2 - 15.6V) (16.5 - 19.5V) (19.8 - 23.4V) (26.4 - 31.2V) (29.7 - 35.1V) (39.6 - 46.8V) (52.8 - 62.4V) (59.4 - 67.5V)

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Protection type : Shut down o/p voltage, recovers automatically after temperature goes down or re-power on to recover

PROTECTIVE EXTRA-LOW VOLTAGE

IEC/EN61558-2-16 (SELV, 12~48V )

IEC/EN/UL 62368-1 (SELV / ES1,12~48V )

WORKING TEMP.

-40 ~ +80℃ (Refer to "Derating Curve")

SAFETY STANDARDS

CB IEC62368-1, IEC60335-1, IEC61558-1/-2-16, IEC60601-1; TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, BS EN/EN60601-1(3.2 Version); UL UL62368-1, ANSI / AAMI ES60601-1(3.2 Version) ; CCC GB4943.1 ; RCM AS/NZS 61558-1/-2-16; EAC TPTC 004 approved

WITHSTAND VOLTAGE

I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC

Dimension (LxWxH)

101.6x50.8x25.4mm

Specifications

Brand

Mean Well
Series

Mean Well LOP Series
Power Rating

300 Watt
Output Voltage

27 Volt
Rated Current

6.7 Ampere
Standards Met

CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Warranty

3 Year
Length

4 in
Width

2 in
Height

1 in
Weight

0.46 lb
