Mean Well

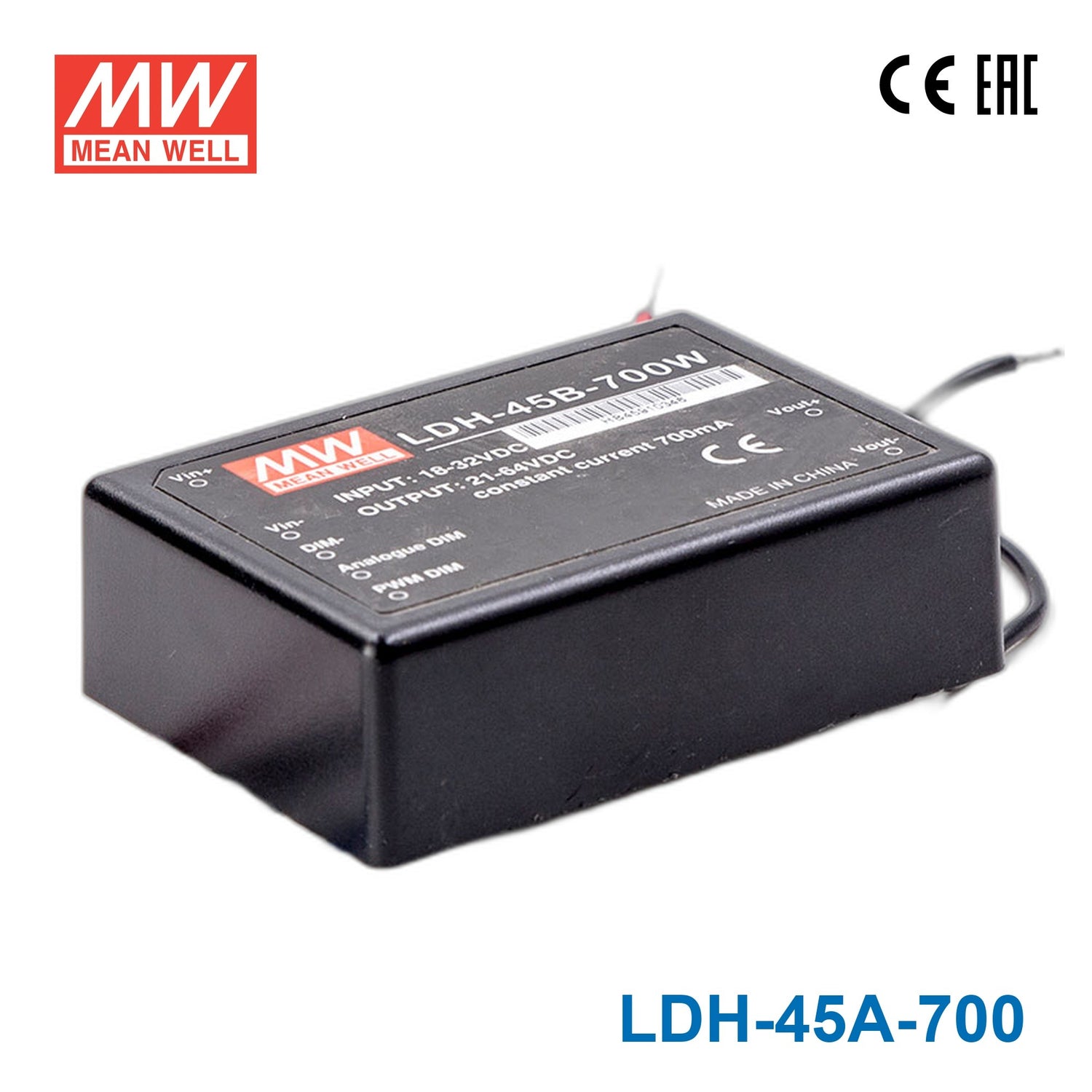

Mean Well LDH-45A-700 DC/DC LED Driver CC 700mA - Step-up

constant currentstep uphigh efficiency up to 95%pin style
SKU LDH-45A-700
$14.46 USD
Shipping calculated at checkout.
Available to order
|

Overview

LDH-45A-700 is the model of this series: rated current 700mA, rated power 44.8W, typical efficiency 90%.

Features

  • DC/DC step-up converter
  • Constant current output : 350mA to 1050mA
  • Wide output LED string voltage up to 126VDC
  • High efficiency up to 95%
  • PWM + analog dimming and remote ON/OFF control [(Blank) type or W type]
  • DALI dimming [(Blank)DA type or WDA type]
  • Protections: Short circuit / Over voltage / Under voltage
  • Cooling by free air convection
  • Fully encapsulated
  • 3 years warranty

Specifications

LDH-45A-700Specifications from the official datasheet (2024-10-16 edition)

OUTPUT

RATED CURRENT
700mA
CURRENT ACCURACY(Typ.)
±5% at 12VDC input
VOLTAGE RANGE Non-DALINote.2
12~64VDC
VOLTAGE RANGE DALINote.2
24~64VDC
NO LOAD OUTPUT VOLTAGE(max.)
75V
RATED POWER
44.8W
RIPPLE & NOISE (max.)Note.3
1.9Vp-p

INPUT

RATED VOLTAGE
12VDC
VOLTAGE RANGENote.2
9~18VDC
EFFICIENCY (max.)
90%
DC CURRENT (Typ.)
4.2A

PWM DIMMING & ON/OFF CONTROL

REMOTE ON/OFF
Leave open if not used Power ON with dimming: PWM signal >2~8VDC or open circuit, between PWM DIM and DIM- Power OFF : PWM signal <0.5VDC or short or PWM duty is equal to 0%, between PWM DIM and DIM-
PWM DIMMING FREQUENCY
1K~10KHz
QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.)
7mA when PWM dimming OFF

ANALOG DIMMING & ON/OFF CONTROL

REMOTE ON/OFF
Leave open if not used Power on with dimming: DC input >0.25~8VDC or open circuit, between Analog DIM and DIM- Power off : DC input <0.2VDC or short, between Analog DIM and DIM-
DIM INPUT VOLTAGE RANGE
0.25~1.3VDC
MAX OPERATION VOLTAGE
8V; The output current remains constant when voltage changes from 1.3V to 8V
QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.)
7mA when Analog dimming OFF

PROTECTION

SHORT CIRCUIT
Protection type : Power OFF and fuse open
OVER VOLTAGE (max.)
75V Protection type : Constant output voltage and shut off o/p current, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SOLDERING TEMPERATURE
Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)

SAFETY & EMC

SAFETY STANDARDS
LVD BS EN/EN61347-1, BS EN/EN61347-2-13,EAC TP TC 004 approved
EMC EMISSION
Compliance to BS EN/EN55015;EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61547,BS EN/EN61000-4-2,3,4,6,8; light industry level;EAC TP TC 020

OTHERS

MTBF
12195.2K hrs min. Telcordia SR-332 (Bellcore) ; 1179.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
75*53*22.7mm (L*W*H)
PACKING
138g;100pcs/14.8Kg/0.83CUFT[(Blank) type or (Blank) DA type],1.04CUFT(W type or WDA type)
Test conditions and notes3
  1. 1. All parameters are specified at normal input(12VDC,24VDC), rated load, 25℃ 70% RH ambient.
  2. 2. (Blank) type and W type output voltage must step up by 3 Volts from input DC voltage; (Blank)DA type and WDA type output voltage must step up by 12 Volts from input DC voltage.
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf parallel capacitor.

Technical drawings

LDH-45A-700 Mechanical Specification
Mechanical Specification
LDH-45A-700 Standard Application
Standard Application
LDH-45A-700 Efficiency VS Output Voltage(Number
Efficiency VS Output Voltage(Number
LDH-45A-700 Application Notes of EMC
Application Notes of EMC

Downloads

FAQ

Can I use the LDH-45A-700 for a 700mA LED downlight retrofit?

Yes, if the downlight is designed for constant current operation at 700mA. This model delivers 700mA across a 12-64V constant current range and supports up to 44.8W.

Is the LDH-45A-700 a good choice for signage lighting that uses constant current modules?

It can be, provided the signage module is a 700mA constant current load and not a constant voltage product. The driver is a step-up constant current unit with a 12-64V operating range and a 44.8W rating.

Can this driver run a compact high-output LED array?

Yes, small LED arrays that require 700mA constant current can be paired with this model when their total forward voltage falls within 12-64V. The available output power is 44.8W, so the array also needs to stay within that limit.

How do I know if my LEDs are compatible with this driver?

Match the LEDs by drive type first: this is a constant current driver, not a constant voltage power supply. It outputs 700mA over a 12-64V constant current range, and the number of LEDs depends on each LED forward voltage rather than a fixed LED count.

How does the LDH-45A-700 compare with the other 700mA LDH-45A versions?

LDH-45A-700 and LDH-45A-700W are 44.8W, 700mA models with a 12-64V constant current range, while LDH-45A-700DA and LDH-45A-700WDA are 44.8W, 700mA models with a 24-64V range. The standard and DA versions are pin style, while the W and WDA versions are wire style.
