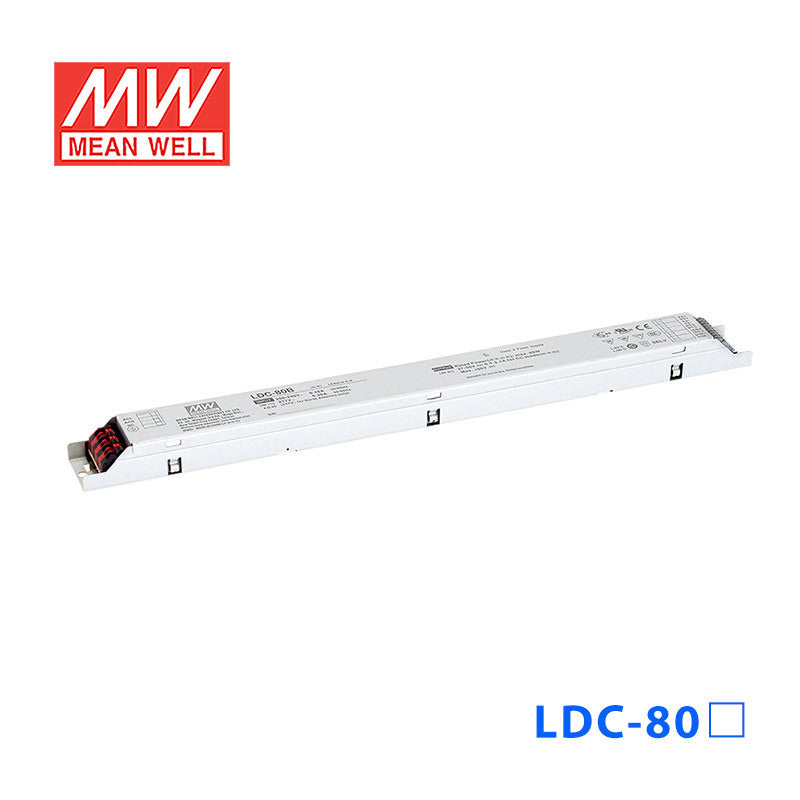

Mean Well LDC-80B Linear LED Driver 80W 700~2100mA Adjustable Output - Dimmable

$39.08 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Constant Power mode output
Metal housing design
Full power at 70~100% max current
Built-in active PFC function
Flicker-free design
No load/standby power consumption<0.5W
Output current level pre-settable
Function options: 3 in 1 dimming(dim-to-off); DALI interface, push dimming
Typical lifetime>50000 hours
SELV and isolated
Class 2 power supply
5 years warranty

General Specification

AC input voltage range 180~295VAC
AC inrush current (Typ.)

COLD START 55A(twidth=250μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

Short circuit protection Hiccup mode or constant current limiting recovers automatically after the fault condition is removed
Over temperature protection Shut down o/p voltage, with auto-recovery
Setup time 500ms / 230VAC
Withstand voltage I/P-O/P:3.75KVAC, I/P-FG:2.0KVAC, O/P-FG:1.5KVAC
Working temperature Tcase=-25 ~ +85℃
Safety standards UL8750, CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, AS/NZS 61347.1, AS/NZS IEC 61347.2.13
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020
Dimension (LxWxH)(mm) 366x30x21mm
Packing 40pcs/12.8Kg

Specifications

  • Brand
    Mean Well
  • Series
    LDC Series
  • Power Rating
    80 Watt
  • Output Voltage
    60 Volt
  • Rated Current
    0.7 Ampere
  • Input Voltage
    180V~295V
  • Standards Met
    BIS,CB,CCC,CE,EAC,ENEC,RCM,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -25°C~85°C
  • Warranty
    5 Year
  • Length
    14.17 in
  • Width
    1.18 in
  • Height
    0.83 in
  • Weight
    0.65 lb
