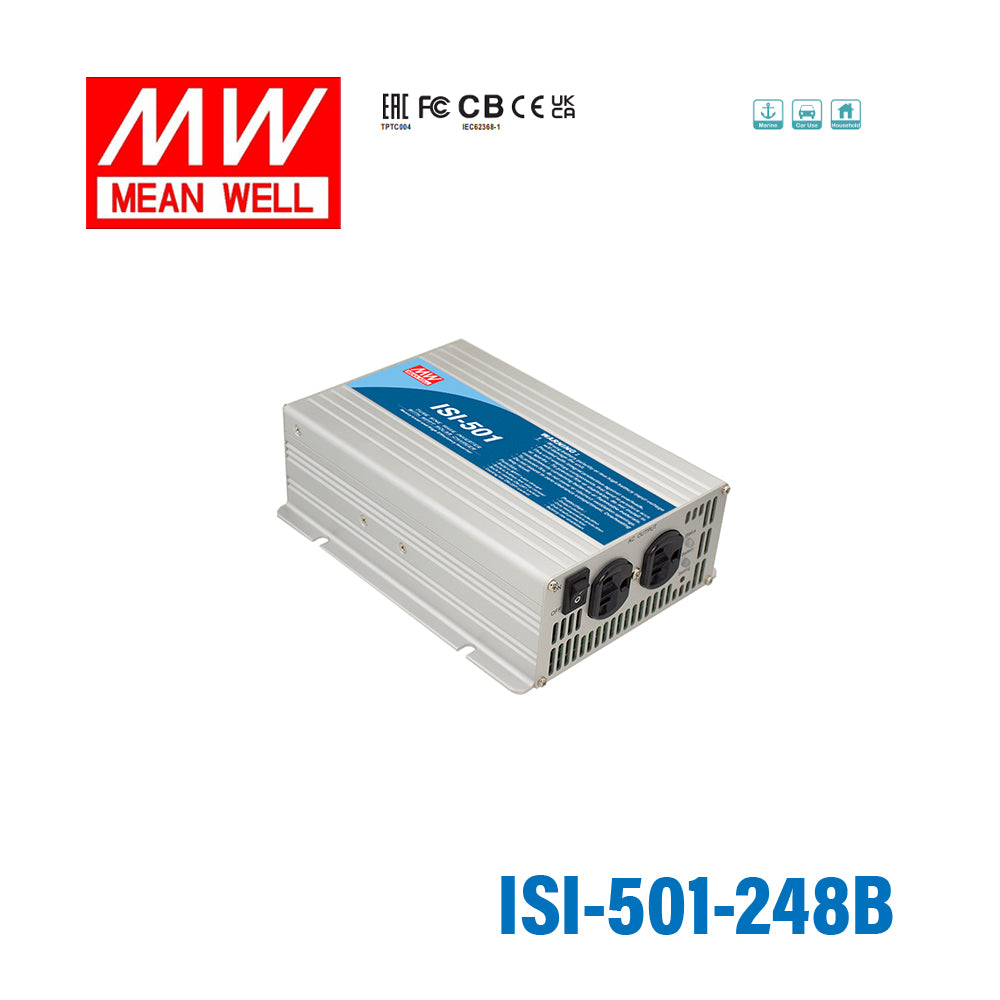

Mean Well ISI-501-248B True Sine Wave DC-AC Inverter 500W 110V out 12V in with MPPT Solar Charger

Name: Mean Well ISI-501-248B True Sine Wave DC-AC Inverter 500W 110V out 12V in with MPPT Solar Charger
Brand: Mean Well
SKU: ISI-501-248B
Price: 233.87 USD
Availability: InStock

true sine wavehigh surge power up to 1000WEurope Socket

SKU ISI-501-248B

$233.87 USD

Shipping calculated at checkout.

Available to order

Overview

ISI-501-248B is the model of this series: rated power 500W, typical efficiency 88%.

ISI-501 series integrates a DC/AC True Sine Wave Inverter and a MPPT charger. This series is a high performance true sine wave DC/AC inverter which converts the DC electricity from a system consisting of batteries and solar panels. ISI-501 is not only a high frequency designed inverter but also fully digitally controlled by an advanced microprocessor. With true sine wave output, ISI-501 series can provide 500W continuously, 550W for 60 seconds, and 1000W for 30 AC-cycles. This series incorporates a MPPT solar charger, including the constant current and constant voltage charging characteristics.

Features

True sine wave output (THD<3%)
High surge power up to 1000W
High efficiency up to 88%
High frequency design
Thermosstatically controlled cooling fan
Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp. / Output short / Input polarity reverse / Overload
Built-in 500W MPPT solar charger, MPPT efficiency:98%(Typ.)
Built-in remote ON-OFF control
Built-in battery low relay contact
LED indicator for operation status and battery capacity
3 years warranty

Specifications

ISI-501-248BSpecifications from the official datasheet (2024-09-04 edition)

INVERTER SECTION

RATED POWER: 500W
MAXIMUM OUTPUT POWER (Typ.): 550W for 60 sec. / surge power 1000W for 30 cycles (112, 212 models : 495W for 60 sec. / surge power 900W for 30 cycles)
AC VOLTAGE: Factory setting set at 230VAC 200 / 220 / 230 / 240VAC selectable by setting button S.W
FREQUENCY^Note.9: Factory setting set at 230VAC 50±0.1Hz 50/60Hz selectable by setting button S.W
WAVEFORM^Note.1: True sine wave (THD<3%)
AC REGULATION (Typ.): ±3%
FRONT PANEL INDICATOR: Fault and operation status, Charger status, Battery capacity
BAT. VOLTAGE: 48V
VOLTAGE RANGE^Note.3,5: 42 ~ 60VDC
DC CURRENT (Typ.)^Note.7: 15A
NO LOAD CURRENT DRAW (Typ.): 0.32A
OFF MODE CURRENT DRAW (Typ.): ≦1mA
EFFICIENCY (Typ.)^Note.2: 88%
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover
OUTPUT SHORT: Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.): 110% load for 60 sec. Protection type : Shut down o/p voltage, re-power on to recover

BATTERY SECTION

CHARGER CURRENT (Typ.): 8.5A
BATTERY TYPE: Open & sealed Lead Acid
FUSE: 20A*2
BAT. LOW ALARM^Note.3: 45V
BAT. LOW SHUTDOWN^Note.3: 42V
REVERSE POLARITY: By internal fuse open

MPPT / SOLAR SECTION

MPPT CHARGER EFFICIENCY (Typ.): 98%
OPEN CIRCUIT VOLTAGE RANGE: 90 ~ 160V
MPPT RANGE: 70 ~ 160V
SOLAR INPUT CURRENT (Typ.): 4.5A
SOLAR INPUT POWER (Typ.): 500W

GENERAL SECTION

WORKING TEMP.^Note.4: -20 ~ +40℃ @ 100% load ; 60℃ @ 50% load
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY STANDARDS: IEC62368-1 CB, EAC TP TC 004 approved; Meet BS EN/EN62368-1
WITHSTAND VOLTAGE: Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
ISOLATION RESISTANCE: Bat I/P - AC O/P, Bat I/P - FG, AC O/P - FG: 100M ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 class B, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,8, BS EN/EN55035, EAC TP TC 020
MTBF: 565.4K hrs min. Telcordia SR-332 (Bellcore) ; 57.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 205*158*67mm (L*W*H)
PACKING: 2.35Kg; 6pcs/15.1Kg/1.55CUFT

Test conditions and notes9

1.THD is tested by rated power, linear load at 13V,26V,52V input voltage.
2.Efficiency is tested by 350W, linear load at 13V,26V,52V input voltage.
3.The tolerance of each voltage value by models is : 112/212→±0.5V ; 124/224→±1V ; 148/248→±2V.
4.Output derating capacity referenced by curve 1.
5.Input derating capacity referenced by curve 2.
6.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
7.DC current is tested by 500W, linear load at 12V,24V,48V input voltage.
8.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9.Type F for 60Hz only.

Technical drawings

ISI-501-248B Block Diagram — Block Diagram

ISI-501-248B Charging Curve — Charging Curve

ISI-501-248B Mechanical Specification — Mechanical Specification

Typical applications

Home appliance
Power tools
Portable equipment
Yacht
Vehicle

Downloads

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the main use case for the Mean Well ISI-501-248B inverter?

The ISI-501-248B is designed for converting DC battery power into true sine wave AC power in mobile, off-grid, and solar-supported systems. Its built-in 500W MPPT solar charger also makes it suitable for applications where battery charging and AC output are needed in one unit.

What are the key electrical specifications of the ISI-501-248B?

This model is rated for 500W continuous output and supports surge power up to 1000W. It accepts a 42 to 60VDC input range, delivers true sine wave AC output with THD below 3%, and reaches efficiency up to 88%.

How does the built-in solar charger benefit this model?

The ISI-501-248B includes an integrated 500W MPPT solar charger, so it can support battery charging in solar-based power systems without requiring a separate charger. The MPPT section is rated at 98% typical efficiency, which helps improve solar energy harvesting performance.

What battery types is the ISI-501-248B compatible with?

This inverter is specified for open and sealed lead-acid batteries. That makes it a fit for systems already built around those battery chemistries rather than models intended for unspecified battery types.

What protection features are included in the ISI-501-248B?

This model includes battery low alarm, battery low shutdown, over voltage, over temperature, output short, input polarity reverse, and overload protection. It also has a built-in cooling fan, built-in remote ON-OFF control, and a battery low relay contact for system monitoring.

Is the ISI-501-248B suitable for demanding operating environments?

It is built for operation from -20°C to +40°C at full load, with derating up to 60°C at 50% load. The unit also carries IEC62368-1 CB and EAC TP TC 004 approvals, which supports use in professional and industrial environments.
